Kukko 42-3 3-Arm Puller 90 X 120 Mm Swi vel Arm Type
Product number:
1934492
Manufacturer no.:
42-3
EAN:
4021176787904
Weight in kg:
0.87
Product information "Kukko 42-3 3-Arm Puller 90 X 120 Mm Swi vel Arm Type"
Kukko 42-3 Universal 3-jaw puller with swiveling jaws
For removing bearings, gears, discs, etc.
Description
- Swivelling standard puller jaws.
- Mechanical pressure screw.
- Milled thread treated with special coating.
- If there is not adequate free space around the part to be removed, we recommend using a 2-jaw puller (link[MP_41_Standard,series 41]).
Advantage
- The larger the pulling force, the stronger the puller hook's grip on the workpiece to be removed.
- Spindle head band prevents the wrench from slipping off.
- Hydraulic spindle series 8-0 for particularly tight parts, available from a particular puller size.
- Auxiliary hydraulic ram series 9 for particularly tight parts, can be used from a particular puller size.
- Almost all components available as replacement parts, time-saving order process thanks to numbering system.
KUKKO quality standards
- Quality made in Germany.
- Strong design, high performance and long service life.
- Safety label to ensure protection of intellectual property.
- A tube of KUKKO special grease included for pressure spindle.
Series 42
| Item no. | EAN 4021176 |
Clamping reach outside mm |
Clamping reach outside inch |
Clamping depth mm |
Clamping depth inch |
Hex drive size mm |
Max. tonne t |
Max. torque Nm |
Weight kg |

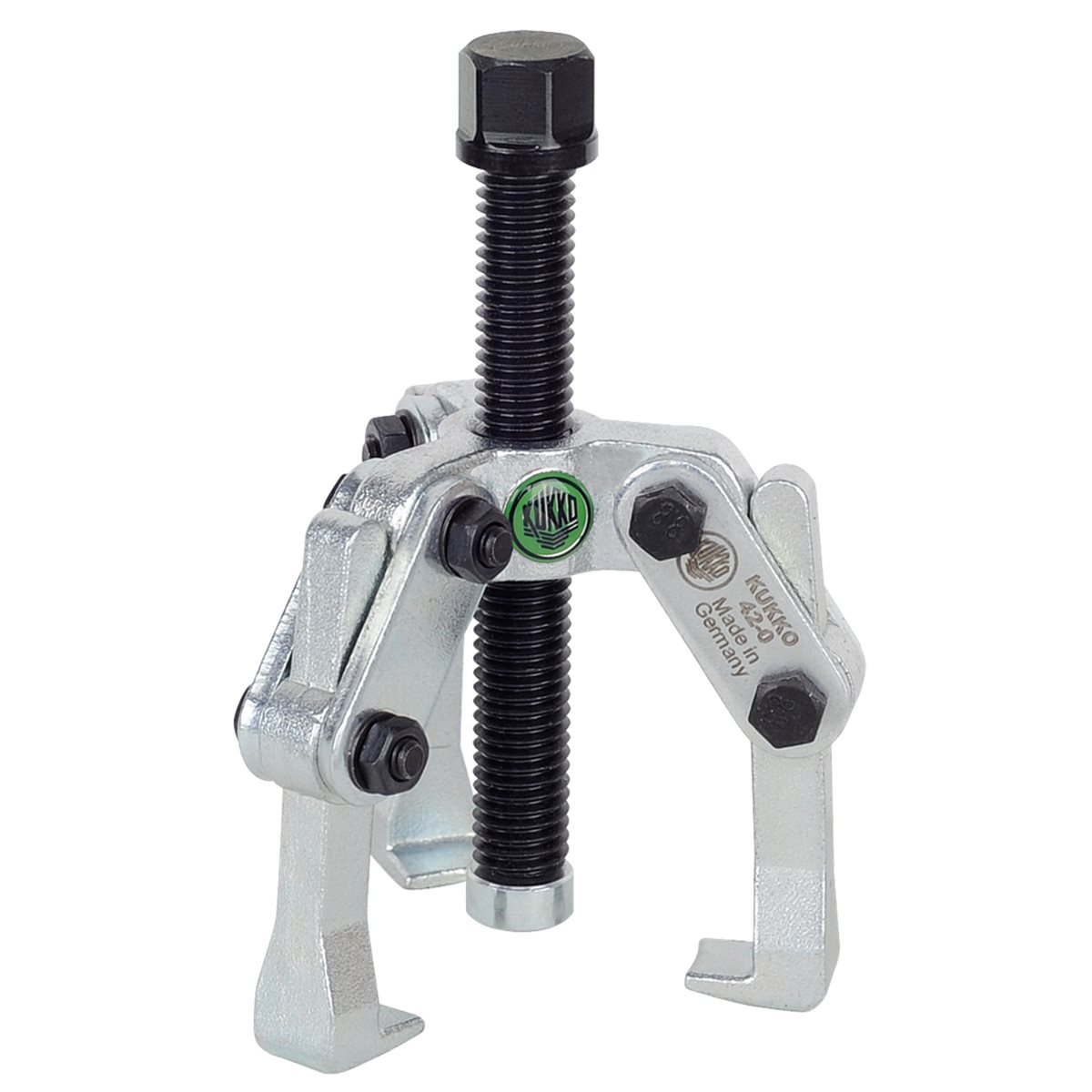

| 42-0 | 362026 | 60 | 2 3/8 | 40 | 1 5/8 | 13 | 1,5 | 25 | 0.27 |
| 42-1 | 015298 | 65 | 2 5/8 | 65 | 2 5/8 | 1,5 | - | 0.295 | |

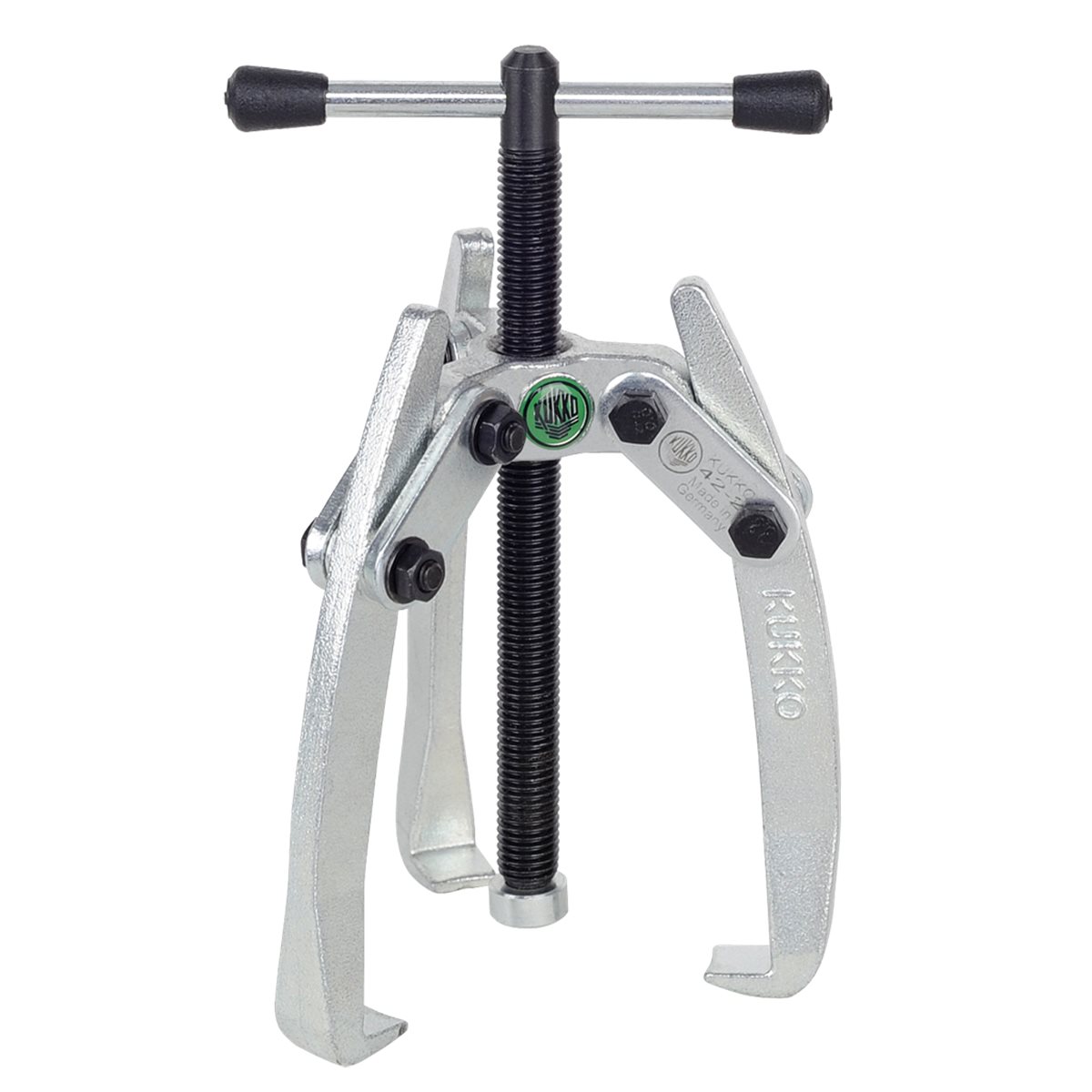

| 42-2 | 015373 | 80 | 3 3/16 | 80 | 3 3/16 | 1,5 | - | 0.33 | |
| 42-3 | 787904 | 90 | 4 | 120 | 4 3/4 | 13 | 3,0 | 40 | 0.87 |
| 42-4 | 836428 | 130 | 5 1/8 | 160 | 6 3/8 | 17 | 5,0 | 85 | 2.08 |
| 42-5 | 836596 | 180 | 7 1/8 | 200 | 7 7/8 | 22 | 7,0 | 150 | 4.295 |
Product Safety and Downloads
Documents and datasheets
Product safety information
Manufacturer
KUKKO Werkzeugfabrik
Kleinbongartz & Kaiser oHG
Heinrich-Hertz-Straße 5
40721 Hilden
Germany
info@kukko.com
