Kukko 44-6 2-Arm Puller 375 X 275 Mm Wit h Autom. Grip Adjustment
Product number:
1934535
Manufacturer no.:
44-6
EAN:
4021176815218
Weight in kg:
4.7
Product information "Kukko 44-6 2-Arm Puller 375 X 275 Mm Wit h Autom. Grip Adjustment"

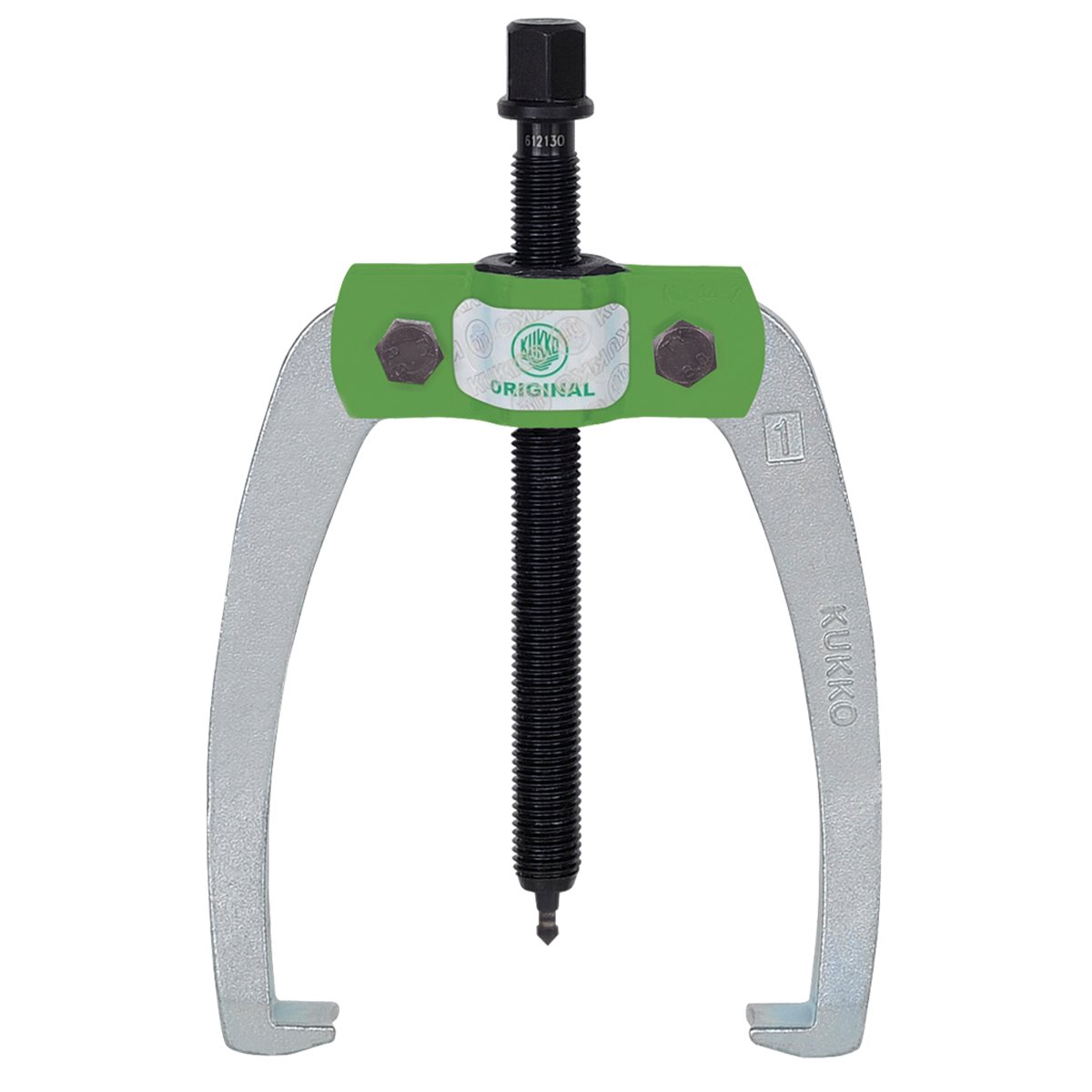

Kukko 44-6 Universal 2-jaw puller with self-centering jaws
For removing bearings, gears, discs, etc.
Description
- Standard pulling hook.
- Automatic self-centering pulling hooks.
- Two-arm design for space-saving operation.
- Optimal adjustment of the spindle to the shaft with 2-sided spindle tip (ball and tip).
- Mechanical pressure screw.
- Milled thread treated with special coating.
Advantage
- Spindle head band prevents the wrench from slipping off.
- Almost all components available as replacement parts, time-saving order process thanks to numbering system.
KUKKO quality standards
- Quality made in Germany.
- Strong design, high performance and long service life.
- Self-healing corrosion protection KUKKoating for galvanized parts (WITHOUT chrom VI).
- Safety label to ensure protection of intellectual property.
- A tube of KUKKO special grease included for pressure spindle.
Series 44
| Item no. | EAN 4021176 |
Clamping reach outside mm |
Clamping reach outside inch |
Clamping depth mm |
Clamping depth inch |
Hex drive size mm |
Max. tonne t |
Max. torque Nm |
Weight kg |
| 44-1 | 016028 | 100 | 3 7/8 | 100 | 3 7/8 | 13 | 3 | 50 | 0.525 |
| 44-2 | 016103 | 120 | 4 3/4 | 120 | 4 3/4 | 17 | 5 | 85 | 1.29 |
| 44-3 | 016288 | 160 | 6 3/8 | 160 | 6 3/8 | 19 | 6 | 140 | 1.9 |
| 44-4 | 016363 | 250 | 9 7/8 | 200 | 7 7/8 | 24 | 7 | 190 | 3.28 |
| 44-5 | 815133 | 300 | 11 7/8 | 250 | 9 7/8 | 24 | 9,5 | 200 | 4.175 |
| 44-6 | 815218 | 375 | 14 3/4 | 275 | 11 | 24 | 9,5 | 200 | 4.695 |
Product Safety and Downloads
Documents and datasheets
Product safety information
