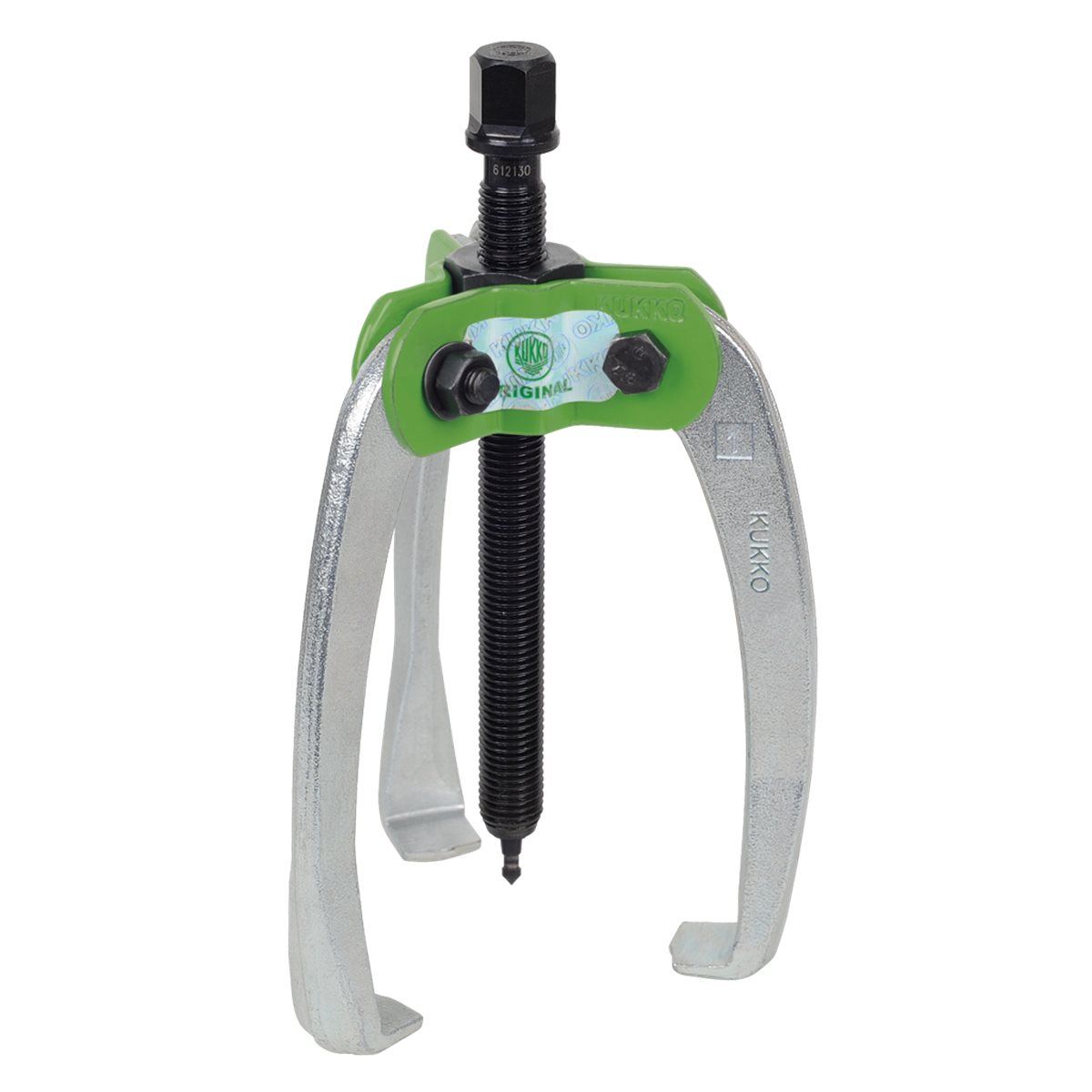

Kukko 45-5 3-Arm Puller 300 X 250 Mm Wit h Autom. Grip Adjustment
Product number:
1934549
Manufacturer no.:
45-5
EAN:
4021176815393
Weight in kg:
5.25
Product information "Kukko 45-5 3-Arm Puller 300 X 250 Mm Wit h Autom. Grip Adjustment"
Kukko 45-5 Universal 3-jaw puller with self-centering jaws
For removing bearings, gears, discs, etc.
Description
- Standard pulling hook.
- Automatic self-centering pulling hooks.
- The three-arm design ensures that the load is distributed evenly and that the part to be removed is held securely.
- Optimal adjustment of the spindle to the shaft with 2-sided spindle tip (ball and tip).
- Mechanical pressure screw.
- Milled thread treated with special coating.
Advantage
- Spindle head band prevents the wrench from slipping off.
- Almost all components available as replacement parts, time-saving order process thanks to numbering system.
KUKKO quality standards
- Quality made in Germany.
- Strong design, high performance and long service life.
- Self-healing corrosion protection KUKKoating for galvanized parts (WITHOUT chrom VI).
- Safety label to ensure protection of intellectual property.
- A tube of KUKKO special grease included for pressure spindle.
Series 45
| Item no. | EAN 4021176 |
Clamping reach outside mm |
Clamping reach outside inch |
Clamping depth mm |
Clamping depth inch |
Hex drive size mm |
Max. tonne t |
Max. torque Nm |
Weight kg |
| 45-1 | 016448 | 100 | 3 7/8 | 100 | 3 7/8 | 13 | 4 | 50 | 0.665 |
| 45-2 | 016516 | 120 | 4 3/4 | 120 | 4 3/4 | 17 | 6 | 120 | 1.124 |
| 45-3 | 016691 | 160 | 6 3/8 | 160 | 6 3/8 | 19 | 8 | 180 | 2.45 |
| 45-4 | 016776 | 250 | 9 7/8 | 200 | 7 7/8 | 24 | 9,5 | 200 | 4.18 |
| 45-5 | 815393 | 300 | 11 7/8 | 250 | 9 7/8 | 24 | 9,5 | 200 | 5.25 |
| 45-6 | 815478 | 375 | 14 3/4 | 275 | 11 | 24 | 9,5 | 200 | 6.085 |
| 45-7 | 821646 | 600 | 23 5/8 | 350 | 13 3/4 | 24 | 9,5 | 200 | 9.101 |
