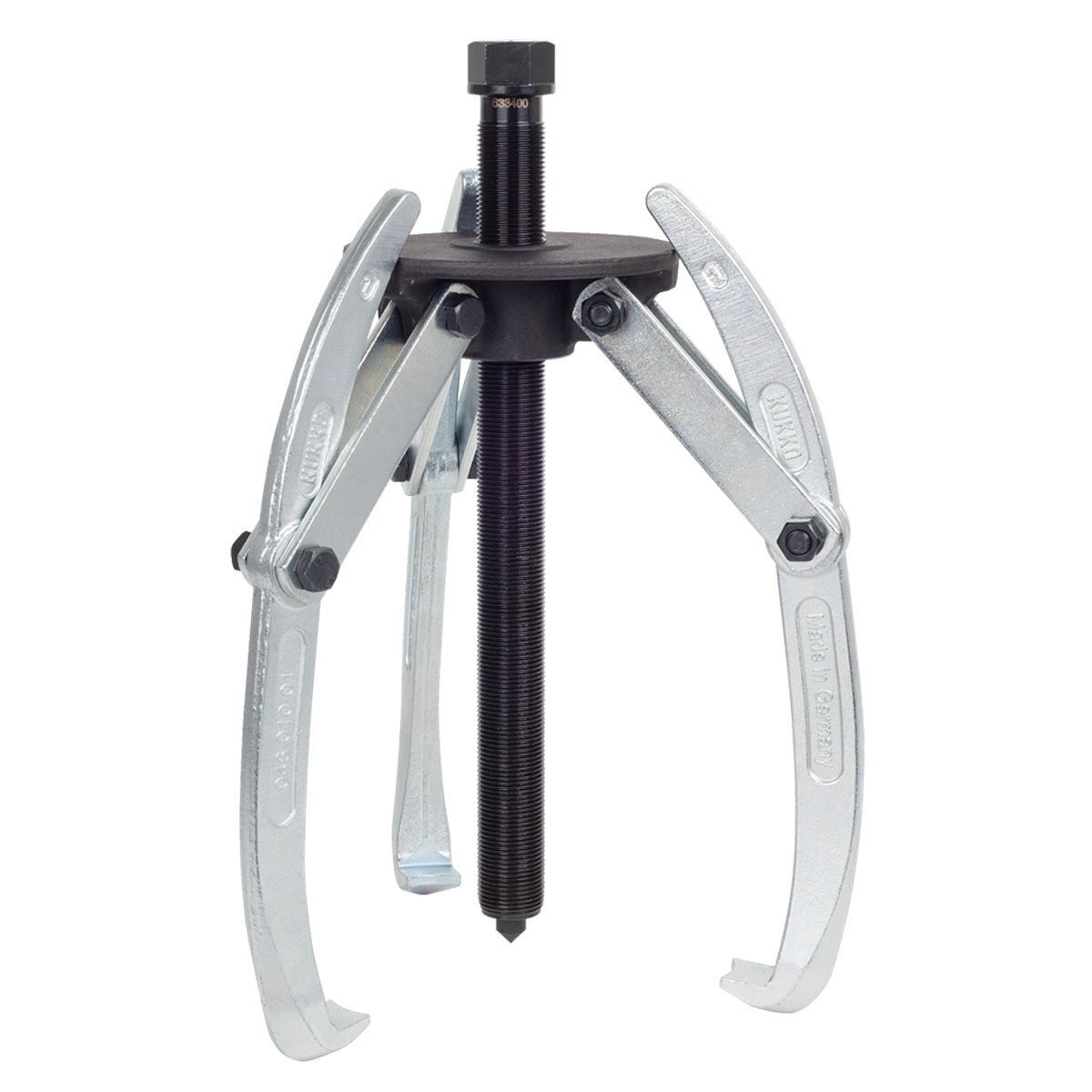

Kukko 47-1-A 3-Arm Heavy Puller 300X 300 Mm W ith Head For 3- And 2-Arm Use
Product number:
1935083
Manufacturer no.:
47-1-A
EAN:
4021176017681
Weight in kg:
12.2
Product information "Kukko 47-1-A 3-Arm Heavy Puller 300X 300 Mm W ith Head For 3- And 2-Arm Use "
Kukko 47-1-A Universal 3-jaw puller with swiveling jaws
For pulling tight-fitting bearings, gears, discs, etc.
Description
- Swivelling standard puller jaws.
- 2-jaw and 3-jaw combination cross beam.
- Mechanical pressure screw.
- Milled thread treated with special coating.
- If there is not adequate free space around the part to be removed, we recommend using a 2-jaw puller series 46 for optimal distribution of force.
Advantage
- Combi-pullers can be used as a 3-jaw and 2-jaw puller.
- The larger the pulling force, the stronger the puller hook's grip on the workpiece to be removed.
- Spindle head band prevents the wrench from slipping off.
- Hydraulic spindle series 8 for particularly tight-fitting parts also available as an option.
- Hydraulic extra press series 9 available as an option for particularly tight parts.
- Almost all components available as replacement parts, time-saving order process thanks to numbering system.
KUKKO quality standards
- Quality made in Germany.
- Strong design, high performance and long service life.
- Safety label to ensure protection of intellectual property.
- A tube of KUKKO special grease included for pressure spindle.
Series 47
| Item no. | EAN 4021176 |
Clamping reach outside mm |
Clamping reach outside inch |
Clamping depth mm |
Clamping depth inch |
Hex drive size mm |
Max. tonne t |
Max. torque Nm |
Weight kg |
| 47-1-A | 017681 | 300 | 11 7/8 | 300 | 11 7/8 | 36 | 12 | 450 | 12.205 |
| 47-2-A | 017841 | 500 | 19 3/4 | 450 | 17 3/4 | 36 | 12 | 450 | 14.68 |
