Kukko 483-3 3-Arm Puller 150 X 150 MmAu togrip
Product number:
1935141
Manufacturer no.:
483-3
EAN:
4021176480416
Weight in kg:
1.16
Product information "Kukko 483-3 3-Arm Puller 150 X 150 MmAu togrip"

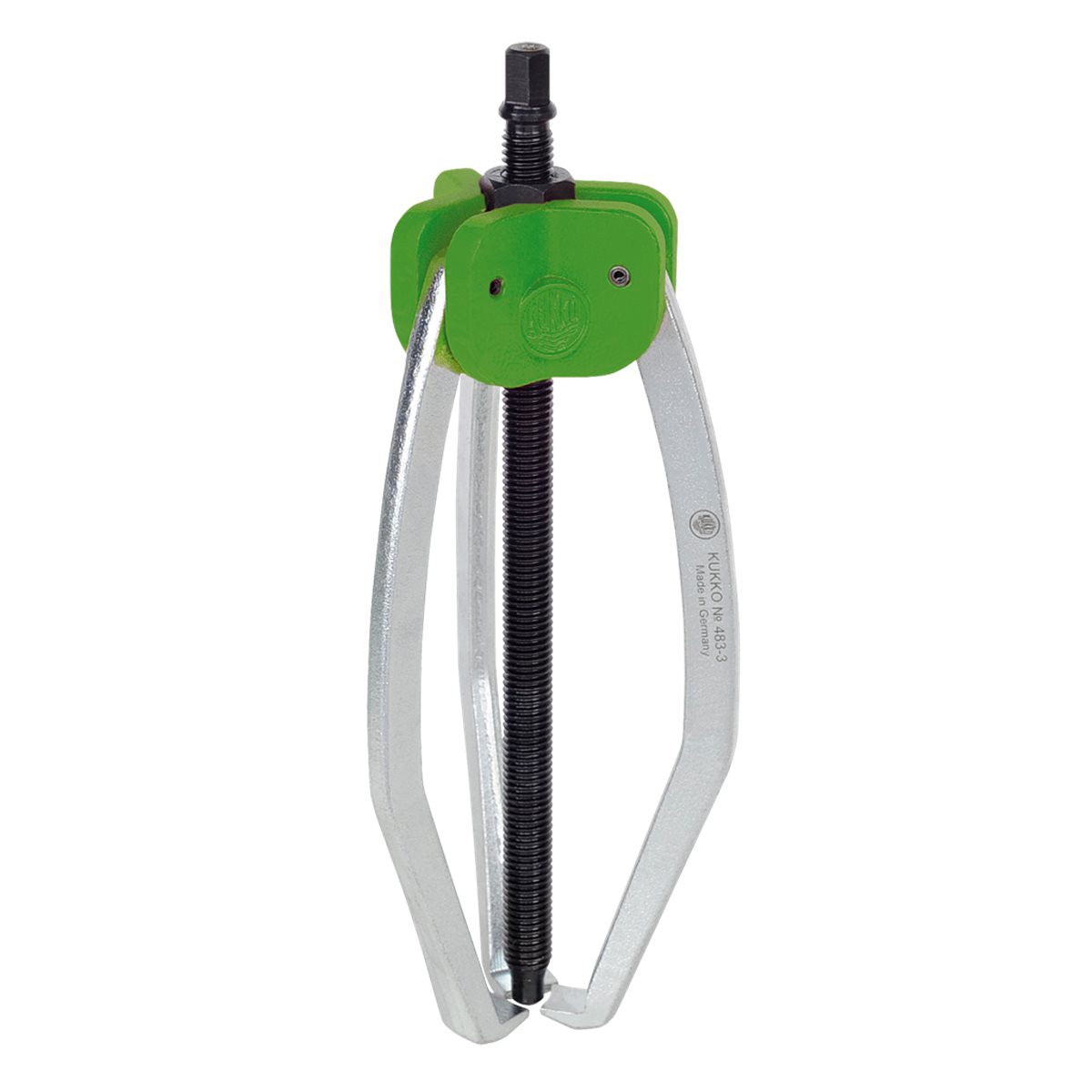

Kukko 483-3 Universal 3-jaw puller with Auto-Snap
For removing bearings, gears, discs, etc. for tight or difficult-to-access spaces.
Description
- Automatic tensioning and centering of the extractor jaws.
- Thanks to the integrated force transmission via the spring mechanism, the clamping force increases in proportion to the pulling force.
- The three-arm design ensures that the load is distributed evenly and that the part to be removed is held securely.
- Mechanical pressure screw.
- Milled thread treated with special coating.
Advantage
- The elastic effect and slim design enables parts to be pulled in difficult-to-reach places.
- Almost all components available as replacement parts, time-saving order process thanks to numbering system.
- Ideal for removing fan wheels or propellers.
KUKKO quality standards
- Quality made in Germany.
- Strong design, high performance and long service life.
- Self-healing corrosion protection KUKKoating for galvanized parts (WITHOUT chrom VI).
- Safety label to ensure protection of intellectual property.
- A tube of KUKKO special grease included for pressure spindle.
Series 483
| Item no. | EAN 4021176 |
Clamping reach outside mm |
Clamping reach outside inch |
Clamping depth mm |
Clamping depth inch |
Hex drive size mm |
Max. tonne t |
Max. torque Nm |
Weight kg |
| 483-2 | 480331 | 85 | 3 3/8 | 90 | 4 | - | 1,5 | - | 0.425 |
| 483-3 | 480416 | 150 | 5 7/8 | 150 | 5 7/8 | 10 | 2,5 | 35 | 1.16 |
| 483-4 | 480584 | 200 | 7 7/8 | 200 | 7 7/8 | 13 | 3 | 40 | 1.72 |
| 483-5 | 480669 | 250 | 9 7/8 | 250 | 9 7/8 | 13 | 3 | 40 | 2.395 |
