Kukko 626300 Thrust Screw G 3/4" X 300 Mm F. 20-30

€113.95

Content: 1 pcs

Available, delivery time: 2 working days

Available₁: 1 unit(s)

Stk

Product number: 1935595

Manufacturer no.: 626300

EAN: 4021176765360

Weight in kg: 1.32

Product information "Kukko 626300 Thrust Screw G 3/4" X 300 Mm F. 20-30 "

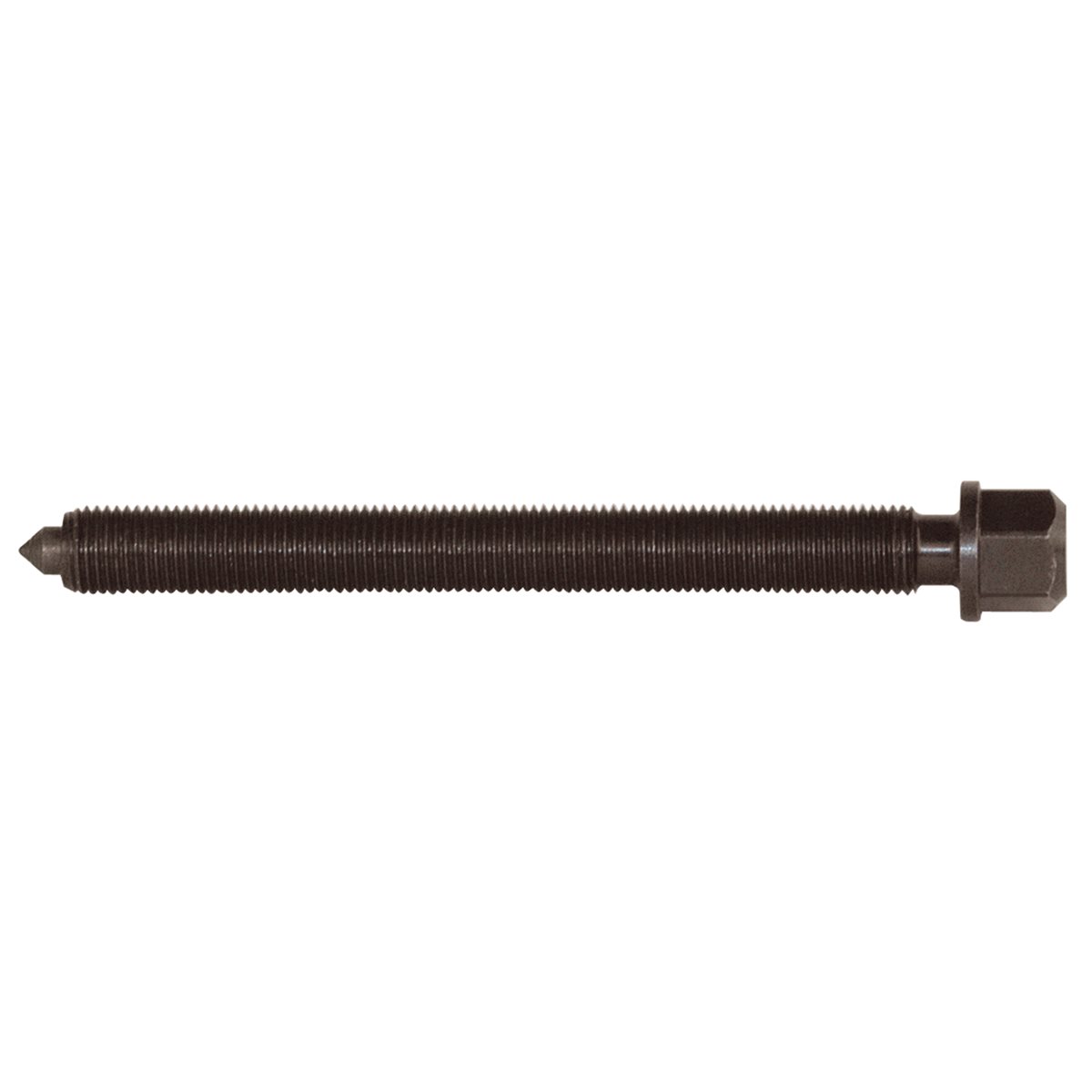

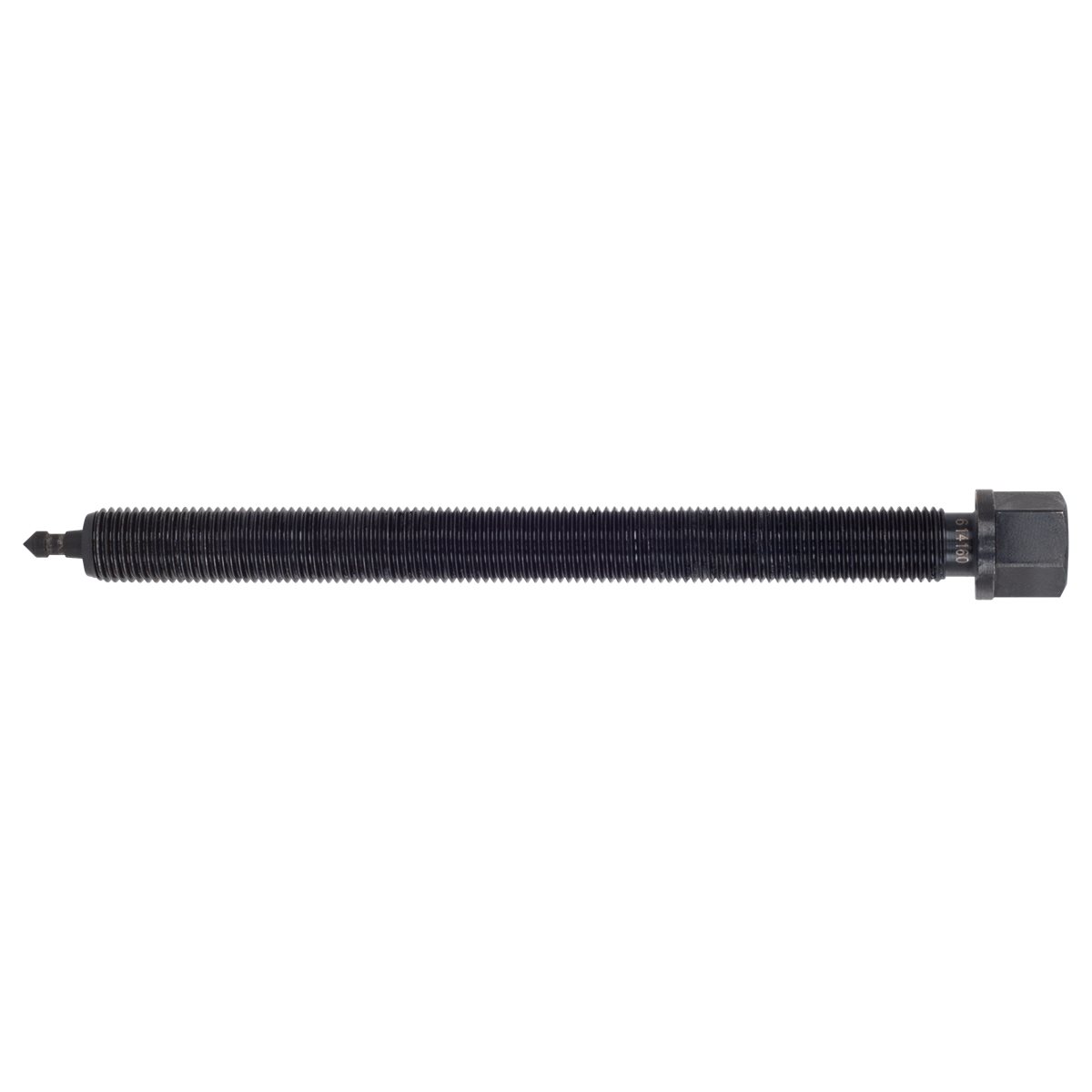

Kukko Mechanical pressure spindle

As a replacement part or supplement to your Kukko puller.

Description

The pressure spindles are specially coated to ensure particularly good sliding properties in the thread.
KUKKO pressure spindles with milled thread have been specifically engineered for use in KUKKO pullers.
Optimal adjustment of the spindle to the shaft with 2-sided spindle tip (ball and tip).
The mounted, freely-rotating centring point protects the shaft against damage when applying the pulling force.
Only complete with KUKKO safety-first label.
A tube of KUKKO special grease included for pressure spindle.
Quality made in Germany.

Advantage

The spindle heads have a band which prevents the wrench from slipping during the removal process.
The spindle head and the spindle collar are lasered with the item number.

Series 6

Item no.	EAN 4021176	Thread	Diameter of the thread mm	Length of the spindle mm	Measuring the thread mm	Size mm	Two-sided stem tip	Mounting diam. the stem tip mm	Weight kg
608080	176241	M 8x1,25	8	80	3,75	-	-	-	0.045
608130	481086	M 8x1,25	8	130	3,75	-	-	-	0.06
609087	102493	M 9x1,25	9	87	3,75	-	-	-	0.055
609105	101403	M9 x 1,25	9	105	3,75	-	-	-	0.06
610070	362446	M10x1,5	10	75	4,50	13	-	-	0.055
610094	122118	M10x1,5	10	94	4,50	-	-	-	0.115
610110	433726	M10x1,5	10	120	4,50	8	-	-	0.065
610120	910005	M10x1,5	10	120	4,50	13	-	-	0.12
612080	238468	M 12x1,5	12	85	4,50	13	612140	6,4	0.085
612110	112881	M 12x1,5	12	110	4,50	13	612140	6,4	0.115
612130	077081	M 12x1,5	12	130	4,50	13	612140	6,4	0.115
612150	790201	M 12x1,5	12	150	4,50	13	-	-	0.13
612200	056208	M 12x1,75	12	210	5,25	13	612140	6,4	0.22
614135	074271	M 14x1,5	14	135	4,50	17	612140	6,4	0.19
614160	112966	M 14x1,5	14	160	4,50	17	612140	6,4	0.22
614200	838576	M 14x1,5	14	200	4,50	17	612140	6,4	0.26
614250	306709	M 14x1,5	14	250	4,50	17	612140	6,4	0.31
616160	284236	M 16x1,5	16	145	4,50	17	-	-	0.265
616202	264351	M16x2,0	16	185	6,00	17	616180	10,4	0.32
616220	420856	M 16x1,5	16	220	4,50	17	616180	10,4	0.36
616270	480829	M 16x2,0	16	270	6,00	17	616180	10,4	0.405
616325	480904	M 16x2,0	16	325	6,00	17	-	-	0.5
618068	123771	M 18x1,5	18	58	4,50	19	-	-	0.175
618105	073779	M 18x1,5	18	105	4,50	19	616180	10,4	0.25
618175	056215	M 18x1,5	18	175	4,50	19	616180	10,4	0.375
618210	113048	M 18x1,5	18	210	4,50	19	616180	10,4	0.435
620172	817946	M 20x2,5	20	170	7,50	24	620260	12,5	0.59
620230	818028	M 20x2,5	20	230	7,50	24	-	-	0.715
620250	818103	M 20x2,5	20	250	7,50	24	-	-	0.76
621130	124358	G 1/2" / 14	20,955	130	5,40	22	620260	12,5	0.395
621170	067181	G 1/2" / 14	20,955	170	5,40	22	620260	12,5	0.45
621220	268373	G 1/2" / 14	20,955	220	5,40	22	620260	12,5	0.61
621300	765346	G 1/2" /14	20,955	300	5,40	22	620260	12,5	0.795
621355	236228	G 1/2" / 14	20,955	355	5,40	22	620260	12,5	0.94
623150	018961	G 5/8" / 14	22,911	150	5,40	24	-	-	0.54
623170	124501	G 5/8" / 14	22,911	170	5,40	24	620260	12,5	0.61
623230	074684	G 5/8" / 14	22,911	230	5,40	24	620260	12,5	0.76
623260	113123	G 5/8" /14	22,911	260	5,40	24	620260	12,5	0.86
623325	125263	G 5/8" / 14	22,911	325	5,40	24	620260	12,5	1.055
623360	814976	G 5/8" / 14	22,911	360	5,40	24	-	-	1.15
623450	832796	G 5/8" / 14	22,911	450	5,40	24	-	-	1.43
626300	765360	G 3/4" / 14	26,441	300	5,40	27	620260	12,5	1.32
626400	125423	G 3/4" / 14	26,441	400	5,40	27	620260	12,5	1.66
626500	765377	G 3/4" / 14	26,441	500	5,40	27	620260	12,5	2.085
633400	765384	G 1" / 11	33,249	400	6,90	36	-	-	2.71
633500	893452	G 1" / 11	33,249	500	6,90	36	-	-	3.43
633600	866388	G 1" / 11	33,249	600	6,90	36	-	-	4.05
637350	893469	G 1.1/8 / 11	37,897	350	6,90	36	-	-	3.12
637500	895609	G 1.1/8" / 11	37,897	500	6,90	41	-	-	4.24
637600	169236	G 1.1/8" / 11	37,897	600	6,90	41	633370	18,9	5.275
638300	059230	W 1.1/2"	-	322	-	24	-	-	2.68

Product Safety and Downloads

Documents and datasheets

Product safety information

Manufacturer

KUKKO Werkzeugfabrik
Kleinbongartz & Kaiser oHG
Heinrich-Hertz-Straße 5
40721 Hilden
Germany
info@kukko.com
