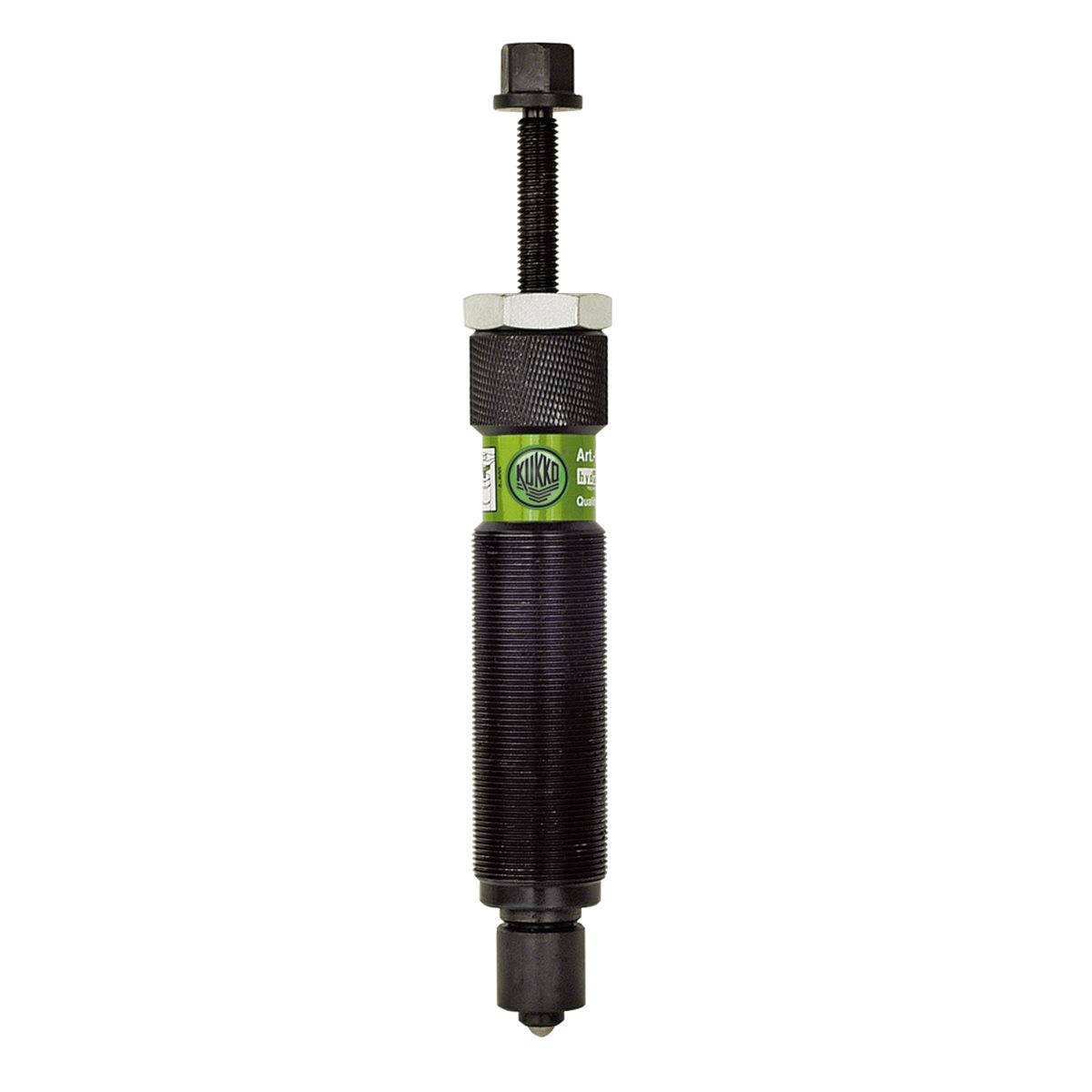

Kukko 801 Hydraulic Ram 15 Tons W. Thread W 1.1/2 "-16
€334.95
Content:
1 pcs
/ 7
Delivery time 7 working days
Product number:
1935807
Manufacturer no.:
801
EAN:
4021176784446
Weight in kg:
1.47
Product information "Kukko 801 Hydraulic Ram 15 Tons W. Thread W 1.1/2 "-16"
Kukko Short hydraulic spindle.
Description
- Series is built on a modular system.
- Pullers have the same hydraulic spindle.
- Easy-to-replace individual components that can be combined in a number of different ways.
- Grease hydraulics.
- Hydraulic spindle.
- Milled thread treated with special coating.
Use
- For pulling particularly tight bearings, gears, discs, etc.
Advantage
- Piston functions on the axis and does not turn in the hydraulic spindle.
- Spindle extensions enable the unit to be adjusted quickly to a range of different requirements.
- Spindle head band prevents the wrench from slipping off.
- Little force required for a strong pulling performance.
- Available as complete hydraulic pullers, individual parts and sets.
- Almost all components available as replacement parts, time-saving order process thanks to numbering system.
How it works
- Screw the upper spindle together before use.
- Insert the pressure piece onto the pressure bolt.
- Screw the hydraulic spindle into the puller´s cross-beam until the spindle rests on the shaft.
- Operating the upper spindle builds up pressure.
- If the spindle is not long enough, insert the spindle extensions on the pressure bolts.
- The pressure piece is then fitted on the spindle extension.
Safety information
- Observe max. torque.
- Do not use any electrical or pneumatic servo screwdrivers or hammer drills.
- Protective blanket required.
- Protective goggles required.
