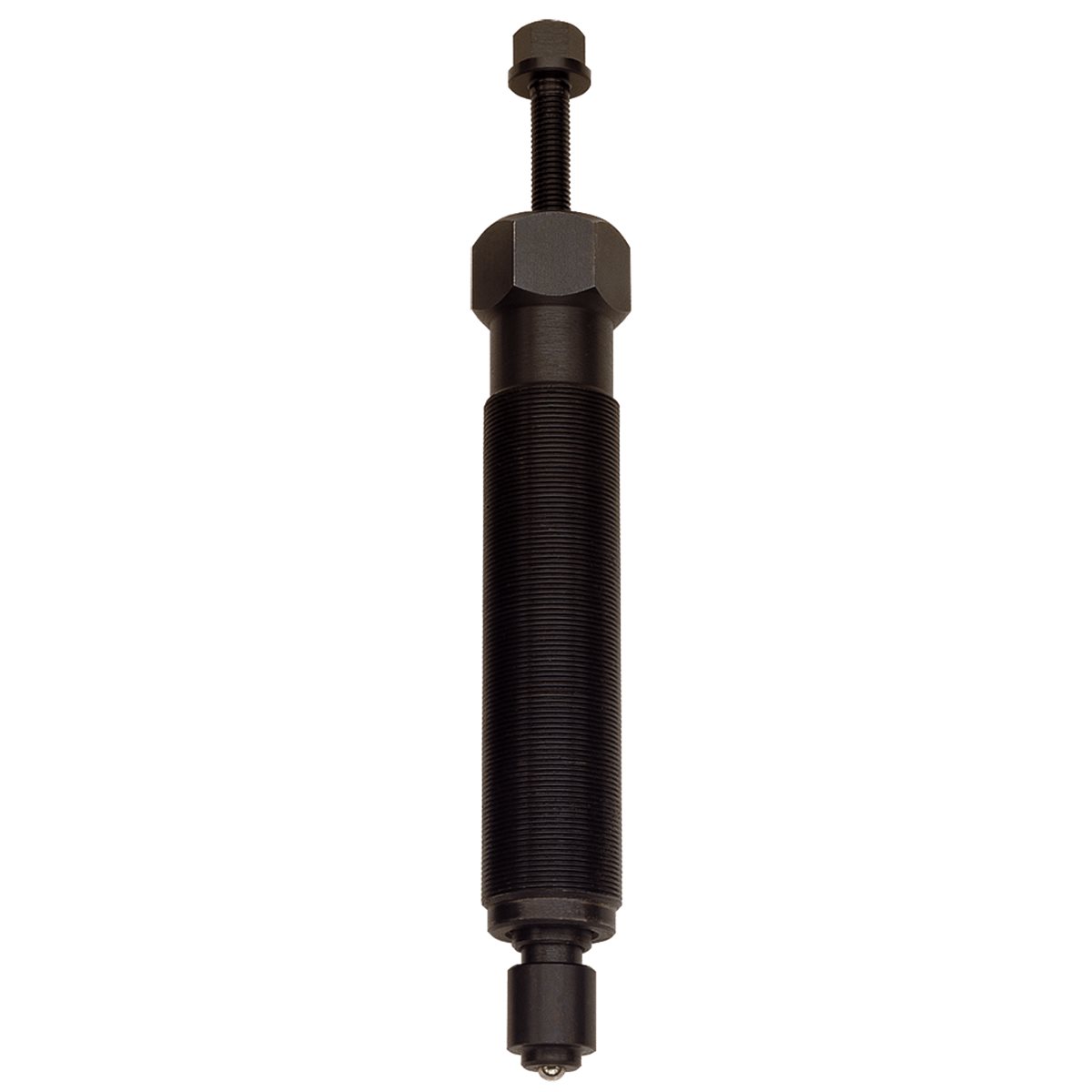

Kukko 802 Hydraulic Ram 20 Tons W. T hread M 40 X 1,5

Product information "Kukko 802 Hydraulic Ram 20 Tons W. T hread M 40 X 1,5 "

Kukko Short hydraulic spindles



Description

  • Series is built on a modular system.
  • Pullers have the same hydraulic spindle.
  • Easy-to-replace individual components that can be combined in a number of different ways.
  • Grease hydraulics.
  • Hydraulic spindle.
  • Milled thread treated with special coating.

Use

  • For pulling particularly tight bearings, gears, discs, etc.

Advantage

  • Piston functions on the axis and does not turn in the hydraulic spindle.
  • Spindle extensions enable the unit to be adjusted quickly to a range of different requirements.
  • Spindle head band prevents the wrench from slipping off.
  • Little force required for a strong pulling performance.
  • Available as complete hydraulic pullers, individual parts and sets.
  • Almost all components available as replacement parts, time-saving order process thanks to numbering system.

How it works

  • Screw the upper spindle together before use.
  • Insert the pressure piece onto the pressure bolt.
  • Screw the hydraulic spindle into the puller´s cross-beam until the spindle rests on the shaft.
  • Operating the upper spindle builds up pressure.
  • If the spindle is not long enough, insert the spindle extensions on the pressure bolts.
  • The pressure piece is then fitted on the spindle extension.

Safety information

  • Observe max. torque.
  • Do not use any electrical or pneumatic servo screwdrivers or hammer drills.
  • Protective blanket required.
  • Protective goggles required.
