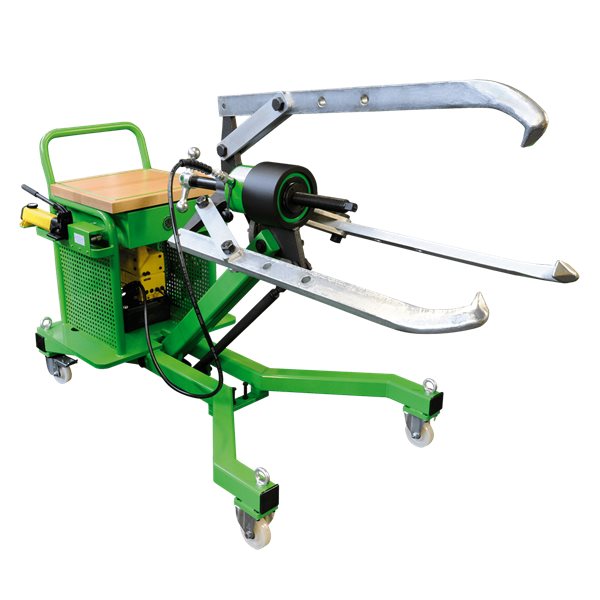

Kukko Goliath-256 Mobile Puller 20 Ton With 3-Jaw Puller 500 X 300 Mm

€18,260.55

Content: 1 pcs

Delivery time 30 working days

Stk

Product number: 1936009

Manufacturer no.: Goliath-256

EAN: 4021176102714

Weight in kg: 225

Product information "Kukko Goliath-256 Mobile Puller 20 Ton With 3-Jaw Puller 500 X 300 Mm "

With a pulling force of up to 50 tonnes, it is ideal for really big pulling jobs.

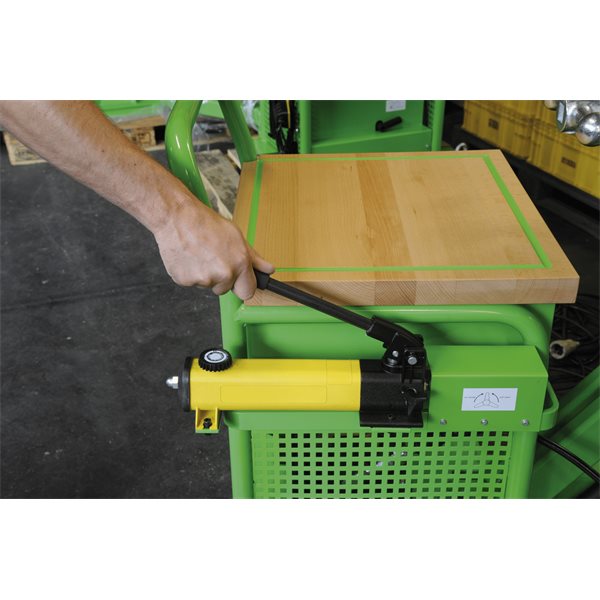

The central pressure spindle of the GOLIATH puller can be attached to the part to be pulled very easily and precisely by just one person thanks to the combination of hydraulic height adjustment and mechanical fine adjustment.
The puller can be positioned easily and conveniently using the Y-shaped mobile support frame with four easy-rolling, lockable castors, which also ensures stable placement for all applications.

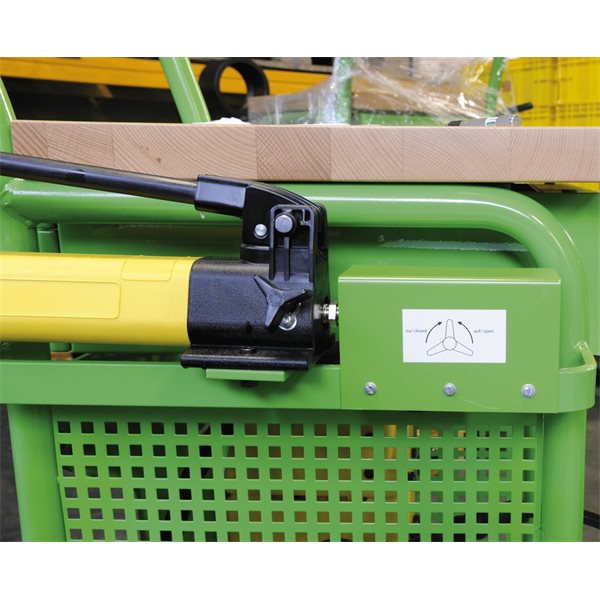

The pulling force is applied by a cylinder ram equipped with a central pressure spindle, which is actuated by a two-stage, electrically-driven hydraulic pump with remote motor control.
This avoids exposing users to the risk of injury from flying parts.
The protective blanket, which covers the puller during the removal process, offers additional protection.
The GOLIATH puller also sets standards with other safety features. For example, a mechanical safety device and additional hydraulic valves allow the puller height to be adjusted and ensure safe operation even under extremely high stress.

Mobile Kukko puller for heavy industry, railways, power plants and other applications where large bearings, gear wheels or similar parts must be dismounted.

The puller can be used with 2 or 3 jaws.
An accessory separator fixture can be fitted quickly and easily.
Modular system can be expanded with other extractor types.
Almost all components available as replacement parts, time-saving order process thanks to numbering system.
