Kukko Universal press frame for silent bushings
€805.95
Content:
1 pcs
/ 7
Delivery time 7 working days
Product number:
1935854
Manufacturer no.:
880-802
EAN:
4021176433702
Weight in kg:
7.16
Product information "Kukko Universal press frame for silent bushings "

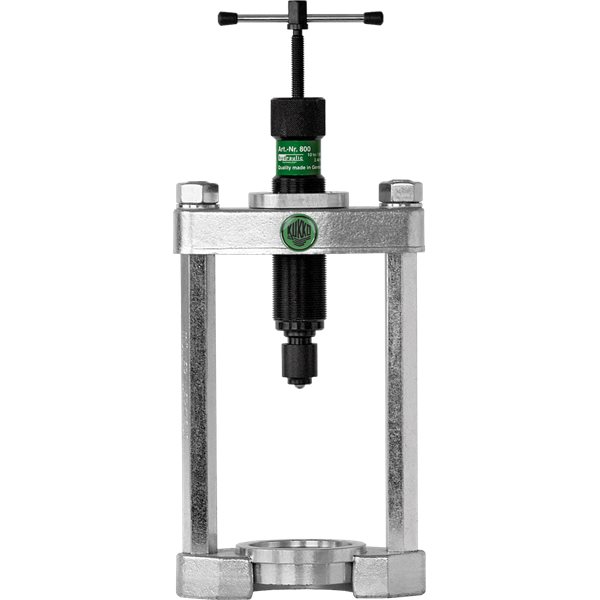

Kukko Universal press frame for silent bushings
Description
- Series is built on a modular system.
- Easy-to-replace individual components that can be combined in a number of different ways.
- Grease hydraulics.
- Hydraulic spindle.
- Milled thread treated with special coating.
Use
- For replacing bearings on front and rear axles without dismantling the axle, e.g. silent bearings, hydraulic supports, plastic bearings, supporting joints, absorber rubber.
Advantage
- Pressure pad sets available for a variety of vehicle types.
- Little force required for a strong pulling performance.
- Piston functions on the axis and does not turn in the hydraulic spindle.
- Spindle extensions enable the unit to be adjusted quickly to a range of different requirements.
- Spindle head band prevents the wrench from slipping off.
- Almost all components available as replacement parts, time-saving order process thanks to numbering system.
How it works
- Screw the upper spindle together before use.
- Insert the pressure piece onto the pressure bolt.
- Screw the hydraulic spindle into the press frame from above.
- Insert a suitable pressure pad.
- Position the press frame over the axle.
- Operating the upper spindle builds up pressure.
Safety information
- The press frame´s support surfaces must always be straight and sit fully beneath the part to be removed.
- Do not use any electrical or pneumatic servo screwdrivers or hammer drills.
- Protective blanket required.
- Protective goggles required.
Product Safety and Downloads
Documents and datasheets
Product safety information
