Kukko Universal wiper arm puller set

€564.95
Content:
1 pcs
/ 7
Delivery time 7 working days
Product number:
1936017
Manufacturer no.:
K-142/6
EAN:
4021176039249
Weight in kg:
2.61
Product information "Kukko Universal wiper arm puller set "

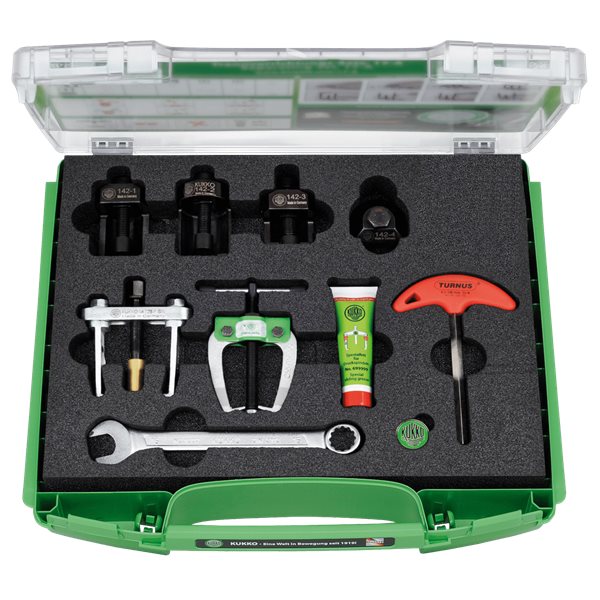

Kukko Universal wiper arm puller set
Description
- The one-piece bell-shaped design fits on all VW, Audi, Seat, Skoda and other models.
- Shaped for optimal fit with all commonly used types of wiper arms.
- Mechanical pressure screw.
- Milled thread treated with special coating.
- Instructions on the cover.
- Secure storage in special foam.
Use
- General purpose set used for pulling tight-fitting, rusted and deep-set windscreen whiper arms.
Advantage
- Windshield wiper arms can be pulled without removing the bonnet.
- The threaded spindles are guided by a movable bush, which allow the puller to be fitted to the edge of the arm at the start and in the middle at the end of the removal process.
- Suitable for front and rear wipers with the washing fluid hose passing through the hub.
- Special threads enable especially high pulling forces.
- Solid, single-piece milled body for high strength.
- No damage to wiper arm, shaft, etc.
- No paint scratching.
- No glass damage
How it works
- 128-F-SW general-purpose wiper arm puller

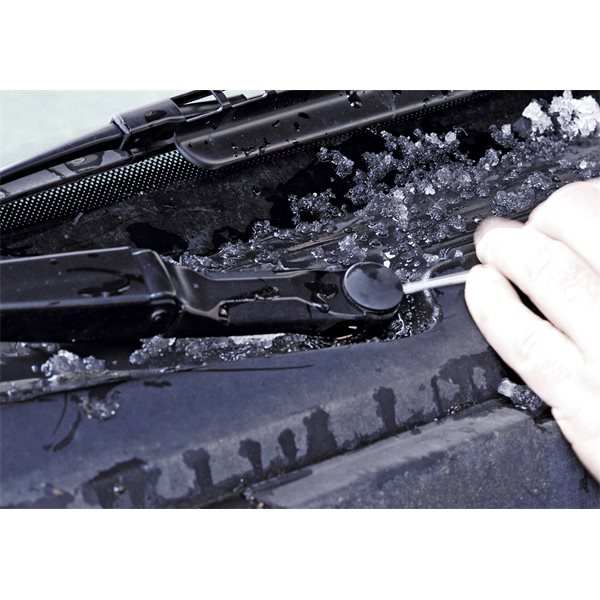

- 1. After removing the detachable cap, unscrew the stop nut to a point just before reaching the end, then attach and fix the gripper behind the wiper arm.
- 2. The gripper´s counter hold is provided by the spanner flat (SW 15 mm).
- 3. Remove the wiper arm by tightening pressure spindle.
- 4. The supplied brass pressure piece is used for wiper arms with integrated windscreen washer jets
- General-purpose puller with self-centering extractor hooks.
- 1. The part due to be removed (e.g. a gear or ball bearing) is gripped from the outside. Tightening of the pressure screw and the resulting pressure removes the part from the shaft.
- 2. With increasing spindle pressure, the pulling hooks clasp the part to be removed with an increasing amount of force.
- 3. The puller must be positioned centrally for centre shafts.
Safety information
- Do not use any electrical or pneumatic servo screwdrivers or hammer drills.
- Protective blanket required.
- Protective goggles required.
