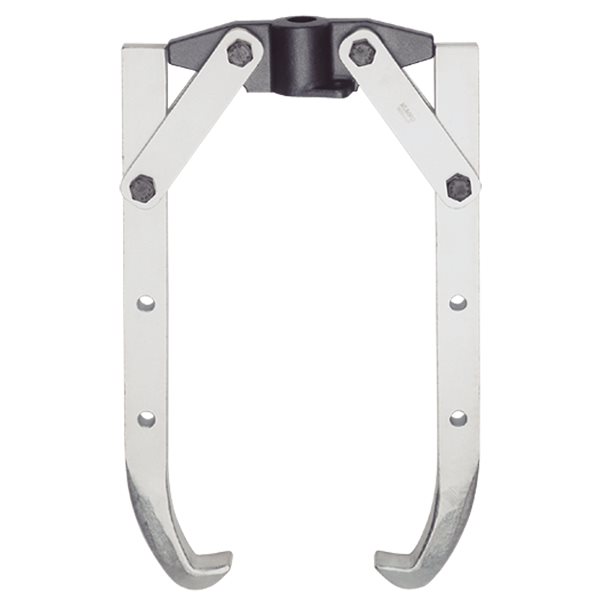

Kukko Y20-205 2-Arm Puller 420X300 Mm Without Ram And Accessories

€811.10
Content:
1 pcs
/ 30
Delivery time 30 working days
Product number:
1936163
Manufacturer no.:
Y20-205
EAN:
4021176035906
Weight in kg:
11.42
Product information "Kukko Y20-205 2-Arm Puller 420X300 Mm Without Ram And Accessories"
Kukko 2-jaw puller with swiveling jaws (without hydraulic hollow ram for pump drive)
Description
- 2-jaw puller.
- Swivelling puller jaws.
Use
- For removing particularly large and tight bearings, gears, discs, etc.
Advantage
- Universal application thanks to adjustable depths.
- The larger the pulling force, the stronger the puller hook´s grip on the workpiece to be removed.

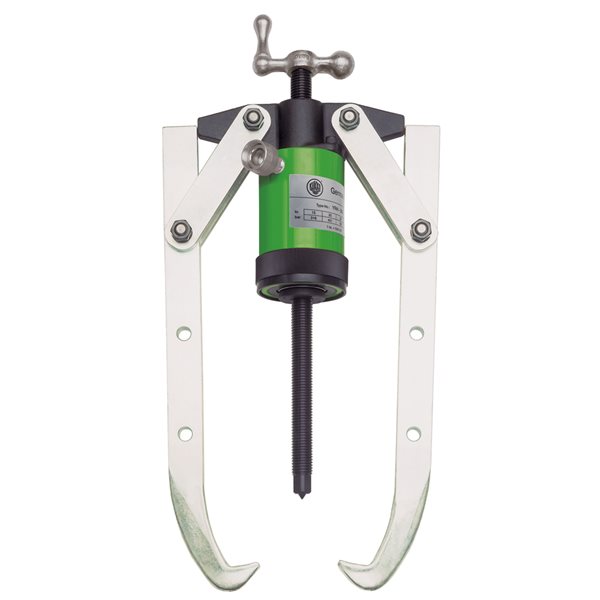

- YRH series hydraulic hollow ram is required for use.
- Almost all components available as replacement parts, time-saving order process thanks to numbering system.
How it works
- The part due to be removed (e.g. a gear, pulley or ball bearing) is gripped from the outside. Tightening of the pressure screw and the resulting pressure removes the part from the shaft.
