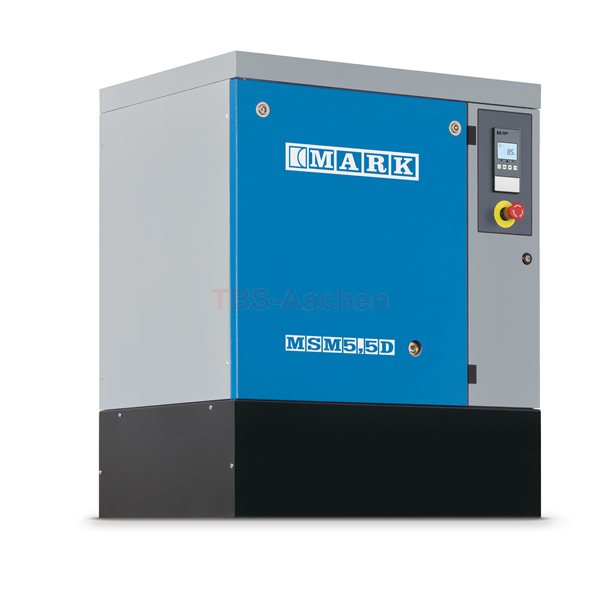

Mark MSM 11 kW Screw-Compressor Base Unit
Product number:
1953295
Manufacturer no.:
4152020821
EAN:
4260208083113
Weight (kg):
185
Product information "Mark MSM 11 kW Screw-Compressor Base Unit "
Mark MSM Maxi 11 10 400/50 FM CE
MSM Maxi-model series
Screw-Compressor with 11 kW motor power and sound-proof casing
Capacity: 1,42 m³/min at 9,5 bar
An affordable screw compressor for you: as simple and more cost effective than a piston
Our MSL 2.2-15 kW compact rotary screw compressor range is ideal for for applications such as winery, doors and windows shops, glassmaker, small artisans, and garage. It combines the simplicity and cost effectiveness of a piston with the durability, technology and energy efficiency of a screw compressor.Ideal package for piston compressor user to access to oil injected screw compressors
More efficient than a piston but simple to install and to use, designed to work continuously, always installed on vessel with or without dryer, MSL allows you to get 100% performance, 24 hours a day from your equipment without fearing a single failure.Features:
- Cost efficiency
- Up to 35% less in energy consumption in comparison to piston technology.
- Compact and complete solution
- It features a mounted receiver and integrated dryer (optional) to offer a complete solution to decrease installation cost, improve quality air and address space needs.
- Reliable, easy to install
- A plug & play solution easy to install.
- Low maintenance costs
- Easy access to all service components, long maintenance intervals to further help you decrease your costs.
Technical features:
- Installed motor power: 11 kW / 15 PS
- Working pressure: 10 bar
- Capacity FAD: 1,42 m³/min at 9,5 bar
- Noise level: 69 dB(A)
- Cooling: Air cooling
- Engine: electromotor, belt drive
- Fixed engine speed
- Control: Start/Stopp

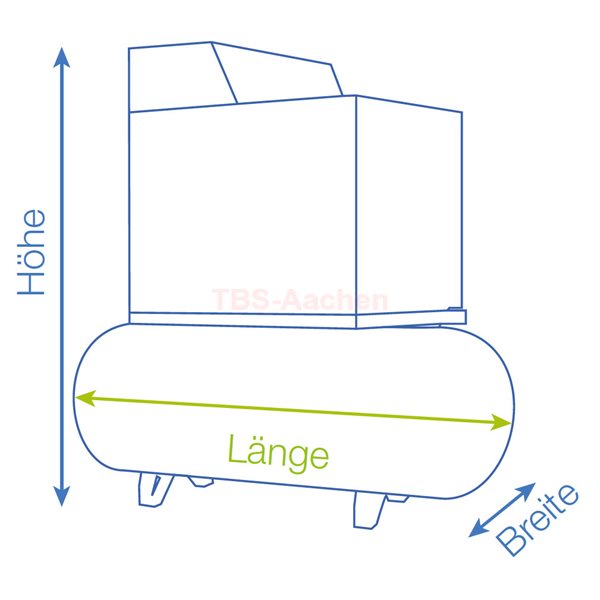

- Dimensions: L x B x H: 855 x 675 x 980 mm
- Weight: 185 kg
Further information (Brochure) you can find in "Downloads".
| Design/type: | base frame |
|---|---|
| Power: | 11 kW |
Toolaro.gprs.title
Toolaro.gprs.docs_and_sheets
Toolaro.gprs.productsafety
Toolaro.gprs.manufacturer
Alup Kompressoren GmbH
Ferdinand-Lassalle-Straße 43
72770 Reutlingen
Germany
info@alup.com
Zubehör
Mark 2200902304 Wartungssatz MSM 7,5-11-15 kW 4000 Stunden / 24 Monate
€240.55*
Mark 2200902304 Wartungssatz MSM 7,5-11-15 kW
Wartung nach 4000 Stunden oder 24 Monaten
Ölfiter
Luftfilter
Ölabscheidepatrone
