Migatronic Focus Stick 161 E PFC portable MMA Inverter
Product number:
1899187
Manufacturer no.:
79337042
EAN:
5707303269176
Weight in kg:
8
Product information "Migatronic Focus Stick 161 E PFC portable MMA Inverter"

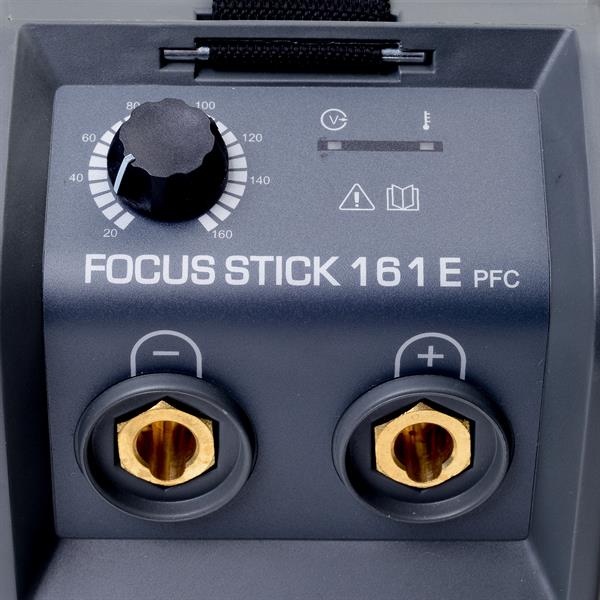

Migatronic Focus Stick 161 E PFC portable MMA Inverter
The Focus Stick 161 E is a mono-phase (230 V) inverter-based MMA welding machine, ideal for simple welding opera- tions on-site or in the workshop and for the mobile service team.
Focus Stick 161 E welds most types of rutile and basic electrodes in diameters up to 3.2 mm (85V open circuit voltage). For even more flexibility, the welder has the option of plus or minus polarity on the electrode clamp. Simple TIG welding with scratch ignition is also possible.
Focus Stick 161 E is equipped with PFC (Power Factor Correction), an electronic circuit that ensures maximum utilisation of power and minimum power loss and enables welding with approx. 25% higher welding current using only 16 A mains fuses.
New technology ensures a mains voltage tolerance from -40 to +10 %, which allows welding with long mains cables or with a generator as power source.
Specs:
- Mains: 230 V +/-15%
- Fuse: 16 A
- duty-cycle 40°C 100 %: 110 A /24,4 V
- duty-cycle 40°C 60 %: 130 A /25,2 V
- open circuit: 85 V
- Range: 20-160 A
- Protection Class: IP 23S
- Dimensions: 230x150x380 mm
- Weight: 6,3 kg
- Focus Stick 161 E PFC
- Electrode-holder incl. 3 m cable
- 2m earth-cable
- plug (Schuko)
