Proxxon 24062 Radius cutting attachment
Product number:
1892869
Hersteller-Nr.:
24062
EAN:
4006274240629
Gewicht (in KG):
0.5
Product information "Proxxon 24062 Radius cutting attachment"

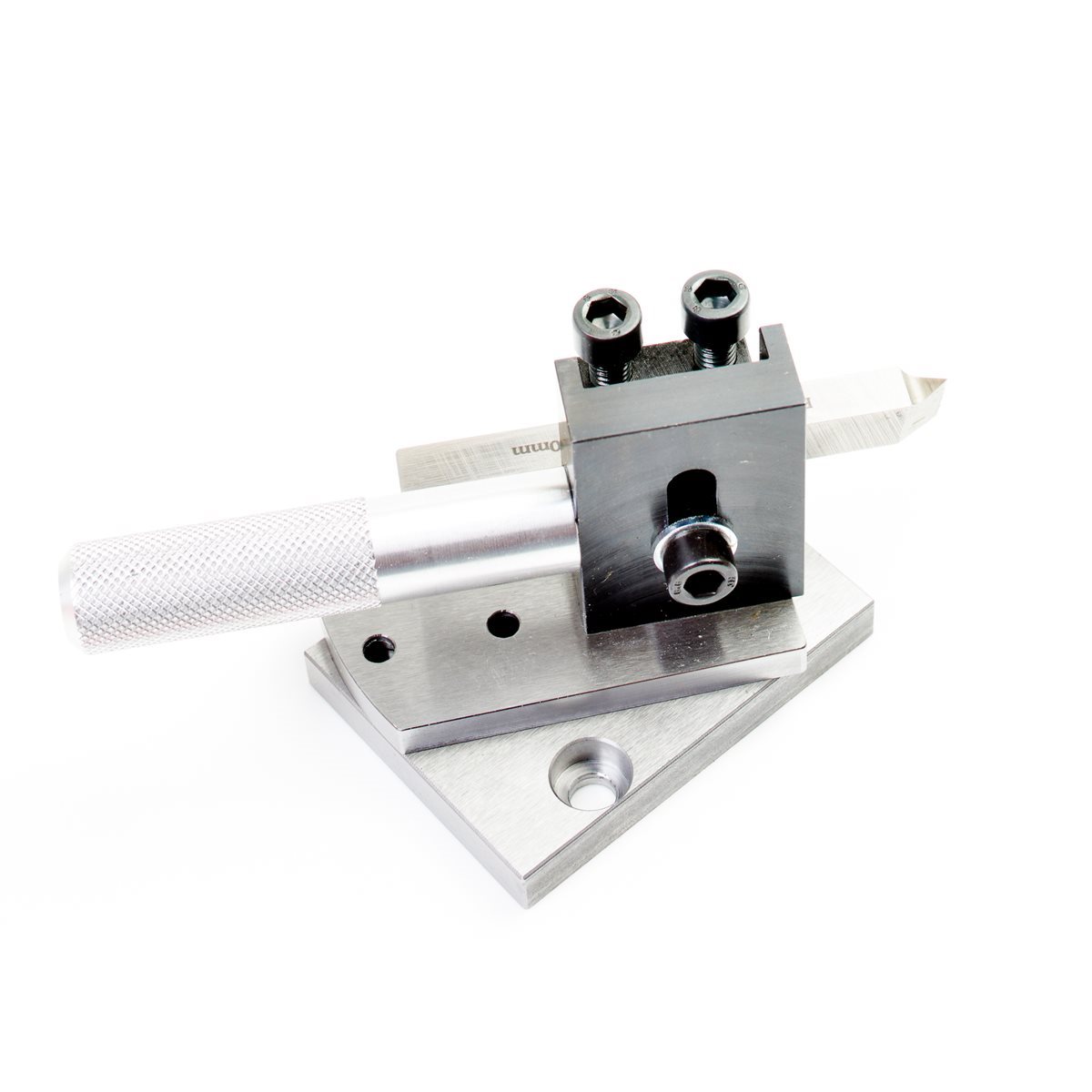

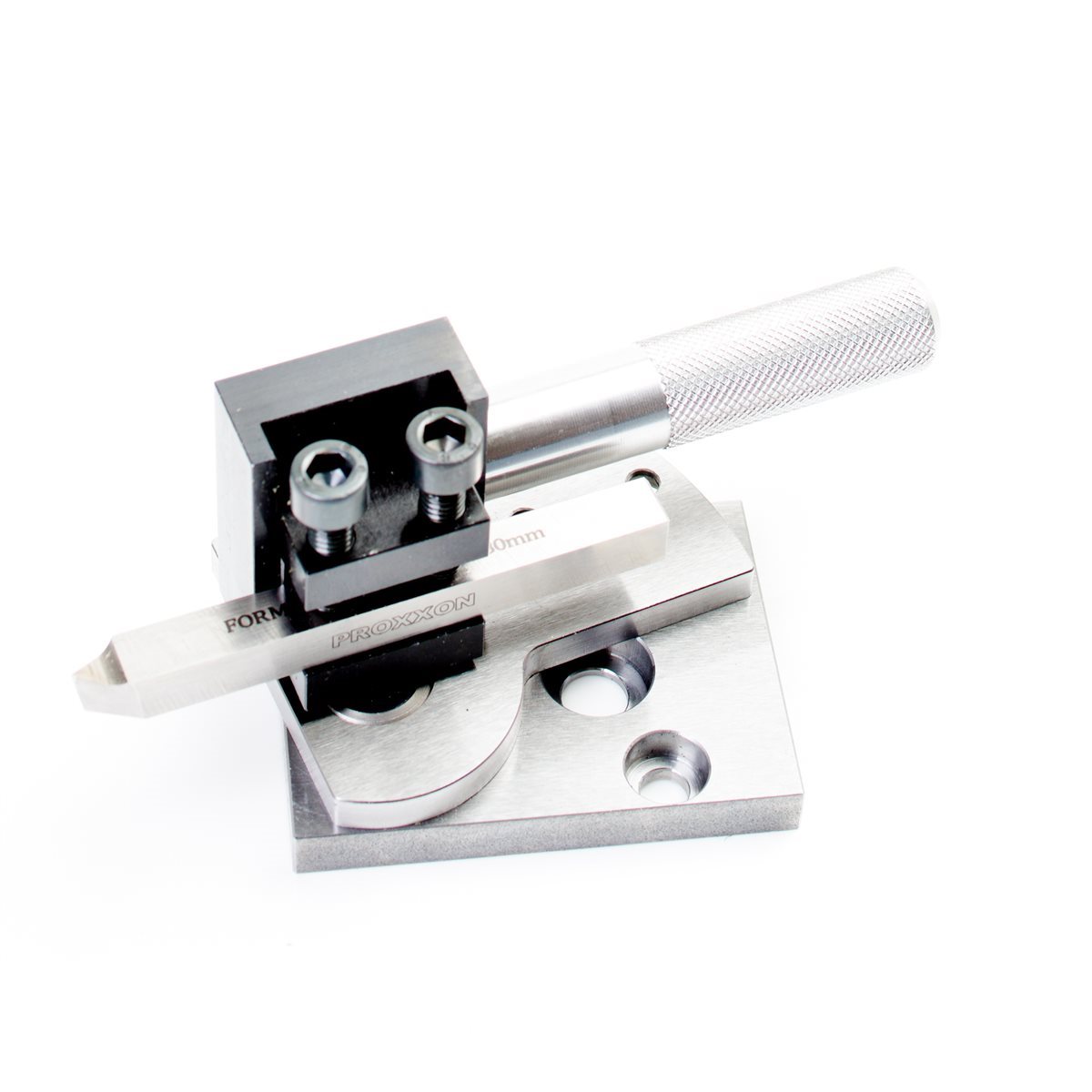

Proxxon 24062 Radius cutting attachment
Features:

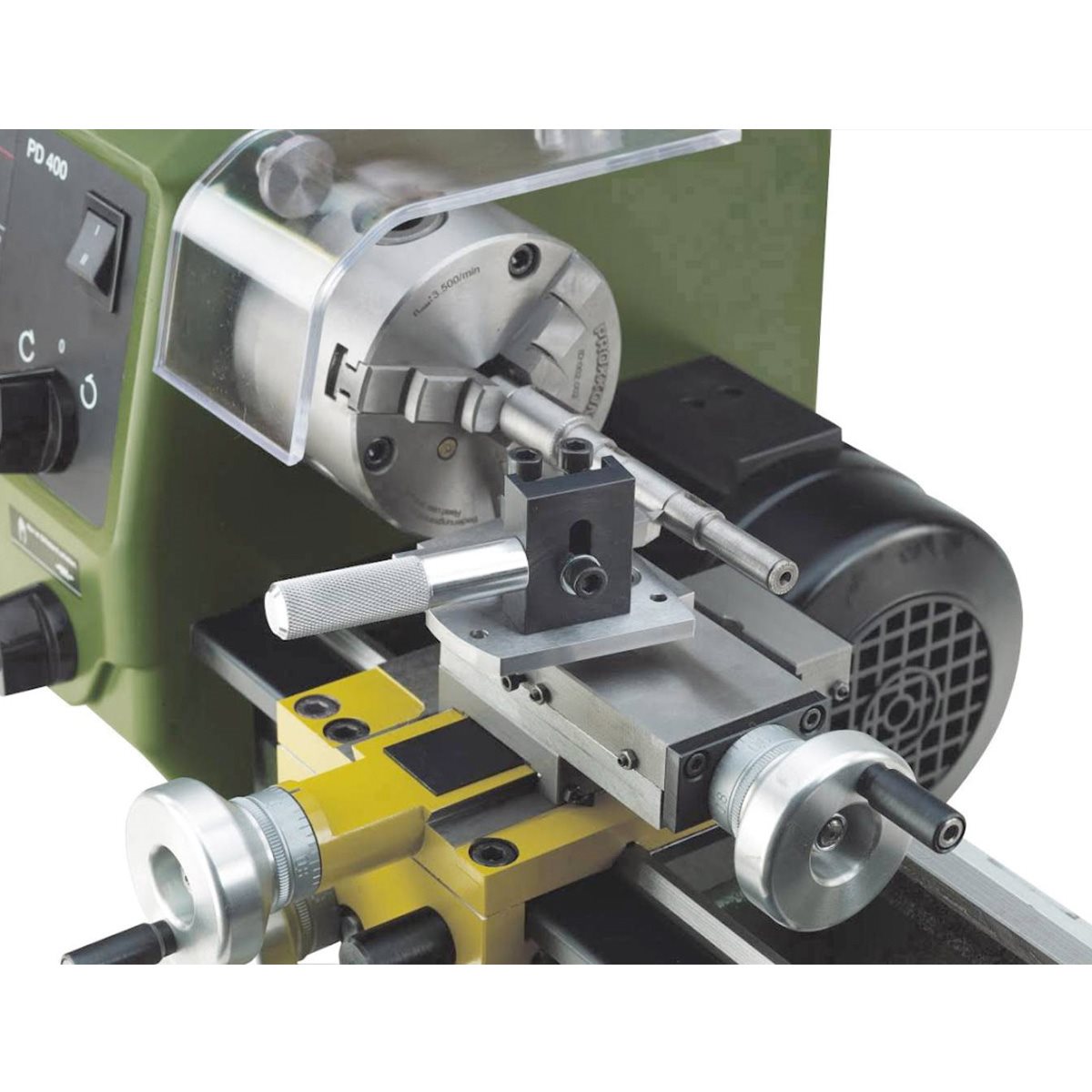

- Is mounted on the cross slide in place of the tool holder
- For producing convex and concave shapes
- For turning radii or 3/4 spheres up to max. 32mm
- Height adjustable tool holder (boring tool tip adjustable from 30 through 45mm above cross slide)
- for use with FD 150/E, PD 250/E, PD 400 and older PROXXON lathes

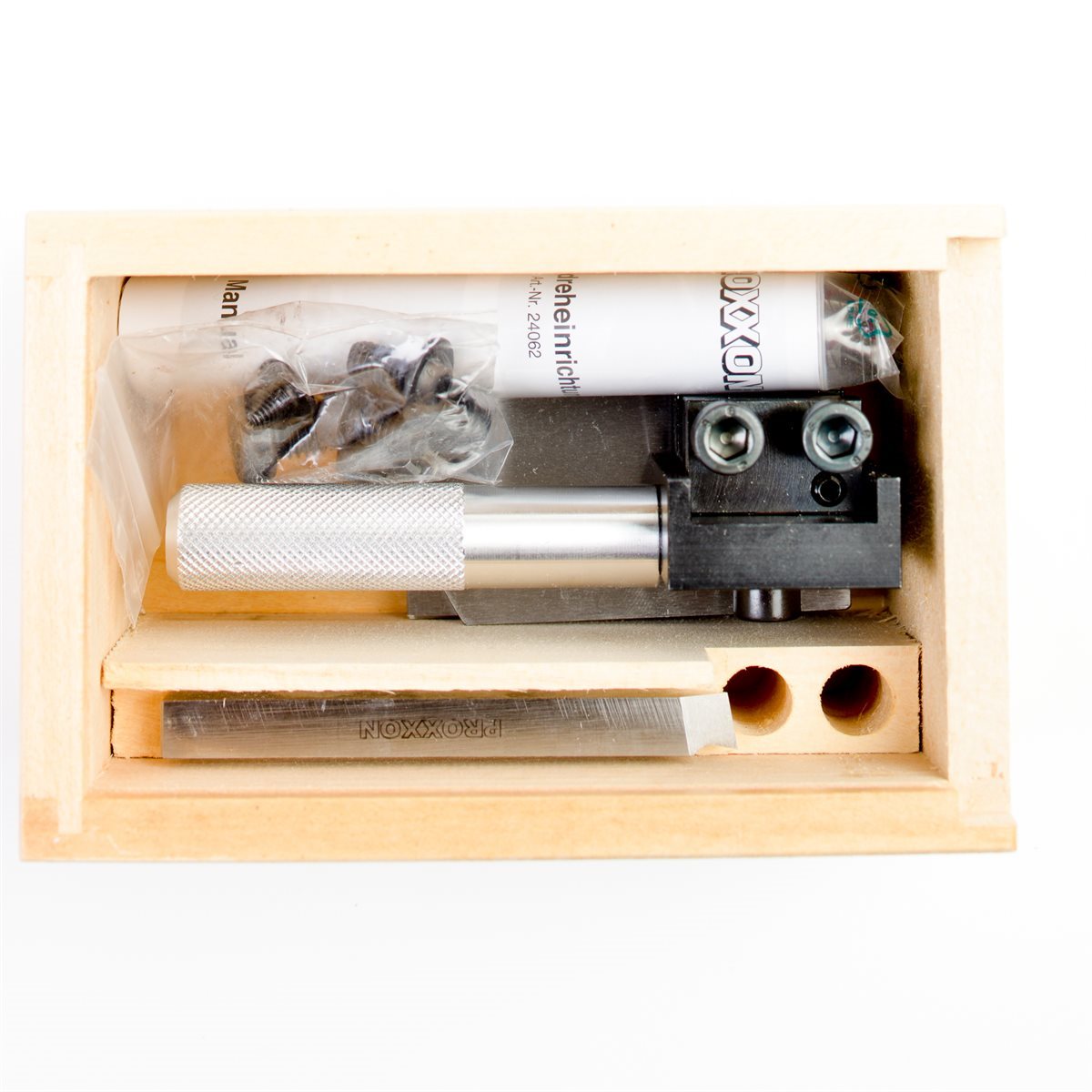

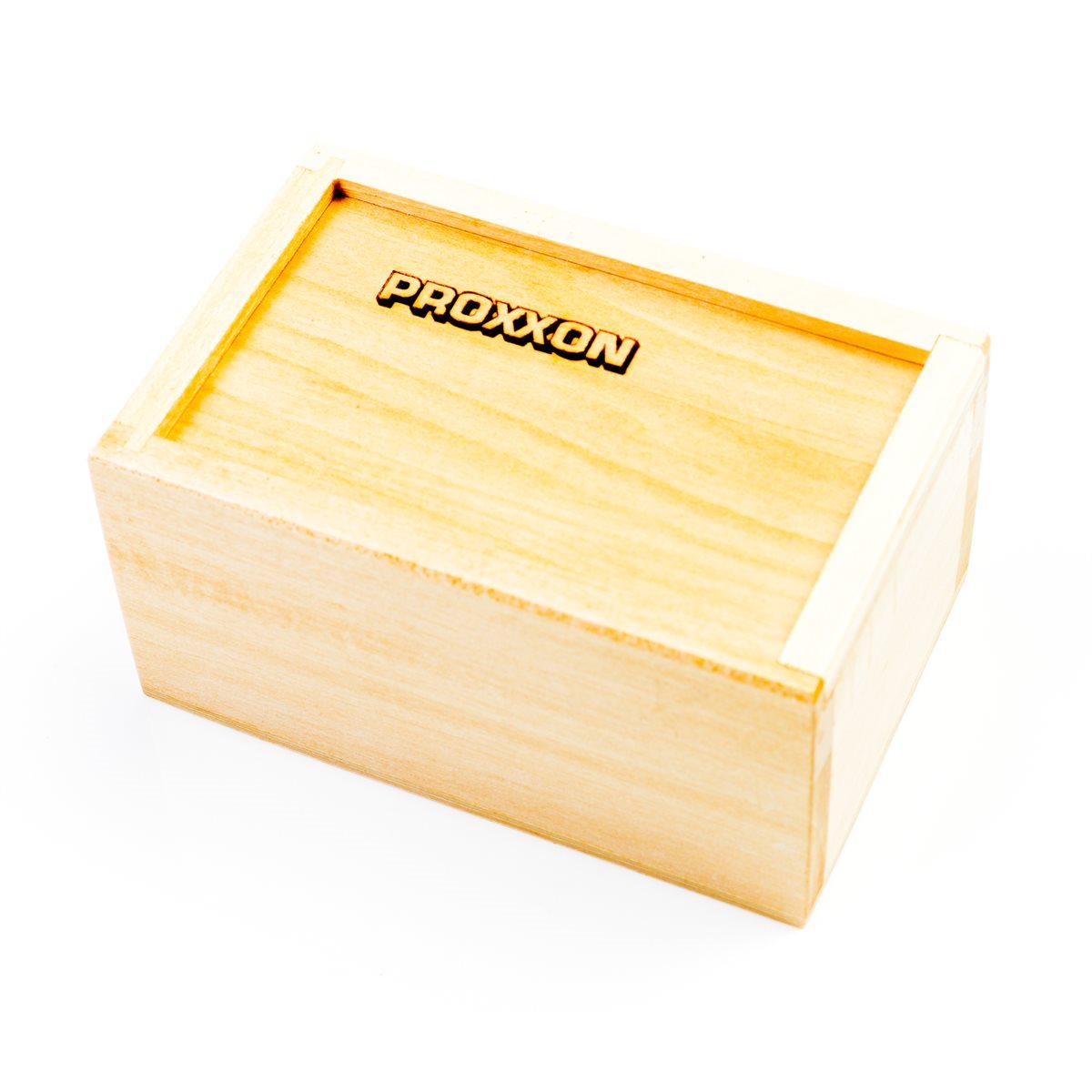

- In wooden box with sliding lid
Technical features:
- Dimensions: base plate 67 x 50mm
- Height 55mm
- Complete with finishing cutter 8 x 8 x 80mm
| Micromot Geräte: | Feindrehmaschine FD 150/E, Präzisionsdrehmaschine PD 230, Präzisionsdrehmaschine PD 250, Präzisionsdrehmaschine PD 400 |
|---|
