Proxxon 27100 MICRO compopund table KT 70

€74.95*

Content: 1 pcs

Prices incl. VAT plus shipping costs

Available, delivery time: 2 working days

Available₁: >5 unit(s)

Stk

Product number: 1843172

Manufacturer no.: 27100

EAN: 4006274271005

Weight in kg: 1.14

Product information "Proxxon 27100 MICRO compopund table KT 70 "

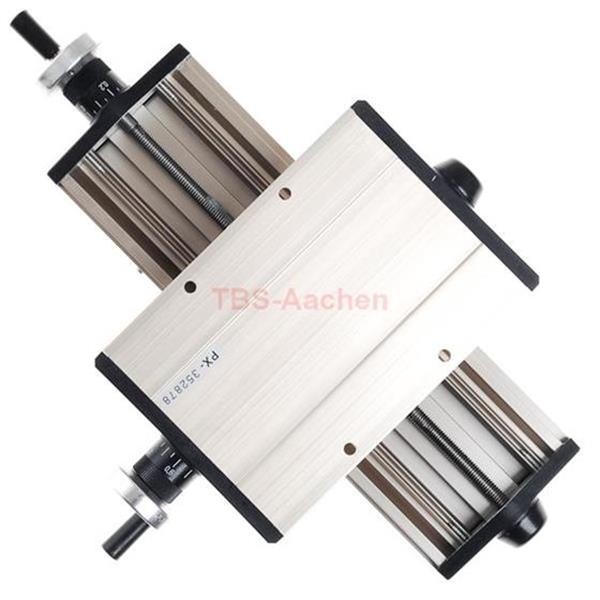

PROXXONcolor> 27100 MICRO compound table KT 70

Small and accurate. Ideal for MICROMOT drill stands and drill press TBM 220

Features:

Made of solid aluminium with surface treatment and fitted with adjustable dovetail gibs
spielfrei nachjustierbare Schwalbenschwanzführungen

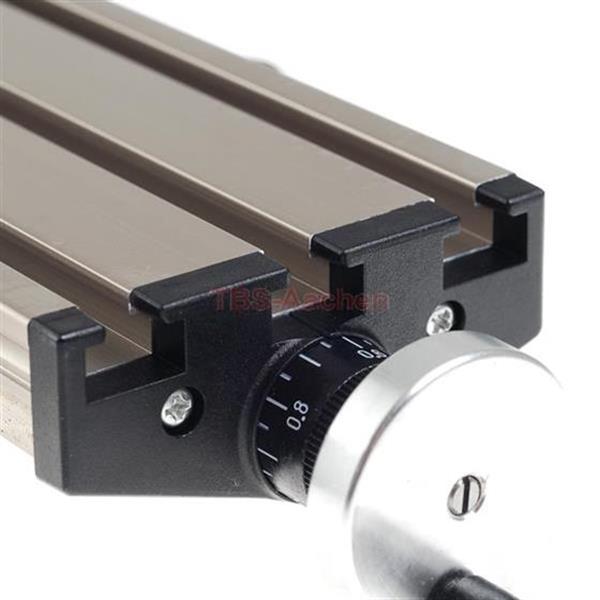

three T-slots of the MICROMOT standard (12 x 6 x 5mm)

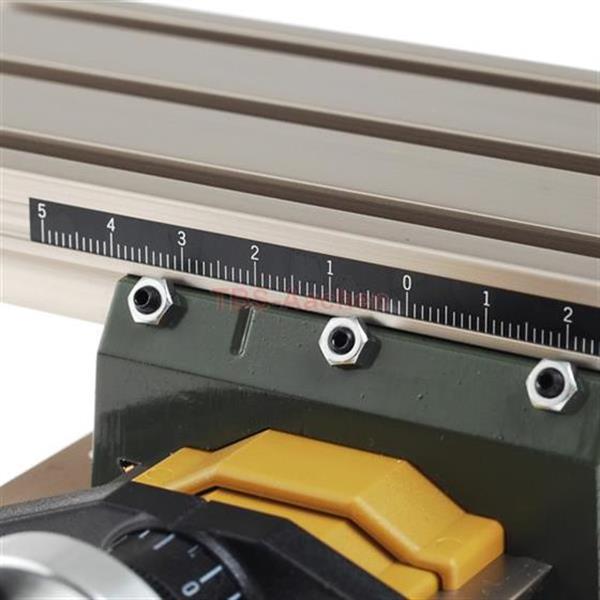

Adjustable ruler eases workpiece positioning

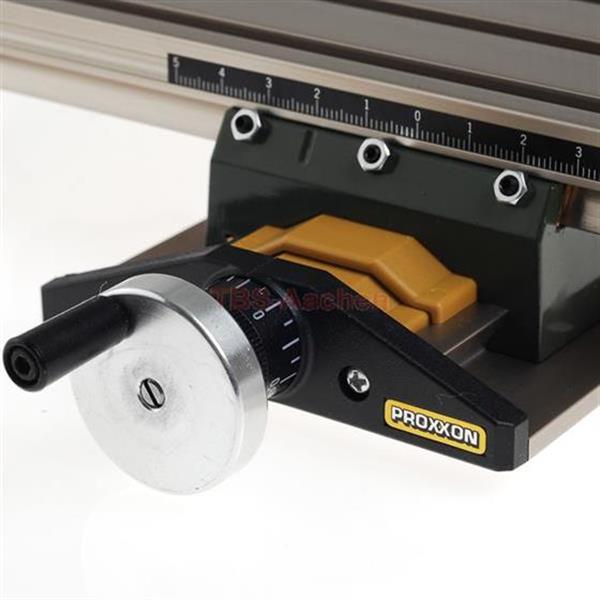

Both handwheels have zero-resettable dials with graduations indicating:
1 revolution = 1,0 mm, 1 devisdion= 0,05 mm

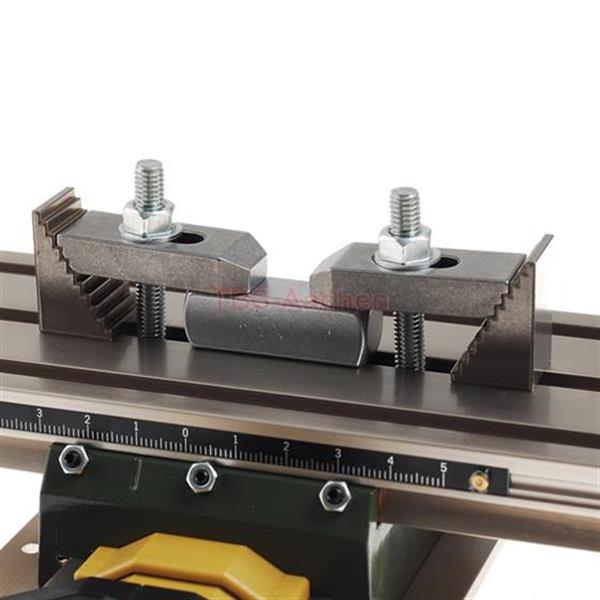

The clamps and securing bolts for the MB 140/S and TBM 220 are included

Technical data:

Table size 200 x 70 mm
X travel 134 mm
Y travel 46 mm Maximum height 43 mm

Micromot devices:	Table

Product Safety and Downloads

Documents and datasheets

Product safety information

Manufacturer

PROXXON S.A.
Härebierg 6-10
6868 Wecker
Luxembourg
i@proxxon.com

Zubehör

Proxxon 20200 Universal milling system UF/E

Proxxon 20200 Universal milling system UF/E Compact and with a weight of only 730g extremely light. Brushless special motor for 10,000 - 30,000rpm. High torque even at lower speeds. 230V-operation (no additional controller needed). Variable speed pre-selection from 10,000 to 30,000rpm and digital speed indication. The sophisticated control via rotor position and speed sensors guarantees high torque also in the lower speed range. Machine base made of die-cast aluminium with 20mm MICROMOT standard collar and 43mm European standard spindle collar. Triple ball bearing spindle for high concentric accuracy and smooth running. The collets depicted are included, but not the milling bit. Features: Digital speed indication. Variable speed pre-selection. Maintenance-free, brushless DC-motor for spindle speeds from 10,000 - 30,000rpm. Precisely machined die-cast aluminium housing offering exact ball-bearing seats. 43mm collar (European standard). 20mm MICROMOT standard collar. Technical data: 230 V. 50/60 Hz. 250 W. 10.000 - 30.000rpm. Weight 730g. Includes three ER11 collets according to DIN/ISO in sizes 2.5 - 3 and 6mm.

€284.95*

Prices incl. VAT plus shipping costs

Proxxon 24256 Step clamps made of steel

PROXXON 24256 Step clamps made of steel Features: The step clamps set is supplied with the KT 70, but can also be ordered separately Set consists of 2 stepped blocks and clamps, T-slot nuts of the MICROMOT standard (11.5 x 11 x 4mm), bolts This set also fits the mill/lathe systems PD 230/E and PD 400 Comes in wooden case

€18.95*

Prices incl. VAT plus shipping costs

Proxxon 24264 Dividing head

PROXXONcolor> 24264 Dividing head for MICRO miller MF 70 and KT 70 Features: For machining circular work pieces, manufacturing off-set holes and milled out portions, milling key surfaces, four-sided, sixsided materials, etc. Absolute accurate division due to nonius at the base body With reversed chuck jaws: Capacity inside 1.5 to 32mm, outside 12 to 65mm Bore of 11mm (for processing longer spindles in a vertical position) With fastening bores for horizontal and vertical mounting and suitable slot nuts and fastening screws for mounting to the MICRO miller MF 70 and the MICRO compound table KT 70 Size 72 x 64 x 38mm In wooden box with sliding lid

€89.95*

Prices incl. VAT plus shipping costs

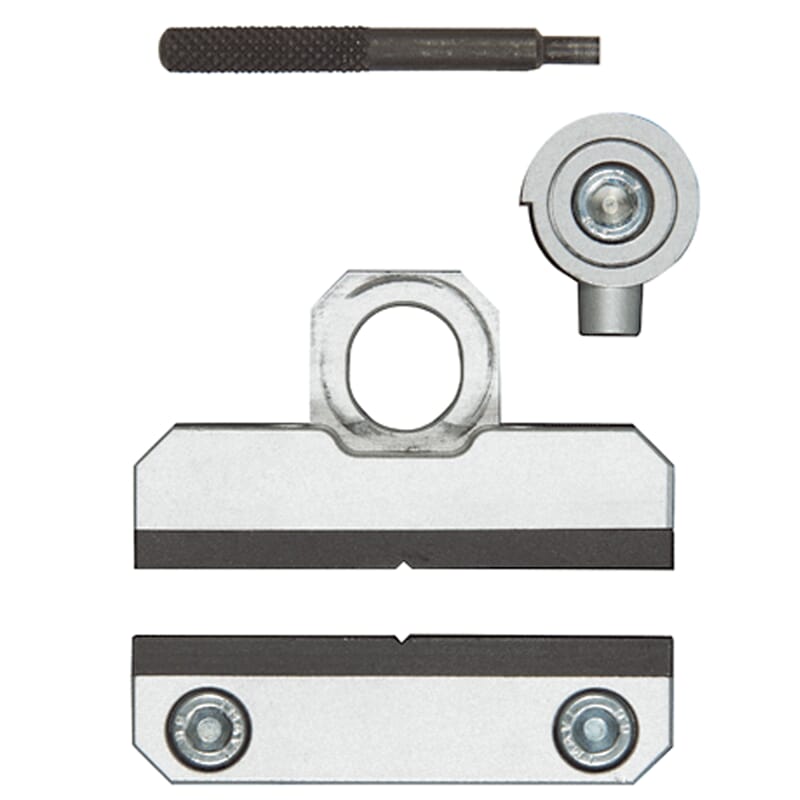

Proxxon 24270 Eccentric clamping fixture ES 70
