Proxxon 28092 2-speed scroll saw DSH

Product information "Proxxon 28092 2-speed scroll saw DSH "

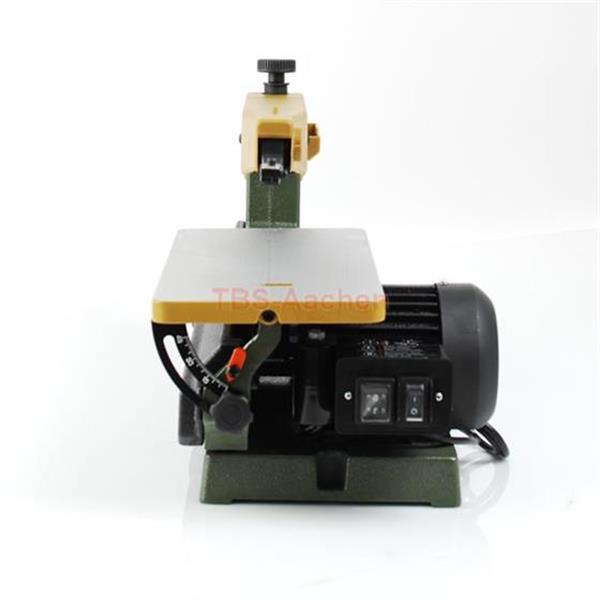

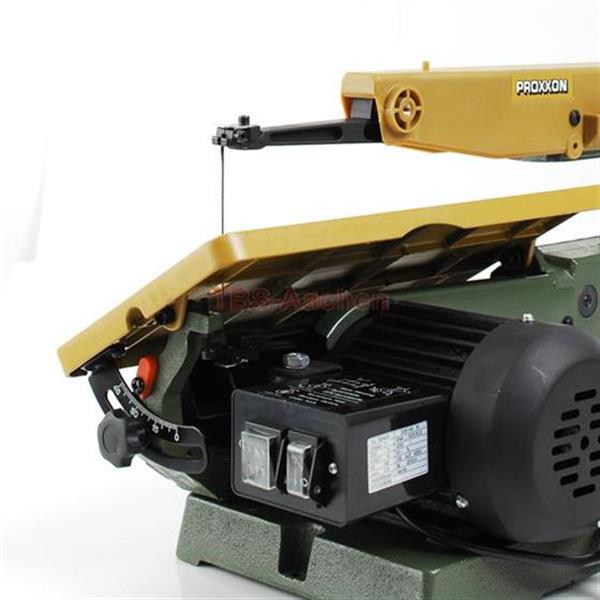

PROXXONcolor> 28092 2-speed scroll saw DSH

Features:
  • The 10,000-fold proven standard model with 400mm throat!
  • Cutting performance 50mm in wood, 30mm in plastic, 10mm in non-ferrous metals
  • For cutting Plexiglas, glass fibre reinforced plastic, foam, rubber, leather or cork
  • Slender saw arm of die-cast aluminium for unobstructed view from top
  • Air blower with adjustable air nozzle

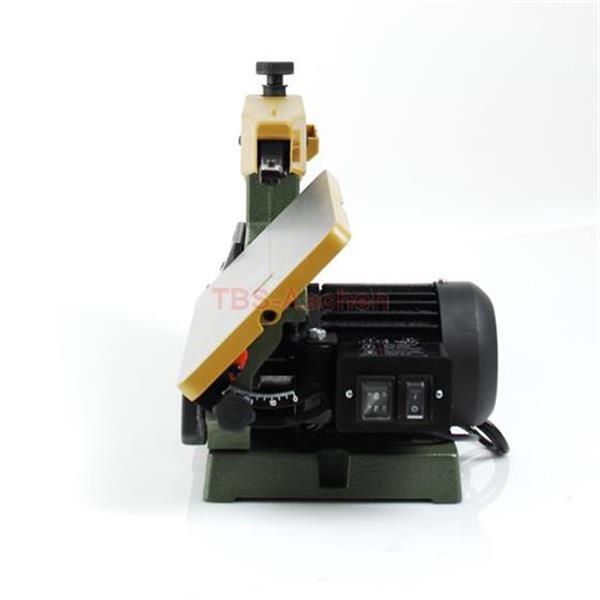

  • Sturdy table of die-cast aluminium (360 x 180mm), can be tilted by 45° for mitre sawing
  • Base housing of cast steel for stability and working without vibrations
  • Includes 5 each coarse and fine saw blades

Technical data:
  • 220 - 240V
  • Powerful, brushless 2-speed motor (205W)
  • Stroke alternatively 900 or 1,400rpm
  • Stroke length 19mm
  • Throat 400mm
  • Maximum cutting depth 50mm, at 45° mitre 25mm
  • Weight approx. 20kg
