Proxxon 28124 Bench drill press TBH
€359.95*
Delivery time 3 working days
Product information "Proxxon 28124 Bench drill press TBH "
PROXXONcolor> 28124 Bench drill press TBH
Features:
- Practical height adjustment via toothed rack with easy to operate crank
- Powerful, long-lasting direct current motor

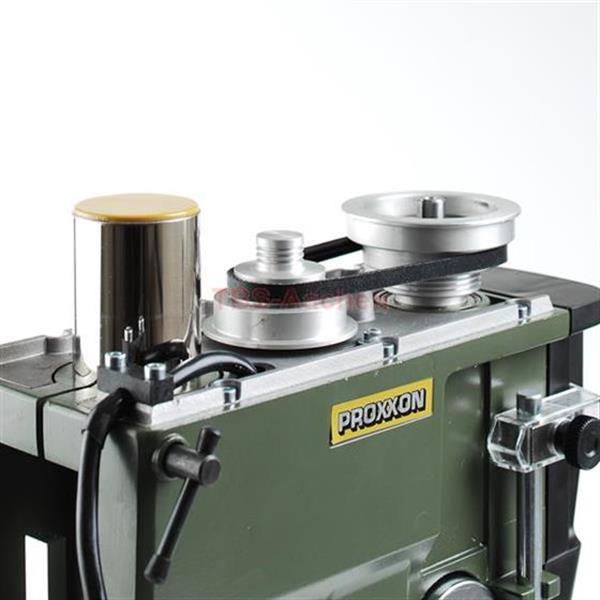

- Spindle drive via triple belt pulley with the advantage of roughly 6 times the torque in the lower rotational speed range

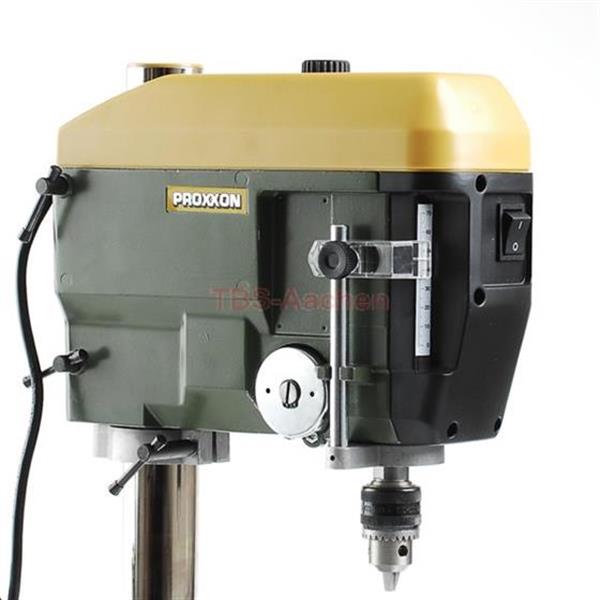

- Practical drill depth indicator with adjustable limit stop
- Drill spindle with precision bearing
- Spindle head with 1/2" thread for the corresponding RÖHM chuck (industrial quality)
- Spindle with additional fit for steel collets NO 28 200
Technical data:
- 220 - 240 Volt
- Spindle rotational speeds 1,080 - 2,400 and 4,500rpm
- Sliding sleeve stroke 63mm
- Height adjustment via crank 70mm
- Throat 140mm
- Usable table surface 200 x 200mm
- Column 45 x 500mm
- Tool holder up to 10mm
- Drilling performance in steel 10mm
- Weight approx. 10kg
