Proxxon 29805 Cordless Long neck angle unit LWB/A

Product information "Proxxon 29805 Cordless Long neck angle unit LWB/A "

PROXXON 89805 Cordless Long neck angle milling/drilling unit LWB/A



Strong problem solvers for craft and industry! Made in Europe.



Features:

  • For drilling, milling and polishing in tough-to-reach areas. Ideal for tile cutting!

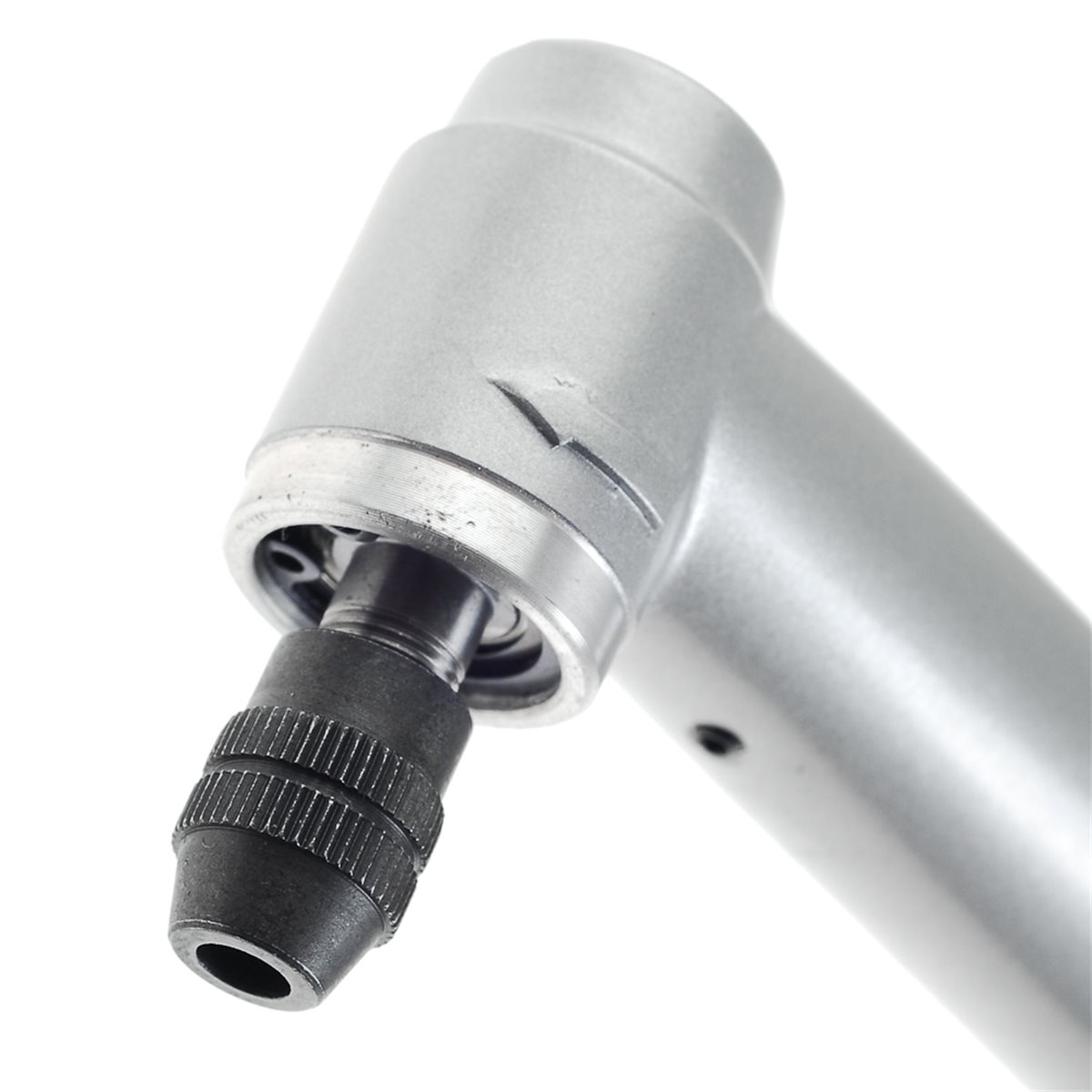

  • With a set of gears running on several ball bearings in a stable, die-cast aluminium housing head.
  • Main housing is made of glass-fibre reinforced POLYAMIDE.
  • With a special balanced, powerful, quiet and long-lasting DC motor. Infinitely variable rpm (full wave electronics).

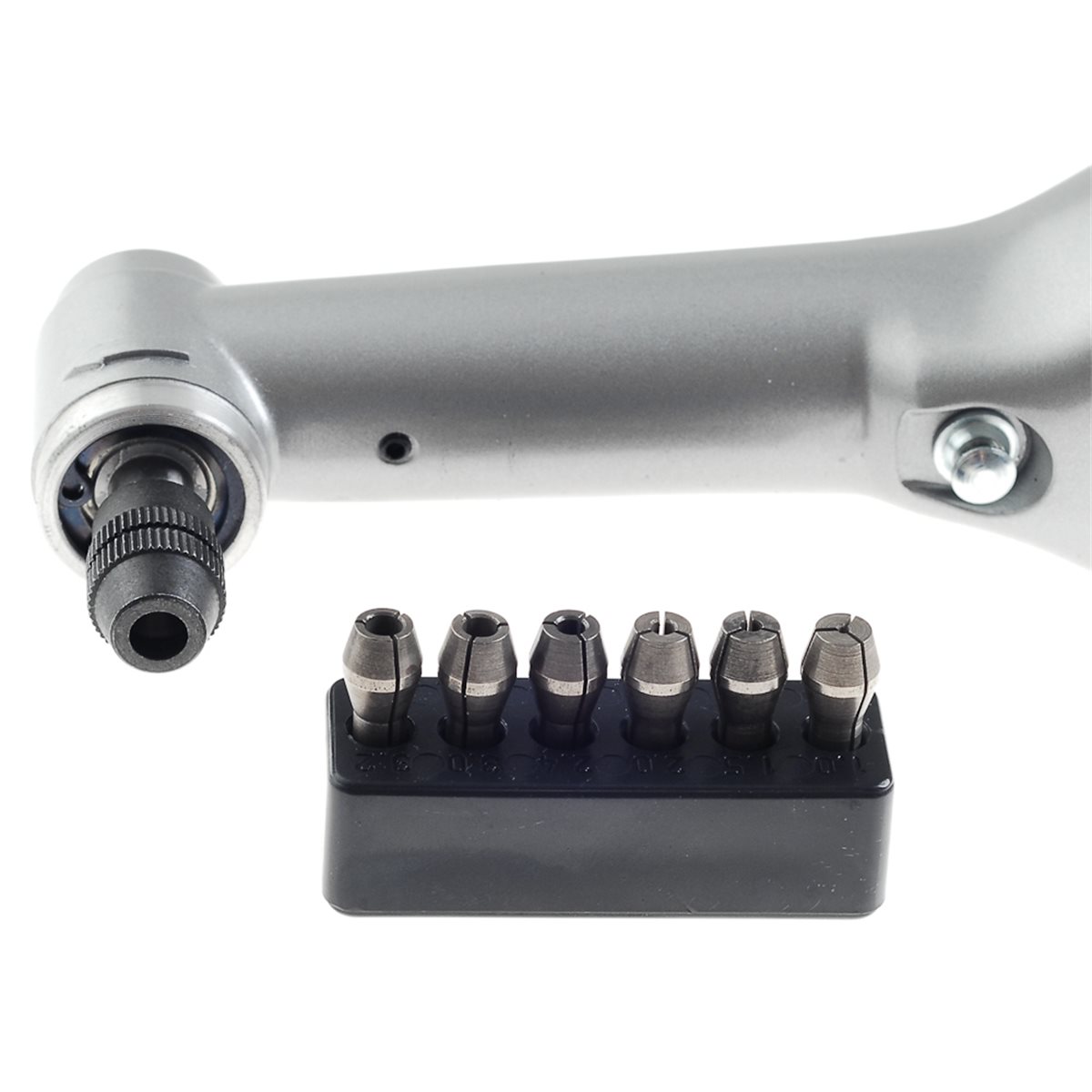

With MICROMOT hardened steel collets:
1.0 - 1.5 - 2.0 - 2.4 - 3.0 and 3.2mm

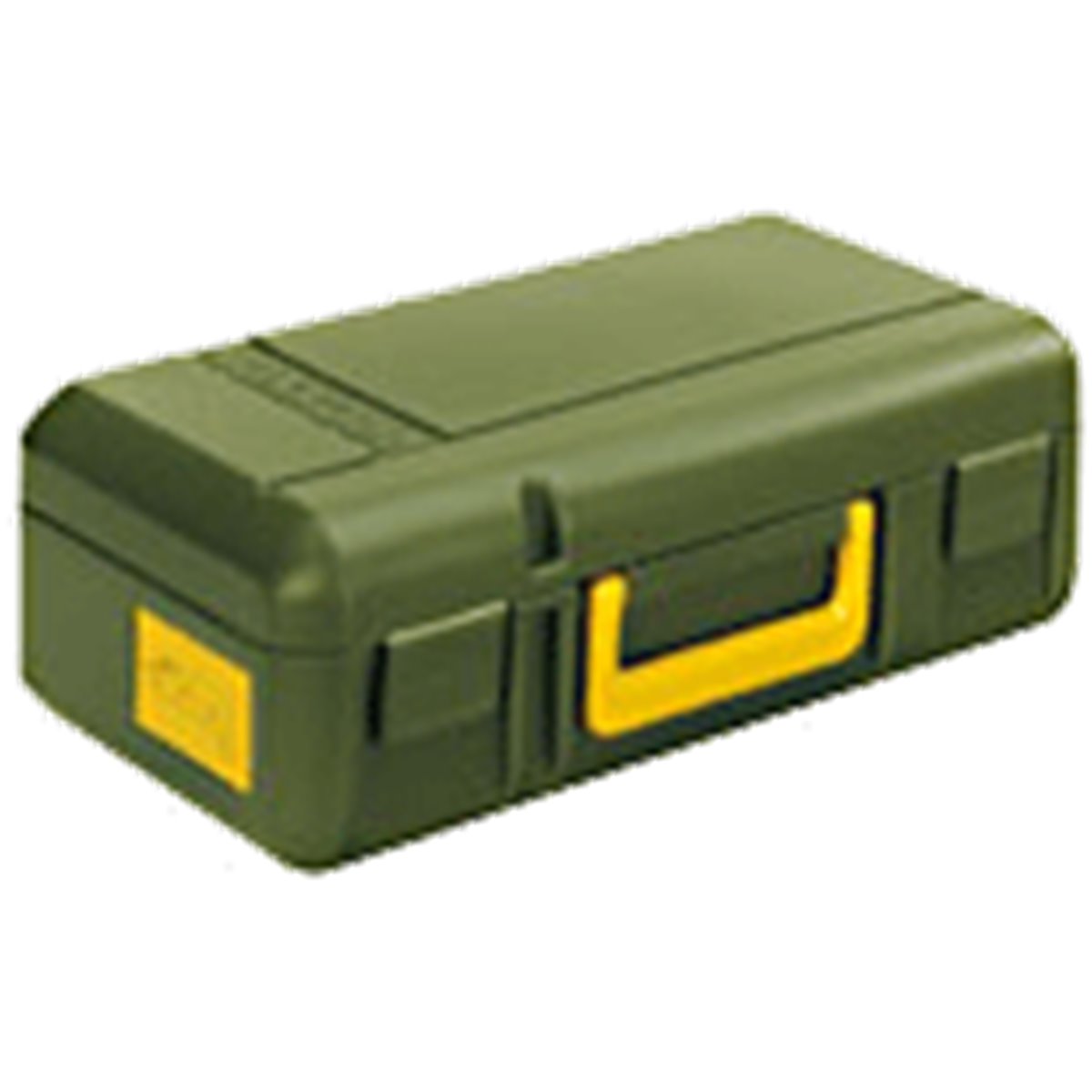

  • Storage case of high-grade polypropylene. Attractive design, very sturdy and large enough to put the machine back in the case after completing work, without having to "fumble".
  • A label on the side identifies the contents.


MICROMOT steel collets:

  • are hardened and therefore have high, consistent spring force.
  • They retain the required precision even after prolonged use
    (not comparable with non-hardened, 4-slot collets or those made of brass or aluminum)
  • Due to the 3-slot design, which is significantly more difficult to manufacture than the 4-slot version, a better seat is created
    This is important for precise centering of shafts with small diameters.


Technical features:

  • Voltage: 10,8 V
  • Rotation speed: 5.000 - 16.000/min
  • Length: 320 mm
  • Weight: ca. 800 g (with battery)



Product Safety and Downloads

Documents and datasheets

Product safety information

Manufacturer

PROXXON S.A.
Härebierg 6-10
6868 Wecker
Luxembourg
i@proxxon.com
