Stahlwille 14 20 Combination Spanner
€20.95*
Content:
1 pcs
Available, delivery time: 2 working days
Available1: >5 unit(s)
Variante
Product number:
1860738
Manufacturer no.:
40102020
EAN:
4018754019281
Weight in kg:
0.22
Product information "Stahlwille 14 20 Combination Spanner "
Stahlwille OPEN BOX 14 20 Combination spanner OPEN BOX Spanner size 20 mm L.280mm
Features:
- metric, equal spanner widths
- extra long design for hard-to-reach bolted joints and higher power transmission
- 15° jaw position
- ring with double hexagon and AS-Drive profile
- ring side offset by 10°
- reinforced connection between jaw and shank
- stable, slim and lightweight design
- high flexural strength thanks to double-T profile
- grippy, pleasant feel thanks to the STAHLWILLE round finish
- forged in a die, hardened and cooled in an oil bath
- chrome alloy steel, chrome-plated
- DIN 3113 Form B / ISO 7738 Form B

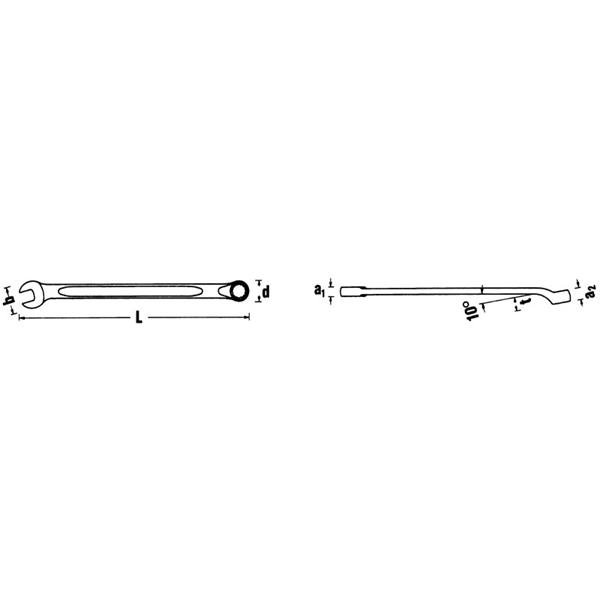

Technical features:
- a1: 8 mm
- a2: 13 mm
- Width mm (b): 41,5 mm
- d: 28,5 mm
- DIN: DIN 3113 Form B
- Length mm (L): 280 mm
- Jaw angle: 15 °
- Ring position: 10 °
- Spanner width 1 [mm]: 20 mm
- Spanner width 2 [mm]: 20 mm
- t: 19 mm
- Weight: 219 g
- Weigth kg: 0.22 kg
Stahlwille OPEN BOX 14 20
Stahlwille product no: 40102020
EAN: 4018754019281
| Design/type: | angled, long |
|---|---|
| Size: | 20 mm |
| Spanner type: | Combination spanner |
| Unit of measurement: | metric (mm) |
