Stahlwille 4014 80 Combination spanner
€804.95*
Content:
1 pcs
/ 4
Delivery time 4 working days
Variante
Product number:
1867197
Manufacturer no.:
40148080
EAN:
4018754226498
Weight in kg:
8
Product information "Stahlwille 4014 80 Combination spanner "
Stahlwille 4014 80 Combination spanner Spanner size 80 mm L.860mm
Features:
- metric, equal spanner widths
- Mouth position 15°
- Ring with double hexagon
- Ring side offset by 10°
- Chrome alloy steel, chrome-plated

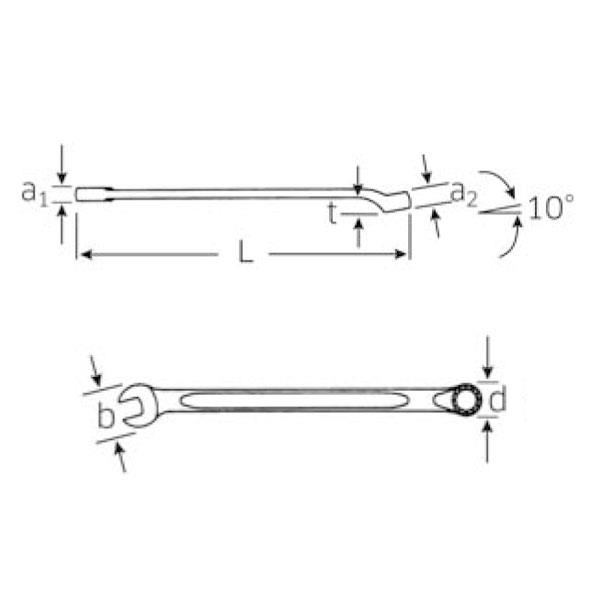

Technical features:
- a1: 28 mm
- a2: 41 mm
- Width mm (b): 163 mm
- d: 119 mm
- DIN: DIN 3113 Form A
- Length mm (L): 860 mm
- Jaw angle: 10 °
- Ring position: 10 °
- Spanner width 1 [mm]: 80 mm
- Spanner width 2 [mm]: 80 mm
- t: 63,5 mm
- Weight: 8000 g
- Weigth kg: 8 kg
Stahlwille 4014 80
Stahlwille product no: 40148080
EAN: 4018754226498
| Design/type: | angled, offset, standard length |
|---|---|
| Size: | 80 mm |
| Spanner type: | Combination spanner |
| Unit of measurement: | metric (mm) |
