Stahlwille 73 NM/15 Torque Wrench Indicating
Product number:
1861554
Manufacturer no.:
50240015
EAN:
4018754163830
Weight in kg:
0.68
Product information "Stahlwille 73 NM/15 Torque Wrench Indicating "
Stahlwille 73 NM/15 Friction gauge Model 73Nm/15 Measuring r. 2-15N·m Drive 1/2 L. 298,5mm
Features:
- indicating
- fixed square for clockwise measurements
- trailing indicator dial
- no "pointer flutter" during the measuring process
- lightweight design thanks to the use of aluminium
- certified in accordance with DIN EN ISO 6789-2:2017
- indication deviation ± 4 %
Technical features:
- Scale division N·m: 0,5 N·m
- Measuring range N·m: 2-15 N·m
- External square drive (inch): 1/2

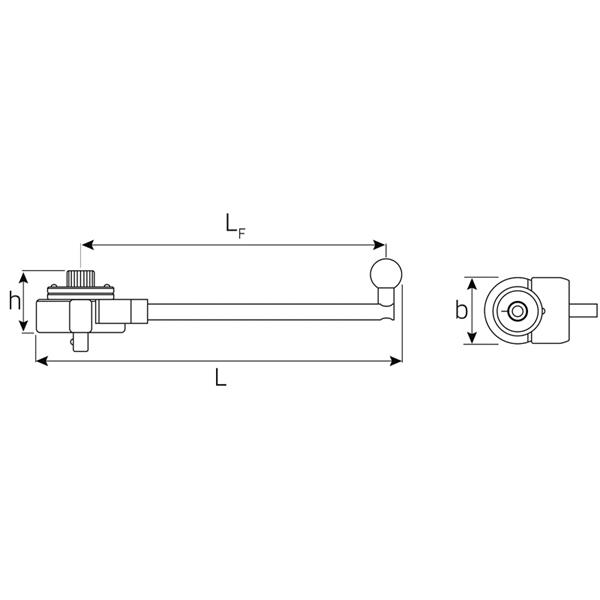

- Width mm (b): 72 mm
- DIN: DIN EN ISO 6789-2:2017
- Height mm (h): 50 mm
- Length mm (L): 298,5 mm
- LF: 250 mm
- MA N·m: 2 N·m
- Nominal value N·m: 15 N·m
- Weight: 676 g
- Weigth kg: 0.68 kg
Stahlwille 73 NM/15
Stahlwille product no: 50240015
EAN: 4018754163830
| Drive: | 1/2" (12.5 mm) |
|---|---|
| Torque Tools: | Measuring Tool |
| Torque range: | 2-15 N·m |
