Stahlwille 730A/4 QUICK Torque Wrench With Cut-Out
Product number:
1936935
Manufacturer no.:
50584004
EAN:
4018754292691
Weight in kg:
0.4
Product information "Stahlwille 730A/4 QUICK Torque Wrench With Cut-Out "
Stahlwille 730A/4 QUICK Torque wrench service MANOSKOP (in·lb) Model 730A/4 Quick Measuring r. 70-350in lb Tool holders 9 x 12 mm L. 223mm
Features:
- click-type
- mount for interchangeable insert/shell tools
- ergonomically shaped, non-slip adjustment element with thumb recess
- optimised ball handle for fatigue-free working
- dual stop signal
- no need to reset to "0", as the measuring element is only loaded during the tightening process
- Left-hand tightening by turning the insert/shell tools
- Continued loading after click-type or loads against the functional direction, e.g. in the case of stuck screws
- . Further load after triggering or loads against the functional direction, e.g. with tight screws, do not act on the trigger mechanism, which is thus protected against damage
- Calibration with the perfectControl calibration device no. 7794 or the calibration system no. 7706. Readjustment without disassembly if necessary
- with certificate
- Display deviation ± 4 %
Technical features:
- Scale division in·lb: 10 in·lb
- Measuring range in·lb: 70-350 in·lb

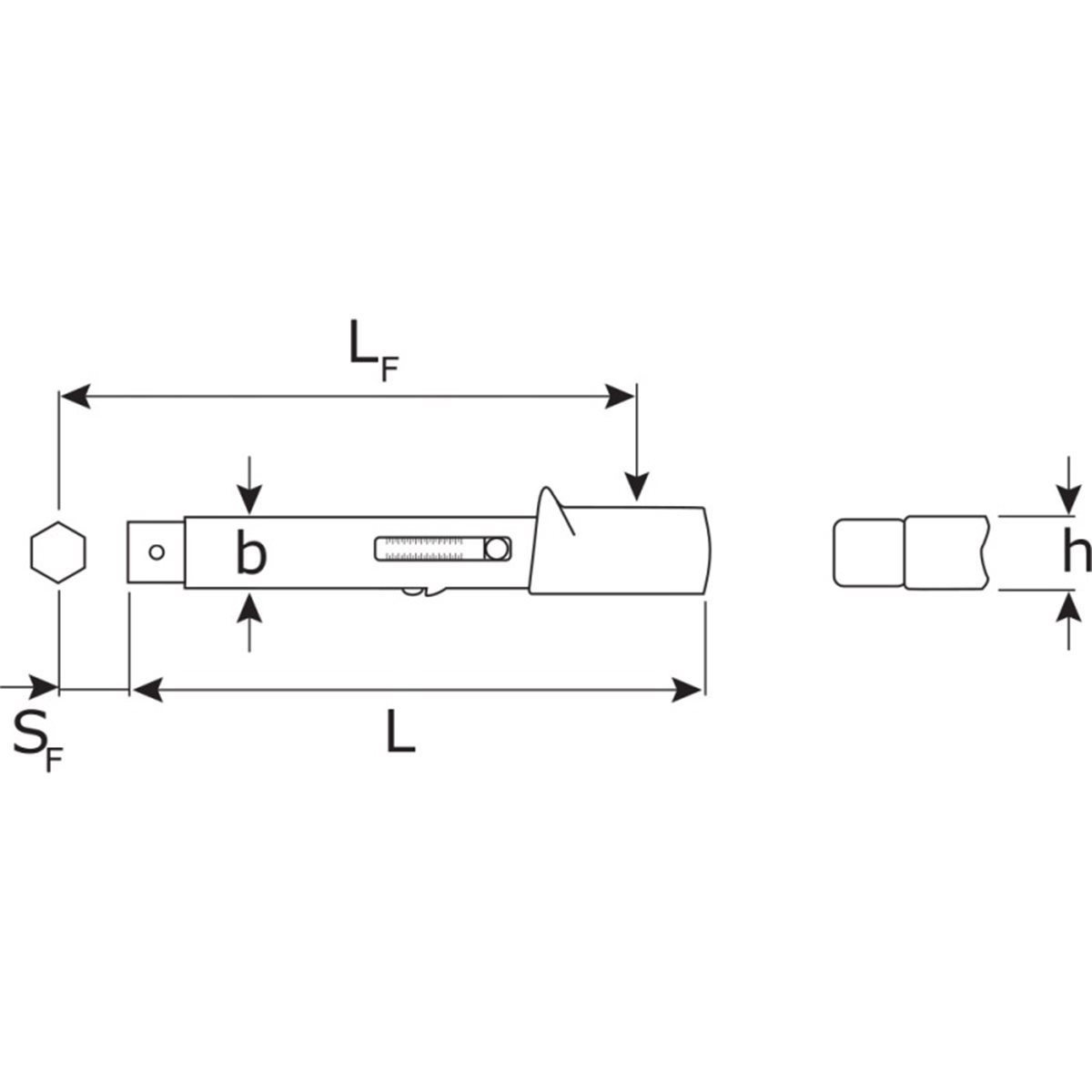

- Width mm (b): 27,5 mm
- Size: a/4
- Size square socket [inside square drive]: 9 x 12 mm
- Height mm (h): 23,6 mm
- Length mm (L): 223 mm
- LF: 200,8 mm
- SF: 17,5 mm
- Weight: 395 g
- Weigth kg: 0.4 kg
Stahlwille 730A/4 QUICK
Stahlwille product no: 50584004
EAN: 4018754292691
| Drive: | 9x12 |
|---|---|
| Torque Tools: | Mechanical torque wrench |
| Torque range: | 70-350 in·lb |
