Stahlwille 730NR/10QR FK Torque Wrench With Cut-Ou t
€488.95*
Content:
1 pcs
/ 62
Please request delivery time
Variante
Product number:
1863089
Manufacturer no.:
96502110
EAN:
4018754180509
Weight in kg:
1.73
Product information "Stahlwille 730NR/10QR FK Torque Wrench With Cut-Ou t"
Stahlwille 730NR/10QR FK Torque wrench service MANOSKOP Model 730NR/10QR FK Measuring r. 20-100N·m Drive 1/2 L. 428,5mm
Features:
- click-type
- no need to reset to "0" as the measuring element is only loaded during the tightening process
- ratchet with QuickRelease safety lock
- quick, precise setting thanks to QuickSelect quick adjustment
- dual stop signal
- very easy-to-read dual scale with colour differentiation between N-m/ft-lb or ft-lb/in-lb
- Continued load after click-type or loads against the functional direction, e.g. with tight screws in the case of tight screws, do not affect the release mechanism, which is thus protected from damage
- 2-component handle with hand-friendly, green soft zone (resistant to oils, greases, fuels, brake fluids and Skydrol)
- Calibration with the perfectControl calibration device no. 7794 or the calibration system no. 7706. Readjustment without disassembly if necessary
- Certificate in accordance with DIN EN ISO 6789-2:2017
- DBGM
- in a sturdy plastic case
- Display deviation ± 4 %
Technical features:
- Scale division N·m: 10 N·m
- Scale division ft·lb: 2,5 ft·lb
- Measuring range N·m: 20-100 N·m
- Measuring range ft·lb: 15-75 ft·lb
- External square drive (inch): 1/2

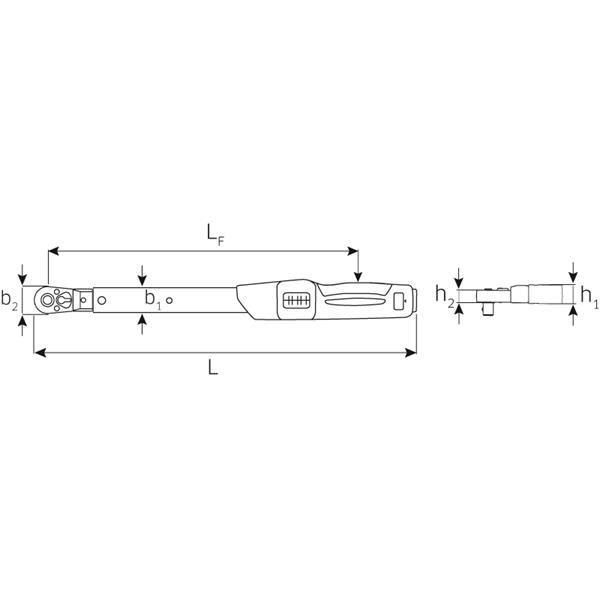

- b1: 28 mm
- b2: 29 mm
- Width mm (b): 92 mm
- DIN: DIN EN ISO 6789-2:2017
- Fine scale division: 0,5 N·m
- Weight with box: 1554 g
- Size: 10QR FK
- Height mm (h): 70 mm
- Height mm (h1): 23 mm
- Height mm (h2): 14,5 mm
- Length mm (L): 428,5 mm
- LF: 346,5 mm
- Weight: 1129 g
Stahlwille 730NR/10QR FK
Stahlwille product no: 96502110
EAN: 4018754180509
| Design/type: | reversible |
|---|---|
| Drive: | 1/2" (12.5 mm) |
| Torque Tools: | Mechanical torque wrench |
| Torque range: | 20-100 N·m |
