Stahlwille 730NR/40 FK Torque Wrench With Cut-Out
€749.95*
Content:
1 pcs
/ 4
Delivery time 4 working days
Variante
Product number:
1863091
Manufacturer no.:
96502140
EAN:
4018754180523
Weight in kg:
2.91
Product information "Stahlwille 730NR/40 FK Torque Wrench With Cut-Out "
Stahlwille 730NR/40 FK Torque wrench service MANOSKOP Model 730NR/40 FK Measuring r. 60-300ft lb Drive 3/4 L. 657mm
Features:
- click-type
- no need to reset to "0" as measuring element is only loaded during the tightening process
- ratchet with QuickRelease safety lock
- quick, precise adjustment thanks to QuickSelect quick adjustment
- dual stop signal
- very easy-to-read dual scale with colour differentiation of N-m/ft-lb or ft-lb/in-lb
- Continued load after click-type or loads against the functional direction, e.g. with tight screws in the case of tight screws, do not affect the release mechanism, which is thus protected from damage
- 2-component handle with hand-friendly, green soft zone (resistant to oils, greases, fuels, brake fluids and Skydrol)
- Calibration with the perfectControl calibration device no. 7794 or the calibration system no. 7706. Readjustment without disassembly if necessary
- Certificate in accordance with DIN EN ISO 6789-2:2017
- DBGM
- in a sturdy plastic case (size 65 in a sheet steel case)
- Display deviation ± 4 %
Technical features:
- Scale division N·m: 20 N·m
- Scale division ft·lb: 10 ft·lb
- Measuring range N·m: 80-400 N·m
- Measuring range ft·lb: 60-300 ft·lb
- External square drive (inch): 3/4

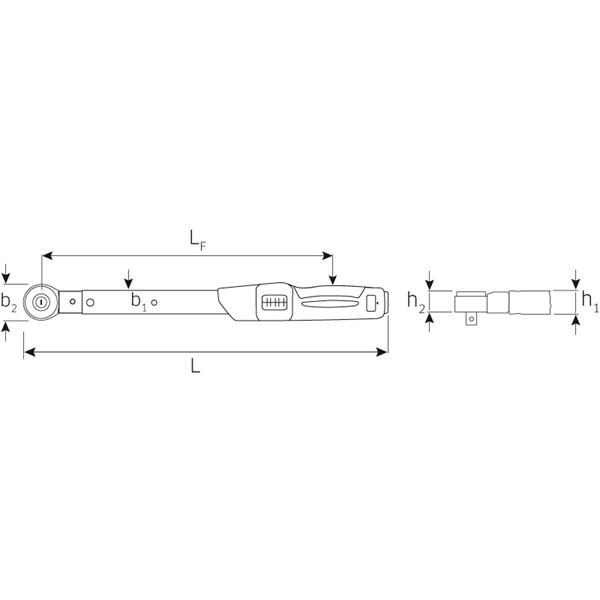

- b1: 28 mm
- b2: 50 mm
- Width mm (b): 92 mm
- DIN: DIN EN ISO 6789-2:2017
- Fine scale division: 2 N·m
- Weight with box: 2657 g
- Size: 40 FK
- Height mm (h): 70 mm
- Height mm (h1): 23 mm
- Height mm (h2): 31,5 mm
- Length mm (L): 657 mm
- LF: 564,5 mm
- Weight: 2122 g
Stahlwille 730NR/40 FK
Stahlwille product no: 96502140
EAN: 4018754180523
| Drive: | 3/4" (20 mm) |
|---|---|
| Torque Tools: | Mechanical torque wrench |
| Torque range: | 80-400 N·m |
