Stahlwille 7385N Protractor For Rotation Angle Tig htening
Product number:
1861597
Manufacturer no.:
54010002
EAN:
4018754136131
Weight in kg:
0.72
Product information "Stahlwille 7385N Protractor For Rotation Angle Tig htening"
Stahlwille 7385N Torque angle gauge No. 7385N Internal square 3/4" External square 3/4" L.416mm
Features:
- For angle-controlled screw tightening, with stationary reading point
- Safe reading from any angle thanks to 2 inclined scales
- With unscrewable magnet for attaching a socket with 1/2" square drive
- To be used with a tightening tool, e.g. Service MANOSKOP no. 730N
- since a defined setting torque must first be applied for angle-controlled screw tightening, a torque wrench should always be used as a tightening tool whose capacity covers both the setting torque and the tightening force required to achieve the angle of rotation
- the choice of angle measuring disc - with 1/2" or 3/4" square - depends on the square of the tightening tool
Technical features:
- Internal square [inch]: 3/4 "
- External square [inch]: 3/4 "

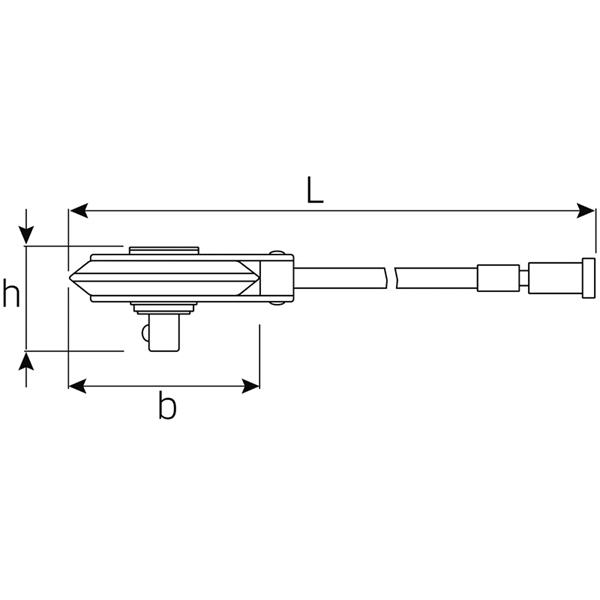

- Width mm (b): 78 mm
- Height mm (h): 76 mm
- Length mm (L): 416 mm
- Model no.: 7385N
- Scale division [E1]: 2°
- Weight: 720 g
- Weigth kg: 0.720 kg
Stahlwille 7385N
Stahlwille product no: 54010002
EAN: 4018754136131
| Design/type: | accessory |
|---|---|
| Drive: | 3/4" (20 mm) |
| Torque Tools: | Measuring Tool |
