Stahlwille 755R/1 Torque Wrench With Cut-Out
Product number:
1861532
Manufacturer no.:
50100001
EAN:
4018754096268
Weight in kg:
0.34
Product information "Stahlwille 755R/1 Torque Wrench With Cut-Out "
Stahlwille 755R/1 Torque wrench series MANOSKOP Model 755R/1 Measuring r. 1,5-12,5N·m Drive 1/4 L. 173,5mm
Features:
- For work on the assembly line or in series production. No setting scale; therefore adjustment with testing devices required, e.g. with STAHLWILLE testing devices no. 7707 W, SmartCheck or calibration systems no. 7794, no. 7706.
- force application point-independent
- click-type
- with permanently installed ratchet for sockets
- dual stop signal
- particularly light and handy
- handle and shaft made of square steel tube
- continued load after triggering or loads against the functional direction (max. up to the measuring range limit of the torque wrench) do not affect the release mechanism, which is thus protected from damage
- on request with preset release value (price surcharge 10%)
- Adjustment with torque wrench tester
- Display deviation ± 4%
Technical features:
- Measuring range N·m: 1,5-12,5 N·m
- Measuring range ft·lb: 1,0-9,0 ft·lb
- External square drive (inch): 1/4

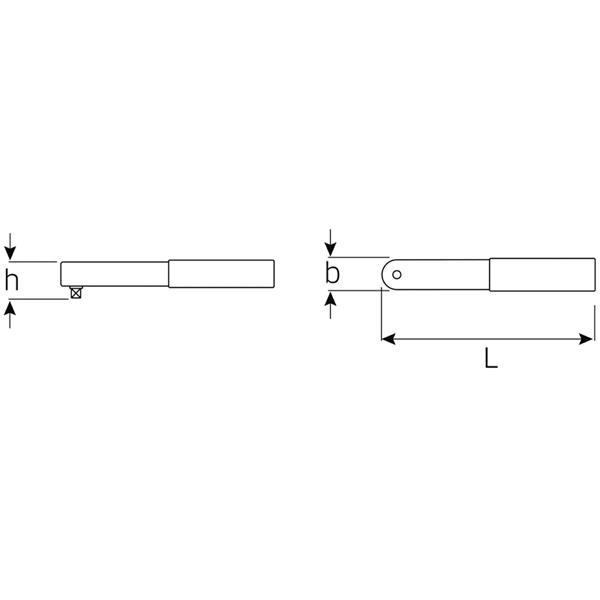

- Width mm (b): 22 mm
- Height mm (h): 18 mm
- Length mm (L): 173,5 mm
- MA N·m: 1.5 N·m
- Nominal value N·m: 12.5 N·m
- Weight: 335 g
- Weigth kg: 0.34 kg
Stahlwille 755R/1
Stahlwille product no: 50100001
EAN: 4018754096268
| Drive: | 1/4" (6,3 mm) |
|---|---|
| Torque Tools: | Mechanical torque wrench |
| Torque range: | 1,5-12,5 N·m |
