Stahlwille TORSIOTRONIC 6 Electronic Torque Screwd river
Product number:
1931408
Manufacturer no.:
96510760
EAN:
4018754299416
Weight in kg:
1.64
Product information "Stahlwille TORSIOTRONIC 6 Electronic Torque Screwd river"
Stahlwille TORSIOTRONIC 6 Electromechanical torque screwdriver TORSIOTRONIC TORSIOTRONIC 6 Measuring r. 60-600 cN·m Hex 1/4 "
Features:
- indicating and click-type
- integrated bit ratchet with 80 teeth for a working angle of just 4, 5° and therefore particularly fine work - ideal for hard-to-reach bolted joints
- after click-type operation, the slipping mechanism prevents the set tightening torque from being accidentally exceeded and the screw from being overtightened

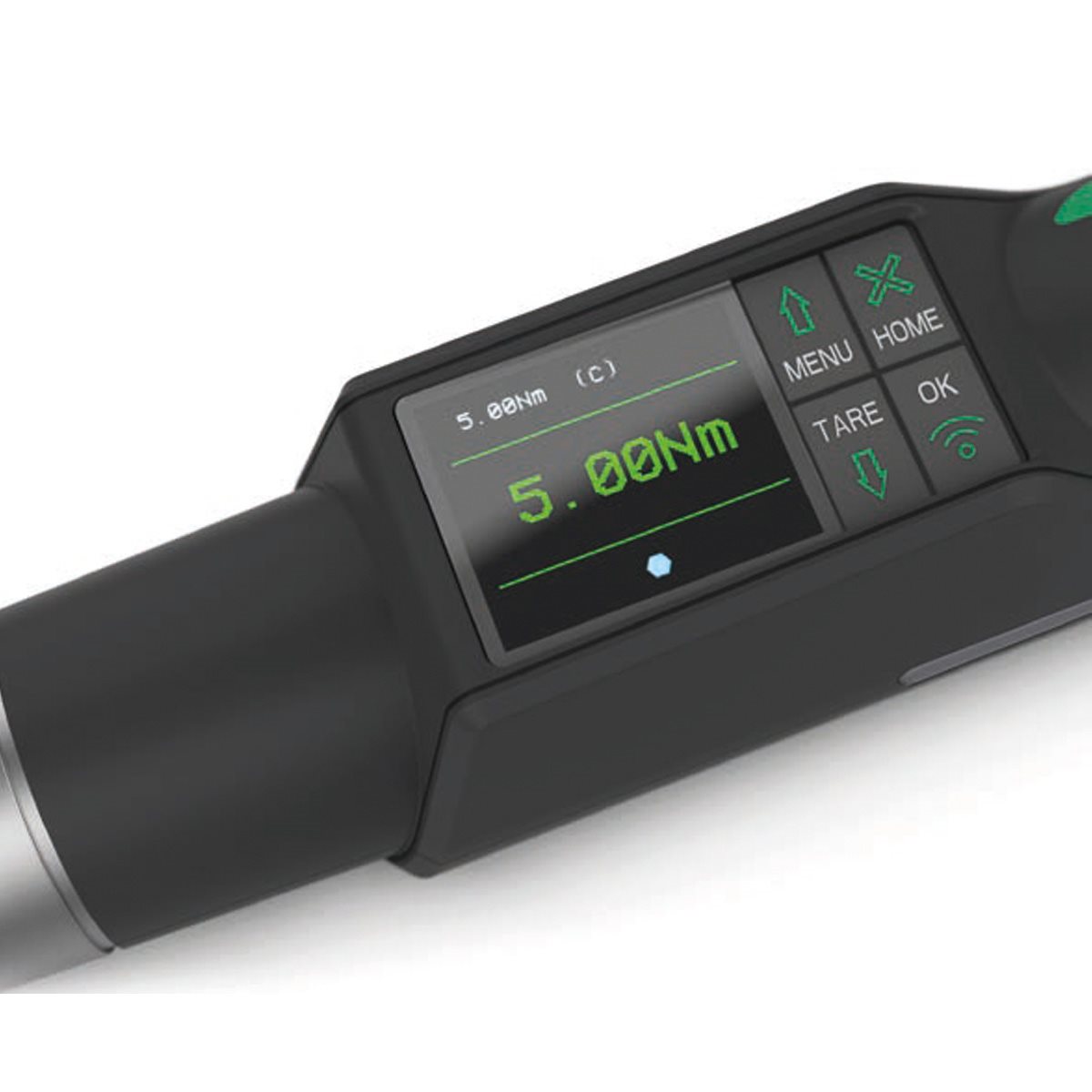

- clear display of all relevant information on a bright and battery-saving OLED colour display colour display - readable from virtually any angle
- visual assessment of screw tightening using traffic light colours in the display and LEDs on the side
- display in various languages
- long battery life with battery-saving standby mode. The batteries can be changed quickly and easily.
- Memories up to 2. 500 tightening operations and sequences for later readout and documentation on the PC using the integrated micro USB interface
- Target torque and tolerances for evaluating the measured value can be set individually
- Short familiarisation time thanks to almost self-explanatory controls and an easy-to-understand menu structure
- Three operating modes (Click, Track, Peak Hold)
- Optical, acoustic and haptic stop signal
- the ergonomically optimised ball handle enables fatigue-free working and is resistant to oils, greases, fuels, brake fluids and Skydrol
- left and right-hand tightening
- with 1/4" square drive (6, 3 DIN 3120/ISO 1174-1) for mounting 1/4" sockets
- with 1/4" square socket in the handle end (6.3 DIN 3120/ISO 1174-1) for mounting a 1/4" T-handle
- Units of measurement: cN-m, N-m, ft-lb, in-lb, in-oz
- Included in the scope of delivery: SensoMaster 4 software, USB cable, bit holder, T-handle (size 10)
- Supplied with lithium battery 3.6 V, type 18650, packaged in accordance with UN 3480
- Patented
- Certified in accordance with DIN EN ISO 6789-2:2017
- In a sturdy plastic case
- Display deviation ± 4 %
Technical features:
- Measuring range N·m: 0,6-6 N·m
- Measuring range cN·m: 60-600 cN·m
- Measuring range ft·lb: 0,4-4,45 ft·lb
- Measuring range in·lb: 5,3-53,1 in·lb
- Measuring range in·oz: 84,5-849,5 in·oz
- Battery type: Lithium 3,6V, Typ 18650
- DIN: DIN 3120 / ISO 1174-1
- Internal hex drive [inch]: 1/4 "
- Length mm (L): 317 mm
- Weight: 572 g
- Weigth kg: 1.64 kg
Stahlwille TORSIOTRONIC 6
Stahlwille product no: 96510760
EAN: 4018754299416
