Vigor V4476N/2 Spring vice set, V4476N/2, 17-piece s, Number of tools: 17

€3,568.95

Stk

Product number: 1991399

Manufacturer no.: V4476N/2

EAN: 4047728084512

Weight in kg: 60

Product information "Vigor V4476N/2 Spring vice set, V4476N/2, 17-piece s, Number of tools: 17"

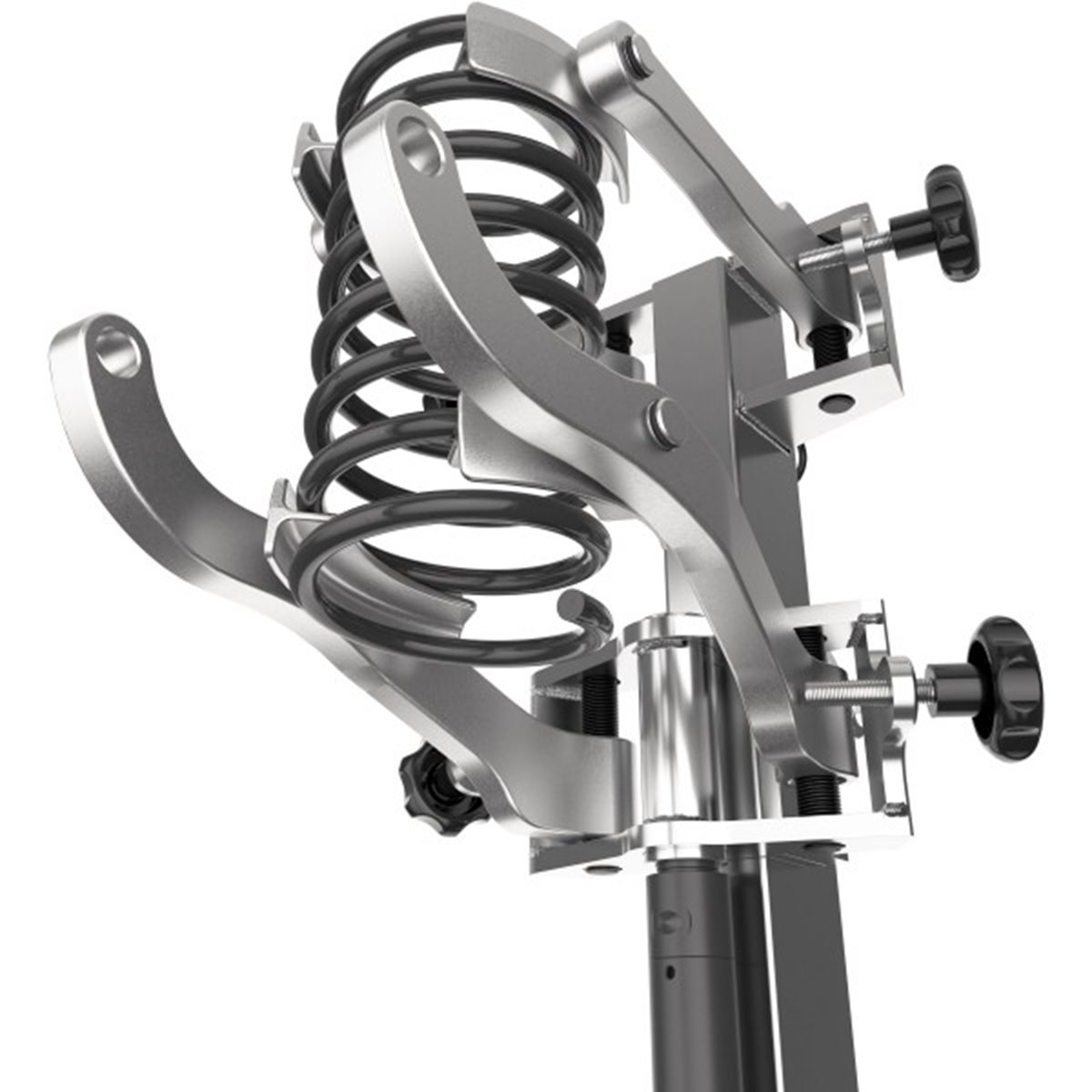

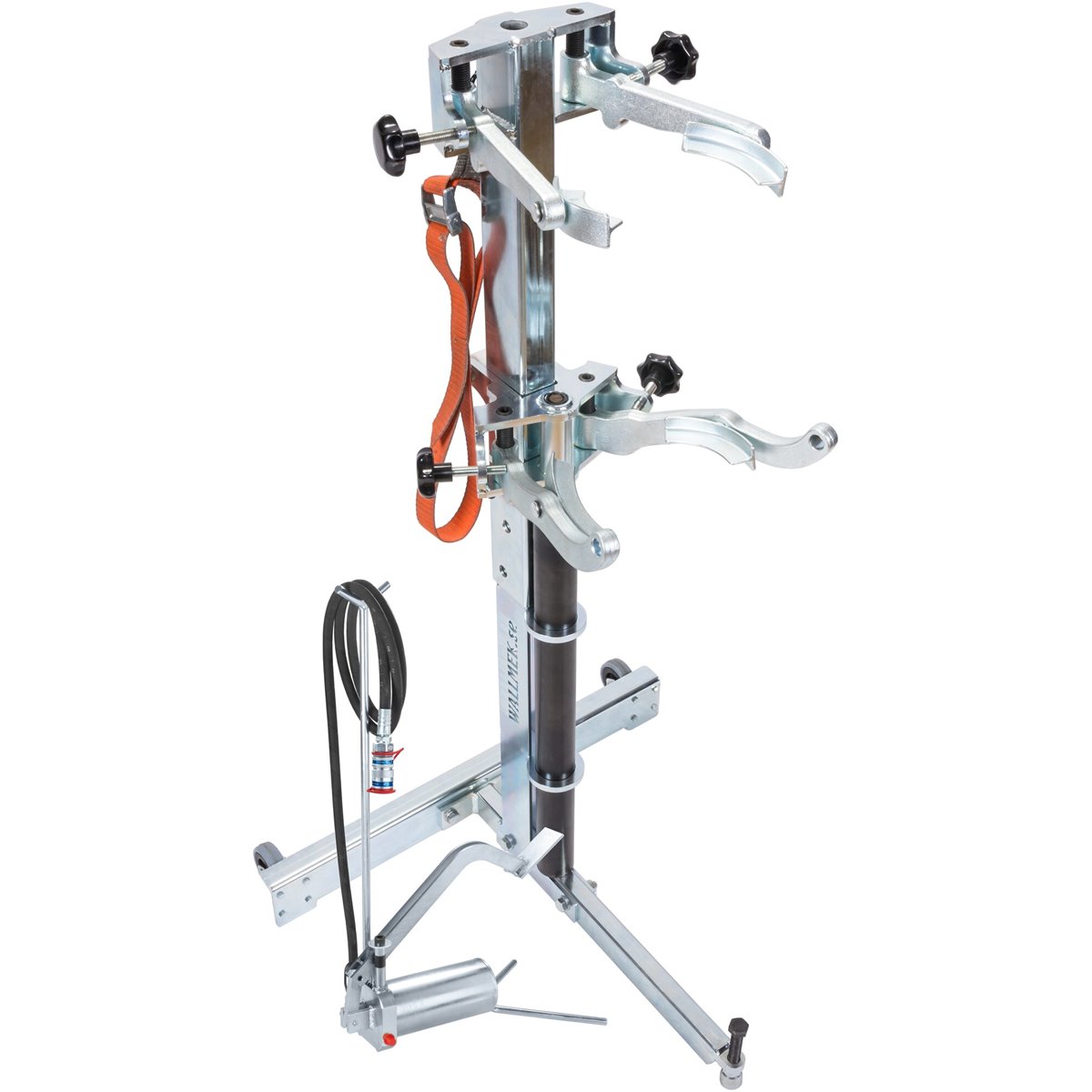

Hydraulic spring vice with 10 spring plates, 16-pcs. - V4476N

Can be used for almost any spring strut and shock absorber in the field of passenger cars as well as lightweight vans
Also for MERCEDES-BENZ C-Class (W203), newer BMW and VAG spring struts, with electronic shock absorbers (EDC, DCC)
By gripping the springs within the spring windings any possible awkward parts on the shock absorber are irrelevant and have no influence on the operation of the spring vice
Can be used both for left and right-hand wound springs
Precise alignment of spring and shock absorber struts

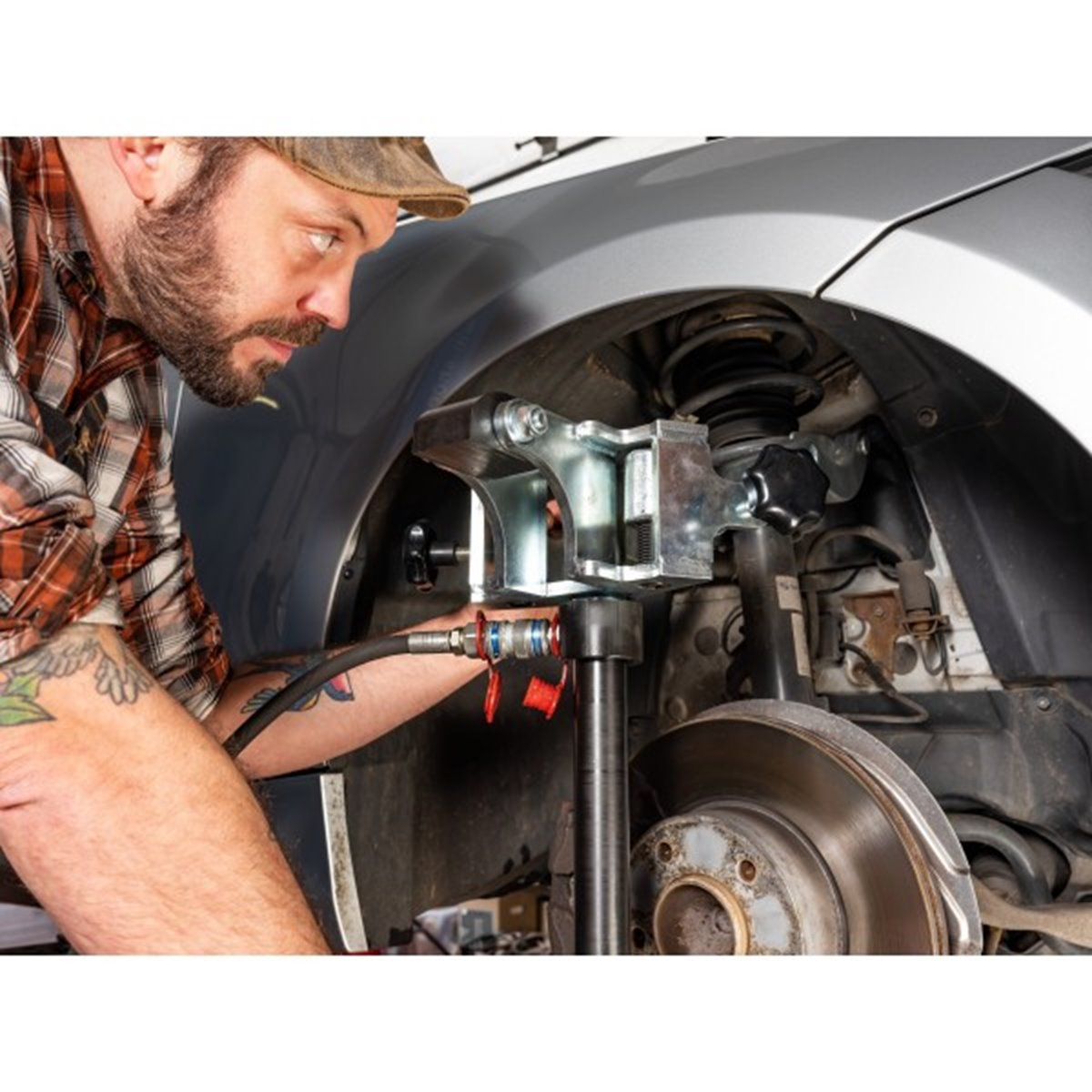

Also for separating steering knuckles and spring struts by relieving strain on the spring strut directly on the vehicle without removing the axle shaft
Tripod with included rollers enables stowing and mobile work with the spring vice
Reverse placement of the supporting frame for use of the spring vice as an additional hydraulic support and can be used with 2.1 tonnes of force

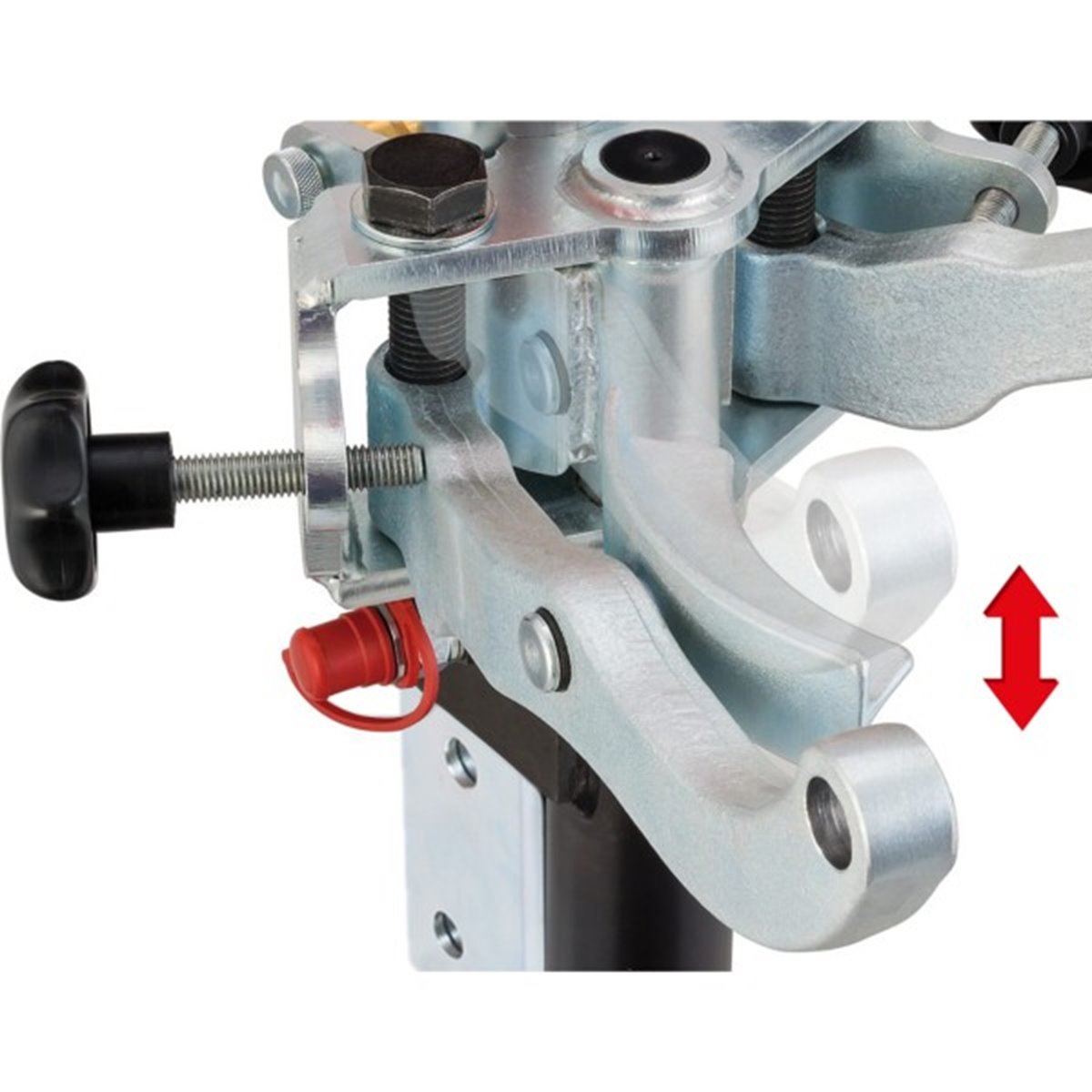

“Quick pin” mechanism allows quick and easy repositioning of the spring vice in order to use the three functions: gripping the spring, separating the steering knuckles from the spring struts and as a hydraulic support
Sturdy tripod foot with locking element and positioning mechanism for a stable and balanced footing
Weight: 44 kg
Capacity: 2.1 tonnes
Stroke: 430 mm
Scope of delivery:
- 4x Spring plate V4352, Diameter 70 - 160 mm
- 4x Spring plate V4353, Diameter 150 - 240 mm
- 2x Spring plate V4354, Diameter 150 - 240 mm with locking element

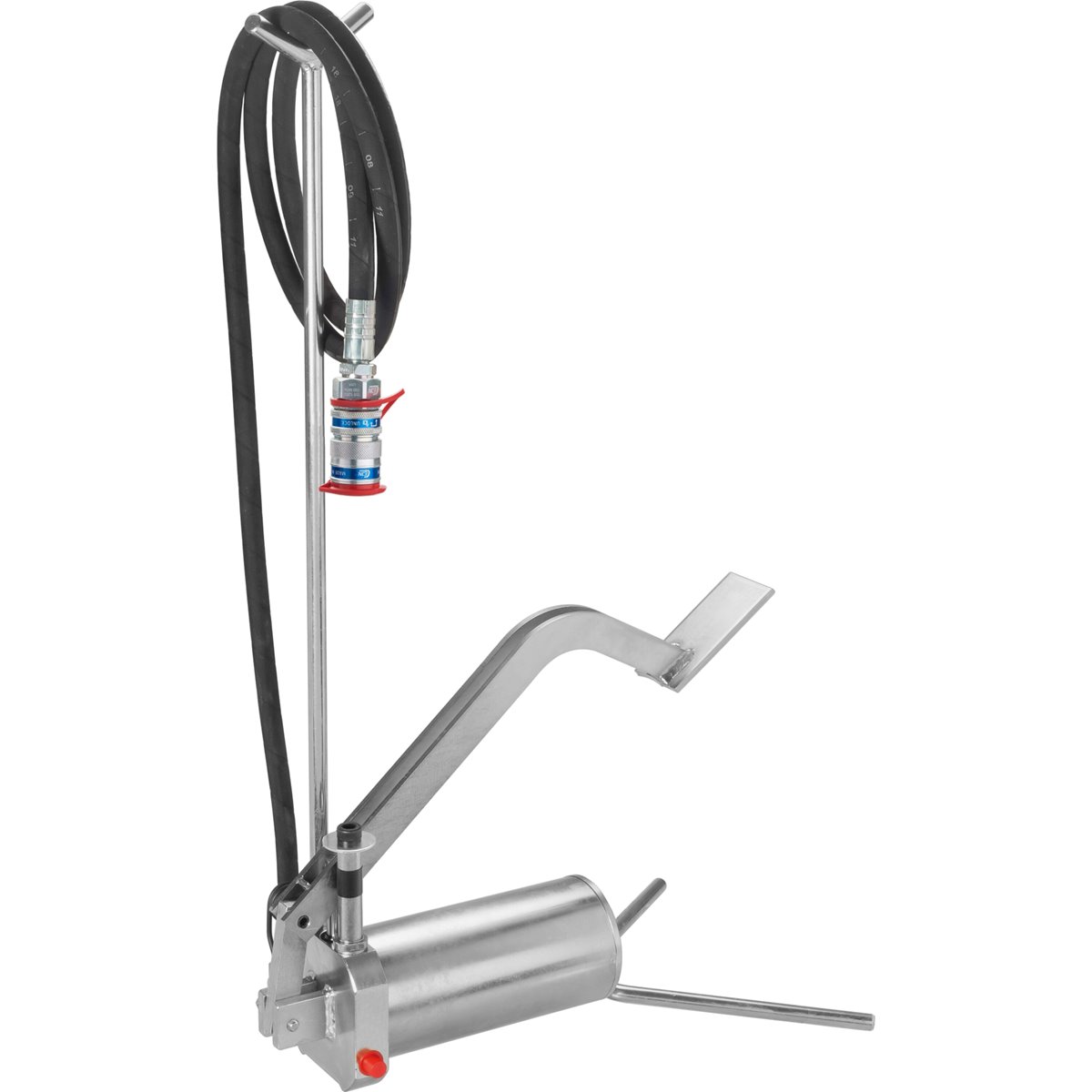

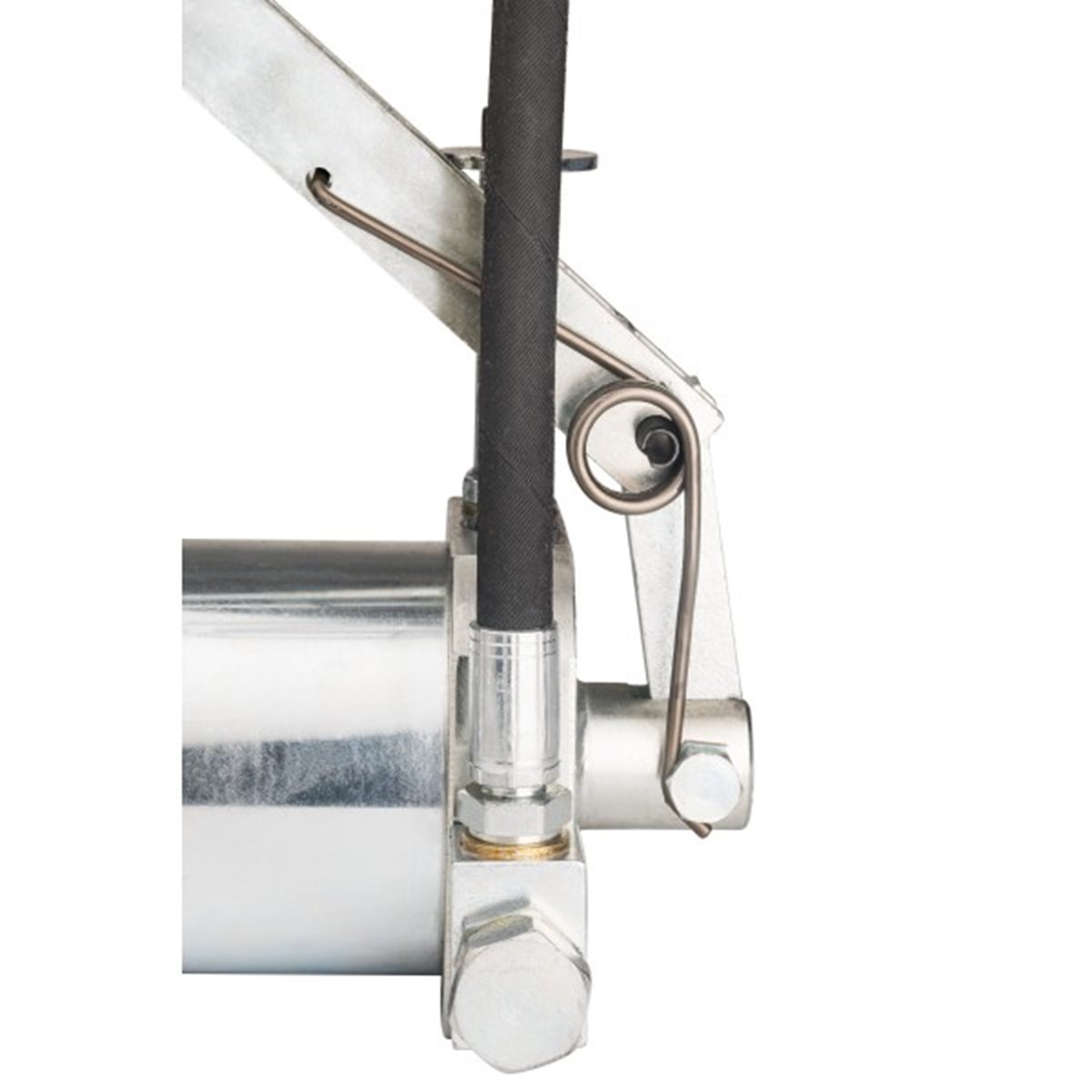

Hydraulic foot pump, 3-pcs. - V2847

For all hydraulic cylinders
Suitable for mobile use
Stands securely and solidly on its feet
Robust steel body
Foot-operated – no pneumatic connection required
Working pressure: 700 bar
Hose length: 2.2 m
Oil tank: 0.75 litres
Quick coupling, non-drip
Scope of delivery:
- Gasket set - V3614
- (CEJN-) quick coupler connection - V3141
- 2,2 m hydraulic hose - V3120
