VIGOR V4598 universal wheel bearing-, drive axle and wheel hub set

Product information "VIGOR V4598 universal wheel bearing-, drive axle and wheel hub set"

VIGOR V4598 universal wheel bearing-, drive axle and wheel hub set



Features:

  • 15 pieces
  • to be used with hydraulic cylinder or manual spindle

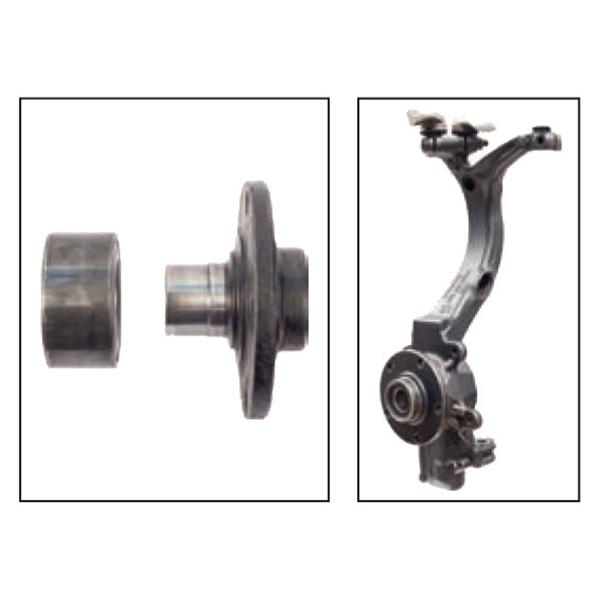

  • replace the wheel bearing directly at the vehicle with minimal effort
  • the set works with any wheel size on the market
  • mounting discs have stabilizers and can be used from both sides
  • mounting discs diamter 62–83 mm and hub discs diameters 34 – 60 mm included, bearing shell for bearings up to 92 mm diameter
  • for removing the wheel hub V4629, V2849 or V3072 are necessary
  • work effort: ca. 20–30 minutes per side

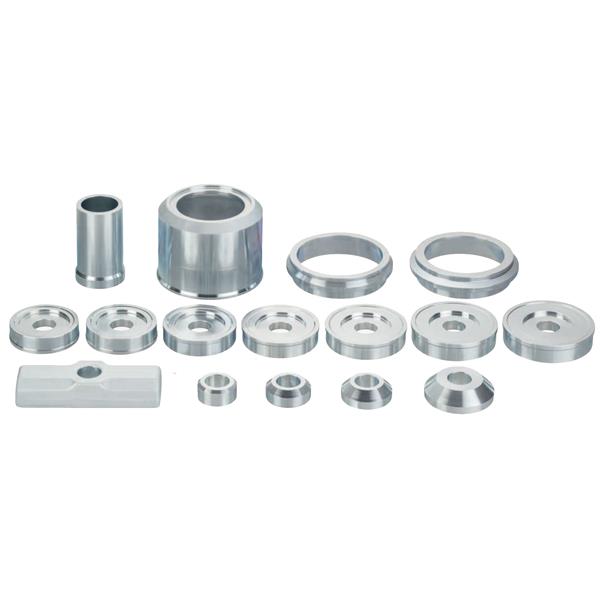

Content:

  • V4598-30 pressure pipe , length 78 mm
  • V4598-22 bearing shell Ø 82,5 mm
  • V4598-21 bearing shell Ø 75,5mm
  • V4598-20 bearing shell Ø 93mm
  • V4598-10 bearing shell Ø 61,8-62,8mm*
  • V4598-11 bearing shell Ø 63,8-64,8mm*
  • V4598-12 bearing shell Ø 65,8-66,8mm*
  • V4598-13 bearing shell Ø 68,8-70,8mm*
  • V4598-14 bearing shell Ø 72,5-74,5mm*
  • V4598-15 bearing shell Ø 76,5-78,5mm*
  • V4598-16 bearing shell Ø 80,8-82,8mm*
  • V3060 holder/retainer, diameter 20,25 mm*
  • V4614 hub-disc, conical Ø 33,8mm*
  • V4598-2 hub-disc, conical Ø 38,8mm*
  • V4598-3 hub-disc, conical Ø 43,8mm*
  • V4598-4 hub-disc, conical Ø 59,8mm*
*internal diameter 20,25 mm, for M20 spindle
