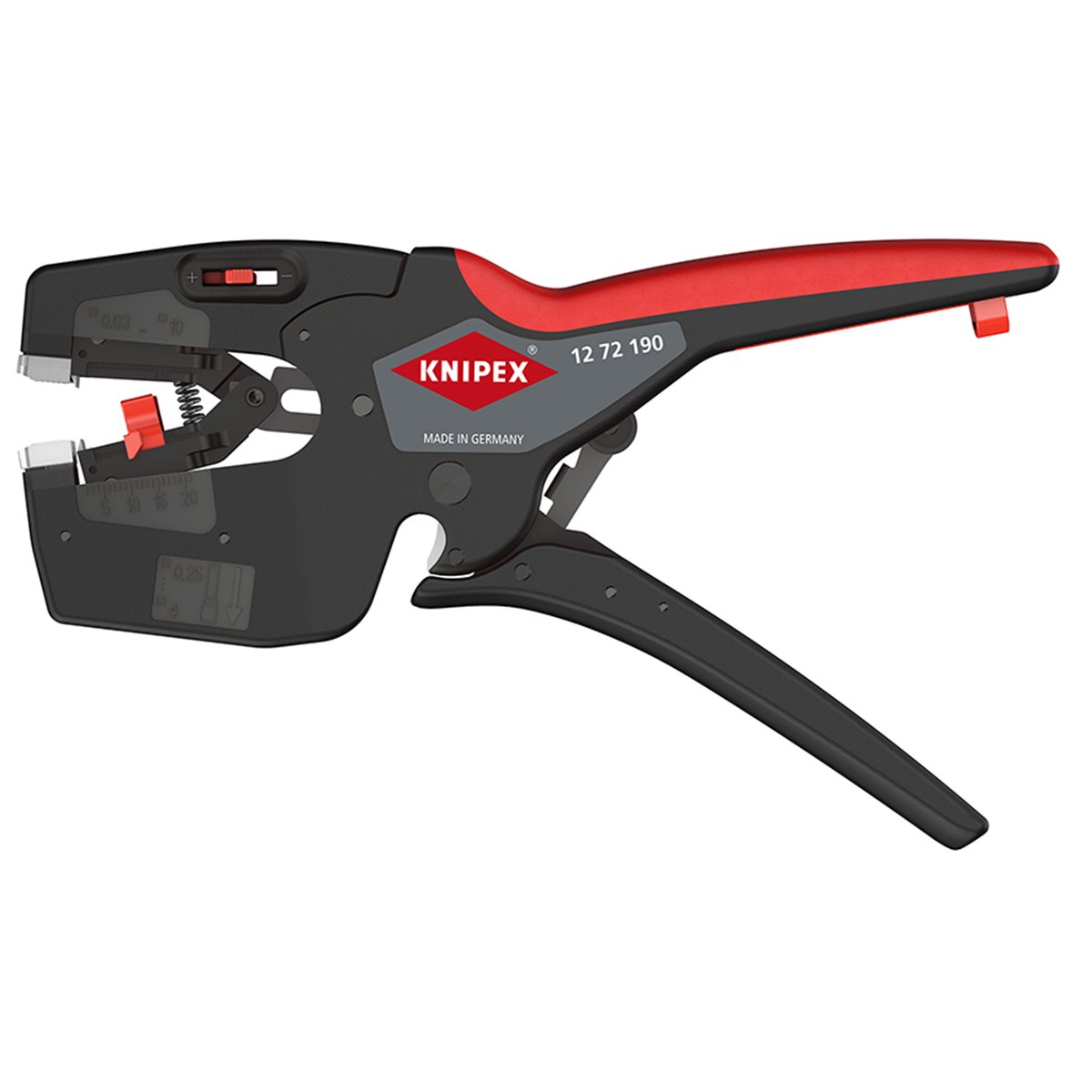

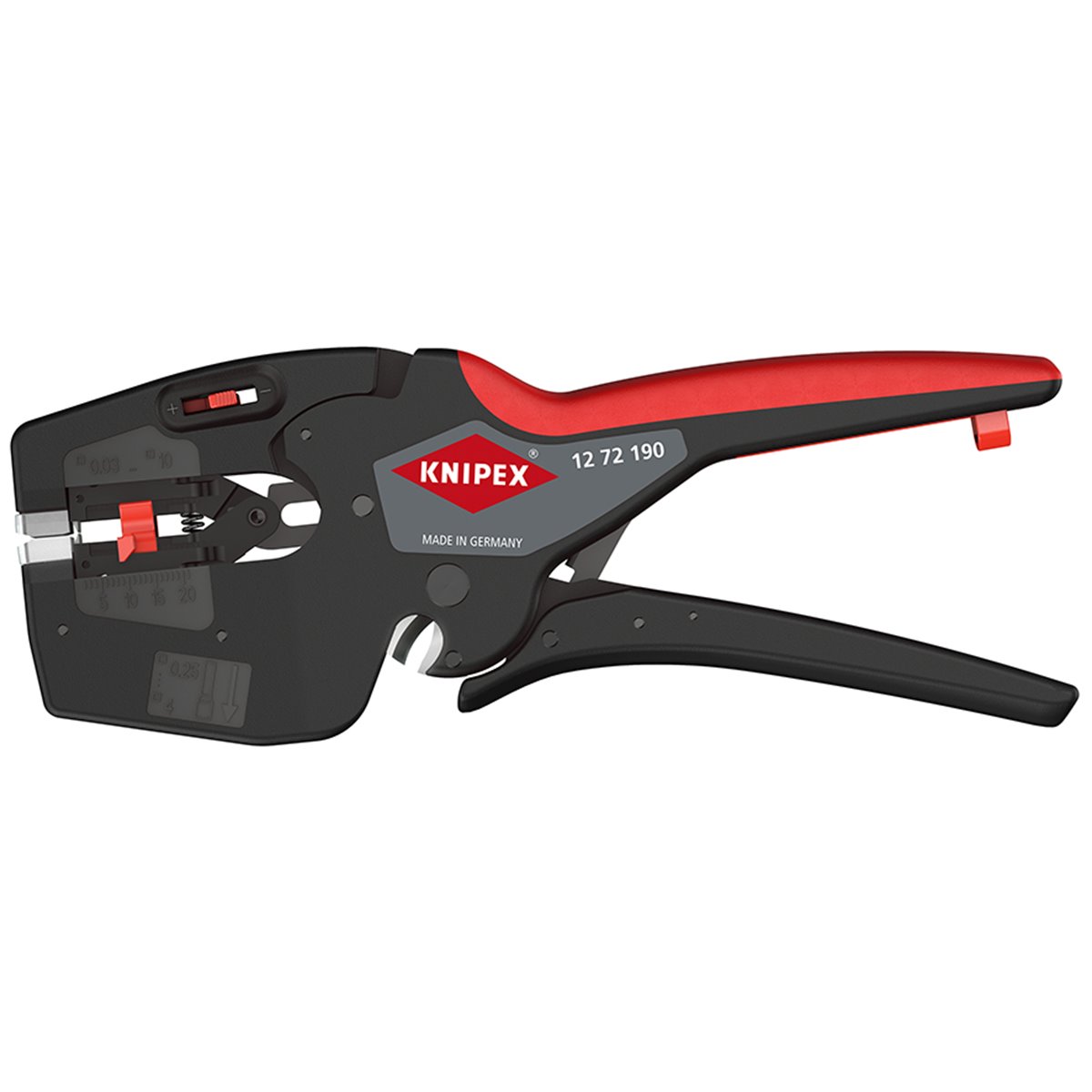

Knipex 12 72 190 NexStrip Multi-Tool with non-slip plastic grips 190 mm
€116.95
Available, delivery time: 2 working days
Available1: >5 unit(s)
Product number:
1985519
Manufacturer no.:
1272190
EAN:
4003773088165
Weight in kg:
0.17
Product information "Knipex 12 72 190 NexStrip Multi-Tool with non-slip plastic grips 190 mm"
Knipex 12 72 190 NexStrip Multi-Tool for Electricians 190 mm
Features:

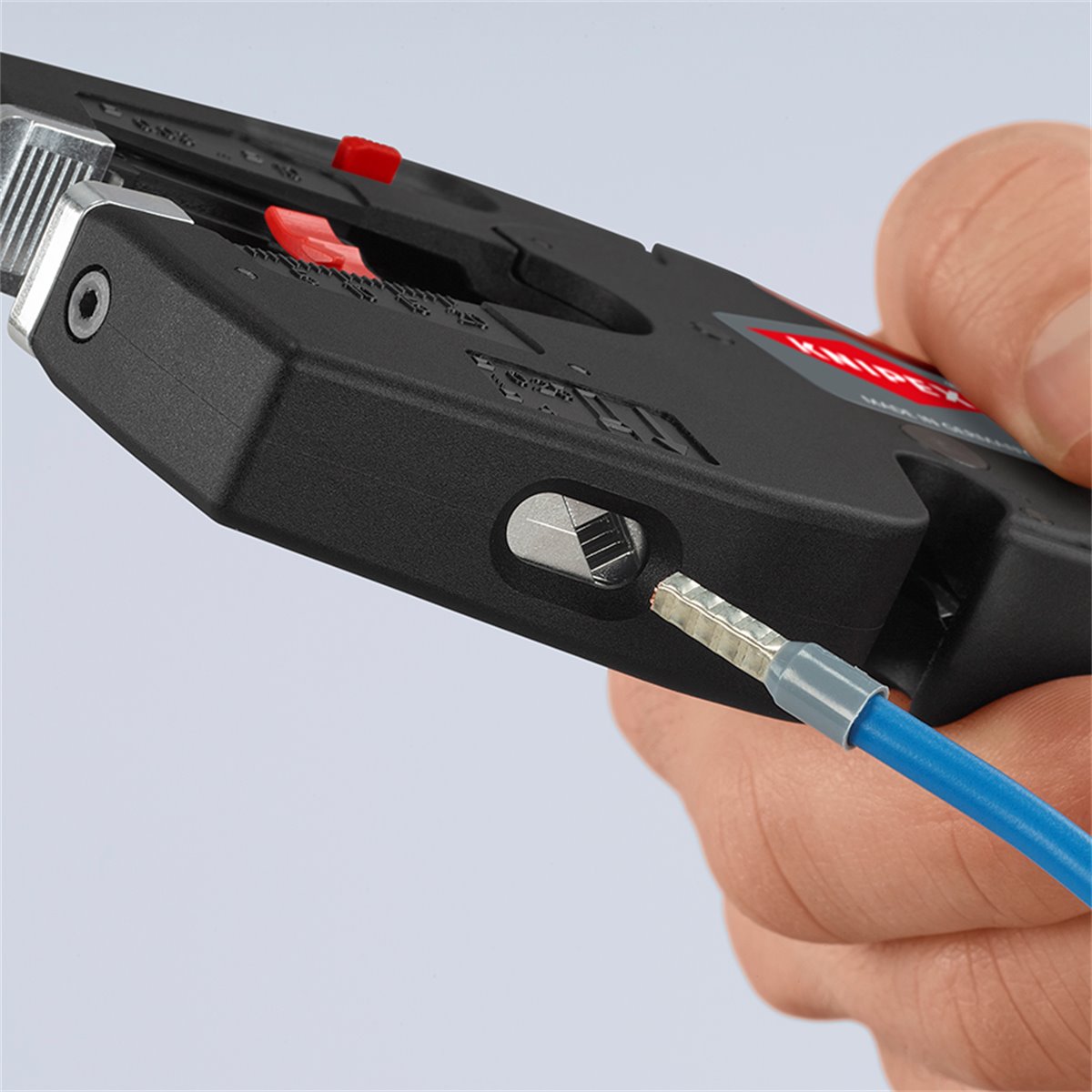

- Perfect crimping: fast and even square crimping for individual wire ferrules, the ratchet crimping mechanism guarantees the required crimping pressure.

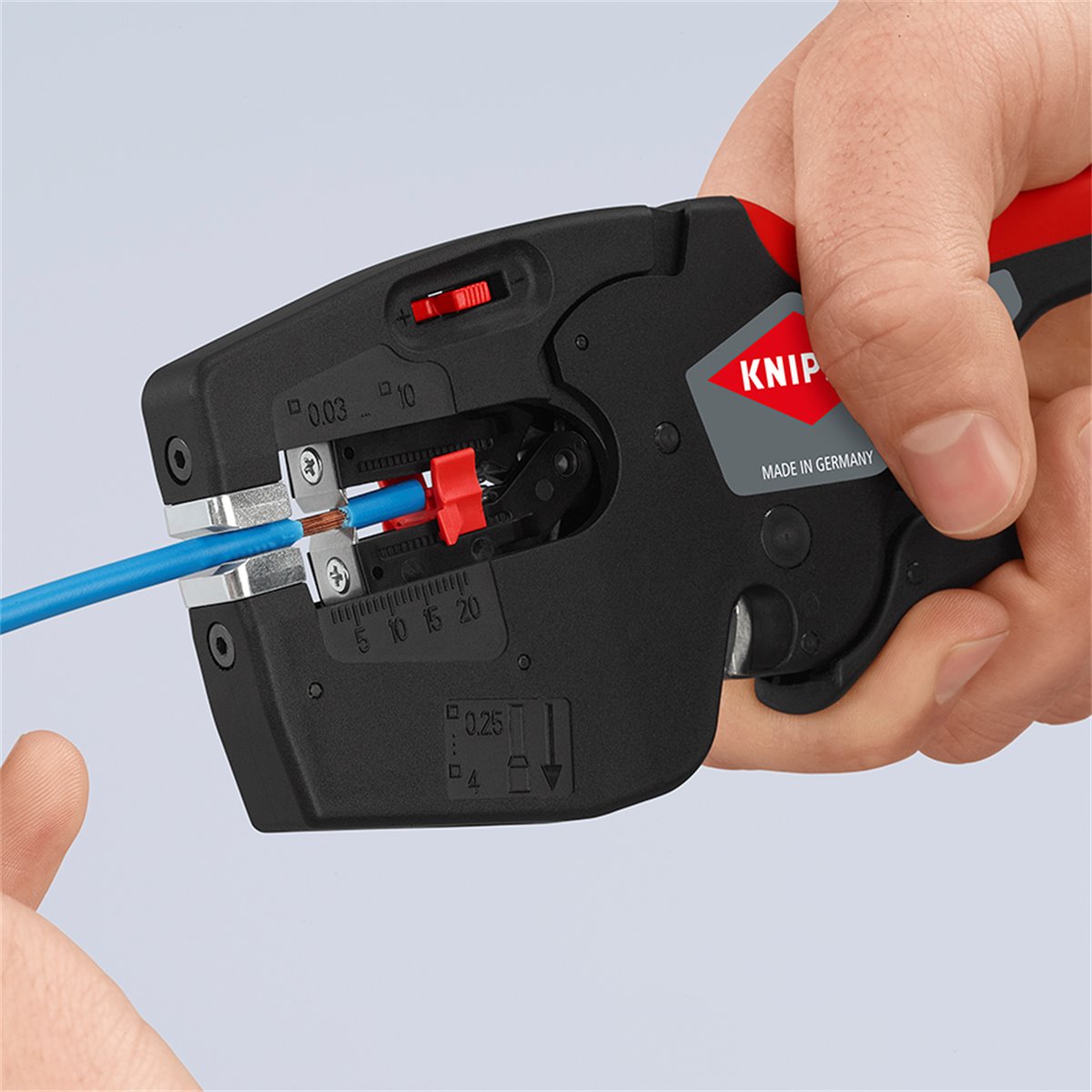

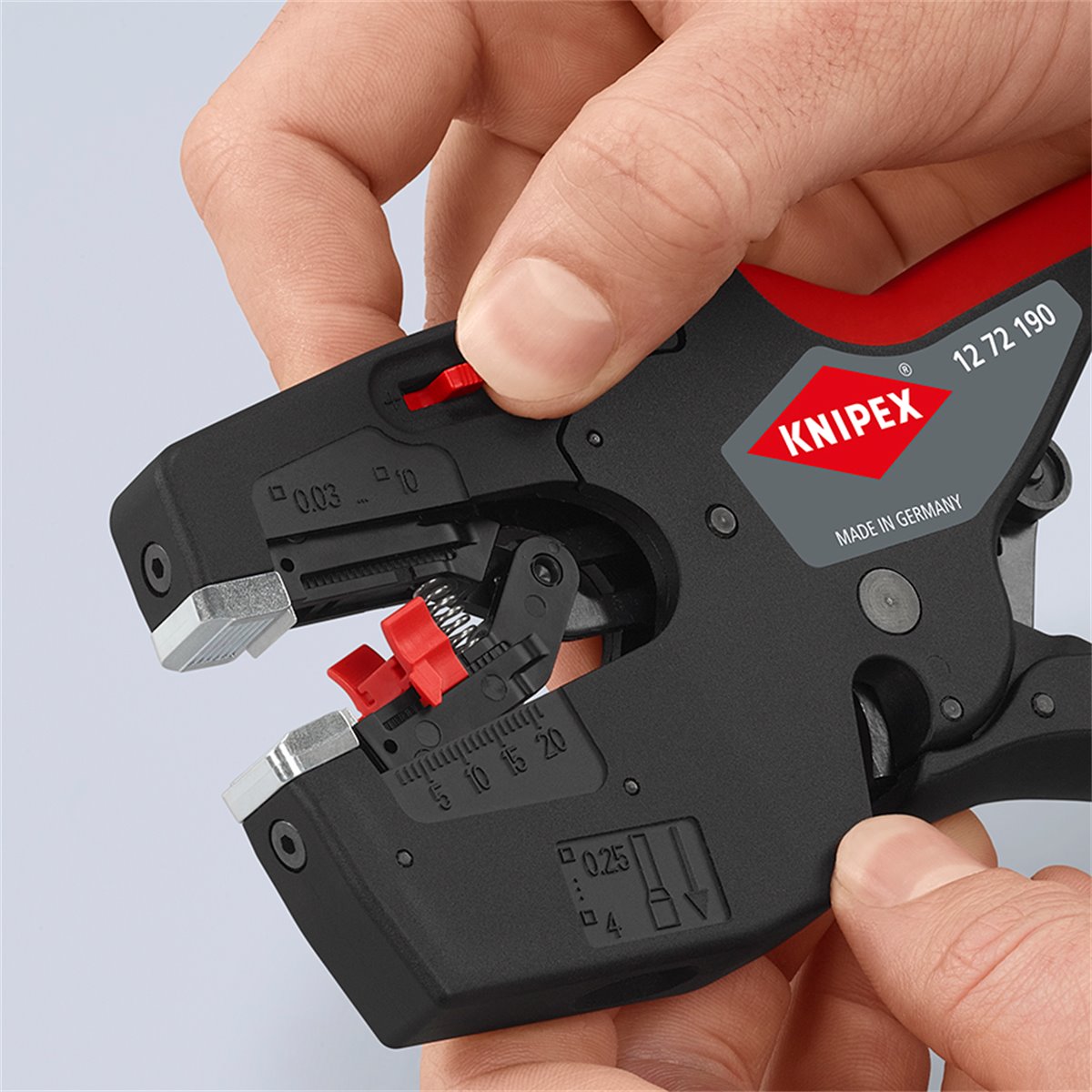

- Precise stripping: automatically adapts to the respective cable diameter and ensures consistent stripping lengths with the adjustable length stop especially with repetitive work.
- Multi-component grips ensure non-slip, comfortable handling.
- Quick, precise square crimp of single wire ferrules according to DIN 46228 parts 1+4, self-adjusts for sizes 0.25 – 4 mm² / 2 x 2.5 mm² – allows for quick crimping between different sizes
- Repetitive, high crimping quality due to ratcheting mechanism with a complete crimping cycle.
- Stripping with fine adjustment – for optimal adjustment to special materials or temperature conditions for flexible and solid conductors between 0.03 and 10 mm² (AWG 32-8).

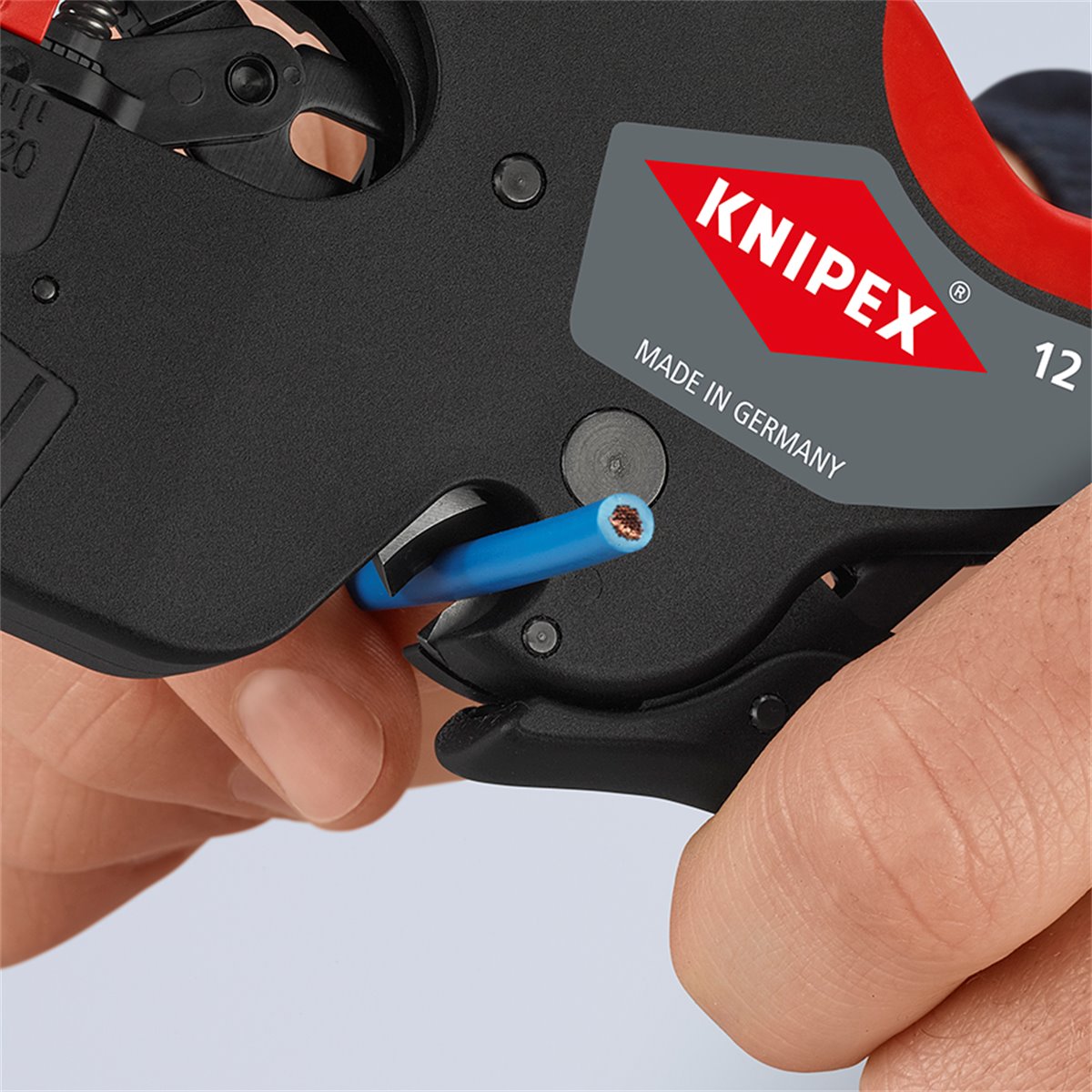

- Cleanly cuts conductors up to 10 mm² (AWG 8).
- High-quality housing made of glass fibre reinforced plastic.
- For the electrical trade: for domestic installations and wiring of electronical devices, such as PLC (programmable logic controller).
- Wire stripper with three functions: stripping wire up to 10 mm², crimping capacity of 4 mm² or 2 x 2.5 mm² and cutting capacity of 10 mm².
Technical features:
- Cutting capacity:
up to 10mm²
AWG: 8 - Stripping capacity:
0,03 - 10 mm²
AWG: 32 - 8 - Crimping capacity:
Crimping wire ferrules: 0,25 - 4 mm²
Crimping twin wire ferrules: 2 x 2,5 mm²
AWG: 32 - 8 - Length (cm): 19
- Width (cm): 1,7
- Height (cm): 11
- Weight (kg): 0,170
- EAN: 4003773088165
Product Safety and Downloads
Documents and datasheets
Product safety information
Manufacturer
Knipex-Werk C. Gustav Putsch KG
Oberkamper Straße 13
42349 Wuppertal
Germany
info@knipex.de
