Proxxon 27076 THERMOCUT Circle Cutter TKS 360

€25.95

Content: 1 pcs

Available, delivery time: 2 working days

Available₁: 2 unit(s)

Variante

Stk

Product number: 1991047

Manufacturer no.: 27076

EAN: 4006274270763

Weight in kg: 3.83

Product information "Proxxon 27076 THERMOCUT Circle Cutter TKS 360 "

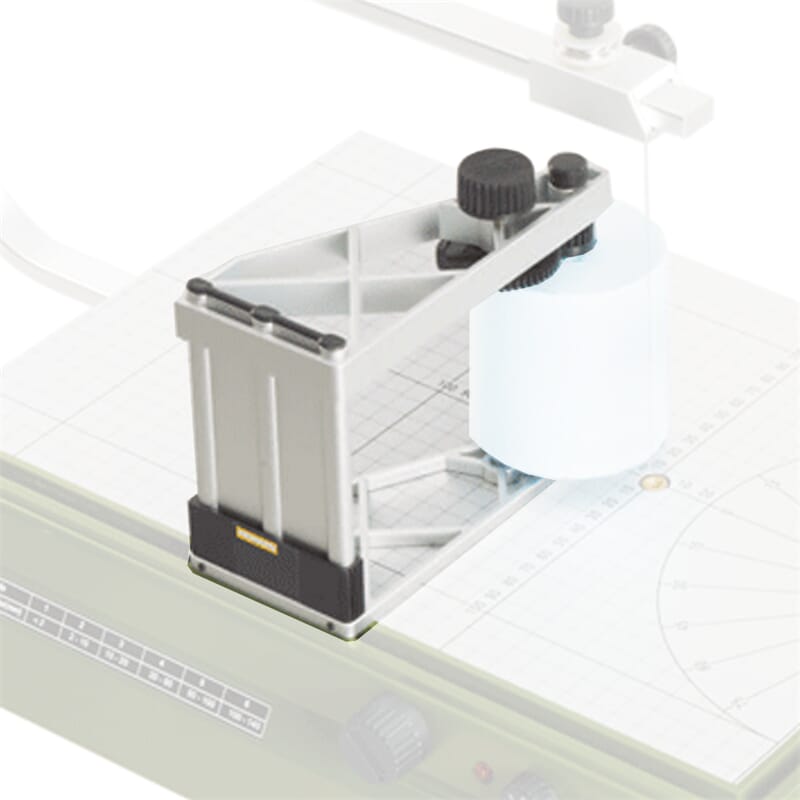

PROXXON 27076 THERMOCUT Circle Cutter TKS 360

Features:

Useful add-on for the hot wire cutter THERMOCUT 230/E.
For super-precise circular cuts: Enables the precise production of cylinders and cut-off cones with high repeat accuracy.
Solid construction made of aluminium (anodised)..

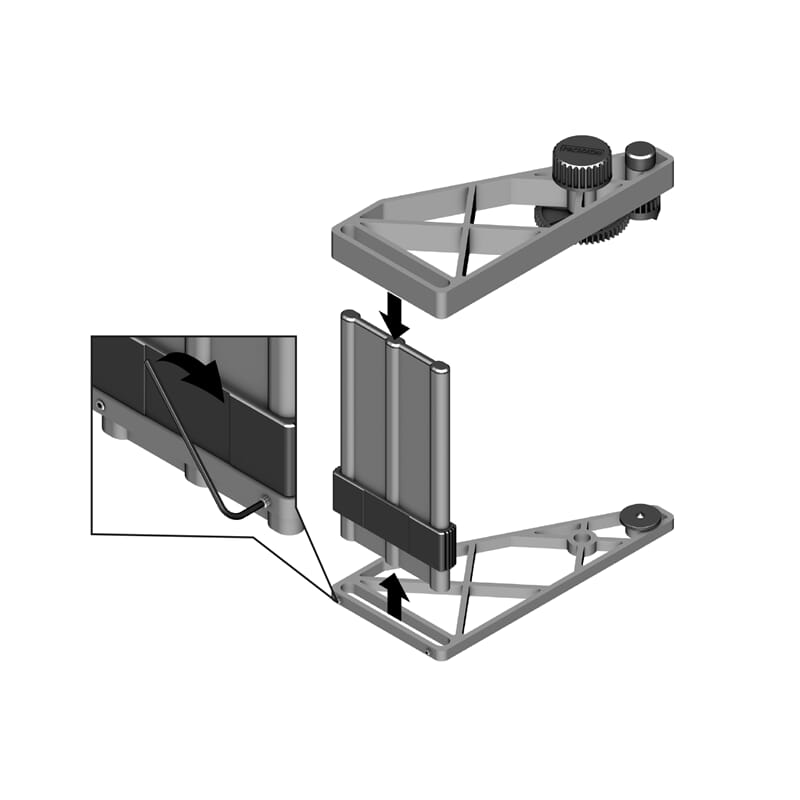

Stepless, tool-free height adjustment.
Generous feed gear ratio (1:3) for comfortable cutting without having to reach round the rotary knob.

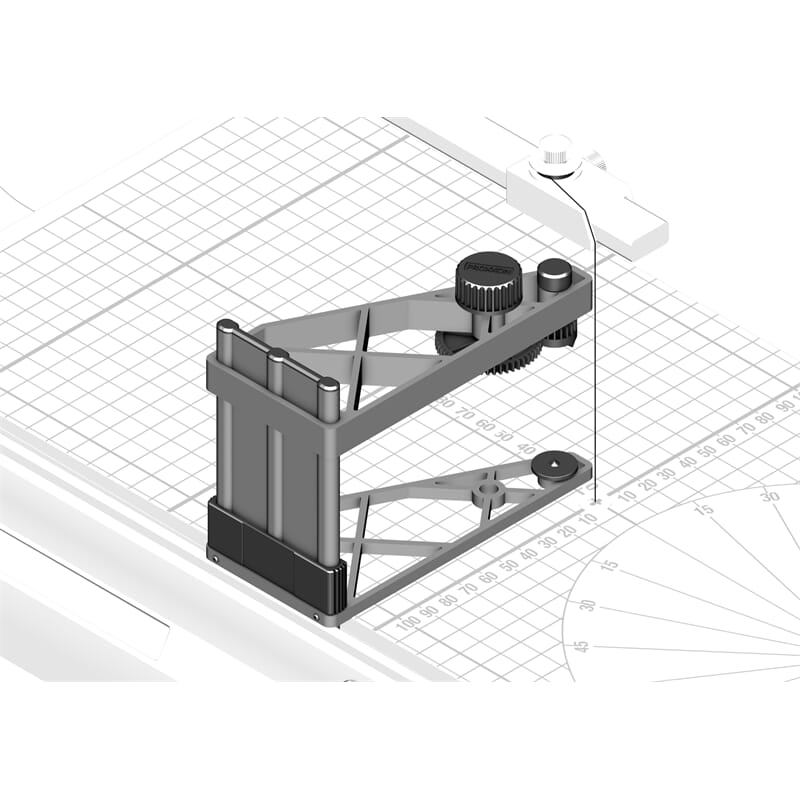

Simple preselection of the desired workpiece diameter by moving the device in the table groove.
Ergonomic handle for a secure grip during operation.

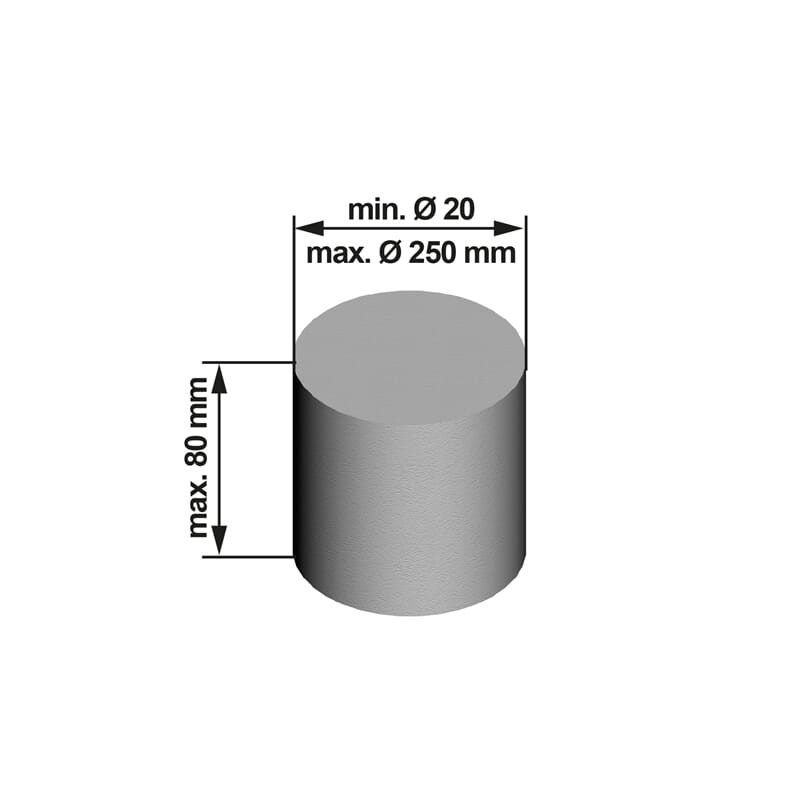

Possible dimensions cylinders:
- Diameter (min.): 20 mm
- Diameter (max.): 250 mm
- Height (max.): 80 mm

Possible dimensions frustums:
- Diameter (min.): 22 mm
- Diameter (max): 250 mm
- Height (max.): 80 mm

Product Safety and Downloads

Documents and datasheets

Product safety information

Manufacturer

PROXXON S.A.
Härebierg 6-10
6868 Wecker
Luxembourg
i@proxxon.com
