Proxxon 27080 Hot wire cutter THERMOCUT 230/E

€102.95*

Content: 1 pcs

Prices incl. VAT plus shipping costs

Available, delivery time: 2 working days

Available₁: 1 unit(s)

Stk

Product number: 1843167

Manufacturer no.: 27080

EAN: 4006274270800

Weight in kg: 3.83

Product information "Proxxon 27080 Hot wire cutter THERMOCUT 230/E "

PROXXONcolor> 27080 Hot wire cutter THERMOCUT 230/E

Attributes:

Ideal for architectural models, designers, decorators, artists, teaching too, prototypes as well as classical railroad, plane and boat model building
The unit's double wound transformer and insulation to class 2 ensure the cutter is absolutely safe
The cutting wire operates at 10V, 1A
The large base with 390 x 280mm table with surface of aluminium cobond compound ensures smooth and easy movement of the workpiece

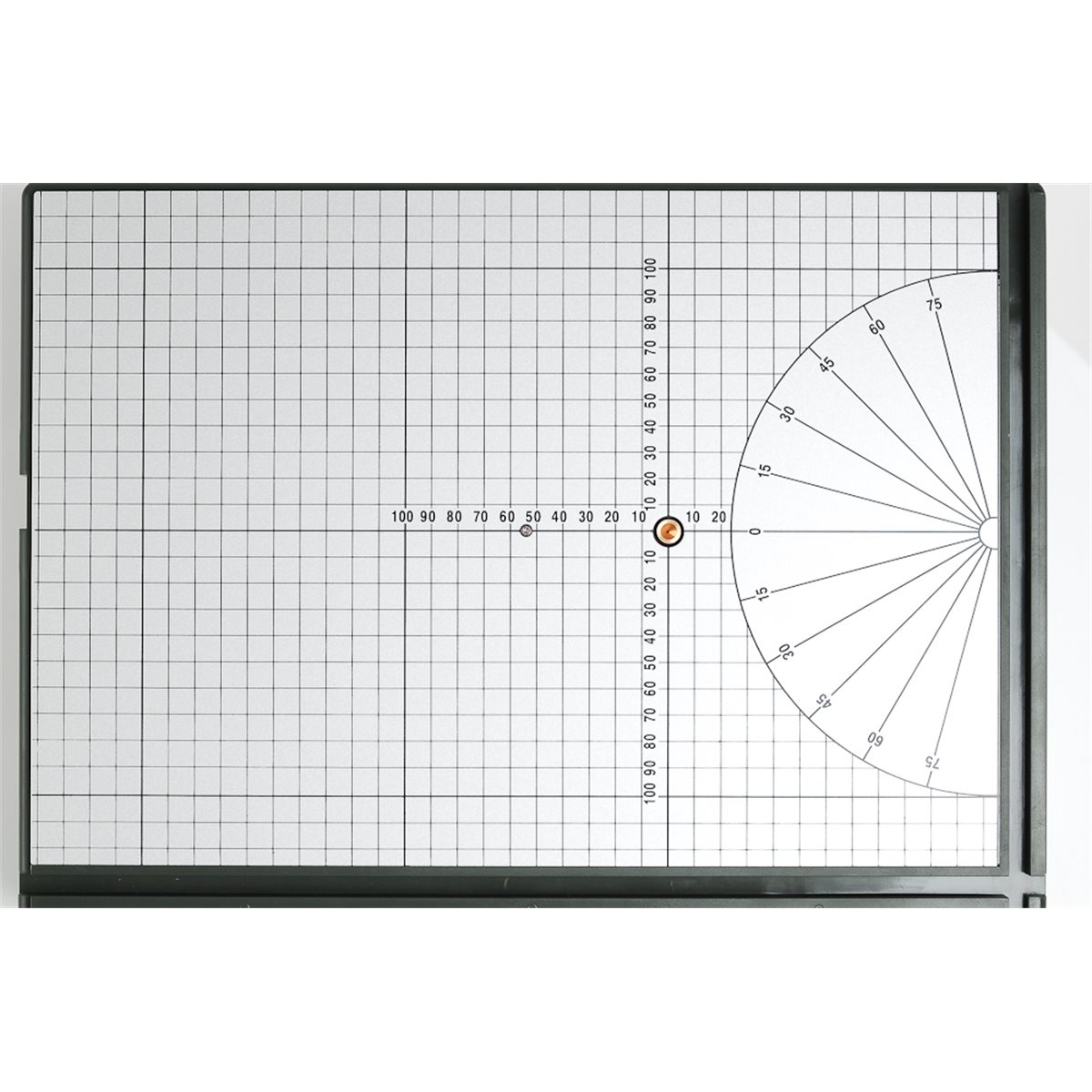

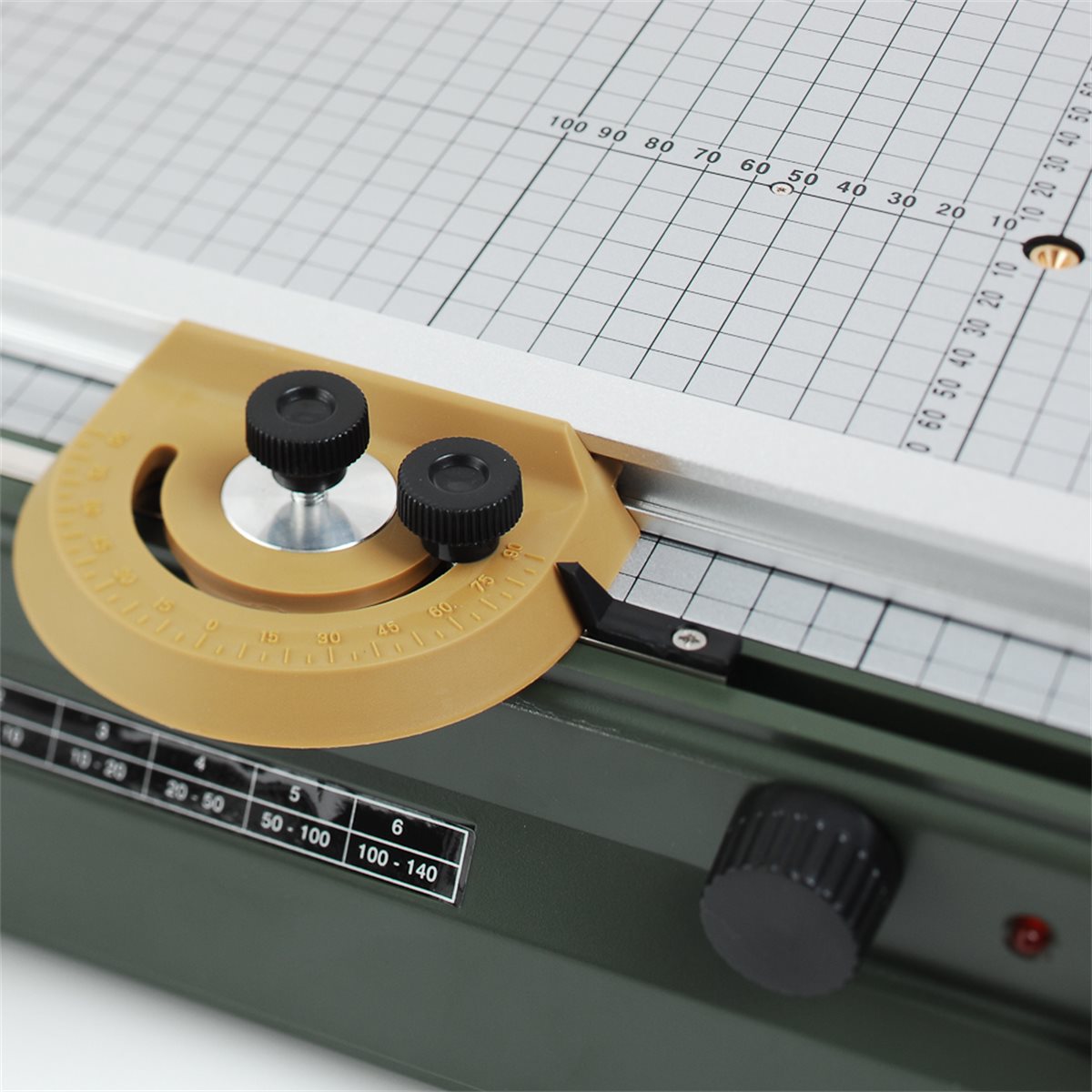

The printed grid and protractor ease division and cutting

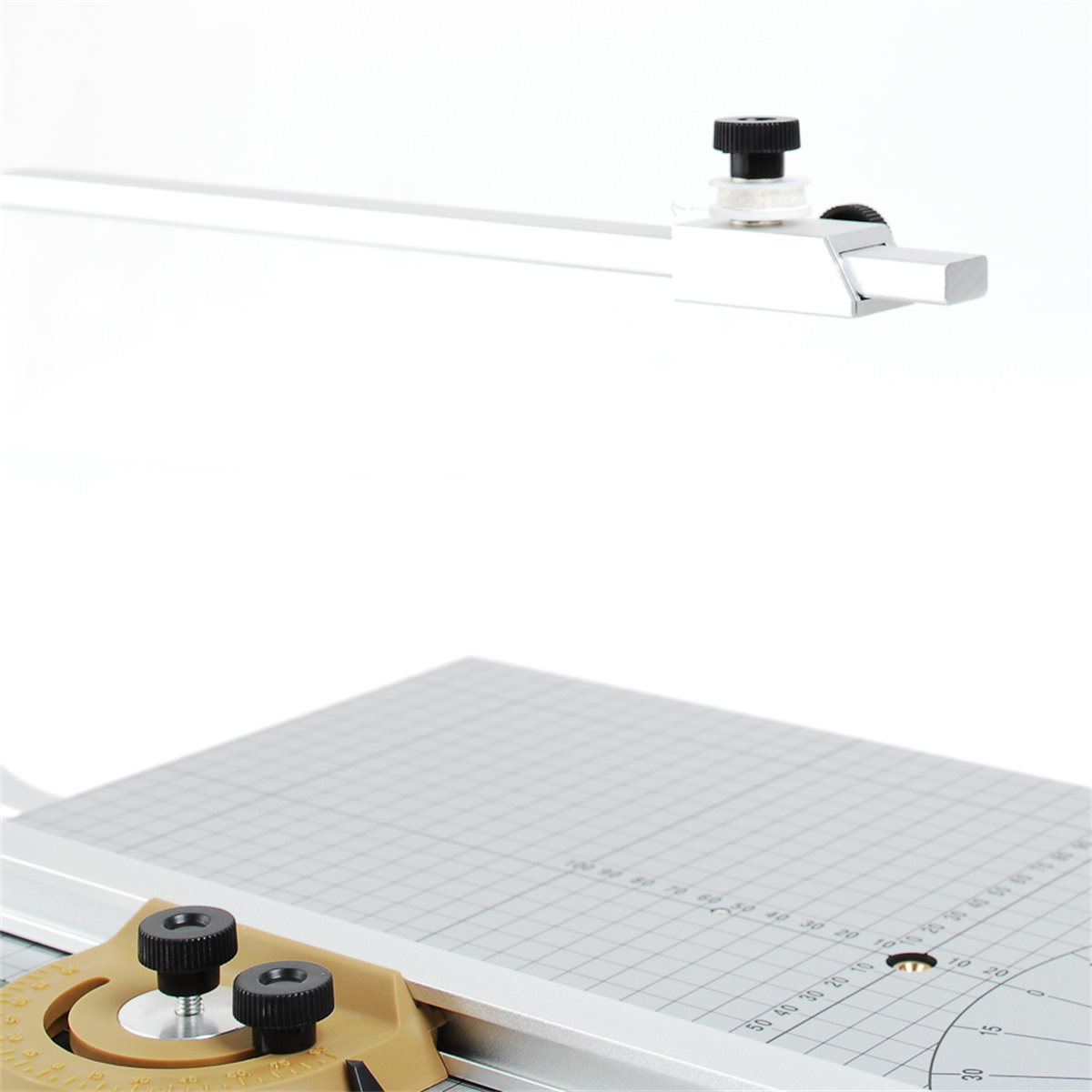

The solid aluminium overarm has a 350mm throat and offers 140mm capacity in height

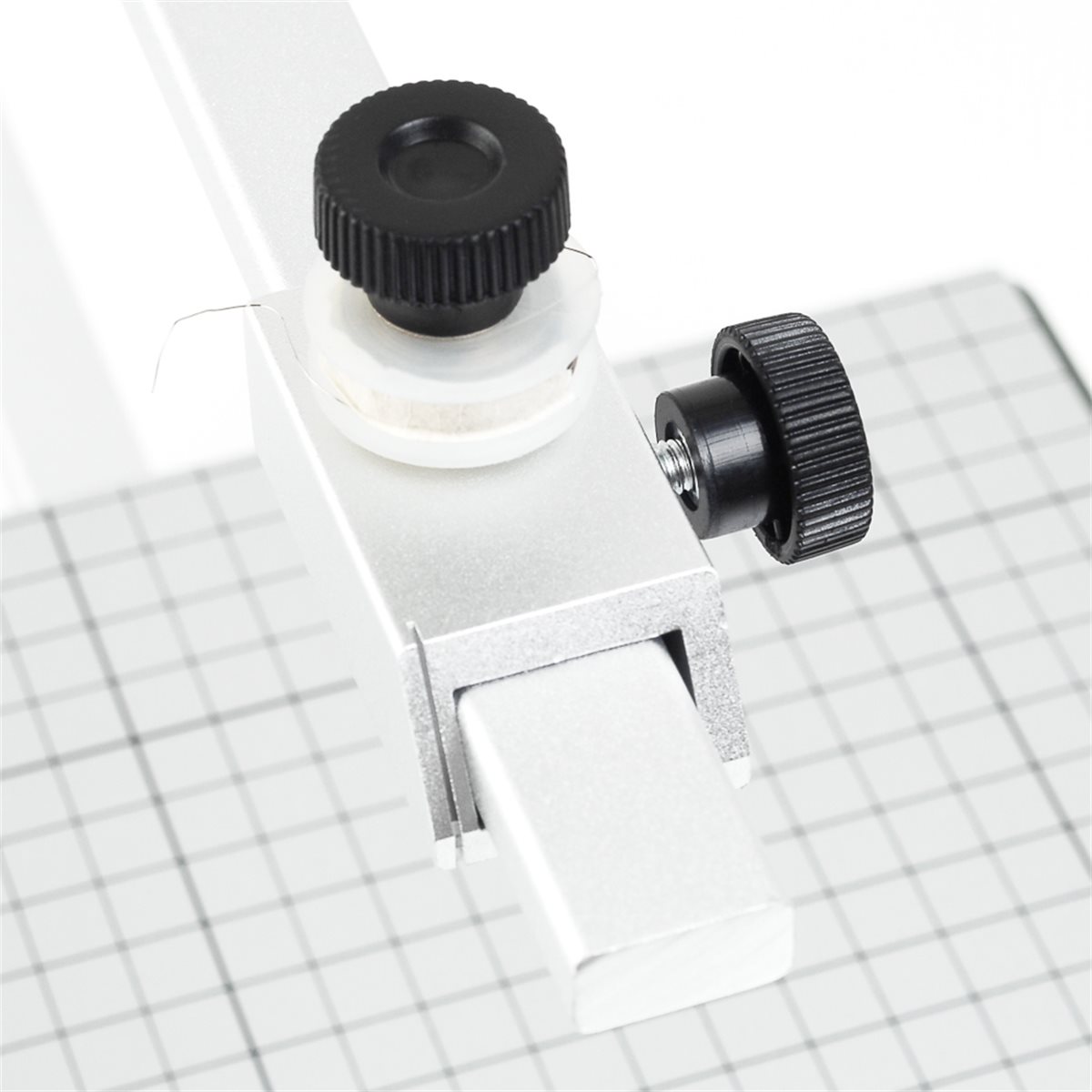

The holder and wire coil (30m, 0.2mm diameter is included) may be shifted along the overarm to enable mitre cutting

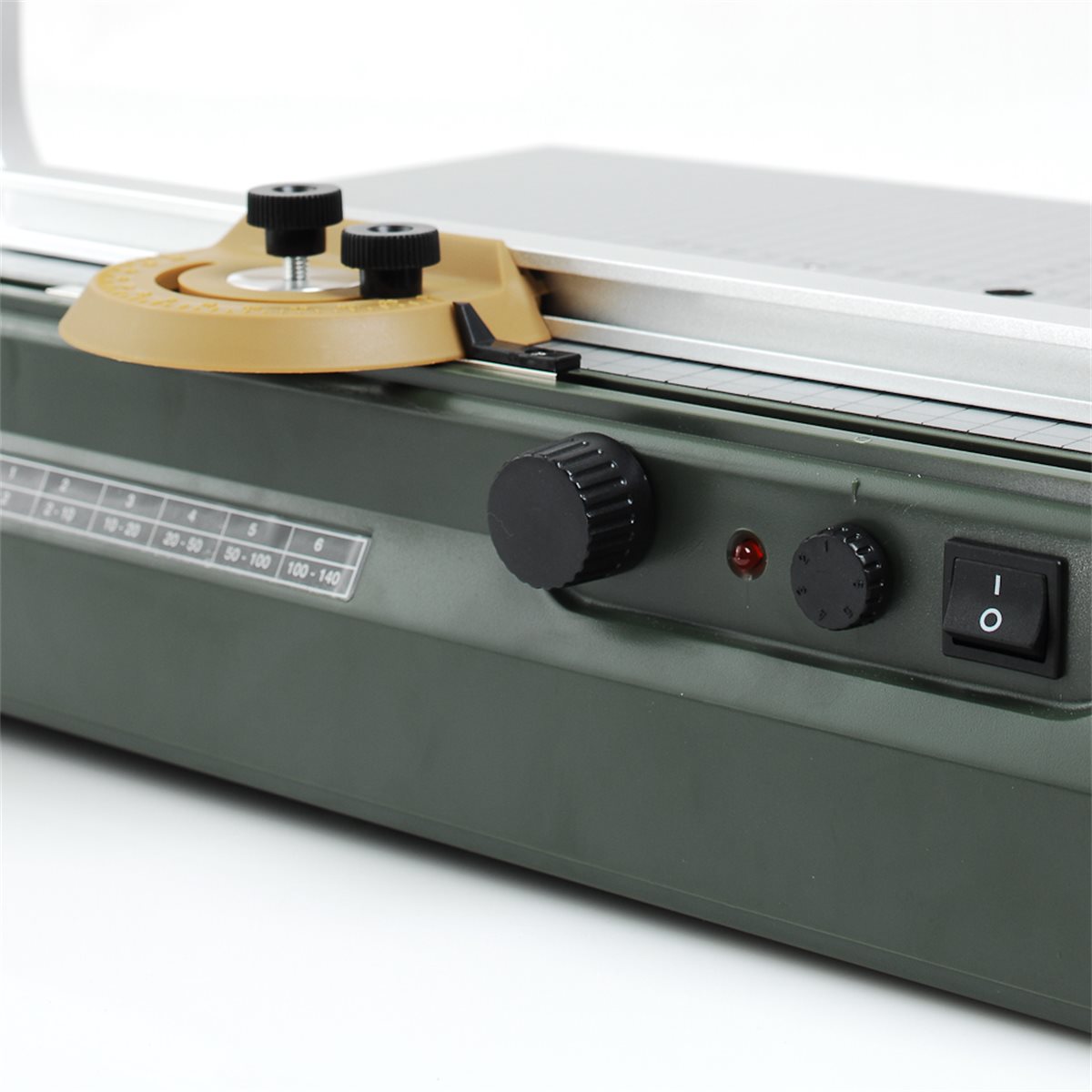

A LED indicates operation and prevents burnt fingers
(the cutting wire heats to maximum in less than 1 second)
The correct temperature, being material type and thickness dependent, is easily learnt
Optimum profiles are cut at lower temperatures and cutting force

Other technical data:

220 - 240V, 50/60Hz
Transformer secondary max. 10V, 1A
Cutting wire temperature with 0.2mm diameter is variable between approx. 100 and 200 °C
Weight approx. 3kg
Insulated to class 2 requirements

Micromot devices:	Cutting device

Product Safety and Downloads

Documents and datasheets

Product safety information

Manufacturer

PROXXON S.A.
Härebierg 6-10
6868 Wecker
Luxembourg
i@proxxon.com

Zubehör

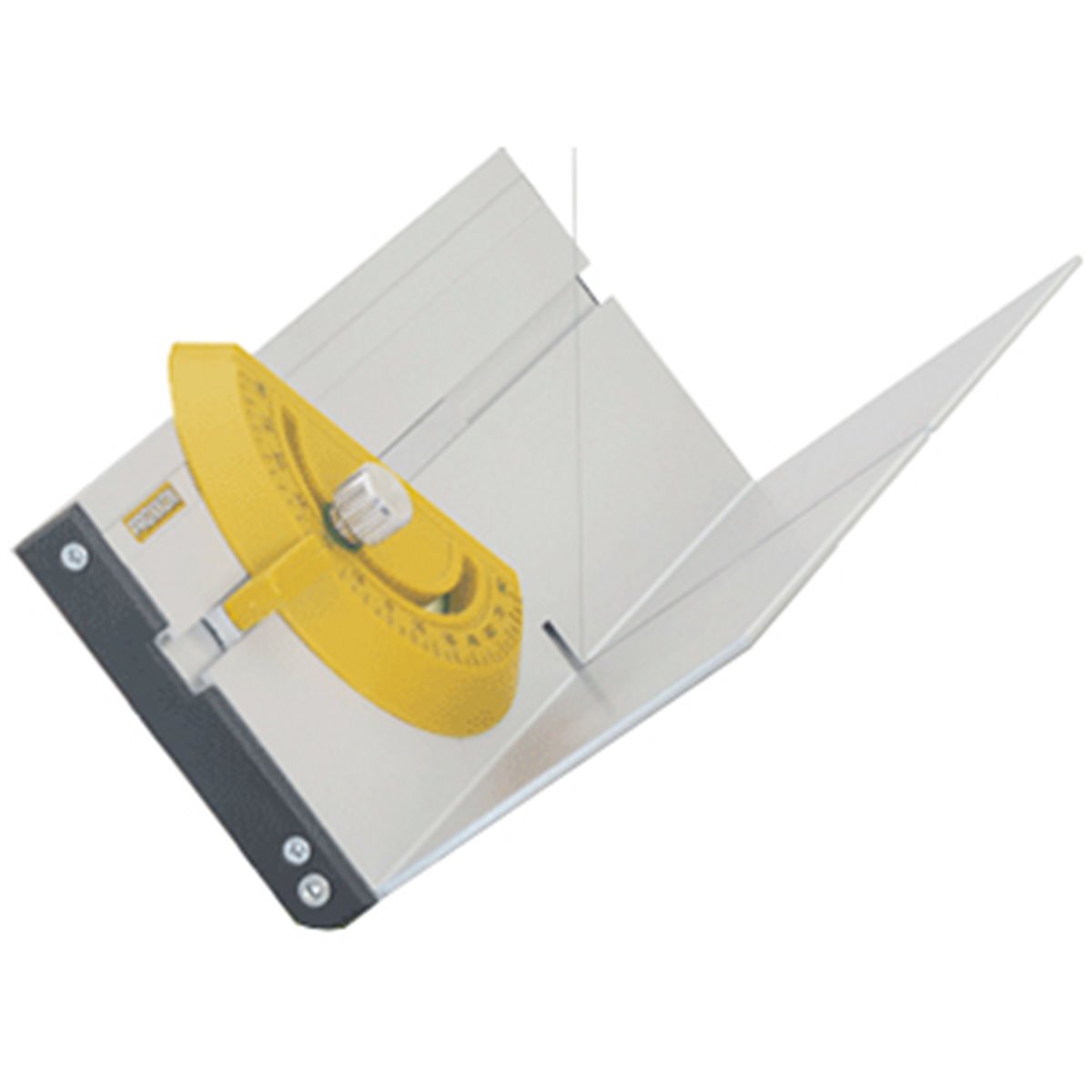

Proxxon 27078 THERMOCUT fence TA 300

PROXXON 27078 Table belt sander TB 50 For the repeatable and precise production of geometric solids. For safe cutting of high work pieces. Features: Made of aluminium (finished working surface) for ideal ease of movement. Versatile in use: Freely selectable setting from 0 - 90° for exact angle cuts with high repeat accuracy. Integrated T-slot with additional angle stop for particularly intricate cuts. Note: The THERMOCUT hotwire cutter is not included in the scope of delivery.

€49.80*

Prices incl. VAT plus shipping costs

Proxxon 27080 Hot wire cutter THERMOCUT 230/E

PROXXONcolor> 27080 Hot wire cutter THERMOCUT 230/E Attributes: Ideal for architectural models, designers, decorators, artists, teaching too, prototypes as well as classical railroad, plane and boat model building The unit's double wound transformer and insulation to class 2 ensure the cutter is absolutely safe The cutting wire operates at 10V, 1A The large base with 390 x 280mm table with surface of aluminium cobond compound ensures smooth and easy movement of the workpiece The printed grid and protractor ease division and cutting The solid aluminium overarm has a 350mm throat and offers 140mm capacity in height The holder and wire coil (30m, 0.2mm diameter is included) may be shifted along the overarm to enable mitre cutting A LED indicates operation and prevents burnt fingers (the cutting wire heats to maximum in less than 1 second) The correct temperature, being material type and thickness dependent, is easily learnt Optimum profiles are cut at lower temperatures and cutting force Other technical data: 220 - 240V, 50/60Hz Transformer secondary max. 10V, 1A Cutting wire temperature with 0.2mm diameter is variable between approx. 100 and 200 °C Weight approx. 3kg Insulated to class 2 requirements

€102.95*

Prices incl. VAT plus shipping costs

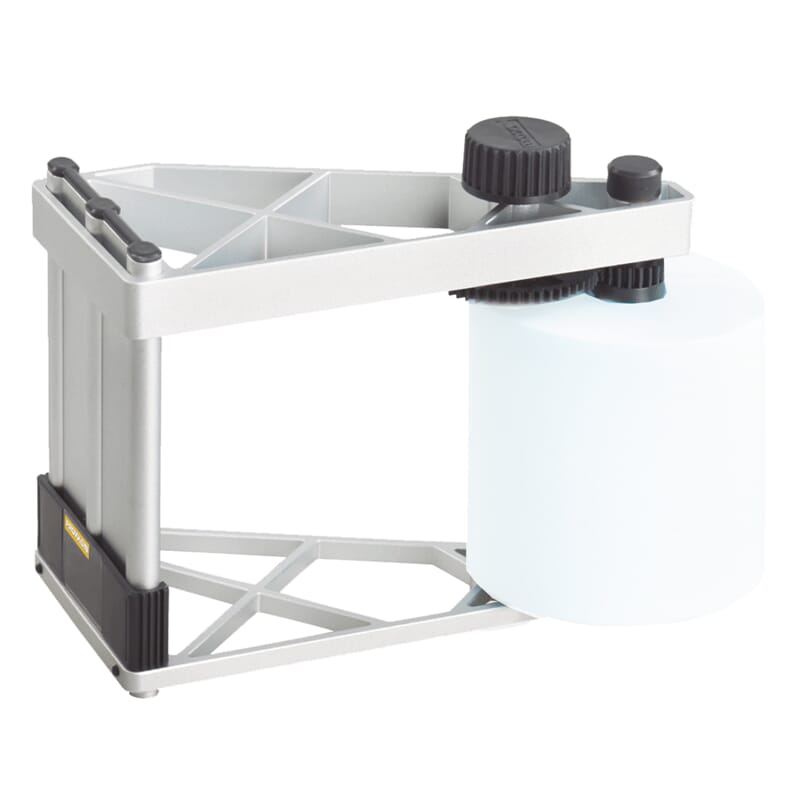

Proxxon 27076 THERMOCUT Circle Cutter TKS 360
