Proxxon 24423 Dividing attachment UT 400/CNC
Product information "Proxxon 24423 Dividing attachment UT 400/CNC "

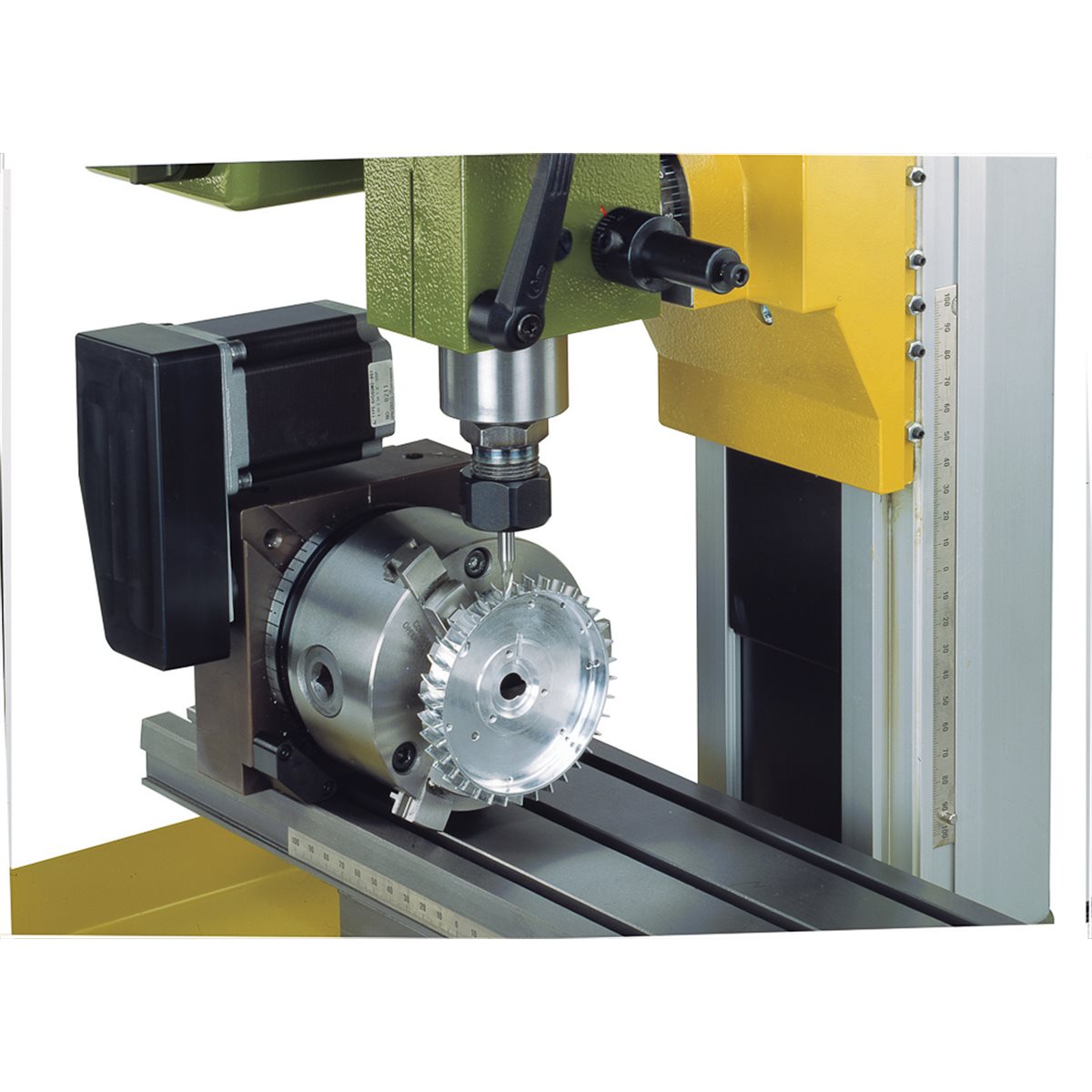

PROXXON 24423 Dividing attachment UT 400/CNC
Features:
- 4th axis to the PROXXON MICRO Miller FF 500/CNC
- For perfect 3D processing!
- For individual parts or small series production
- For manufacturing divisions, gear wheels and (including irregular) profiles
- All angle positions can be approached by computer control
- Easy horizontal and vertical construction
- Driven by powerful step motor (2.0A) through toothed belts, and virtually free from play, adjustable worm gear
- The high transfer ratio (40:1) provides enormous torque
- Suitable for main spindle with 14mm drill hole and flange to suit face plates and for all lathe chucks from the PD 400 lathe system
- Smallest increment 0.003°
- Recognition of reference position through light barrier
Note:
- You can use all jaw cucks for the PD 400:
- Proxxon 24407 Three-jaw lathe chuck for PD 400
- Proxxon 24408 4 jaw chuck, self-centering, for the PD 400
- Proxxon 24410 4 jaw chuck with independent jaws, asymmetrically, for the PD 400
- Proxxon 24412 Faceplate and clamps for the PD 400
- The 4th axis is implemented in the MICRO Miller FF 500/CNC software as standard. However, for all machines delivered before September 2009 the control unit (hardware side) needs to be equipped with the necessary driver stage
- If you should be interested in an update of your control unit, please contact our service department for detailed information !
