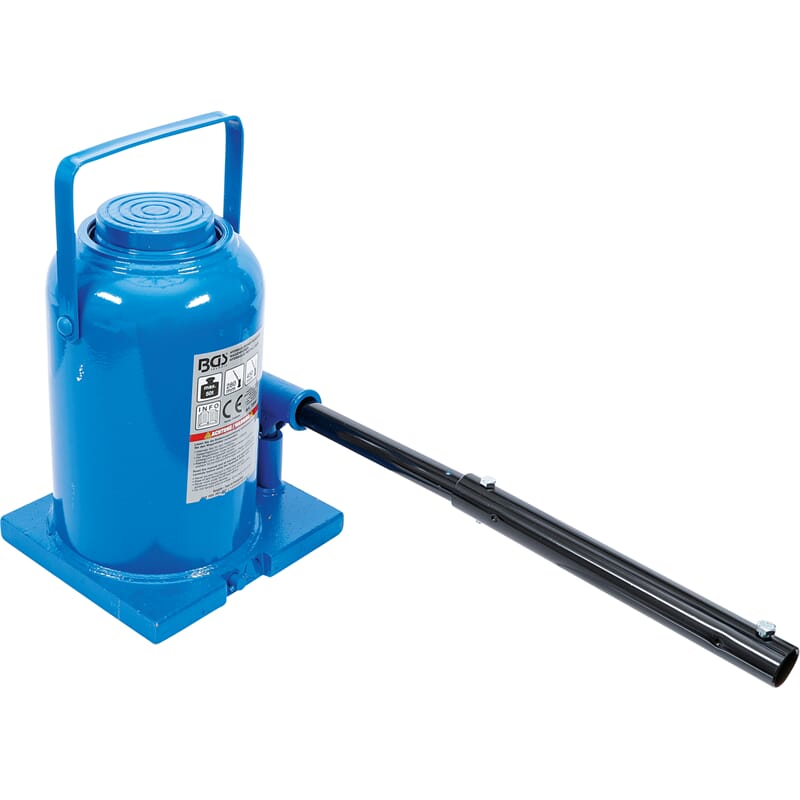

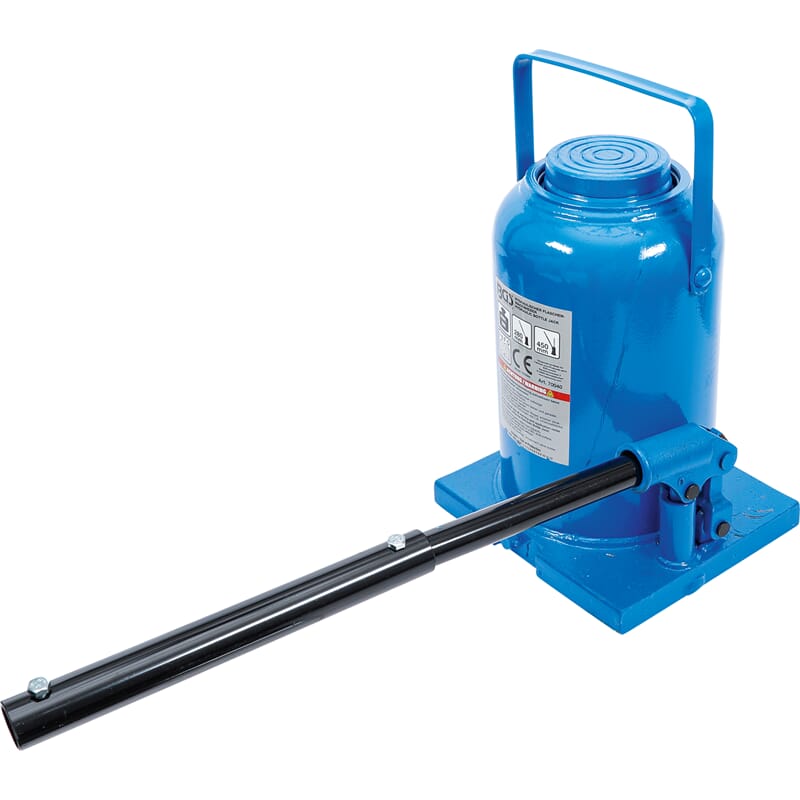

BGS 70040 Hydraulic Bottle Jack, 50 t
Product number:
1967137
Manufacturer no.:
70040
EAN:
4048769055523
Weight in kg:
8.81
Product information "BGS 70040 Hydraulic Bottle Jack, 50 t "
BGS 70040 Hydraulic Bottle Jack, 50 t
Features:
- BGS 70040 Hydraulic Bottle Jack, 50 t
- for lifting vehicles, machines, trailers and mobile homes
- ideal for changing tires, repair work or breakdowns
- with safety valve
- including plug-in telescopic piston rod
- massive, welded steel construction
- high stability and stability thanks to a large base plate
- for high vehicle weights
- applicable in tight spaces
Technical features:
- Gross weight: 26200 g
- Handle (diameter x length x thikness): 21,6 x 240 x 2,4 | 27 x 240 x 2,4 | 21,6 x 240 x 2,4 mm
- Hubhöhe pro Pumpenschlag: 0,4 mm
- Max. height: 450 mm
- Gewicht (ohne Hebel): 25 kg
- Load-bearing capacity max.: 50 t
- Dimensions base plate (W x D x H): 207 x 185 mm
- Lifting height: 170 mm
- Diameter - holding plate: 83 mm
- Plunger diameter: 85 mm
- Wandungsstärke Hebel: 2,4 | 2,4 | 2,4 mm
- Lever length: 660 mm
- Min. height: 280 mm
- EAN: 4048769055523
Product Safety and Downloads
Documents and datasheets
Product safety information
Manufacturer
BGS technic KG
Bandwirkerstraße 3
42929 Wermelskirchen
Germany
mail@bgs-technic.de

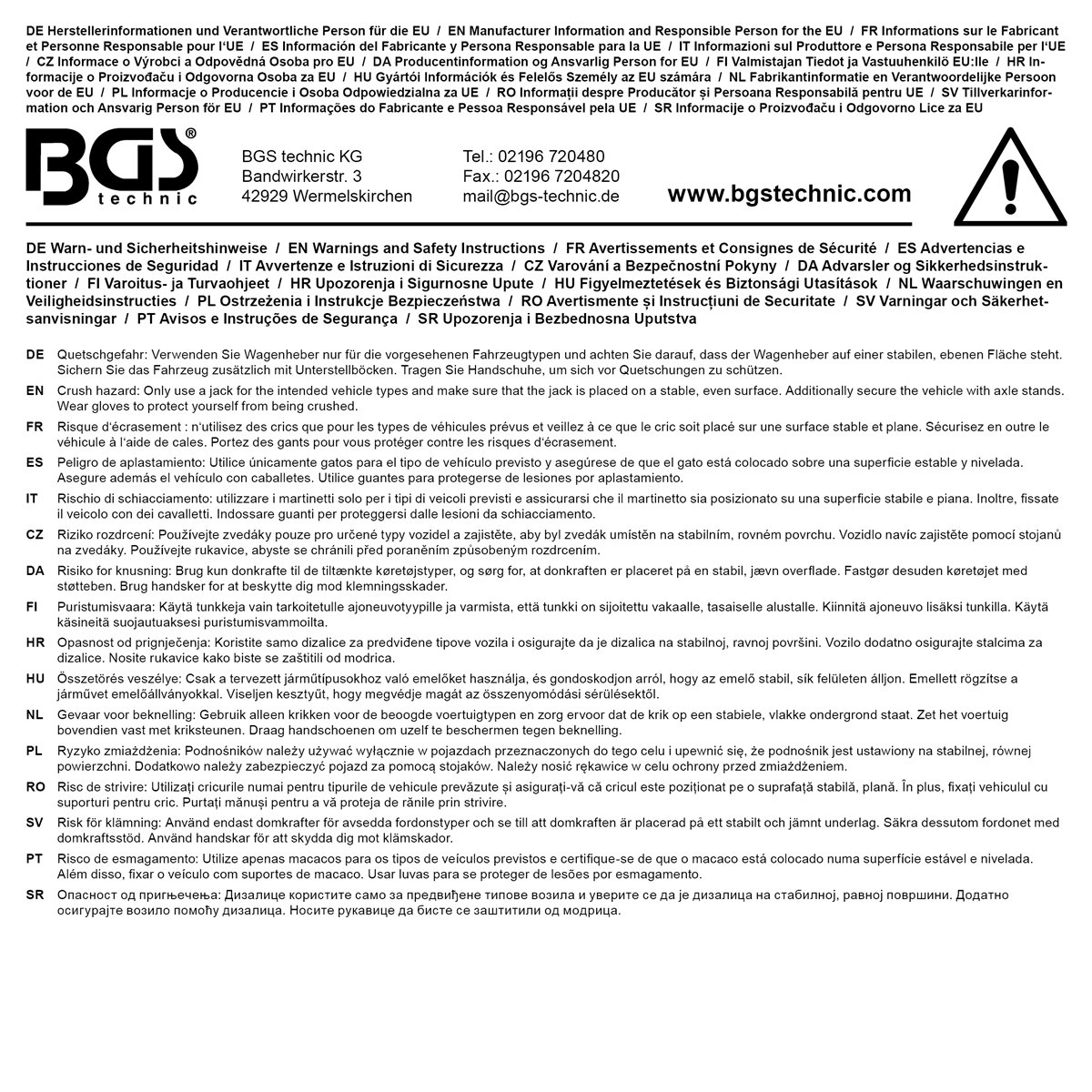

Safety information
- Warnings and Safety Instructions
