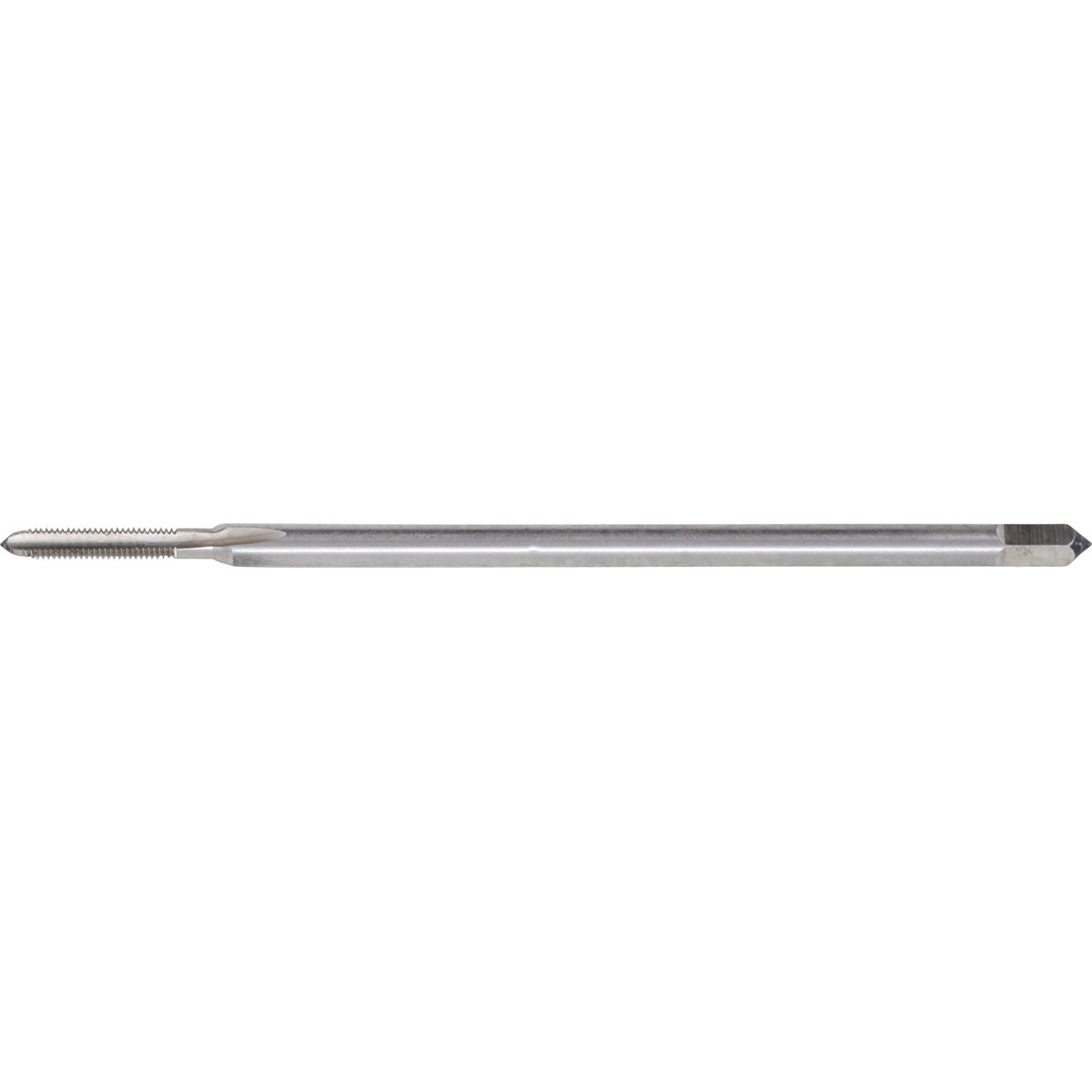

BGS 8698-3 Tap, long, for BGS 8698, M3 x 0.5 mm Features:BGS 8698-3 Tap, long, for BGS 8698, M3 x 0.5 mmtap from glow plug electrodes removal tool set BGS 8698 Technical features:For thread/incline: M3 x 0,5 Gross weight: 10 gLength: 100 mmEAN: 4048769040048

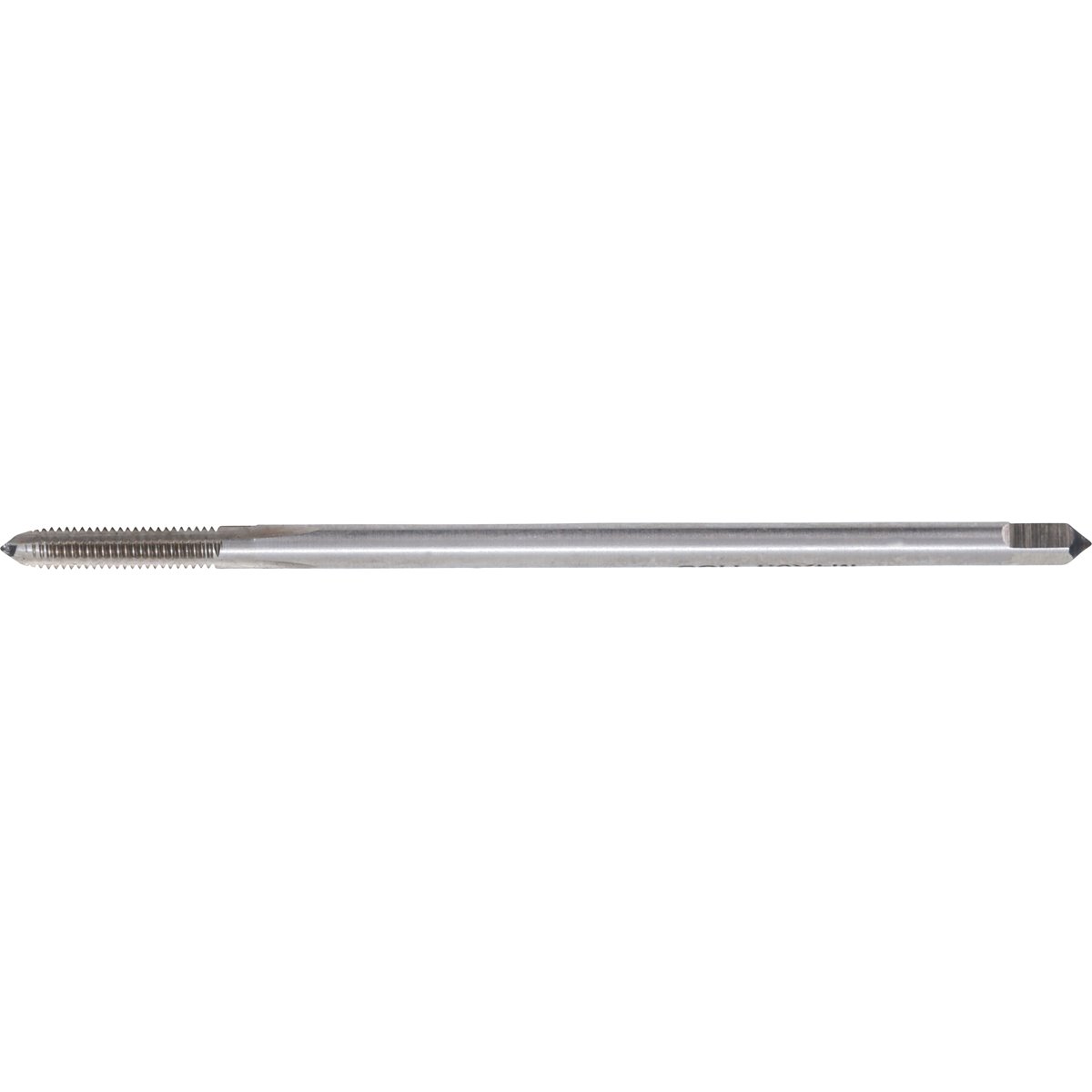

BGS 8698-4 Tap, long, for BGS 8698, M4 x 0.7 mm Features:BGS 8698-4 Tap, long, for BGS 8698, M4 x 0.7 mmtap from glow plug electrodes removal tool set BGS 8698 Technical features:For thread/incline: M4 x 0,7 Gross weight: 10 gLength: 100 mmEAN: 4048769040055

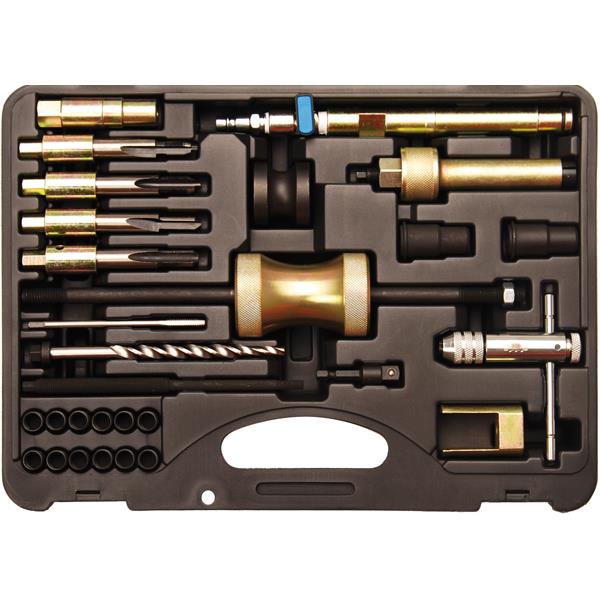

BGS 8699 Glow Plug Removal Tool Set, M10 x 1.0 mm Features:BGS 8699 Glow Plug Removal Tool Set, M10 x 1.0 mmensures the correct removal of burned-in, corroded or broken-off glow plugsallows repairing of the glow plug retaining thread without removing the cylinder headdefective original thread M10 x 1 is repaired by insertion of a new threaded sleevesuitable for Mercedes-Benz CDI-engines OM 611, 612, 613, 628, 646 (not EVO), 647, 648Scope of delivery:puller and sliding hammer for removing of stuck and broken glow plugsreamers for reaming of the defective threadtap M10 x 1 and M12 x 1centering sleeve for reamers and tapsspecial step drills and taps for removal of broken glow plugs12 thread repair sleeves M12 x 1 to M10 x 1compressed air adaptor Technical features:Gross weight: 3830 gEAN: 4026947086996

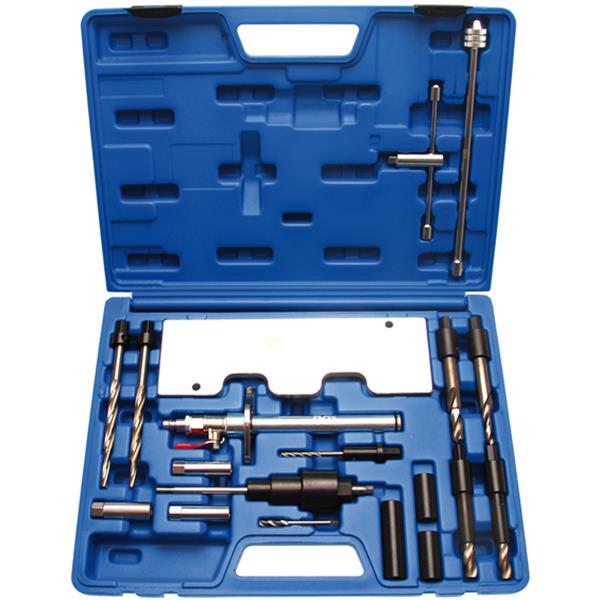

BGS 8722 Repair Kit for Glow Plug Threads, for Audi, VW, 28 pcs. Features:BGS 8722 Repair Kit for Glow Plug Threads, for Audi, VW, 28 pcs.for quick and professional drilling out damaged or torn-off glow plugs without removing the cylinder headallows re-cutting or repairing of the glow plug thread and cleaning of the electrode boreexact depth and drilling angle are reached using guide sleevessuitable for M10 x 1 glow plug thread bores, e. g. on VW Passat, Audi with TDI engines 2.5, 2.7, 3.0 V6 with engine codes AFB, AKE, AKN, ASB, AYM, BAU, BCZ, BDG, BDH, BFC, BKN, BKS, BMK, BNG, BSG, BUN, BUGScope of delivery:cover plate for intake portscompressed air adaptor for injector bore9.1 mm drill for M10 x 111.1 mm drill for M12 x 1tap with guide sleeve for M10 x 1 threadstap with guide sleeve for M12 x 1 threads10 threaded inserts for M10 x 1 with external thread M12 x 1taps M6 x 1.25 mmextraction tool2 reamers 4.8 mm, long and short typereamer 5.8 mm long typeguide sleeves, Ø 17.5 mm OD - 38 mm length, inside Ø 9 mmguide sleeves, Ø 17.5 mm OD - 38 mm length, inside Ø 13 mmguide sleeves, Ø 17.5 mm OD - 63 mm length, inside Ø 13 mm2.4 - 5.5 mm tapping holder 240 mm long with 6.3 mm (1/4") drive3 extractor electrodes for 2.5 - 3.5 - 4 mm Technical features:Gross weight: 3980 gEAN: 4026947087221

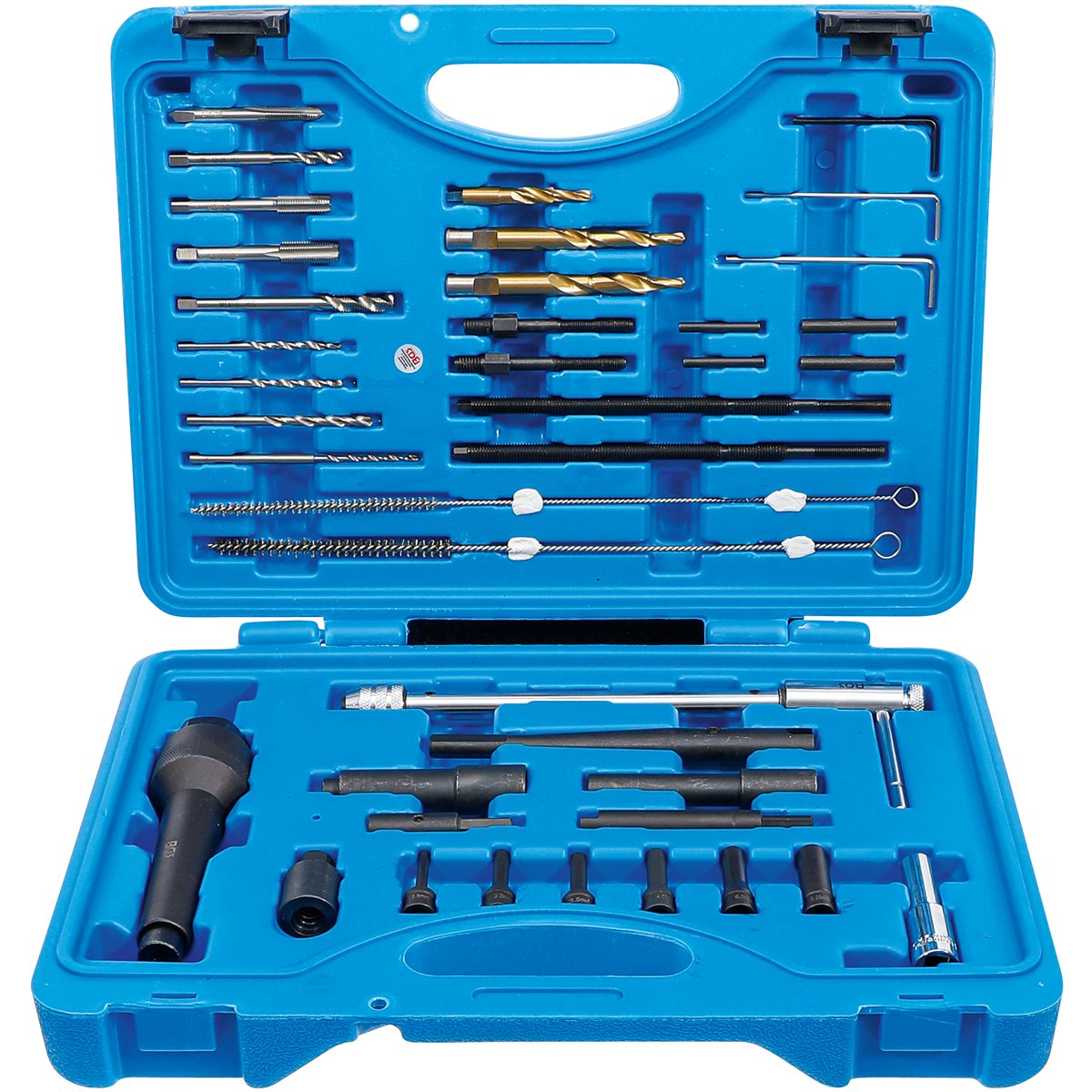

BGS 9565 Glow Plug Tool and Thread Repair Kit, M8, M10, 41 pcs. Features:BGS 9565 Glow Plug Tool and Thread Repair Kit, M8, M10, 41 pcs.for assembly and disassembly of glow plugs and professional repair of glow plug threadsthread cutter for regrinding glow plug threads M8 x 1 and M10 x 1tools for cleaning the filament bore in the cylinder headratcheting tap holderScope of delivery:5 taps 1/4 "x 28UNF - 12 x 28UNF - M8 x 1.0 - M10 x 1.0 - M8 x 1.04 twist drills 2.6 - 3.4 - 3.4 - 4.4 mm3 step drills for drilling out torn off glow plugs 4.4 x 7 - 5.4 x 7 - 5.5 x 9 mm2 tie bolts2 tension spindles4 drill centering sleeves 2.6 - 3.7 mm3 L-type wrenches, hexagon 2 - 2.5 - 3 mm2 round steel brushes 5 x 300 - 7 x 300 mm2 tap holders1 centering device with ball bearing and pulling spindle2 spindle nuts2 twist drill holders1 centering sleeve1 pull-out sleeve6 calibration inserts for glow plug electrodes, 6.3 mm (1/4 ") square drive, 2.6 - 3.2 - 3.5 - 4.5 - 6.5 - 8.25 mm1 socket, square drive 10 mm (3/8 "), E-Star E10 Technical features:Gross weight: 2830 gEAN: 4026947095653
