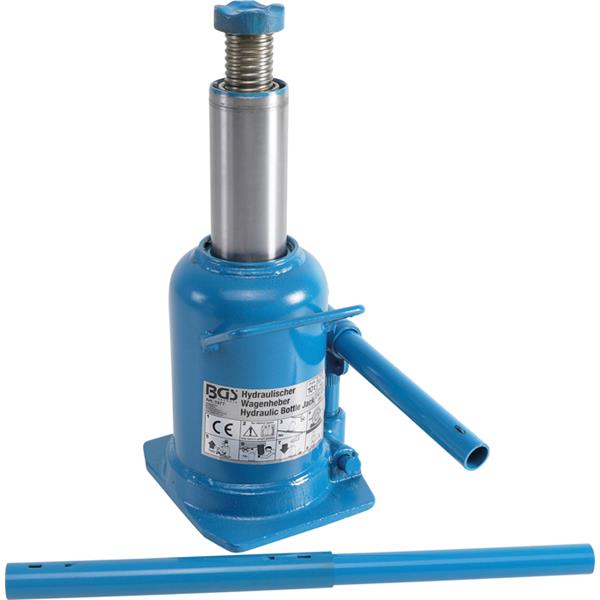

BGS 1977 Hydraulic Bottle Jack, 10 t Features:BGS 1977 Hydraulic Bottle Jack, 10 tfor lifting vehicles, machines, trailers and mobile homesideal for changing tires, repair work or breakdownswith safety valveincluding plug-in telescopic piston rodmassive, welded steel constructionhigh stability and stability thanks to a large base platefor high vehicle weightsapplicable in tight spaces Technical features:Spindle length: 70 mmPlunger diameter: 54 | 42 mmMin. height: 210 mmGewicht (ohne Hebel): 2,4 kgLoad-bearing capacity max.: 10 tLever length: 578 mmHandle (diameter x length x thikness): 22 x 218 x 2,0 | 25,5 x 218 x 1,6 | 22 x 218 x 2,0 mmLifting height: 242 mmWeight: 10910 gDiameter - holding plate: 47 mmMax. height: 520 mmDimensions base plate (W x D x H): 166 x 162 mmWandungsstärke Hebel: 2 | 1,6 | 2 Hubhöhe pro Pumpenschlag: 4 mmGross weight: 10910 gEAN: 4048769019518

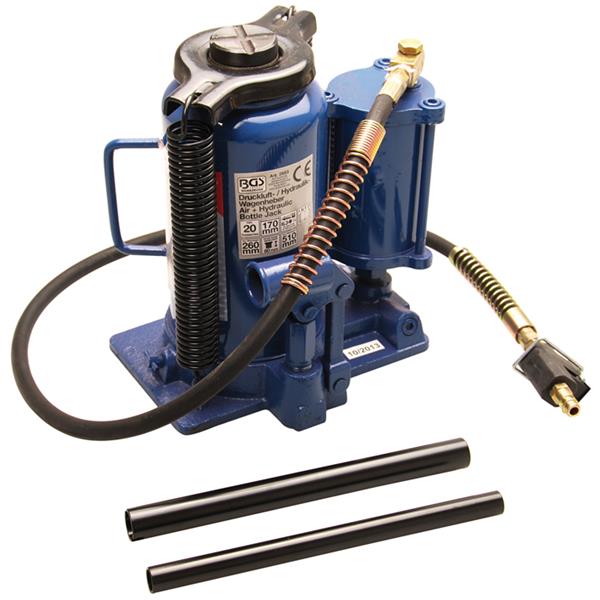

BGS 2883 Air Hydraulic Jack, 20 t Features:BGS 2883 Air Hydraulic Jack, 20 tor compressed air use, can also be operated by hand pumpmax. capacity: 20,000 kgsize of foot: 223 x 133 mmmin. height: 260 mmmax. height: 510 mmadjustable height: 80 mmstroke: 170 mmworking pressure 8 to 9 barweight 16.3 kg Technical features:Gross weight: 15240 gEAN: 4026947028835
BGS 2884 ATV/Quad Car Jack, 2500 kg Features:BGS 2884 ATV/Quad Car Jack, 2500 kgespecially for off-road vehicles with a high ground clearanceallows easy lifting, even when lifting on soft undergroundhas a setback locking mechanism for actuating tube Technical features:Lifting height min.: 130 mmRated load capacity: 2500 kgGross weight: 13500 gLifting height max.: 930 mmEAN: 4026947028842

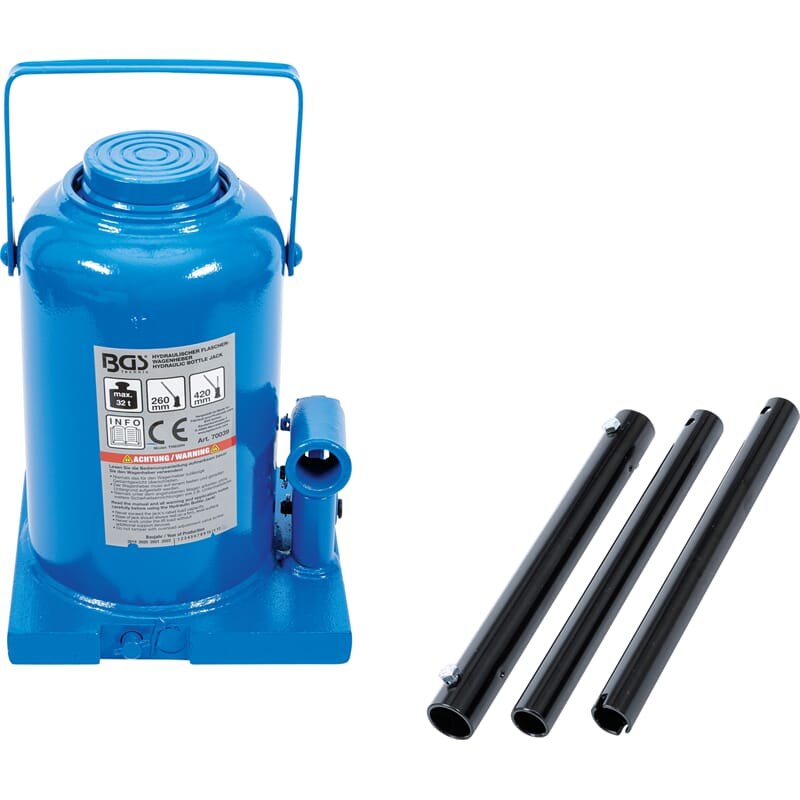

BGS 70039 Hydraulic Bottle Jack, 32 t Features:BGS 70039 Hydraulic Bottle Jack, 32 tfor lifting vehicles, machines, trailers and mobile homesideal for changing tires, repair work or breakdownswith safety valveincluding plug-in telescopic piston rodmassive, welded steel constructionhigh stability and stability thanks to a large base platefor high vehicle weightsapplicable in tight spaces Technical features:Min. height: 260 mmLifting height: 160 mmLoad-bearing capacity max.: 32 tGewicht (ohne Hebel): 18,05 kgLever length: 660 mmDiameter - holding plate: 69 mmHandle (diameter x length x thikness): 21,6 x 170 x 2,2 | 15,6 x 22 x 2,2 | 21,6 x 170 x 2,2 mmPlunger diameter: 71 mmMax. height: 420 mmGross weight: 18172 gDimensions base plate (W x D x H): 185 x 165 mmHubhöhe pro Pumpenschlag: 0,6 mmWandungsstärke Hebel: 2,2 | 2,2 | 2,2 mmEAN: 4048769055516

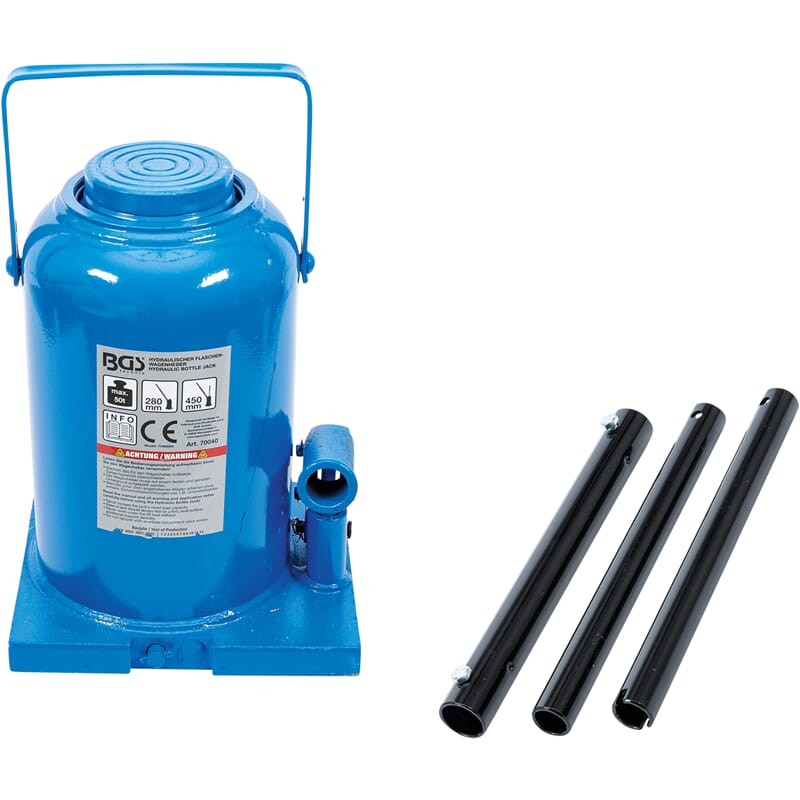

BGS 70040 Hydraulic Bottle Jack, 50 t Features:BGS 70040 Hydraulic Bottle Jack, 50 tfor lifting vehicles, machines, trailers and mobile homesideal for changing tires, repair work or breakdownswith safety valveincluding plug-in telescopic piston rodmassive, welded steel constructionhigh stability and stability thanks to a large base platefor high vehicle weightsapplicable in tight spaces Technical features:Gross weight: 26200 gHandle (diameter x length x thikness): 21,6 x 240 x 2,4 | 27 x 240 x 2,4 | 21,6 x 240 x 2,4 mmHubhöhe pro Pumpenschlag: 0,4 mmMax. height: 450 mmGewicht (ohne Hebel): 25 kgLoad-bearing capacity max.: 50 tDimensions base plate (W x D x H): 207 x 185 mmLifting height: 170 mmDiameter - holding plate: 83 mmPlunger diameter: 85 mmWandungsstärke Hebel: 2,4 | 2,4 | 2,4 mmLever length: 660 mmMin. height: 280 mmEAN: 4048769055523
BGS 9251 Floor Jack, hydraulic, 3 t, with Quick Lift Pedal
Features:
BGS 9251 Floor Jack, hydraulic, 3 t, with Quick Lift Pedal
quick lift possible with separate foot pedal
quick-lift pedal to be mounted separately as needed
lifting height at nominal load: 340 - 500 mm
stroke: 355 mm
support pad Ø: 120 mm
2 rigid castors, 2 swivel castors
Technical features:
Length: 685 mm
Lifting height min.: 145 mm
Gross weight: 38000 g
Rated load capacity: 3 t
Lifting height max.: 500 mm
EAN: 4026947092515
BGS 9252 Floor Jack, hydraulic, extra flat, 2 t Features:BGS 9252 Floor Jack, hydraulic, extra flat, 2 textremely low headroom, also suitable for vehicles with low ground clearancelifting side has double castors with tilt mechanism for better manoeuvring through grids, etc.2 castors made of PU for low running noise2 swivel castors, made of steelfoam coated lever prevents damage to the carjacketed handle ring for more convenient operationadditional foot pedal for quick liftingmax. lifting capacity: 2000 kgweight 40 kg Technical features:Height: 214 mmWidth: 360 mmLifting height min.: 70 mmLifting height max.: 500 mmGross weight: 47000 gRated load capacity: 2 tLength: 822 mmEAN: 4026947092522
BGS 9255 Floor Jack, hydraulic, 3 t
Features:
BGS 9255 Floor Jack, hydraulic, 3 t
rugged steel construction
2 castors & 2 swivel castors, made of steel
Technical features:
Length: 572 mm
Min. height: 130 mm
Width: 330 mm
Rated load capacity: 3 t
Gross weight: 29000 g
Max. height: 465 mm
Height: 240 mm
EAN: 4026947092553

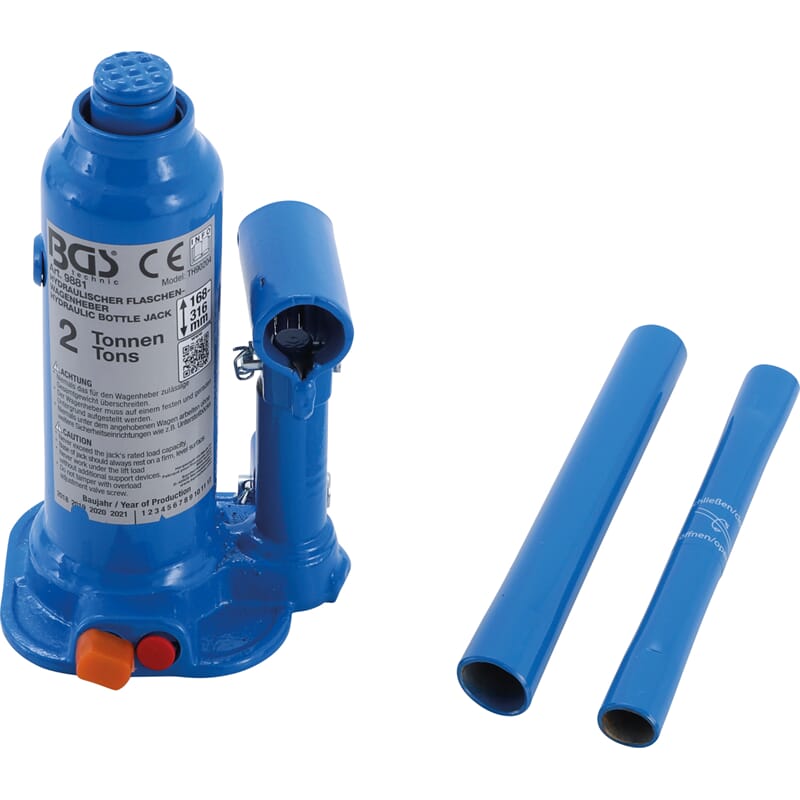

BGS 9881 Hydraulic Bottle Jack, 2 t
Features:
BGS 9881 Hydraulic Bottle Jack, 2 t
for lifting vehicles, machines, trailers and mobile homes
ideal for changing tires, repair work or breakdowns
with safety valve
including plug-in telescopic piston rod
massive, welded steel construction
high stability and stability thanks to a large base plate
for high vehicle weights
applicable in tight spaces
Technical features:
Gross weight: 2200 g
Spindle length: 48 mm
Max. height: 316 mm
Min. height: 168 mm
Lifting height: 20 mm
Load-bearing capacity max.: 2 t
Plunger diameter: 22 mm
Diameter - holding plate: 21 mm
Dimensions base plate (W x D x H): 94,5 x 78 mm
Handle (diameter x length x thickness): 20 x 170 x 1,8 | 15,6 x 170 x 1,4 mm
Lever length: 314 mm
Handle material thickness: 1,8 | 1,4 mm
Weight (without handle): 2 kg
Lifting height per cycle: 4 mm

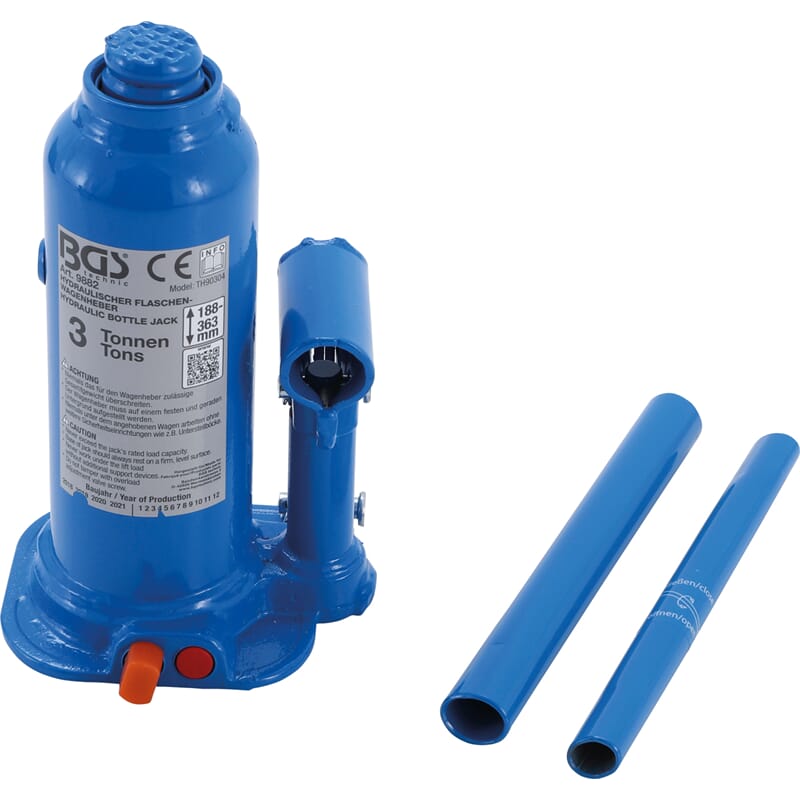

BGS 9882 Hydraulic Bottle Jack, 3 t
Features:
BGS 9882 Hydraulic Bottle Jack, 3 t
for lifting vehicles, machines, trailers and mobile homes
ideal for changing tires, repair work or breakdowns
with safety valve
including plug-in telescopic piston rod
massive, welded steel construction
high stability and stability thanks to a large base plate
for high vehicle weights
applicable in tight spaces
Technical features:
Gross weight: 2930 g
Spindle length: 60 mm
Max. height: 363 mm
Min. height: 188 mm
Lifting height: 115 mm
Load-bearing capacity max.: 3 t
Plunger diameter: 28 mm
Diameter - holding plate: 27 mm
Dimensions base plate (W x D x H): 28,5 x 87 mm
Handle (diameter x length x thickness): 20 x 170 x 1,8 | 15,6 x 170 x 1,4 mm
Lever length: 314 mm
Handle material thickness: 1,8 | 1,4 mm
Weight (without handle): 2,8 kg
Lifting height per cycle: 2,6 mm

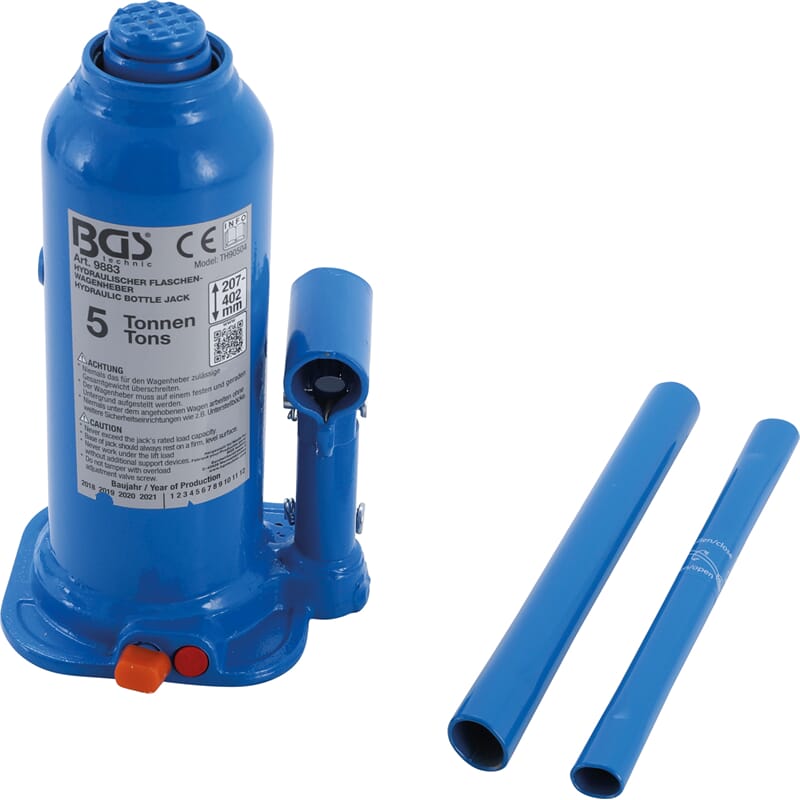

BGS 9883 Hydraulic Bottle Jack, 5 t
Features:
BGS 9883 Hydraulic Bottle Jack, 5 t
for lifting vehicles, machines, trailers and mobile homes
ideal for changing tires, repair work or breakdowns
with safety valve
including plug-in telescopic piston rod
massive, welded steel construction
high stability and stability thanks to a large base plate
for high vehicle weights
applicable in tight spaces
Technical features:
Gross weight: 3910 g
Spindle length: 70 mm
Max. height: 402 mm
Min. height: 207 mm
Lifting height: 125 mm
Load-bearing capacity max.: 5 t
Plunger diameter: 32 mm
Diameter - holding plate: 29 mm
Dimensions base plate (W x D x H): 117 x 97 mm
Handle (diameter x length x thickness): 20 x 22 x 1,8 | 15,6 x 22 x 1,4 mm
Lever length: 393 mm
Handle material thickness: 1,8 | 1,4 mm
Weight (without handle): 3,7 kg
Lifting height per cycle: 1,8 mm

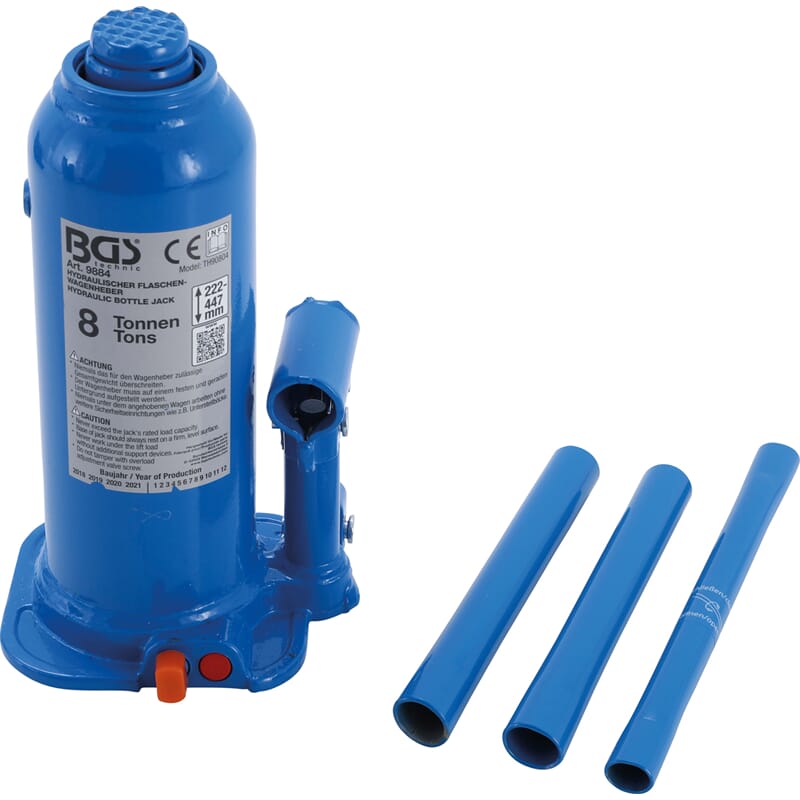

BGS 9884 Hydraulic Bottle Jack, 8 t
Features:
BGS 9884 Hydraulic Bottle Jack, 8 t
for lifting vehicles, machines, trailers and mobile homes
ideal for changing tires, repair work or breakdowns
with safety valve
including plug-in telescopic piston rod
massive, welded steel construction
high stability and stability thanks to a large base plate
for high vehicle weights
applicable in tight spaces
Technical features:
Gross weight: 4934 g
Spindle length: 80 mm
Max. height: 447 mm
Min. height: 222 mm
Lifting height: 145 mm
Load-bearing capacity max.: 8 t
Plunger diameter: 35 mm
Diameter - holding plate: 34 mm
Dimensions base plate (W x D x H): 124 x 26 mm
Handle (diameter x length x thickness): 20 x 170 x 1,8 | 15,6 x 22 x 1,4 | 20 x 170 x 1,8 mm
Lever length: 496 mm
Handle material thickness: 1,8 | 1,4 | 1,8 mm
Weight (without handle): 4,8 kg
Lifting height per cycle: 1,4 mm

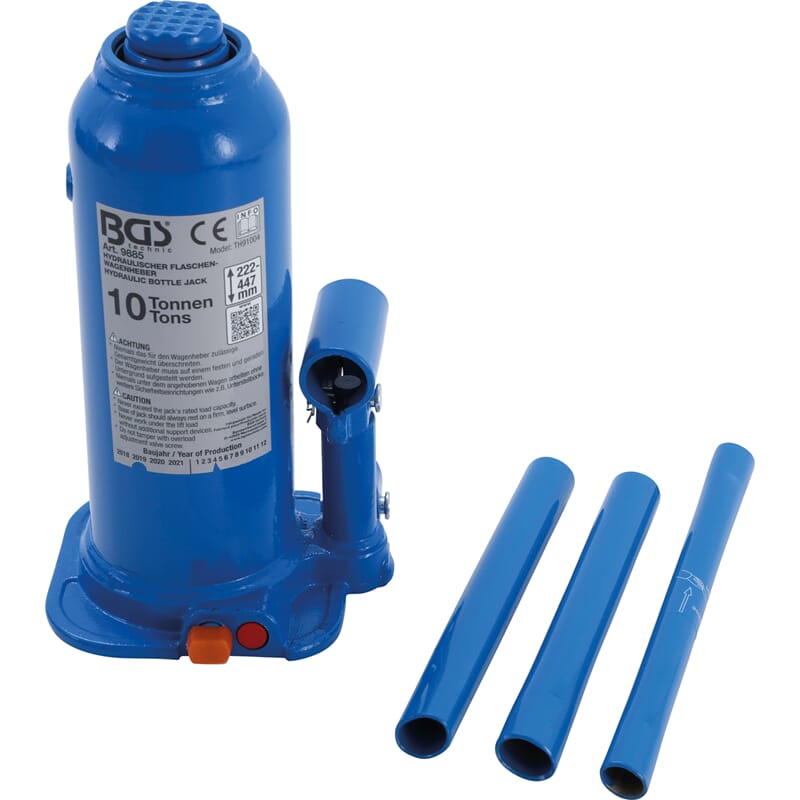

BGS 9885 Hydraulic Bottle Jack, 10 t
Features:
BGS 9885 Hydraulic Bottle Jack, 10 t
for lifting vehicles, machines, trailers and mobile homes
ideal for changing tires, repair work or breakdowns
with safety valve
including plug-in telescopic piston rod
massive, welded steel construction
high stability and stability thanks to a large base plate
for high vehicle weights
applicable in tight spaces
Technical features:
EAN: 4026947098852
Gross weight: 4980 g
Spindle length: 80 mm
Max. height: 447 mm
Min. height: 222 mm
Lifting height: 145 mm
Load-bearing capacity max.: 10 t
Plunger diameter: 35 mm
Diameter - holding plate: 34 mm
Dimensions base plate (W x D x H): 124 x 26 mm
Handle (diameter x length x thickness): 20 x 170 x 1,8 | 15,6 x 22 x 1,4 | 20 x 170 x 1,8 mm
Lever length: 496 mm
Handle material thickness: 1,8 | 1,4 | 1,8 mm
Weight (without handle): 4,8 kg
Lifting height per cycle: 1,4 mm

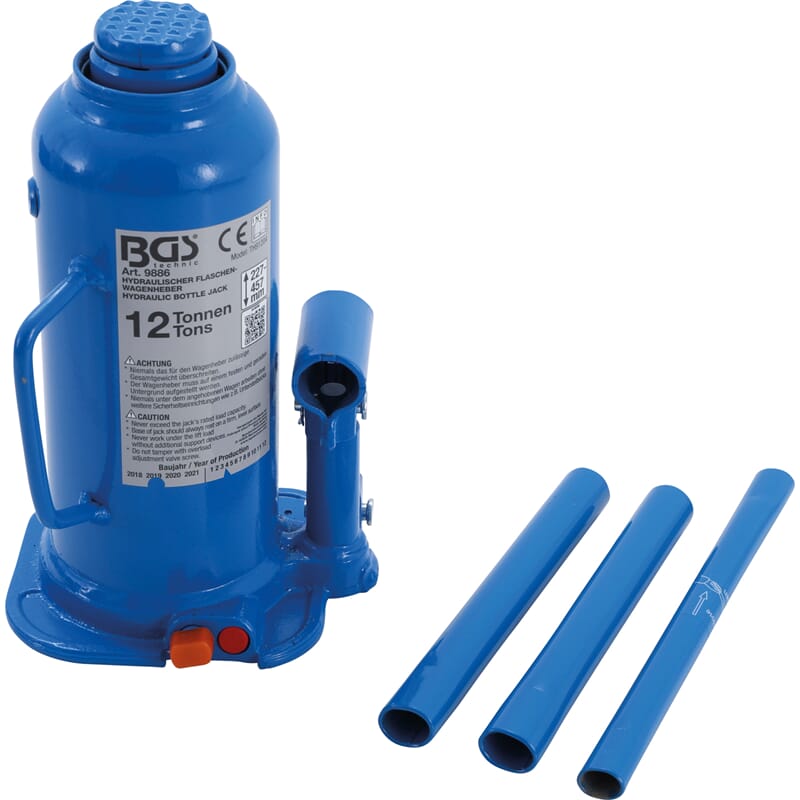

BGS 9886 Hydraulic Bottle Jack, 12 t
Features:
BGS 9886 Hydraulic Bottle Jack, 12 t
for lifting vehicles, machines, trailers and mobile homes
ideal for changing tires, repair work or breakdowns
with safety valve
including plug-in telescopic piston rod
massive, welded steel construction
high stability and stability thanks to a large base plate
for high vehicle weights
applicable in tight spaces
Technical features:
Gross weight: 6050 g
Spindle length: 80 mm
Max. height: 457 mm
Min. height: 227 mm
Lifting height: 150 mm
Load-bearing capacity max.: 12 t
Plunger diameter: 43 mm
Diameter - holding plate: 40 mm
Dimensions base plate (W x D x H): 135 x 115 mm
Handle (diameter x length x thickness): 20 x 170 x 1,8 | 15,6 x 22 x 1,4 | 20 x 170 x 1,8 mm
Lever length: 496 mm
Handle material thickness: 1,8 | 1,4 | 1,8 mm
Weight (without handle): 6,7 kg
Lifting height per cycle: 1,2 mm
EAN: 4026947098869

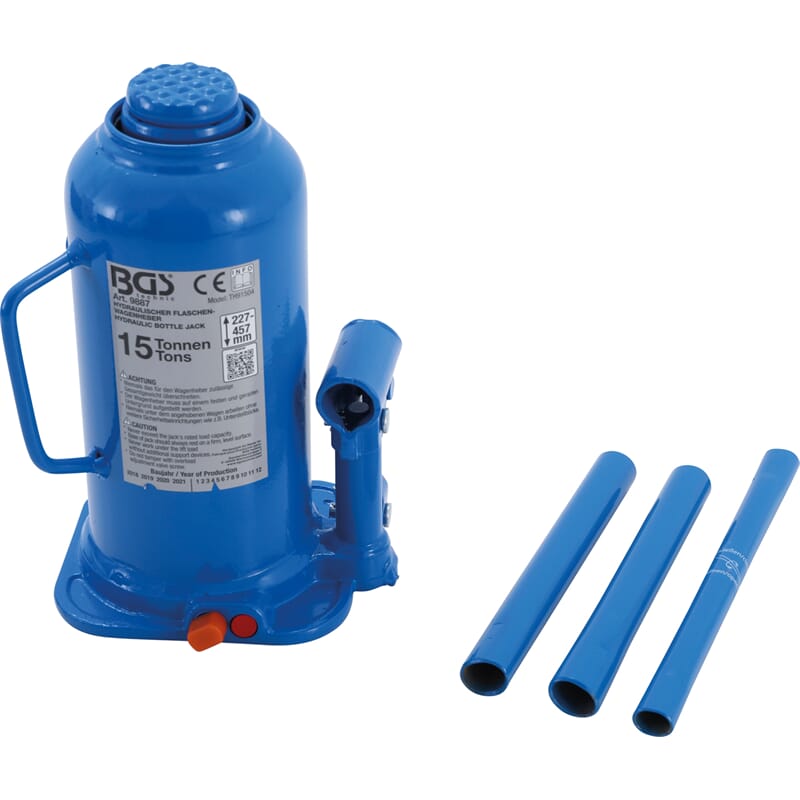

BGS 9887 Hydraulic Bottle Jack, 15 t
Features:
BGS 9887 Hydraulic Bottle Jack, 15 t
for lifting vehicles, machines, trailers and mobile homes
ideal for changing tires, repair work or breakdowns
with safety valve
including plug-in telescopic piston rod
massive, welded steel construction
high stability and stability thanks to a large base plate
for high vehicle weights
applicable in tight spaces
Technical features:
Gross weight: 7300 g
Spindle length: 80 mm
Max. height: 457 mm
Min. height: 227 mm
Lifting height: 150 mm
Load-bearing capacity max.: 15 t
Plunger diameter: 48 mm
Diameter - holding plate: 43 mm
Dimensions base plate (W x D x H): 144 x 118 mm
Handle (diameter x length x thickness) 20 x 170 x 1,8 | 15,6 x 22 x 1,4 | 20 x 170 x 1,8 mm
Lever length 496 mm
Handle material thickness 1,8 | 1,4 | 1,8 mm
Weight (without handle) 7,85 kg
Lifting height per cycle 0,9 mm
