Stahlwille 714/100 Torque and angle wrench MANOSKOP Model 714 Measuring r. 100-1000N·m Drive L. 1343mm Features:4 measuring modes (torque, angle of rotation, torque with monitoring variable "angle of rotation", angle of rotation with monitoring variable "torque")high-resolution colour OLED display and lateral signal lightsoptical evaluation of the tightening torque: Yellow light (pre-warning threshold reached), green light (in target range), red light (measured value outside tolerance range)Free configurable menu structureBayonet lock for battery/rechargeable batteryOptional: Li-ion rechargeable battery no. 7195-2 and charger no. 71603 function modes: click-type (patented electromechanical release), peak hold (display mode with peak value display) and track (display mode with actual value display)Micro-USB interface for data exchangeoptional Bluetooth Low Energy module (5. 2)QuickRelease safety lock - change system for insert toolsData storage of up to 2. 500 screwdriving operations incl. date and time stampUp to 200 fastening operations can be programmed in a maximum of 25 schedulesDifferent tolerance limits can be set depending on the fastening operationAcoustic and visual evaluation of the fastening operationFast and precise adjustment via keypad keypadno unintentional adjustment thanks to password-protected key lockacoustic and visual signal warns of torque wrench overload and forced tighteningautomatic reminder of the next calibration date, freely configurable according to time and/or number of loadsfully automatic calibration and adjustment with the perfectControl calibration and adjustment device no. 7794-2 (torque) or 7794-3 (torque and angle of rotation) to reduce error influencing factorsUnits of measurement: N-m, ft-lb, in-lbautomatic gauge block correction: Option to enter a deviating gauge value to ensure the desired target valueimmediately ready for use again after reliefright and left-hand tightening - for left-hand tightening in "click-type" function mode, the insert tool must be rotatedoptical, acoustic and tactile release signaltorque and angle of rotation displays visible simultaneouslymeasurement independent of the force application point (for gr. 1, 2 and 4)safe handling thanks to ergonomically shaped 2-component handle (resistant against the most common oils, greases, fuels, brake fluids and Skydrol)3 certificates enclosed (torque indicating/click-type according to DIN EN ISO 6789-2:2017, angle of rotation based on VDI/VDE 2648-2)in a sturdy plastic case (sizes 40-100 in a sheet steel case)in a sturdy plastic case (sizes 40-100 in a sheet steel case). 40-100 in sheet steel case)registered design, patentedSupplied with SensoMaster 4 software, USB cable, 4 micro batteries AAA/LR03, 1.5 VDisplay resolution angle of rotation 0, 1°Display deviation rotation angle ±1°, ±1 digit up to 100°, >100° at least 1%, ± 1 digitDisplay resolution torque ? 60 N-m: 0.01 N-m; > 60 N-m: 0.1 N-m; >400 N-m: 1 N-mDisplay deviation torque ± 2 %, ± 1 digit Technical features:Measuring range N·m: 100-1000 N·mMeasuring range ft·lb: 74-750 ft·lbMeasuring range in·lb: 900-9000 in·lbBattery type: Micro (AAA) 1,5V Width mm (b): 30,6 mmDIN: DIN EN ISO 6789-2:2017 Weight with box: 10500 gSize: 100 Size square socket [inside square drive]: 22 x 28 mmHeight mm (h): 25,6 mmLength mm (L): 1343 mmLF: 1343 mmSF: 55 mmWeight: 4990 gWeigth kg: 10.5 kgStahlwille 714/100Stahlwille product no: 96500100EAN: 4018754222773

Stahlwille 714/65 Torque and angle wrench MANOSKOP Model 714 Measuring r. 65-650N·m Drive L. 890mm Features:4 measuring modes (torque, angle of rotation, torque with monitoring variable "angle of rotation", angle of rotation with monitoring variable "torque")high-resolution colour OLED display and lateral signal lightsoptical evaluation of the tightening torque: Yellow light (pre-warning threshold reached), green light (in target range), red light (measured value outside tolerance range)Free configurable menu structureBayonet lock for battery/rechargeable batteryOptional: Li-ion rechargeable battery no. 7195-2 and charger no. 71603 function modes: click-type (patented electromechanical release), peak hold (display mode with peak value display) and track (display mode with actual value display)Micro-USB interface for data exchangeoptional Bluetooth Low Energy module (5. 2)QuickRelease safety lock - change system for insert toolsData storage of up to 2. 500 screwdriving operations incl. date and time stampUp to 200 fastening operations can be programmed in a maximum of 25 schedulesDifferent tolerance limits can be set depending on the fastening operationAcoustic and visual evaluation of the fastening operationFast and precise adjustment via keypad keypadno unintentional adjustment thanks to password-protected key lockacoustic and visual signal warns of torque wrench overload and forced tighteningautomatic reminder of the next calibration date, freely configurable according to time and/or number of loadsfully automatic calibration and adjustment with the perfectControl calibration and adjustment device no. 7794-2 (torque) or 7794-3 (torque and angle of rotation) to reduce error influencing factorsUnits of measurement: N-m, ft-lb, in-lbautomatic gauge block correction: Option to enter a deviating gauge value to ensure the desired target valueimmediately ready for use again after reliefright and left-hand tightening - for left-hand tightening in "click-type" function mode, the insert tool must be rotatedoptical, acoustic and tactile release signaltorque and angle of rotation displays visible simultaneouslymeasurement independent of the force application point (for gr. 1, 2 and 4)safe handling thanks to ergonomically shaped 2-component handle (resistant against the most common oils, greases, fuels, brake fluids and Skydrol)3 certificates enclosed (torque indicating/click-type according to DIN EN ISO 6789-2:2017, angle of rotation based on VDI/VDE 2648-2)in a sturdy plastic case (sizes 40-100 in a sheet steel case)in a sturdy plastic case (sizes 40-100 in a sheet steel case). 40-100 in sheet steel case)registered design, patentedSupplied with SensoMaster 4 software, USB cable, 4 micro batteries AAA/LR03, 1.5 VDisplay resolution angle of rotation 0, 1°Display deviation rotation angle ±1°, ±1 digit up to 100°, >100° at least 1%, ± 1 digitDisplay resolution torque ? 60 N-m: 0.01 N-m; > 60 N-m: 0.1 N-m; >400 N-m: 1 N-mDisplay deviation torque ± 2 %, ± 1 digit Technical features:Measuring range N·m: 65-650 N·mMeasuring range ft·lb: 48-480 ft·lbMeasuring range in·lb: 580-5800 in·lbBattery type: Micro (AAA) 1,5V Width mm (b): 30,6 mmDIN: DIN EN ISO 6789-2:2017 Weight with box: 7000 gSize: 65 Size square socket [inside square drive]: 22 x 28 mmHeight mm (h): 25,6 mmLength mm (L): 890 mmLF: 890 mmSF: 55 mmWeight: 3222 gWeigth kg: 7 kgStahlwille 714/65Stahlwille product no: 96500965EAN: 4018754222858

Stahlwille 714/80 Torque and angle wrench MANOSKOP Model 714 Measuring r. 80-800N·m Drive L. 1158mm Features:4 measuring modes (torque, angle of rotation, torque with monitoring variable "angle of rotation", angle of rotation with monitoring variable "torque")high-resolution colour OLED display and lateral signal lightsoptical evaluation of the tightening torque: Yellow light (pre-warning threshold reached), green light (in target range), red light (measured value outside tolerance range)Free configurable menu structureBayonet lock for battery/rechargeable batteryOptional: Li-ion rechargeable battery no. 7195-2 and charger no. 71603 function modes: click-type (patented electromechanical release), peak hold (display mode with peak value display) and track (display mode with actual value display)Micro-USB interface for data exchangeoptional Bluetooth Low Energy module (5. 2)QuickRelease safety lock - change system for insert toolsData storage of up to 2. 500 screwdriving operations incl. date and time stampUp to 200 fastening operations can be programmed in a maximum of 25 schedulesDifferent tolerance limits can be set depending on the fastening operationAcoustic and visual evaluation of the fastening operationFast and precise adjustment via keypad keypadno unintentional adjustment thanks to password-protected key lockacoustic and visual signal warns of torque wrench overload and forced tighteningautomatic reminder of the next calibration date, freely configurable according to time and/or number of loadsfully automatic calibration and adjustment with the perfectControl calibration and adjustment device no. 7794-2 (torque) or 7794-3 (torque and angle of rotation) to reduce error influencing factorsUnits of measurement: N-m, ft-lb, in-lbautomatic gauge block correction: Option to enter a deviating gauge value to ensure the desired target valueimmediately ready for use again after reliefright and left-hand tightening - for left-hand tightening in "click-type" function mode, the insert tool must be rotatedoptical, acoustic and tactile release signaltorque and angle of rotation displays visible simultaneouslymeasurement independent of the force application point (for gr. 1, 2 and 4)safe handling thanks to ergonomically shaped 2-component handle (resistant against the most common oils, greases, fuels, brake fluids and Skydrol)3 certificates enclosed (torque indicating/click-type according to DIN EN ISO 6789-2:2017, angle of rotation based on VDI/VDE 2648-2)in a sturdy plastic case (sizes 40-100 in a sheet steel case)in a sturdy plastic case (sizes 40-100 in a sheet steel case). 40-100 in sheet steel case)registered design, patentedSupplied with SensoMaster 4 software, USB cable, 4 micro batteries AAA/LR03, 1.5 VDisplay resolution angle of rotation 0, 1°Display deviation rotation angle ±1°, ±1 digit up to 100°, >100° at least 1%, ± 1 digitDisplay resolution torque ? 60 N-m: 0.01 N-m; > 60 N-m: 0.1 N-m; >400 N-m: 1 N-mDisplay deviation torque ± 2 %, ± 1 digit Technical features:Measuring range N·m: 80-800 N·mMeasuring range ft·lb: 60-600 ft·lbMeasuring range in·lb: 720-7200 in·lbBattery type: Micro (AAA) 1,5V Width mm (b): 30,6 mmDIN: DIN EN ISO 6789-2:2017 Weight with box: 10400 gSize: 80 Size square socket [inside square drive]: 22 x 28 mmHeight mm (h): 25,6 mmLength mm (L): 1158 mmLF: 1158 mmSF: 55 mmWeight: 4572 gWeigth kg: 10.4 kgStahlwille 714/80Stahlwille product no: 96500980EAN: 4018754222865

Stahlwille 714R/100 Angle and torque wrench MANOSKOP Model 714R Measuring r. 100-1000N·m Drive 3/4 L. 1438mm Features:with reversible ratchet (sizes 1-4), fine-tooth reversible ratchet (sizes 6-65) or insert ratchet with square drive-through (sizes 80-100) 80-100)4 measuring modes (torque, angle of rotation, torque with monitoring parameter "angle of rotation", angle of rotation with monitoring parameter "torque")High-resolution colour OLED display and lateral signal lightsOptical evaluation of the tightening torque: Yellow light (pre-warning threshold reached), green light (in target range), red light (measured value outside tolerance range)Free configurable menu structureBayonet lock for battery/rechargeable batteryOptional: Li-ion rechargeable battery no. 7195-2 and charger no. 71603 function modes: click-type (patented electromechanical release), peak hold (display mode with peak value display) and track (display mode with actual value display)Micro-USB interface for data exchangeoptional Bluetooth Low Energy module (5. 2)QuickRelease safety lock - change system for insert toolsData storage of up to 2,500 screwdriving operations incl. date and time stamp date and time stampUp to 200 fastening operations can be programmed in a maximum of 25 schedulesDifferent tolerance limits can be set depending on the fastening operationAcoustic and visual evaluation of the fastening operationFast and precise adjustment via keypad keypadno unintentional adjustment thanks to password-protected key lockacoustic and visual signal warns of torque wrench overload and forced tighteningautomatic reminder of the next calibration date, freely configurable according to time and/or number of loadsfully automatic calibration and adjustment with the perfectControl calibration and adjustment device no. 7794-2 (torque) or 7794-3 (torque and angle of rotation) to reduce error influencing factorsUnits of measurement: N-m, ft-lb, in-lbautomatic gauge correction: option to enter a deviating gauge to ensure the desired target valueimmediately ready for use again after relieffor controlled right-hand and left-hand tightening (size 1-65); for left-hand tightening in "click-type" function mode, the insert tool must be rotated (size 80-100)Optical, acoustic and tactile release signalTorque and rotation angle displays visible simultaneouslyMeasurement independent of the force application point (for sizes 1, 2 and 4)Safe handling thanks to ergonomically shaped 2-component handle (resistant against the most common oils, greases, fuels, brake fluids and Skydrol)3 certificates enclosed (torque indicating/click-type according to DIN EN ISO 6789-2:2017, angle of rotation based on VDI/VDE 2648-2)in a sturdy plastic case (sizes 40-100 in a sheet steel case)in a sturdy plastic case (sizes 40-100 in a sheet steel case). 40-100 in sheet steel case)registered design, patentedSupplied with SensoMaster 4 software, USB cable, 4 micro batteries AAA/LR03, 1.5 VDisplay resolution angle of rotation 0, 1°Display deviation rotation angle ±1°, ±1 digit up to 100°, >100° at least 1%, ± 1 digitDisplay resolution torque ? 60 N-m: 0.01 N-m; > 60 N-m: 0.1 N-mDisplay deviation torque ± 2 %, ± 1 digit Technical features:Measuring range N·m: 100-1000 N·mMeasuring range ft·lb: 73-735 ft·lbMeasuring range in·lb: 885-8850 in·lbExternal square drive (inch): 3/4 Battery type: Micro (AAA) 1,5V Width mm (b): 130 mmDIN: DIN EN ISO 6789-2:2017 Weight with box: 12500 gSize: 100 Size square socket [inside square drive]: 22 x 28 mmHeight mm (h): 100 mmLength mm (L): 1438 mmWeight: 6905 gWeigth kg: 12.5 kgStahlwille 714R/100Stahlwille product no: 96501100EAN: 4018754212804

Stahlwille 714R/65 Angle and torque wrench MANOSKOP Model 714R Measuring r. 65-650N·m Drive 3/4 L. 980mm Features:with reversible ratchet (sizes 1-4), fine-tooth reversible ratchet (sizes 6-65) or insert ratchet with square drive-through (sizes 80-100) 80-100)4 measuring modes (torque, angle of rotation, torque with monitoring parameter "angle of rotation", angle of rotation with monitoring parameter "torque")High-resolution colour OLED display and lateral signal lightsOptical evaluation of the tightening torque: Yellow light (pre-warning threshold reached), green light (in target range), red light (measured value outside tolerance range)Free configurable menu structureBayonet lock for battery/rechargeable batteryOptional: Li-ion rechargeable battery no. 7195-2 and charger no. 71603 function modes: click-type (patented electromechanical release), peak hold (display mode with peak value display) and track (display mode with actual value display)Micro-USB interface for data exchangeoptional Bluetooth Low Energy module (5. 2)QuickRelease safety lock - change system for insert toolsData storage of up to 2,500 screwdriving operations incl. date and time stamp date and time stampUp to 200 fastening operations can be programmed in a maximum of 25 schedulesDifferent tolerance limits can be set depending on the fastening operationAcoustic and visual evaluation of the fastening operationFast and precise adjustment via keypad keypadno unintentional adjustment thanks to password-protected key lockacoustic and visual signal warns of torque wrench overload and forced tighteningautomatic reminder of the next calibration date, freely configurable according to time and/or number of loadsfully automatic calibration and adjustment with the perfectControl calibration and adjustment device no. 7794-2 (torque) or 7794-3 (torque and angle of rotation) to reduce error influencing factorsUnits of measurement: N-m, ft-lb, in-lbautomatic gauge correction: option to enter a deviating gauge to ensure the desired target valueimmediately ready for use again after relieffor controlled right-hand and left-hand tightening (size 1-65); for left-hand tightening in "click-type" function mode, the insert tool must be rotated (size 80-100)Optical, acoustic and tactile release signalTorque and rotation angle displays visible simultaneouslyMeasurement independent of the force application point (for sizes 1, 2 and 4)Safe handling thanks to ergonomically shaped 2-component handle (resistant against the most common oils, greases, fuels, brake fluids and Skydrol)3 certificates enclosed (torque indicating/click-type according to DIN EN ISO 6789-2:2017, angle of rotation based on VDI/VDE 2648-2)in a sturdy plastic case (sizes 40-100 in a sheet steel case)in a sturdy plastic case (sizes 40-100 in a sheet steel case). 40-100 in sheet steel case)registered design, patentedSupplied with SensoMaster 4 software, USB cable, 4 micro batteries AAA/LR03, 1.5 VDisplay resolution angle of rotation 0, 1°Display deviation rotation angle ±1°, ±1 digit up to 100°, >100° at least 1%, ± 1 digitDisplay resolution torque ? 60 N-m: 0.01 N-m; > 60 N-m: 0.1 N-mDisplay deviation torque ± 2 %, ± 1 digit Technical features:Measuring range N·m: 65-650 N·mMeasuring range ft·lb: 48-480 ft·lbMeasuring range in·lb: 580-5800 in·lbExternal square drive (inch): 3/4 Battery type: Micro (AAA) 1,5V Width mm (b): 125 mmDIN: DIN EN ISO 6789-2:2017 Weight with box: 9000 gSize: 65 Size square socket [inside square drive]: 22 x 28 mmHeight mm (h): 95 mmLength mm (L): 980 mmWeight: 5137 gWeigth kg: 8.5 kgStahlwille 714R/65Stahlwille product no: 96501065EAN: 4018754212781

Stahlwille 714R/80 Angle and torque wrench MANOSKOP Model 714R Measuring r. 80-800N·m Drive 3/4 L. 1253mm Features:with reversible ratchet (sizes 1-4), fine-tooth reversible ratchet (sizes 6-65) or insert ratchet with square drive-through (sizes 80-100) 80-100)4 measuring modes (torque, angle of rotation, torque with monitoring parameter "angle of rotation", angle of rotation with monitoring parameter "torque")High-resolution colour OLED display and lateral signal lightsOptical evaluation of the tightening torque: Yellow light (pre-warning threshold reached), green light (in target range), red light (measured value outside tolerance range)Free configurable menu structureBayonet lock for battery/rechargeable batteryOptional: Li-ion rechargeable battery no. 7195-2 and charger no. 71603 function modes: click-type (patented electromechanical release), peak hold (display mode with peak value display) and track (display mode with actual value display)Micro-USB interface for data exchangeoptional Bluetooth Low Energy module (5. 2)QuickRelease safety lock - change system for insert toolsData storage of up to 2,500 screwdriving operations incl. date and time stamp date and time stampUp to 200 fastening operations can be programmed in a maximum of 25 schedulesDifferent tolerance limits can be set depending on the fastening operationAcoustic and visual evaluation of the fastening operationFast and precise adjustment via keypad keypadno unintentional adjustment thanks to password-protected key lockacoustic and visual signal warns of torque wrench overload and forced tighteningautomatic reminder of the next calibration date, freely configurable according to time and/or number of loadsfully automatic calibration and adjustment with the perfectControl calibration and adjustment device no. 7794-2 (torque) or 7794-3 (torque and angle of rotation) to reduce error influencing factorsUnits of measurement: N-m, ft-lb, in-lbautomatic gauge correction: option to enter a deviating gauge to ensure the desired target valueimmediately ready for use again after relieffor controlled right-hand and left-hand tightening (size 1-65); for left-hand tightening in "click-type" function mode, the insert tool must be rotated (size 80-100)Optical, acoustic and tactile release signalTorque and rotation angle displays visible simultaneouslyMeasurement independent of the force application point (for sizes 1, 2 and 4)Safe handling thanks to ergonomically shaped 2-component handle (resistant against the most common oils, greases, fuels, brake fluids and Skydrol)3 certificates enclosed (torque indicating/click-type according to DIN EN ISO 6789-2:2017, angle of rotation based on VDI/VDE 2648-2)in a sturdy plastic case (sizes 40-100 in a sheet steel case)in a sturdy plastic case (sizes 40-100 in a sheet steel case). 40-100 in sheet steel case)registered design, patentedSupplied with SensoMaster 4 software, USB cable, 4 micro batteries AAA/LR03, 1.5 VDisplay resolution angle of rotation 0, 1°Display deviation rotation angle ±1°, ±1 digit up to 100°, >100° at least 1%, ± 1 digitDisplay resolution torque ? 60 N-m: 0.01 N-m; > 60 N-m: 0.1 N-mDisplay deviation torque ± 2 %, ± 1 digit Technical features:Measuring range N·m: 80-800 N·mMeasuring range ft·lb: 60-600 ft·lbMeasuring range in·lb: 720-7200 in·lbExternal square drive (inch): 3/4 Battery type: Micro (AAA) 1,5V Width mm (b): 130 mmDIN: DIN EN ISO 6789-2:2017 Weight with box: 12300 gSize: 80 Size square socket [inside square drive]: 22 x 28 mmHeight mm (h): 95 mmLength mm (L): 1253 mmWeight: 6487 gWeigth kg: 5.9 kgStahlwille 714R/80Stahlwille product no: 96501080EAN: 4018754212798

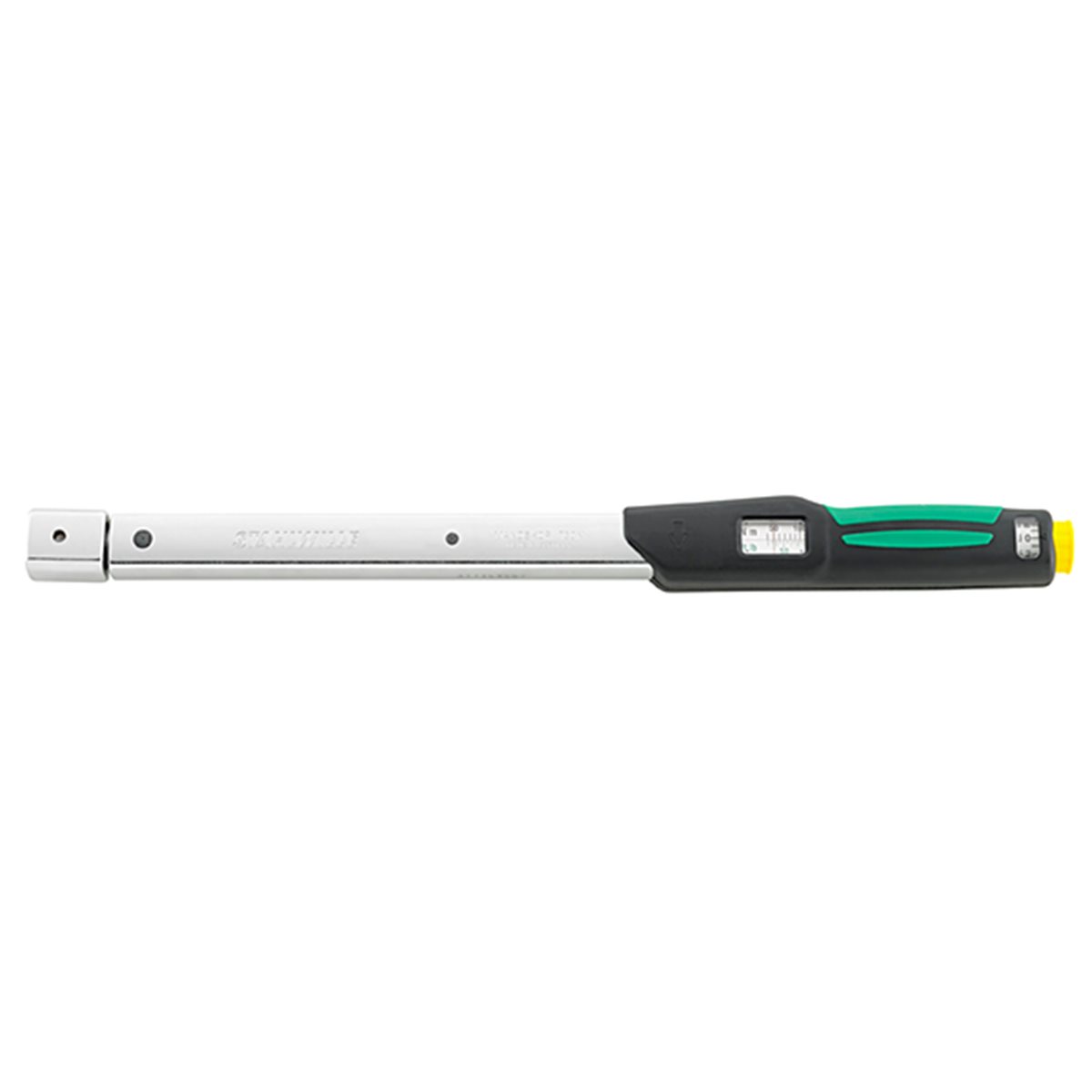

Stahlwille 730/100 FIX Service MANOSKOP torque wrench w.mount for insert tools Model 730 Fix Measuring r. 200-1000N·m Tool holders 22 x 28 mm L. 1363mm Features:For work in series productionAdjustment knob can be unscrewed after setting the release torque - this prevents unintentional changes to the target torqueThe TORX Tamper Resistant locking screw supplied also protects against tampering. Just like the enclosed adhesive seals. No adjustment possible without breaking the sealclick-typeno need to reset to "0" as the measuring element is only loaded during the tightening processmount for interchangeable insert/shell toolsQuickRelease safety lockquick, QuickSelect quick adjustmentDual stop signalVery easy to read dual scale with colour differentiation between N-m/ft-lb or ft-lb/in-lbLeft-hand tightening by turning the insert/shell toolsContinued load after click-type or loads against the functional direction, e.g. in the case of stuck screws. The release mechanism is protected from damage as a result2-component handle with hand-friendly, green soft zone (resistant to oils, greases, fuels, brake fluids and Skydrol)Calibration with the perfectControl calibration device no. 7794 or the calibration system no. 7706. Readjustment without disassembly if necessaryCertificate in accordance with DIN EN ISO 6789-2:2017DBGMin a sturdy plastic case (size 80-100 in a sheet steel case)Display deviation ± 3 % Technical features:Scale division N·m: 100 N·mScale division ft·lb: 25 ft·lbMeasuring range N·m: 200-1000 N·mMeasuring range ft·lb: 150-750 ft·lbWidth mm (b): 30,6 mmDIN: DIN EN ISO 6789-2:2017 Fine scale division: 5 N·m Weight with box: 11000 gSize: 100 Size square socket [inside square drive]: 22 x 28 mmHeight mm (h): 25,6 mmLength mm (L): 1363 mmLF: 1352 mmMA N·m: 200 N·mNominal value N·m: 1000 N·mSF: 55 mmWeight: 5196 gWeigth kg: 11 kgStahlwille 730/100 FIXStahlwille product no: 96503100EAN: 4018754269679

Stahlwille 730/80 FIX Service MANOSKOP torque wrench w.mount for insert tools Model 730 Fix Measuring r. 160-800N·m Tool holders 22 x 28 mm L. 1178mm Features:For work in series productionAdjustment knob can be unscrewed after setting the release torque - this prevents unintentional changes to the target torqueThe TORX Tamper Resistant locking screw supplied also protects against tampering. Just like the enclosed adhesive seals. No adjustment possible without breaking the sealclick-typeno need to reset to "0" as the measuring element is only loaded during the tightening processmount for interchangeable insert/shell toolsQuickRelease safety lockquick, QuickSelect quick adjustmentDual stop signalVery easy to read dual scale with colour differentiation between N-m/ft-lb or ft-lb/in-lbLeft-hand tightening by turning the insert/shell toolsContinued load after click-type or loads against the functional direction, e.g. in the case of stuck screws. The release mechanism is protected from damage as a result2-component handle with hand-friendly, green soft zone (resistant to oils, greases, fuels, brake fluids and Skydrol)Calibration with the perfectControl calibration device no. 7794 or the calibration system no. 7706. Readjustment without disassembly if necessaryCertificate in accordance with DIN EN ISO 6789-2:2017DBGMin a sturdy plastic case (size 80-100 in a sheet steel case)Display deviation ± 3 % Technical features:Scale division N·m: 100 N·mScale division ft·lb: 25 ft·lbMeasuring range N·m: 160-800 N·mMeasuring range ft·lb: 120-600 ft·lbWidth mm (b): 30,6 mmDIN: DIN EN ISO 6789-2:2017 Fine scale division: 5 N·m Weight with box: 10500 gSize: 80 Size square socket [inside square drive]: 22 x 28 mmHeight mm (h): 25,6 mmLength mm (L): 1178 mmLF: 1167 mmMA N·m: 160 N·mNominal value N·m: 800 N·mSF: 55 mmWeight: 4794 gWeigth kg: 10.5 kgStahlwille 730/80 FIXStahlwille product no: 96503080EAN: 4018754269662

Stahlwille 730D/100 Torque wrench service/series MANOSKOP Model 730D Measuring r. 100-1000N·m Drive L. 1344mm Features:Tactile and audible release signalMount for interchangeable insert/shell toolsQuickRelease safety lockquick setting via practical keypadautomatically correct tightening torque after entering a deviating gaugeoverload protection thanks to acoustic and visual warning signalno unintentional adjustment thanks to automatic key lockdisplay function even with counter-clockwise torquesunits of measurement: N-m, ft-lb, in-lbDifferent tolerance limits can be set depending on the tightening operationOptical evaluation of the tightening operation by green and red indication on the displayAdditional protection of the default settings (function mode, click-type or setpoint value, unit of measurement, tolerance value, saving, deviating gauge) by PIN codeSaving of up to 7. 500 screwdriving dataUSB interfaceautomatic notification of the next calibration dateCalibration with the perfectControl calibration device no. 7794 or the calibration system no. 77062-component handle with hand-friendly, green soft zone (resistant to oils, greases, fuels, brake fluids and Skydrol)Certified in accordance with DIN EN ISO 6789-2:2017In a sturdy plastic case (size 40-100 in a sheet steel case)PatentedSupplied with 2 mignon batteries 1.5 V. Mignon NiMH batteries AA/LR6, 1.2 V, can be used.Display deviation ± 2 %, ± 1 digit Technical features:Measuring range N·m: 100-1000 N·mMeasuring range ft·lb: 74-750 ft·lbMeasuring range in·lb: 900-9000 in·lbSetting display resolution N·m: 1,0/1,0 N·mSetting display resolution ft·lb: 1,0/1,0 ft·lbSetting display resolution in·lb: 10/1,0 in·lbBattery type: Mignon (AA) 1,5V Width mm (b): 30,6 mmDIN: DIN EN ISO 6789-2:2017 Weight with box: 11000 gSize: 100 Size square socket [inside square drive]: 22 x 28 mmHeight mm (h): 25,6 mmLength mm (L): 1344 mmLF: 1341 mmMA N·m: 100 N·mNominal value N·m: 1000 N·mSF: 55 mmStahlwille 730D/100Stahlwille product no: 96502100EAN: 4018754240104

Stahlwille 730D/80 Torque wrench service/series MANOSKOP Model 730D Measuring r. 80-800N·m Drive L. 1160mm Features:Tactile and audible release signalMount for interchangeable insert/shell toolsQuickRelease safety lockquick setting via practical keypadautomatically correct tightening torque after entering a deviating gaugeoverload protection thanks to acoustic and visual warning signalno unintentional adjustment thanks to automatic key lockdisplay function even with counter-clockwise torquesunits of measurement: N-m, ft-lb, in-lbDifferent tolerance limits can be set depending on the tightening operationOptical evaluation of the tightening operation by green and red indication on the displayAdditional protection of the default settings (function mode, click-type or setpoint value, unit of measurement, tolerance value, saving, deviating gauge) by PIN codeSaving of up to 7. 500 screwdriving dataUSB interfaceautomatic notification of the next calibration dateCalibration with the perfectControl calibration device no. 7794 or the calibration system no. 77062-component handle with hand-friendly, green soft zone (resistant to oils, greases, fuels, brake fluids and Skydrol)Certified in accordance with DIN EN ISO 6789-2:2017In a sturdy plastic case (size 40-100 in a sheet steel case)PatentedSupplied with 2 mignon batteries 1.5 V. Mignon NiMH batteries AA/LR6, 1.2 V, can be used.Display deviation ± 2 %, ± 1 digit Technical features:Measuring range N·m: 80-800 N·mMeasuring range ft·lb: 60-600 ft·lbMeasuring range in·lb: 720-7200 in·lbSetting display resolution N·m: 1,0/1,0 N·mSetting display resolution ft·lb: 1,0/1,0 ft·lbSetting display resolution in·lb: 10/1,0 in·lbBattery type: Mignon (AA) 1,5V Width mm (b): 30,6 mmDIN: DIN EN ISO 6789-2:2017 Weight with box: 10500 gSize: 80 Size square socket [inside square drive]: 22 x 28 mmHeight mm (h): 25,6 mmLength mm (L): 1160 mmLF: 1157 mmMA N·m: 80 N·mNominal value N·m: 800 N·mSF: 55 mmStahlwille 730D/80Stahlwille product no: 96502080EAN: 4018754240098

Stahlwille 730DII/65 Torque wrench service/series MANOSKOP Model 730D Measuring r. 65-650N·m Drive L. 892mm Features:Tactile and audible release signalMount for interchangeable insert/shell toolsQuickRelease safety lockquick setting via practical keypadautomatically correct tightening torque after entering a deviating gaugeoverload protection thanks to acoustic and visual warning signalno unintentional adjustment thanks to automatic key lockdisplay function even with counter-clockwise torquesunits of measurement: N-m, ft-lb, in-lbDifferent tolerance limits can be set depending on the tightening operationOptical evaluation of the tightening operation by green and red indication on the displayAdditional protection of the default settings (function mode, click-type or setpoint value, unit of measurement, tolerance value, saving, deviating gauge) by PIN codeSaving of up to 7. 500 screwdriving dataUSB interfaceautomatic notification of the next calibration dateCalibration with the perfectControl calibration device no. 7794 or the calibration system no. 77062-component handle with hand-friendly, green soft zone (resistant to oils, greases, fuels, brake fluids and Skydrol)Certified in accordance with DIN EN ISO 6789-2:2017In a sturdy plastic case (size 40-100 in a sheet steel case)PatentedSupplied with 2 mignon batteries 1.5 V. Mignon NiMH batteries AA/LR6, 1.2 V, can be used.Display deviation ± 2 %, ± 1 digit Technical features:Measuring range N·m: 65-650 N·mMeasuring range ft·lb: 48-480 ft·lbMeasuring range in·lb: 580-5800 in·lbSetting display resolution N·m: 1,0/0,1 N·mSetting display resolution ft·lb: 1,0/0,1 ft·lbSetting display resolution in·lb: 10/1,0 in·lbBattery type: Mignon (AA) 1,5V Width mm (b): 30,6 mmDIN: DIN EN ISO 6789-2:2017 Weight with box: 7500 gSize: II/65 Size square socket [inside square drive]: 22 x 28 mmHeight mm (h): 25,6 mmLength mm (L): 892 mmLF: 889 mmMA N·m: 65 N·mNominal value N·m: 650 N·mSF: 55 mmStahlwille 730DII/65Stahlwille product no: 96501965EAN: 4018754240074

Stahlwille 730DIIR/65 Service/Series MANOSKOP torque wrenches w.reversible ratchet insert tool Model 730DR Measuring r. 65-650N·m Drive 3/4 L. 977mm Features:Sensitive and audible trigger signalMount for interchangeable insert/shell toolsQuickRelease safety lockquick setting via practical keypadautomatically correct tightening torque after entering a deviating gaugeoverload protection thanks to audible and visual warning signalno unintentional adjustment thanks to automatic key lockdisplay function even with counter-clockwise torquesunits of measurement: N-m, ft-lb, in-lbDifferent tolerance limits can be set depending on the tightening operationOptical evaluation of the tightening operation by green and red indication on the displayAdditional protection of the default settings (function mode, click-type or setpoint value, unit of measurement, tolerance value, saving, deviating gauge) by PIN codeSaving of up to 7. 500 screwdriving dataUSB interfaceautomatic notification of the next calibration dateCalibration with the perfectControl calibration device no. 7794 or the calibration system no. 77062-component handle with hand-friendly, green soft zone (resistant to oils, greases, fuels, brake fluids and Skydrol)Certified in accordance with DIN EN ISO 6789-2:2017In a sturdy plastic case (size 40-100 in a sheet steel case)PatentedSupplied with 2 mignon batteries 1.5 V. Mignon NiMH batteries AA/LR6, 1.2 V, can be used.Display deviation ± 2 %, ± 1 digit Technical features:Measuring range N·m: 65-650 N·mMeasuring range ft·lb: 48-480 ft·lbMeasuring range in·lb: 580-5800 in·lbExternal square drive (inch): 3/4 Setting display resolution N·m: 1,0/0,1 N·mSetting display resolution ft·lb: 1,0/0,1 ft·lbSetting display resolution in·lb: 10/1,0 in·lbBattery type: Mignon (AA) 1,5V Width mm (b): 140 mmDIN: DIN EN ISO 6789-2:2017 Weight with box: 9000 gSize: II/65 Size square socket [inside square drive]: 22 x 28 mmHeight mm (h): 100 mmLength mm (L): 977 mmMA N·m: 65 N·mNominal value N·m: 650 N·mWeight: 3994 gStahlwille 730DIIR/65Stahlwille product no: 96502065EAN: 4018754240081

Stahlwille 730DR/100 Service/Series MANOSKOP torque wrenches w.reversible ratchet insert tool Model 730DR Measuring r. 100-1000N·m Drive 3/4 L. 1439mm Features:Sensitive and audible trigger signalMount for interchangeable insert/shell toolsQuickRelease safety lockquick setting via practical keypadautomatically correct tightening torque after entering a deviating gaugeoverload protection thanks to audible and visual warning signalno unintentional adjustment thanks to automatic key lockdisplay function even with counter-clockwise torquesunits of measurement: N-m, ft-lb, in-lbDifferent tolerance limits can be set depending on the tightening operationOptical evaluation of the tightening operation by green and red indication on the displayAdditional protection of the default settings (function mode, click-type or setpoint value, unit of measurement, tolerance value, saving, deviating gauge) by PIN codeSaving of up to 7. 500 screwdriving dataUSB interfaceautomatic notification of the next calibration dateCalibration with the perfectControl calibration device no. 7794 or the calibration system no. 77062-component handle with hand-friendly, green soft zone (resistant to oils, greases, fuels, brake fluids and Skydrol)Certified in accordance with DIN EN ISO 6789-2:2017In a sturdy plastic case (size 40-100 in a sheet steel case)PatentedSupplied with 2 mignon batteries 1.5 V. Mignon NiMH batteries AA/LR6, 1.2 V, can be used.Display deviation ± 2 %, ± 1 digit Technical features:Measuring range N·m: 100-1000 N·mMeasuring range ft·lb: 74-750 ft·lbMeasuring range in·lb: 900-9000 in·lbExternal square drive (inch): 3/4 Setting display resolution N·m: 1,0/0,1 N·mSetting display resolution ft·lb: 1,0/0,1 ft·lbSetting display resolution in·lb: 10/1,0 in·lbBattery type: Mignon (AA) 1,5V Width mm (b): 120 mmDIN: DIN EN ISO 6789-2:2017 Weight with box: 12500 gSize: 100 Size square socket [inside square drive]: 22 x 28 mmHeight mm (h): 100 mmLength mm (L): 1439 mmMA N·m: 100 N·mNominal value N·m: 1000 N·mWeight: 6910 gStahlwille 730DR/100Stahlwille product no: 96501800EAN: 4018754240050

Stahlwille 730DR/80 Service/Series MANOSKOP torque wrenches w.reversible ratchet insert tool Model 730DR Measuring r. 80-800N·m Drive 3/4 L. 1255mm Features:Sensitive and audible trigger signalMount for interchangeable insert/shell toolsQuickRelease safety lockquick setting via practical keypadautomatically correct tightening torque after entering a deviating gaugeoverload protection thanks to audible and visual warning signalno unintentional adjustment thanks to automatic key lockdisplay function even with counter-clockwise torquesunits of measurement: N-m, ft-lb, in-lbDifferent tolerance limits can be set depending on the tightening operationOptical evaluation of the tightening operation by green and red indication on the displayAdditional protection of the default settings (function mode, click-type or setpoint value, unit of measurement, tolerance value, saving, deviating gauge) by PIN codeSaving of up to 7. 500 screwdriving dataUSB interfaceautomatic notification of the next calibration dateCalibration with the perfectControl calibration device no. 7794 or the calibration system no. 77062-component handle with hand-friendly, green soft zone (resistant to oils, greases, fuels, brake fluids and Skydrol)Certified in accordance with DIN EN ISO 6789-2:2017In a sturdy plastic case (size 40-100 in a sheet steel case)PatentedSupplied with 2 mignon batteries 1.5 V. Mignon NiMH batteries AA/LR6, 1.2 V, can be used.Display deviation ± 2 %, ± 1 digit Technical features:Measuring range N·m: 80-800 N·mMeasuring range ft·lb: 60-600 ft·lbMeasuring range in·lb: 720-7200 in·lbExternal square drive (inch): 3/4 Setting display resolution N·m: 1,0/0,1 N·mSetting display resolution ft·lb: 1,0/0,1 ft·lbSetting display resolution in·lb: 10/1,0 in·lbBattery type: Mignon (AA) 1,5V Width mm (b): 120 mmDIN: DIN EN ISO 6789-2:2017 Weight with box: 12500 gSize: 80 Size square socket [inside square drive]: 22 x 28 mmHeight mm (h): 90 mmLength mm (L): 1255 mmMA N·m: 80 N·mNominal value N·m: 800 N·mWeight: 6492 gStahlwille 730DR/80Stahlwille product no: 96501880EAN: 4018754240067

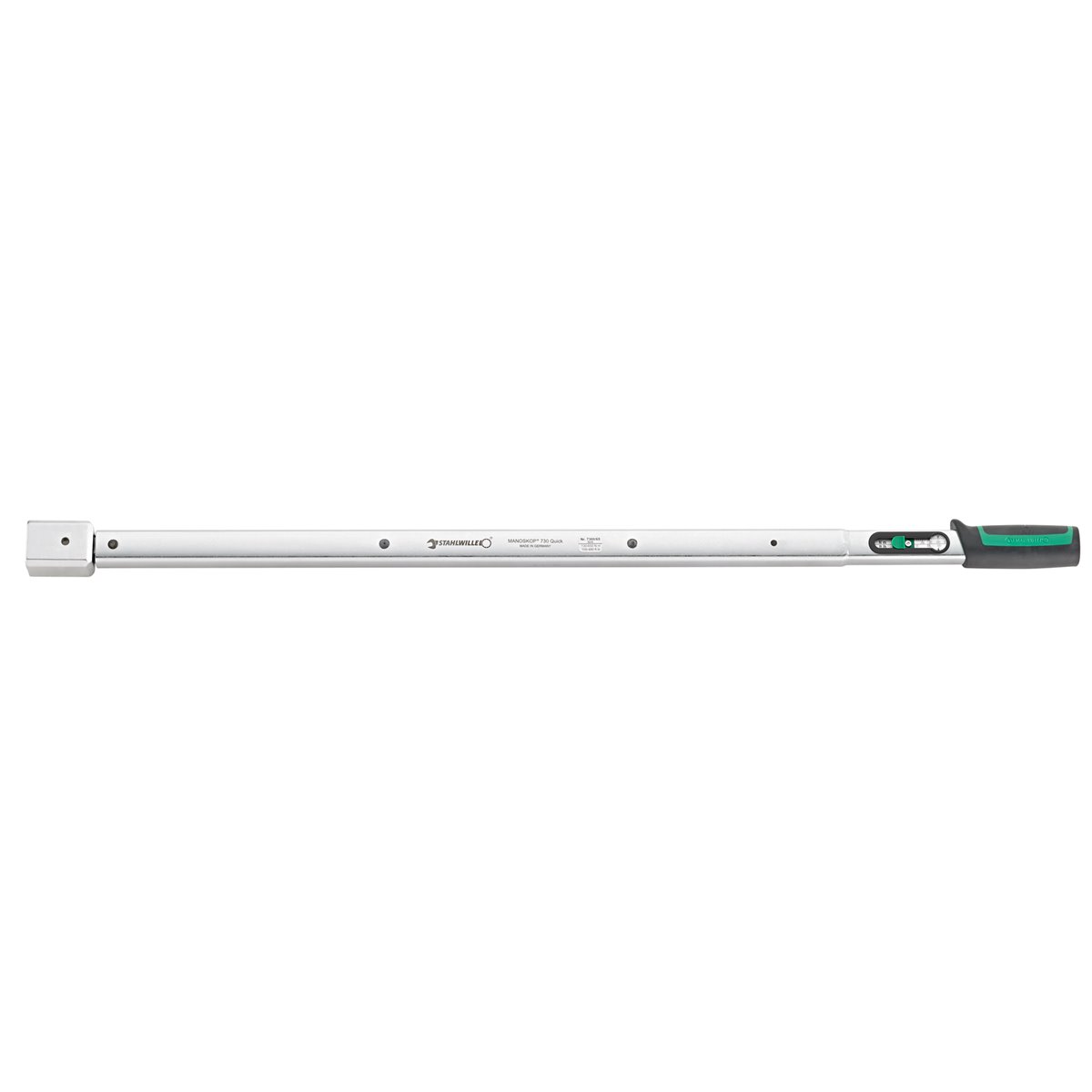

Stahlwille 730II/65 QUICK Torque wrench service MANOSKOP Model 730II/65 Quick Measuring r. 130-650N·m Tool holders 22 x 28 mm L. 897mm Features:click-type with a dual stop signalDisplay deviation: ±4 %no resetting to "0" requiredthe measuring element is only loaded during the tightening processwith mount for interchangeable insert/shell toolsQuickRelease safety locksliding adjustment knob for quick torque settingarrow-shaped pointersnon-slip adjustment element with thumb recessdual stop signaldual scale N-m/ft-lb or N-m/in-lbOn request also available as N-m version only without double scaleErgonomic 2-component handleLeft-hand tightening by turning the insert/shell toolsTrigger mechanism insensitive to further and counter loadWith calibration certificateCalibration with the perfectControl calibration device no. 7794 or the calibration unit no. 7706Easy adjustment using two adjustment pointsCertificate in accordance with DIN EN ISO 6789-2:2017 Technical features:Scale division N·m: 20 N·mScale division ft·lb: 20 ft·lbMeasuring range N·m: 130-650 N·mMeasuring range ft·lb: 100-480 ft·lbWidth mm (b): 30,6 mmDIN: DIN EN ISO 6789-2:2017 Size: II/65 Size square socket [inside square drive]: 22 x 28 mmHeight mm (h): 25,6 mmLength mm (L): 897 mmLF: 907 mmSF: 55 mmWeight: 4104 gWeigth kg: 4.1 kgStahlwille 730II/65 QUICKStahlwille product no: 50184565EAN: 4018754268900

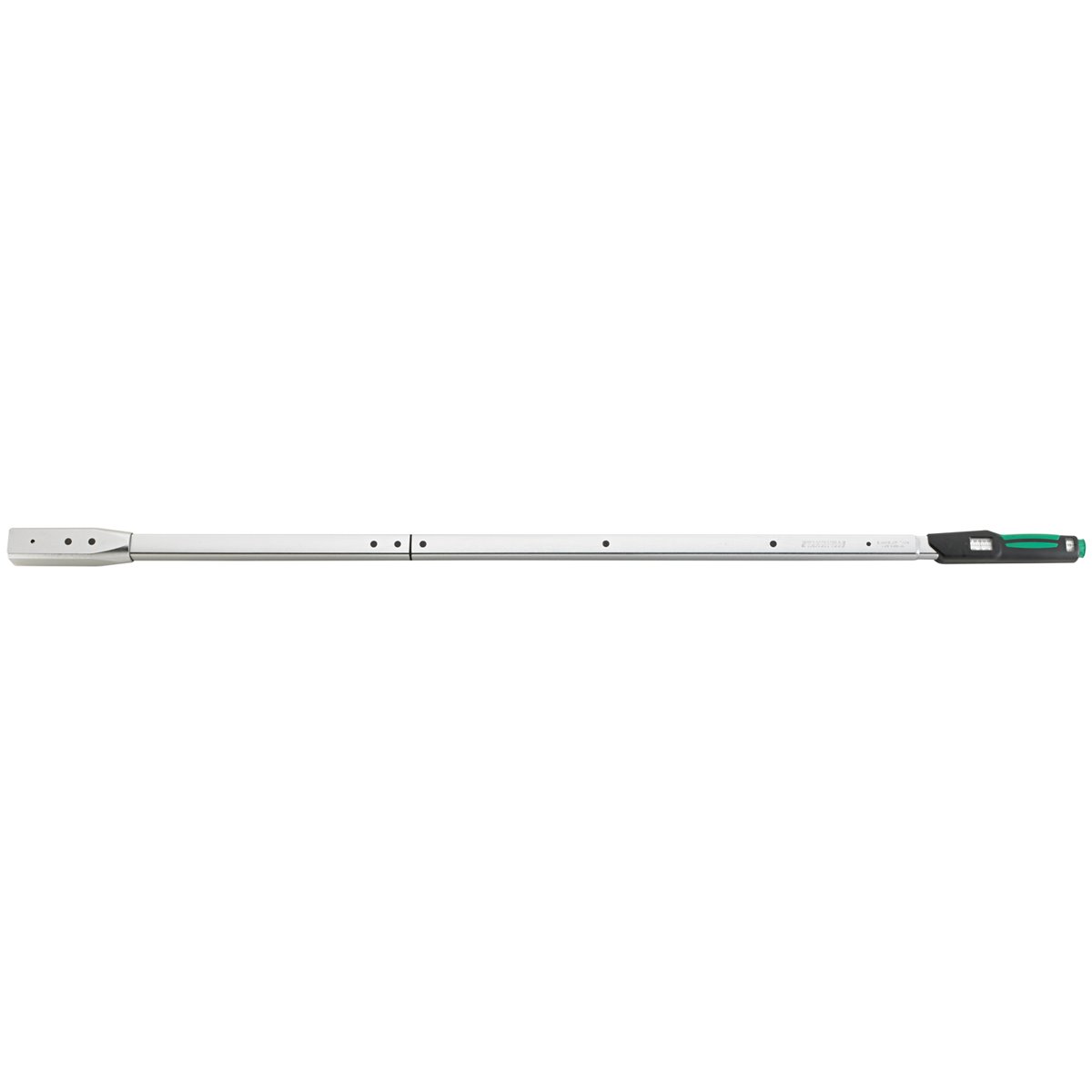

Stahlwille 730N/100 Torque wrench service MANOSKOP Model 730N/100 Measuring r. 200-1000N·m Tool holders 22 x 28 mm L. 1363mm Features:click-typeno need to reset to "0" as measuring element is only loaded during the tightening processfast, precise setting thanks to QuickSelect quick adjustmentdual stop signalvery easy-to-read dual scale with colour differentiation of N-m/ft-lb or ft-lb/in-lbcontinued load after release or loads against the functional direction, e.g. with tight screws. The release mechanism is protected from damage as a result2-component handle with hand-friendly, green soft zone (resistant to oils, greases, fuels, brake fluids and Skydrol)Calibration with the perfectControl calibration device no. 7794 or the calibration system no. 7706. Readjustment without disassembly if necessaryCertificate in accordance with DIN EN ISO 6789-2:2017Delivered in a textile bag (from size 65). 65)DBGM (German Federal Utility Model)Mount for interchangeable insert/shell toolsQuickRelease safety lockLeft-hand tightening by turning the insert/shell toolsDisplay deviation ± 3 % (size 2; a/2 4 %) Technical features:Scale division N·m: 100 N·mScale division ft·lb: 25 ft·lbMeasuring range N·m: 200-1000 N·mMeasuring range ft·lb: 150-750 ft·lbWidth mm (b): 30,6 mmDIN: DIN EN ISO 6789-2:2017 Fine scale division: 5 N·m Size: 100 Size square socket [inside square drive]: 22 x 28 mmHeight mm (h): 25,6 mmLength mm (L): 1363 mmLF: 1352 mmMA N·m: 200 N·mNominal value N·m: 1000 N·mSF: 55 mmWeight: 5000 gWeigth kg: 5 kgStahlwille 730N/100Stahlwille product no: 50181100EAN: 4018754239955

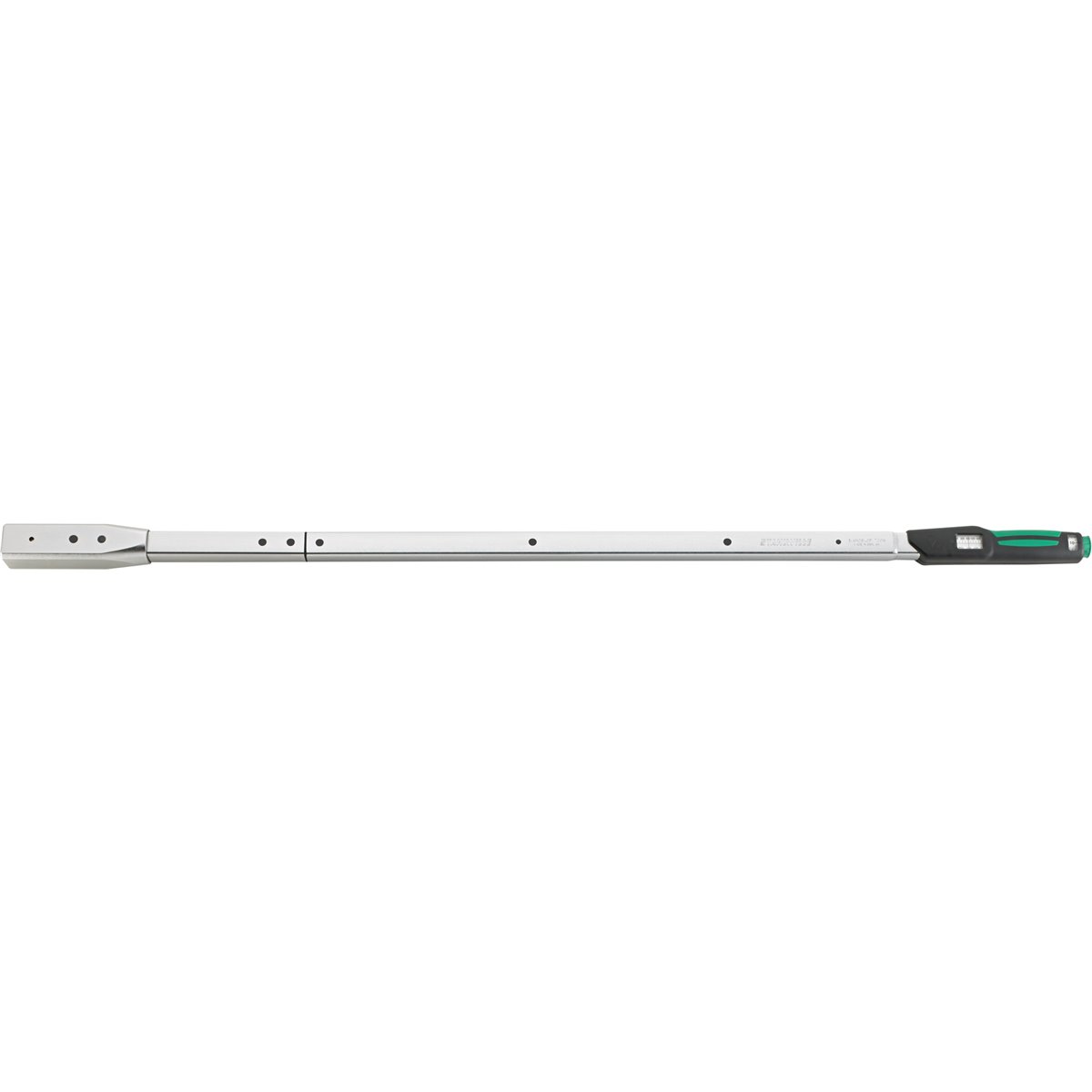

Stahlwille 730N/80 Torque wrench service MANOSKOP Model 730N/80 Measuring r. 160-800N·m Tool holders 22 x 28 mm L. 1178mm Features:click-typeno need to reset to "0" as measuring element is only loaded during the tightening processfast, precise setting thanks to QuickSelect quick adjustmentdual stop signalvery easy-to-read dual scale with colour differentiation of N-m/ft-lb or ft-lb/in-lbcontinued load after release or loads against the functional direction, e.g. with tight screws. The release mechanism is protected from damage as a result2-component handle with hand-friendly, green soft zone (resistant to oils, greases, fuels, brake fluids and Skydrol)Calibration with the perfectControl calibration device no. 7794 or the calibration system no. 7706. Readjustment without disassembly if necessaryCertificate in accordance with DIN EN ISO 6789-2:2017Delivered in a textile bag (from size 65). 65)DBGM (German Federal Utility Model)Mount for interchangeable insert/shell toolsQuickRelease safety lockLeft-hand tightening by turning the insert/shell toolsDisplay deviation ± 3 % (size 2; a/2 4 %) Technical features:Scale division N·m: 100 N·mScale division ft·lb: 25 ft·lbMeasuring range N·m: 160-800 N·mMeasuring range ft·lb: 120-600 ft·lbWidth mm (b): 30,6 mmDIN: DIN EN ISO 6789-2:2017 Fine scale division: 5 N·m Size: 80 Size square socket [inside square drive]: 22 x 28 mmHeight mm (h): 25,6 mmLength mm (L): 1178 mmLF: 1167 mmMA N·m: 160 N·mNominal value N·m: 800 N·mSF: 55 mmWeight: 4825 gWeigth kg: 4.83 kgStahlwille 730N/80Stahlwille product no: 50181080EAN: 4018754239948

Stahlwille 730NII/65 FIX Service MANOSKOP torque wrench w.mount for insert tools Model 730 Fix Measuring r. 130-650N·m Tool holders 22 x 28 mm L. 911mm Features:For work in series productionAdjustment knob can be unscrewed after setting the release torque - this prevents unintentional changes to the target torqueThe TORX Tamper Resistant locking screw supplied also protects against tampering. Just like the enclosed adhesive seals. No adjustment possible without breaking the sealclick-typeno need to reset to "0" as the measuring element is only loaded during the tightening processmount for interchangeable insert/shell toolsQuickRelease safety lockquick, QuickSelect quick adjustmentDual stop signalVery easy to read dual scale with colour differentiation between N-m/ft-lb or ft-lb/in-lbLeft-hand tightening by turning the insert/shell toolsContinued load after click-type or loads against the functional direction, e.g. in the case of stuck screws. The release mechanism is protected from damage as a result2-component handle with hand-friendly, green soft zone (resistant to oils, greases, fuels, brake fluids and Skydrol)Calibration with the perfectControl calibration device no. 7794 or the calibration system no. 7706. Readjustment without disassembly if necessaryCertificate in accordance with DIN EN ISO 6789-2:2017DBGMin a sturdy plastic case (size 80-100 in a sheet steel case)Display deviation ± 3 % Technical features:Scale division N·m: 50 N·mScale division ft·lb: 20 ft·lbMeasuring range N·m: 130-650 N·mMeasuring range ft·lb: 100-480 ft·lbWidth mm (b): 30,6 mmDIN: DIN EN ISO 6789-2:2017 Fine scale division: 2,5 N·m Weight with box: 7000 gSize: II/65 Size square socket [inside square drive]: 22 x 28 mmHeight mm (h): 25,6 mmLength mm (L): 911 mmLF: 900 mmMA N·m: 130 N·mNominal value N·m: 650 N·mSF: 55 mmWeight: 3490 gWeigth kg: 6.360 kgStahlwille 730NII/65 FIXStahlwille product no: 96503465EAN: 4018754269778

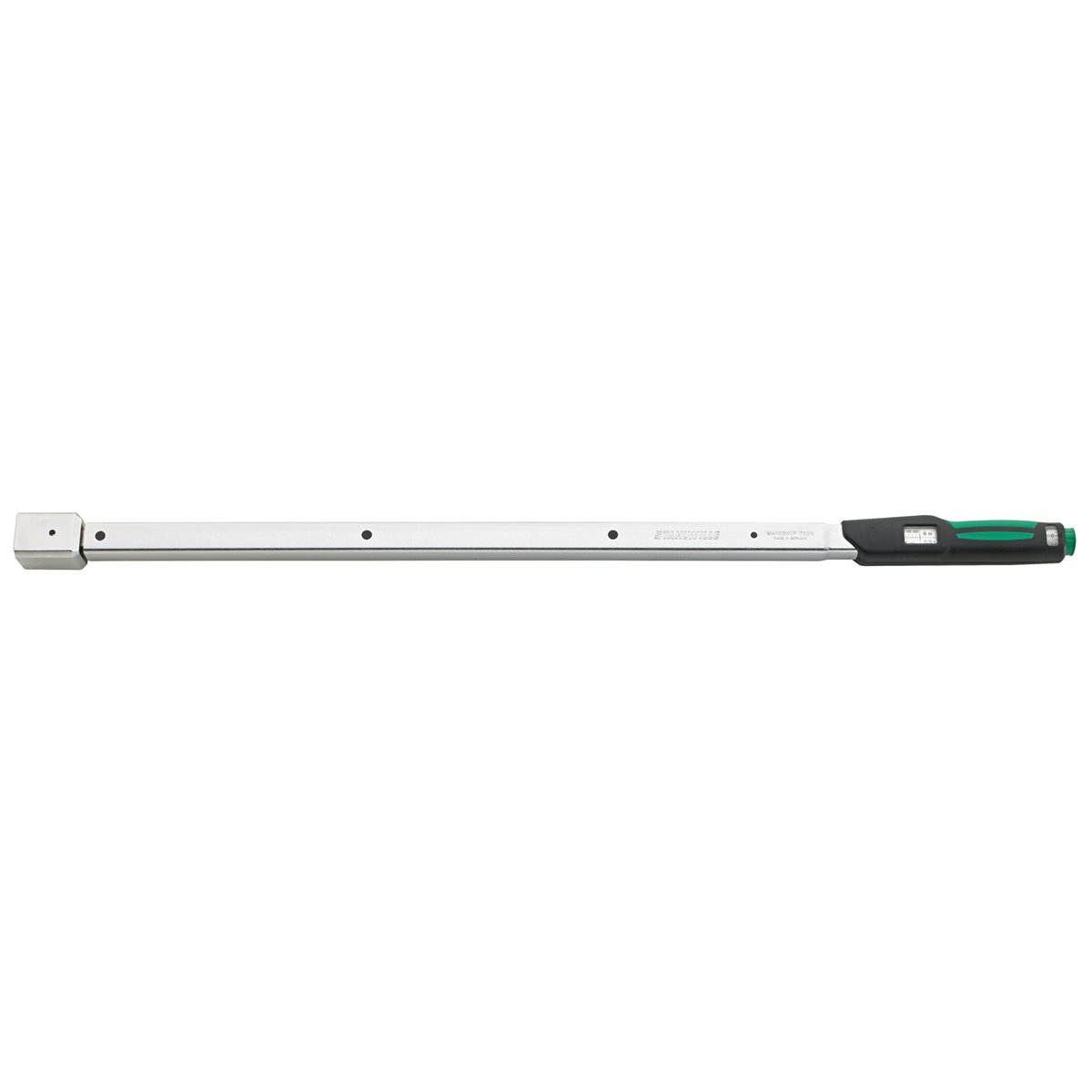

Stahlwille 730NII/65 Torque wrench service MANOSKOP Model 730NII/65 Measuring r. 130-650N·m Tool holders 22 x 28 mm L. 911mm Features:click-typeno need to reset to "0" as measuring element is only loaded during the tightening processfast, precise setting thanks to QuickSelect quick adjustmentdual stop signalvery easy-to-read dual scale with colour differentiation of N-m/ft-lb or ft-lb/in-lbcontinued load after release or loads against the functional direction, e.g. with tight screws. The release mechanism is protected from damage as a result2-component handle with hand-friendly, green soft zone (resistant to oils, greases, fuels, brake fluids and Skydrol)Calibration with the perfectControl calibration device no. 7794 or the calibration system no. 7706. Readjustment without disassembly if necessaryCertificate in accordance with DIN EN ISO 6789-2:2017Delivered in a textile bag (from size 65). 65)DBGM (German Federal Utility Model)Mount for interchangeable insert/shell toolsQuickRelease safety lockLeft-hand tightening by turning the insert/shell toolsDisplay deviation ± 3 % (size 2; a/2 4 %) Technical features:Scale division N·m: 50 N·mScale division ft·lb: 20 ft·lbMeasuring range N·m: 130-650 N·mMeasuring range ft·lb: 100-480 ft·lbWidth mm (b): 30,6 mmDIN: DIN EN ISO 6789-2:2017 Fine scale division: 2,5 N·m Size: II/65 Size square socket [inside square drive]: 22 x 28 mmHeight mm (h): 25,6 mmLength mm (L): 911 mmLF: 900 mmMA N·m: 130 N·mNominal value N·m: 650 N·mSF: 55 mmWeight: 3504 gWeigth kg: 3.5 kgStahlwille 730NII/65Stahlwille product no: 50181365EAN: 4018754239986

Stahlwille 731/100 SW 24 Open ended insert tool Spanner size 24mm Tool holders22 x 28 Features:For torque wrenches with square socketFixed by pin lockChrome plating over nickel, durable and chip-resistantForged in a die, hardened and cooled in an oil bathExtremely resilient, exceptionally durable Technical features:Width mm (b): 50 mmSize square socket [inside square drive]: 22 x 28 mmHeight mm (h): 13 mmS: 55 mmWidth across flats [mm]: 24 mmWeight: 618 gWeigth kg: 0.62 kgStahlwille 731/100 SW 24Stahlwille product no: 58211024EAN: 4018754238644

Stahlwille 731/100 SW 27 Open ended insert tool Spanner size 27mm Tool holders22 x 28 Features:For torque wrenches with square socketFixed by pin lockChrome plating over nickel, durable and chip-resistantForged in a die, hardened and cooled in an oil bathExtremely resilient, exceptionally durable Technical features:Width mm (b): 56 mmSize square socket [inside square drive]: 22 x 28 mmHeight mm (h): 14 mmS: 55 mmWidth across flats [mm]: 27 mmWeight: 640 gWeigth kg: 0.640 kgStahlwille 731/100 SW 27Stahlwille product no: 58211027EAN: 4018754238651

Stahlwille 731/100 SW 30 Open ended insert tool Spanner size 30mm Tool holders22 x 28 Features:For torque wrenches with square socketFixed by pin lockChrome plating over nickel, durable and chip-resistantForged in a die, hardened and cooled in an oil bathExtremely resilient, exceptionally durable Technical features:Width mm (b): 63 mmSize square socket [inside square drive]: 22 x 28 mmHeight mm (h): 15 mmS: 55 mmWidth across flats [mm]: 30 mmWeight: 690 gWeigth kg: 0.690 kgStahlwille 731/100 SW 30Stahlwille product no: 58211030EAN: 4018754238668

Stahlwille 731/100 SW 32 Open ended insert tool Spanner size 32mm Tool holders22 x 28 Features:For torque wrenches with square socketFixed by pin lockChrome plating over nickel, durable and chip-resistantForged in a die, hardened and cooled in an oil bathExtremely resilient, exceptionally durable Technical features:Width mm (b): 67 mmSize square socket [inside square drive]: 22 x 28 mmHeight mm (h): 15 mmS: 55 mmWidth across flats [mm]: 32 mmWeight: 705 gWeigth kg: 0.71 kgStahlwille 731/100 SW 32Stahlwille product no: 58211032EAN: 4018754238675

Stahlwille 731/100 SW 34 Open ended insert tool Spanner size 34mm Tool holders22 x 28 Features:For torque wrenches with square socketFixed by pin lockChrome plating over nickel, durable and chip-resistantForged in a die, hardened and cooled in an oil bathExtremely resilient, exceptionally durable Technical features:Width mm (b): 72 mmSize square socket [inside square drive]: 22 x 28 mmHeight mm (h): 15 mmS: 55 mmWidth across flats [mm]: 34 mmWeight: 731 gWeigth kg: 0.73 kgStahlwille 731/100 SW 34Stahlwille product no: 58211034EAN: 4018754238682
