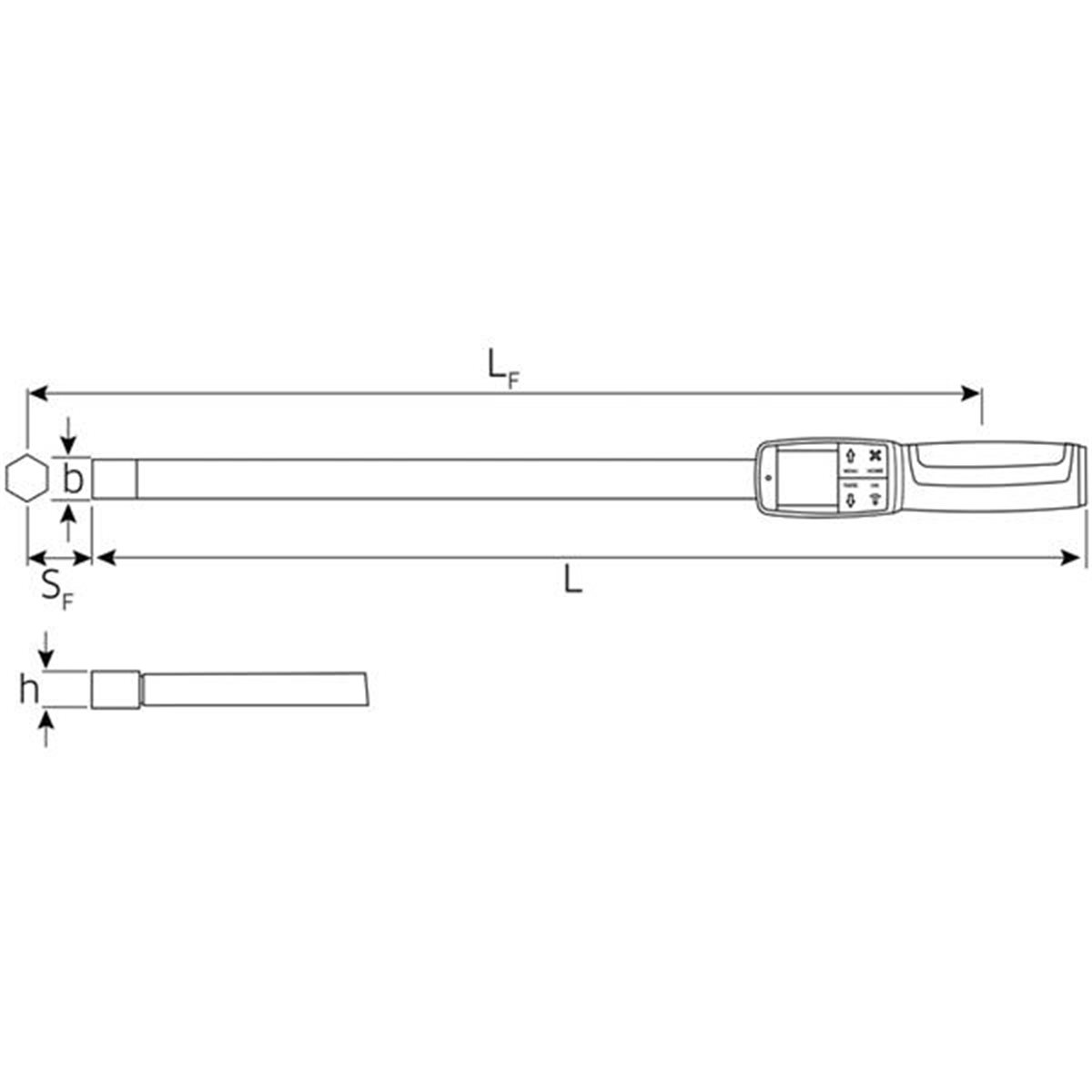

Stahlwille 714/65 Torque and angle wrench MANOSKOP Model 714 Measuring r. 65-650N·m Drive L. 890mm Features:4 measuring modes (torque, angle of rotation, torque with monitoring variable "angle of rotation", angle of rotation with monitoring variable "torque")high-resolution colour OLED display and lateral signal lightsoptical evaluation of the tightening torque: Yellow light (pre-warning threshold reached), green light (in target range), red light (measured value outside tolerance range)Free configurable menu structureBayonet lock for battery/rechargeable batteryOptional: Li-ion rechargeable battery no. 7195-2 and charger no. 71603 function modes: click-type (patented electromechanical release), peak hold (display mode with peak value display) and track (display mode with actual value display)Micro-USB interface for data exchangeoptional Bluetooth Low Energy module (5. 2)QuickRelease safety lock - change system for insert toolsData storage of up to 2. 500 screwdriving operations incl. date and time stampUp to 200 fastening operations can be programmed in a maximum of 25 schedulesDifferent tolerance limits can be set depending on the fastening operationAcoustic and visual evaluation of the fastening operationFast and precise adjustment via keypad keypadno unintentional adjustment thanks to password-protected key lockacoustic and visual signal warns of torque wrench overload and forced tighteningautomatic reminder of the next calibration date, freely configurable according to time and/or number of loadsfully automatic calibration and adjustment with the perfectControl calibration and adjustment device no. 7794-2 (torque) or 7794-3 (torque and angle of rotation) to reduce error influencing factorsUnits of measurement: N-m, ft-lb, in-lbautomatic gauge block correction: Option to enter a deviating gauge value to ensure the desired target valueimmediately ready for use again after reliefright and left-hand tightening - for left-hand tightening in "click-type" function mode, the insert tool must be rotatedoptical, acoustic and tactile release signaltorque and angle of rotation displays visible simultaneouslymeasurement independent of the force application point (for gr. 1, 2 and 4)safe handling thanks to ergonomically shaped 2-component handle (resistant against the most common oils, greases, fuels, brake fluids and Skydrol)3 certificates enclosed (torque indicating/click-type according to DIN EN ISO 6789-2:2017, angle of rotation based on VDI/VDE 2648-2)in a sturdy plastic case (sizes 40-100 in a sheet steel case)in a sturdy plastic case (sizes 40-100 in a sheet steel case). 40-100 in sheet steel case)registered design, patentedSupplied with SensoMaster 4 software, USB cable, 4 micro batteries AAA/LR03, 1.5 VDisplay resolution angle of rotation 0, 1°Display deviation rotation angle ±1°, ±1 digit up to 100°, >100° at least 1%, ± 1 digitDisplay resolution torque ? 60 N-m: 0.01 N-m; > 60 N-m: 0.1 N-m; >400 N-m: 1 N-mDisplay deviation torque ± 2 %, ± 1 digit Technical features:Measuring range N·m: 65-650 N·mMeasuring range ft·lb: 48-480 ft·lbMeasuring range in·lb: 580-5800 in·lbBattery type: Micro (AAA) 1,5V Width mm (b): 30,6 mmDIN: DIN EN ISO 6789-2:2017 Weight with box: 7000 gSize: 65 Size square socket [inside square drive]: 22 x 28 mmHeight mm (h): 25,6 mmLength mm (L): 890 mmLF: 890 mmSF: 55 mmWeight: 3222 gWeigth kg: 7 kgStahlwille 714/65Stahlwille product no: 96500965EAN: 4018754222858

Stahlwille TWBE 65 TASCHE ZUM DMS 650 NM Textile bag for large torque wrenches L.1030mm W.90mm H.50mm Features:for the safe storage and transport of large torque wrenches Technical features:Width mm (b): 90 mmInternal width: 80 mmfor model: 714/65; 730/65 Quick; 730II/65 Quick; 730N/65; 730NII/65; 730/65 Fix; 730II/65 Fix; 730D/65; 730DII/65 Height mm (h): 50 mmHeight mm (inside): 40 mmLength mm (L): 1030 mmInternal length: 1000 mmModel no.: TWBE 65 Weight: 670 gWeigth kg: 0.670 kgStahlwille TWBE 65 TASCHE ZUM DMS 650 NMStahlwille product no: 81231100EAN: 4018754280636
