FLUID FILM Liquid AR 1 liter FLUID FILM Liquid AR is a transparent, solvent-free physiologically harmless soft single-layer corrosion protection coating based on lanolin. 1 liter Viscosity: medium (e.g. like honey) Creep ability: + + + Protection time: approx. 15 years (in closed cavities)   Features Solvent-free and physiologically harmless during processing, greater safety in operation. Economical to use and uncomplicated to apply. A layer thickness of between 200 - 800 μm can be applied in one operation (by airless spraying). Can be sprayed with commercially available airless equipment (compressing over 22:1). Application is possible by brush, rollers or compressed air spraying (with pressure barrel). Simplified method of application when spraying by means of lances, which in the majority of cases makes the erection of a scaffold unnecessary. 1-component product with excellent adhesion even on damp surfaces and old coatings. Excellent penetration of thick rust layers - intensive surface preparation is not necessary (penetrated rust layers can be removed from the substrate). rust layers may fall off from the substrate after some time). If FLUID FILM Liquid AR has been used as a rust remover, regular repair work or renewal coatings can be carried out immediately with FLUID FILM products only after all loose dirt has been removed.     Mode of operation: FLUID FILM Liquid AR is a thixotropic product that reduces viscosity by stirring. viscosity by stirring and facilitates transfer or filling into other containers. into other containers. We recommend the use of mechanical stirring equipment. The processing temperature for FLUID FILM Liquid AR is between -15°C (263 K) and 40°C (313 K). In order to achieve the required pressure of 150 bar at the nozzle at low temperatures, we recommend preheating. we recommend preheating the material to approx. 25°C. During application, the film thickness must be continuously checked to avoid under- or overcoating. or overcoating must be checked continuously. When using the airless spraying method, areas which are difficult to access can be coated by means of lances. be coated by means of lances. The pneumatic spraying technique can only be used if the material is transported to the nozzle under pressure, i.e. when using of pressure vessels or combination units.     Application data:   Applied by: Amount of coats Average film thickness in μm Theoretical consumpton in l/m² Theoretical spreading rate in m²/l Nozzle Brush 1 50 0,05 20 - Roller 1 50 0,05 20 - Airspray 1 200 0,2 5 1,5 - 0,4 Airless 1 400-800 0,4 - 0,8 2,5 - 1,25 0,63 - 14

FLUID FILM Liquid A, 1 liter   One component oily liquid, solvent-free, lanolin based soft coating. 1 liter bottle Viscosity: low (eg. like olive oil) Creep ability: + + + + + Protection: min. 2 years (in closed cavities) Processing: with conventional compressed air systems without heating the material or in the flood method   General usage: This non oxidizing rust retarding compound formulated as a liquid is used to form protective films in ballast tanks on ships, drilling platforms, dry docks, barges, rudder interiors, chain lockers, and any metal surface subjected to severe salt water corrosion and to corrosive marine atmospheres. FLUID FILM Liquid A is easily applied by spray or floatation methods. It forms with water or air humidity a gel which adheres to metal surfaces and is not subject to discharge overboard during deballasting. FLUID FILM Liquid A is also used as a penetrant and lubricant. It may be used to help descale tanks with heavy scale.   Principal characteristics: contains highly polar lanolin and water displacing additives, which deposit the product below water films on the metal surfaces. This is essential for proper penetration and adhesion of the protective coating being applied; does not contain solvents, non toxic during application; requires minimum surface preparation; penetrates existing rust, displaces water, forms with water and/or air humidity a gel; adheres to and gives full protection to wet or dry surfaces; does not dry out, harden or crack; resists water washing yet can easily be removed when required; can be applied by air and airless spraying, brush, roller and floatation. FLUID FILM Liquid A meets and surpasses the requirements of the United States Military Specification MIL-C-16173.   Airless spraying equipment:   Applied by:   Amount of coats   Average film thickness in μm    Theoretical consumption in l/m²   Theoretical spreading rate in m²/l   Nozzle   Brush 1 80 0,08 12 - Roller 1 80 0,08 12 - Airspray 1 170 0,17 6 0,4 Airless 1 170 0,17 6 14 Floatation - 500 - 1500 0,5 - 1,5 2 - 0,7 - *) The film thickness is indicated for rusted steel.

BGS 9406 Plastic Plug Assortment, 58 pcs. Features:BGS 9406 Plastic Plug Assortment, 58 pcs.for closing the following bore sizes:10 plugs Ø 10.0 mm10 plugs Ø 13.4 mm10 plugs Ø 13.5 mm8 plugs Ø 19.4 mm10 plugs Ø 19.5 mm10 plugs Ø 22.2 mmin assortment box Technical features:Gross weight: 140 gPackaging suitable for wall hanging: YesEAN: 4026947094069

FLUID FILM AS-R 400 ml 3pcs set+probeSpray can   FLUID FILM AS-R as 400 ml spray can is a universal product for maintenance, preservation, rust dissolving and as a lubricant. 400 ml spray can 3pcs set+probe Viscosity: low (eg. like sirup) Creep ability: + + + + Protection: ca. 4 years (in closed cavities) Processing: Spray can with additional fine applicator   General usage: FLUID FILM AS-R is a physiologically harmless, solvent-free and thixotropic one-layer corrosion protection coating with slip and rust dissolving effect based on lanolin and forms a clear and glossy protective film. The 400 ml spray can contains FLUID FILM NAS with propane-butane as propellant.   400 ml spray can as a universal product for commercial and private use for maintenance, preservation, rust dissolving and as a lubricant.   FLUID FILM AS-R is very suitable for factories, workshops, garages and the do-it-yourselfer for use as a preservative, maintenance product, rust remover and lubricant.   On the car it provides protection for folds, door edges, cavities, engine compartment as well as for all other parts at risk of corrosion. Especially when shut down in winter, even a thin film of FLUID FILM AS-R protects even motorcycles, bicycles or boat parts from rust, also on chains, joints and metal surfaces, such as machines and tools, corrosion is stopped immediately or does not occur at all. By combining it as a corrosion inhibitor and lubricant, moving parts such as idler pulleys, chain transmissions or joints can be protected.   FLUID FILM AS-R can be used very effectively for the maintenance of sports, leisure and household equipment or in the restoration sector, where special attention is paid to the original patina.   Unlike conventional products, FLUID FILM AS-R is more environmentally friendly and economical to use due to its solvent-free composition.   The basic substance lanolin is not volatile like oil or kerosene and does not resinify. In contrast, the effect of solvents usually wears off after 12-15 seconds, and that of oil or kerosene ends after a few days, at which point these conventional agents completely lose their protective effect.   The insert from the 400 ml spray can allows an even application on large surfaces with the normal spray attachment.   For pinpoint use even in difficult-to-reach places, there is a 15 cm long spray tube on the can. For use in longer cavities, an approx. 60 cm long spray head extension with a 3-jet all-round nozzle can be supplied.   Application: Surface preparation: Surface may be dry or wet, loose dirt and rust to be removed. Surfaces may still be wet but without surface water. Application: Spray FLUID FILM evenly on cleaned, dry or wet surfaces. If needed, repeat application. Hard-to-reach areas to be coated by means of the sprayhead with spraytube. Coating can be removed easily with fuel and other degreasing agents. Storage: To be stored in a cool and dry place. Recommended storage temperature: 15-35°C Pressurized gas packaging can be stored for 2 years.   Principal characteristics: Behaves extremely resistant to all weather conditions, including snow and slush and the solvent salts used in winter service. Extremely effective and reliable at the same time as a rust remover and water-displacing corrosion inhibitor. Excellent salt water resistance. As corrosion protection of steel parts and other metal parts during transport and processing in the manufacturing plant. Fast creeping, yet well adhering, temperature stable, will not be washed off or altered by rain and sea water, nor will it evaporate and gum up, as is the case with most penetrating oils. Bitumen protection layers already on the car chassis floors are plasticized by FLUID FILM and thus activated.

FLUID FILM Gel BN 1 liter FLUID Film Gel BN is a solvent-free, soft coating material based on lanolin, environmentally friendly and physiologically harmless. 1 liter Low environmental impact Uncomplicated processing Application by trowel, brush or roller possible   Features Solvent-free, therefore considerably less environmental impact during processing, greater safety in operation. Economical to use and uncomplicated to process. In thickness of up to more than 1,000 μm can be applied in a single operation can be applied (by airless spraying). Can also be applied by trowel, brush or roller. Cost-effective method of spraying by means of lances, which in the majority of in the majority of cases it is not necessary to erect a scaffold. 1-component product with excellent adhesion, even on intact penetrates residual rust excellently; layer rust that is not removed will be fall off from the metallic substrate after some time! Renewal coatings can be applied after removal of all loose mud, standing water, can be immediately applied with FLUID FILM can be applied. Corrosion protection of steel parts and other metal parts during transport. Storage and processing in the manufacturing plant. Observance of the dew point during processing is not necessary, as long as no condensation can be detected. Highest resistance to aqueous media. Temperature stable from -45°C (248 K) to approx. 70°C (3 43 K), If the coating is damaged, FLUID FILM Gel B exhibits a limited limited self-healing effect.   Surface preparation: The surfaces must be dry, free from dirt and loose components such as rust and old coatings. For damp-wet surfaces, an adhesive layer of FLUID FILM Gel B can be rubbed in using a hard brush. Remove dirt and loose components by high pressure washing, sticking or brushing. Laminates layer rust from the metallic substrate. On surfaces where the water flow exceeds 3 m/sec (e.g. under the inlet and outlet funnels), a curing coating suitable for ballast water tanks should be applied. On surfaces exposed to high water turbulence, e.g. tank tops in DB tanks, the FLUID FILM coating can be strengthened by applying an additional layer of PERMA FILM. In this case, FLUID FILM should have a layer thickness of approx. 200 μm and PERMA FILM a layer thickness of 200 μm (wet).   Application data:   Applied by Amount of coats Average film thickness in μm Theoretical consumption in l/m² Theoretical spreading rate in m²/l Nozzle Brush 1 80 0,08 12 0 - 1 Roller 1 80 0,08 12 0 - 1 Pneumatical spraying 1 600 - 1000 0,6 / 1,0 1,6 / 1,0 0,8 - 1 Airless spraying 1 600 - 1000 0,6 / 1,0 1,6 / 1.0 0,88 - 1

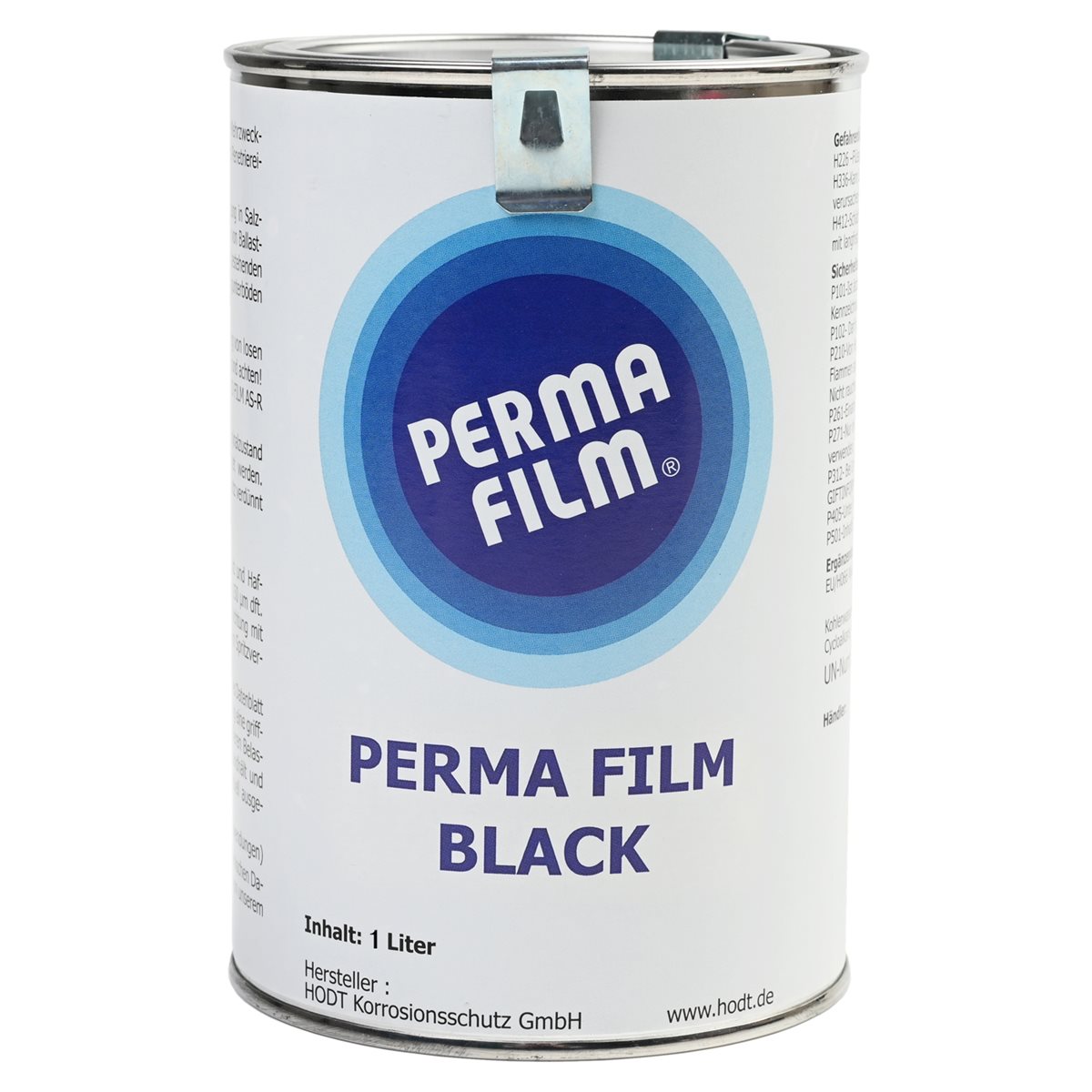

PERMA FILM BLACK 1 liter Perma Film from Hodt Fluid Film is an anticorrosive coating for all bare, rusted or with old coatings and also non-ferrous metals after appropriate pretreatment. 1 liter black Rust protection and paint Perfect in combination with Fluid FIlm Easy application   Features Rust protection and painting in one; can be applied directly in the system with FLUID FILM Liquid A/ NAS or AS-R (spray) on rust. Thanks to its extraordinary penetration properties, FLUID FILM enables penetration properties, FLUID FILM allows a thorough wetting and encapsulation of rust and/or existing coatings; Long-term rust protection; good wettability of deep-pored substrates and also joints and seams (seam sealing) in the system with FLUID FILM as primer; high layer thicknesses are easy to apply by spraying hardly any overspray; low material loss   Application: Surface preparation: Bare ferrous metals: Sand very smooth surfaces. Remove grinding dust. Clean surface carefully with solvent. Rusted ferrous metals: Remove loose particles with wire brush or clean by high pressure washing. Allow to dry after washing. Zinc or galvanized surfaces: As weathering progresses, zinc or galvanized surfaces become dull and rough, and zinc salts form on the surface (white coating). This coating must be removed before coating, otherwise no adhesion is possible. For this purpose, an "ammoniacal wetting agent wash" is used. This consists of water and ammonia solution (10:1) with a few drops of washing-up liquid. With this solution and abrasive fleece, the surface is carefully worked until a grayish foam is formed. Leave to act for 10 minutes, then rinse thoroughly with water and allow to dry. Application: A dry film thickness of at least 150 μm is a prerequisite for safe layer thickness of at least 150 μm. (Wet film thickness 250 μm). This film thickness is achieved after 2 - 3 applications when applying by brush or roller, and after 2 - 3 applications, by spraying after 1 application. PERMA FILM is very thixotropic and can therefore be applied without sagging in the up to a wet film thickness of 250 μm in one application without applied in one working step. For higher film thicknesses, several coats are necessary, For higher film thicknesses, several coats are necessary. air must be ensured.   Substrates: Bare, rusted or with old coatings provided ferrous metals. Non-ferrous metals after previous treatment Wooden subfloor areas The use of the primer FLUID FILM Liquid A/NAS or AS-R fulfills the following tasks: Penetration to the underside through dense rust or existing Wax or bitumen based coatings; Blocking loose edges, cracks and folds; The application of FLUID FILM also eliminates possible stresses due to excessive shrinkage and hardening of the PERMA FILM and hardening of the PERMA FILM coating and prevents the layers from that the layers peel off from the rusty substrate; Any residual moisture is displaced by the penetration of FLUID FILM is displaced. A low layer thickness reduces the risk that an excessive of the primer will not penetrate into the subsequent PERMA FILM coat, thus and thus prolongs or even prevents curing.
