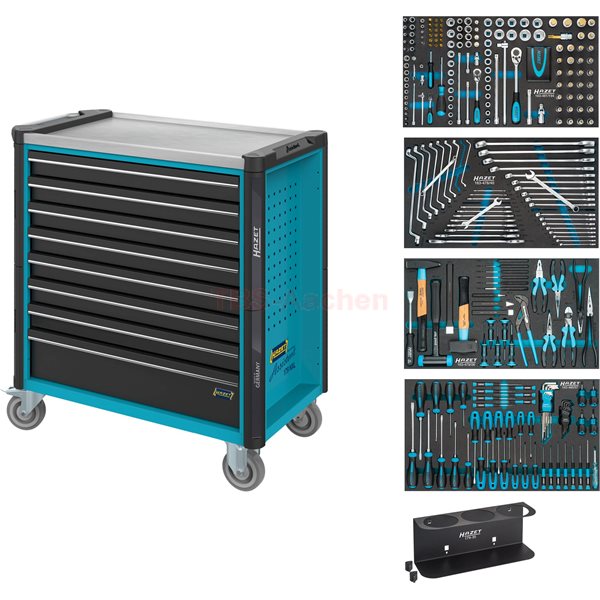

Hazet 179NXL-8/317 Tool trolley Assistent, 317-pieces

Features:

Application:

For efficient, mobile tool organisation

• Tool trolley
• 7 flat drawers and 1 high drawer
• Complete with 317-piece tool assortment in Safety-Insert-System soft foam insert

Worktops

• Much bigger storage and work area in stainless steel or plastic, depending on trolley variant up to 30%
• Fully sealed work surface protects inside of trolley from leaking liquids
• Interfaces integrated in the worktop for accessories such as laptop holder and top module
• With stainless steel work surface
• Extra protection through high-quality plastic end caps

Body / Pull-handle

• Extremely robust design thanks to dual-wall structure
• Complete welded construction of the entire body for tough daily workshop use
• Optimised, yielding edge protection on all four corners with real impact protection thanks to internal damping concept
• Ergonomically optimised pull handle for better manoeuvrability
• Brushed stainless steel handle

Locking concept

• Ergonomically arranged side lock position for better operability protects keys and lock against damage
• Highly secure closing system with central locking technology for optimum protection of your property
• Two-stage locking concept
  • Central locking, lockable with cylinder lock with 2 folding keys
  • Mutual drawer locking for minimum tilting risk

Drawer concept

• Self-closing and reciprocal locking of the drawers prevents unwanted opening
• 100% sliding-out with ball-bearing telescopic rails
• Drawer design for optimum use of the interior
• Drawer fronts for optimised handling
• Dirt-resistant drawer coating for easy cleaning


High performance chassis

• Large wheels with high loading capacity (∅ 125 mm) with precision ball-bearing and dual ball race in the swivel bearing, easy manoeuvrability even under high dynamic load
• 2 swivel castors with double stop function: fixed castor prevents inadvertent rolling of the trolley, fixed swivel bearing prevents the castors from swivelling, e.g. on inclined surfaces
• Protective ring prevents dirt and threads from getting in
• Elastic tyres enable smooth movement
• Tool trolley Made in Germany

Scope of delivery:

• 179NXL-8 Tool trolley Assistent· Drawers shallow: 7 x 77 x 696 x 398 mm · Drawers tall: 1 x 162 x 696 x 398 mm
• 163-478/40 Wrench set · Outside 12-point traction profile, Outside hexagon profile · Number of tools: 40
• 163-479/26 Universal set · Number of tools: 26
•  163-480/57 Screwdriver set · Slot profile, Cross recess profile PH, Inside hexagon profile, Inside TORX® profile · Number of tools: 57
• 163-481/194 Socket set · Square, hollow 6.3 mm (1/4 inch), Square, hollow 12.5 mm (1/2 inch), Hexagon, solid 6.3 (1/4 inches) · Outside hexagon Traction profile, Inside hexagon profile, Slot profile, Cross recess profile PH, Pozidriv profile PZ, Inside TORX® profile · Number of tools: 194
• 179-35 Can holder

Technical features:

• Number of tools: 317
• Drawers, high: 1× 166 x 696 x 398 mm
• HP ratchet included: With HiPer reversible ratchet
• Drawers, flat: 7× 81 x 696 x 398 mm
• Length x width x height: 959 x 518 x 1020 mm
• Drawers total: 8
• Loading capacity of high drawer: 40 kg
• (Drawer) size for plastic drawer insert: 4/3+
• Drawer dimensions: 696 x 398
• Drawer comfort feature: Self-closing
• Drawer sliding-out %: 100%
• Drawer guide: With ball-bearing telescopic slides
• Drawer locking: Mutual drawer locking for a minimum tilting risk
• Drawer lock: With 2 folding keys
• Worktop: Stainless steel
• Tool trolley impact protection: Rubber edge protection protects all four corners of the vehicle
• Loading capacity (static): 1000 kg
• Total loading capacity (dynamic): 750 kg
• Number of swivel castors: 2
• Diameter of swivel castors: 125 mm
• Number of fixed castors: 2
• Diameter of fixed castors: 125 mm
• Number of castors with brake: 2
• Colour: HAZET blue
