Proxxon 24350 MICRO Miller FF 500/BL

€2,090.00*

Content: 1 pcs

Prices incl. VAT plus shipping costs

Delivery time 7 working days

Stk

Product number: 1892870

Manufacturer no.: 24350

EAN: 4006274243507

Weight (kg): 52.4

Product information "Proxxon 24350 MICRO Miller FF 500/BL "

Proxxon 24350 MICRO Miller FF 500/BL

Features:

Quiet and vibration-free with high precision (accuracy 0.05mm)
Made in Europe
Variable speed pre-selection from 200 - 4,000rpm
Clearly legible 4-digit speed display for optimum machining
The sophisticated control via rotor position and speed sensors guarantees high torque for use of large milling cutters in the lower speed range
Solid column with dovetail guides. Milling head can be rotated to the left and right by 90° (with degree graduation)
The clampable spindle sleeve is prepared for mounting of the fine feed adapter NO 24 254li>
Tool holder using multiple range collets type ER 20 (EIN 6499-B): One each of 6 - 8 - 10 and 12mm are included
Height adjustment of milling head via hand wheel
Solid plane-milled steel compound table with 3 continuous MICROMOT standard T-slots (12 x 6 x 5mm)
All 3 hand wheels with graduated scale ring (1 rev. = 2mm)
Note: Clamping jaws, miller and work pieces are not included in the scope of delivery

Technical features:

Power supply: 220 - 240 V / 50/60 Hz
Spindle speeds 200 - 4,000rpm
Throat: 125mm
Sleeve stroke: 30mm
Column: 120 x 100 x 430mm
Table: 400 x 125mm
Traverse range: vertical (Z-axis) 220mm, transverse (X-axis) 310mm, depth (Y-axis) 100mm
Dimensions: H = 750mm, W = 550mm, D = 550mm
Weight approx. 47kg

Toolaro.gprs.title

Toolaro.gprs.docs_and_sheets

Safety Instructions

Toolaro.gprs.productsafety

Toolaro.gprs.manufacturer

PROXXON S.A.
Härebierg 6-10
6868 Wecker
Luxembourg
i@proxxon.com

Zubehör

Proxxon 24610 Milling cutter set 4pcs (2 - 5 mm)

PROXXONcolor> 24610 Milling cutter set (2 - 5 mm)

€32.95*

Prices incl. VAT plus shipping costs

Proxxon 24620 Milling cutter set 4pcs (6 - 10 mm)

PROXXON 24620 Milling cutter set, 4-pcs., DIN 844, HSS (6 - 7 - 8 - 10 mm)

€35.95*

Prices incl. VAT plus shipping costs

Proxxon 24630 Three piece centre drill set

PROXXONcolor> 24630 Three piece centre drill set, DIN 333, HSS (2,0 - 2,5 - 3,15 m) Features: Made of HSS steel DIN 333 (type A), 60° Complete set centre drills with sizes of 2.0 - 2.5 and 3.15mm

€9.80*

Prices incl. VAT plus shipping costs

Proxxon 24434 Edge finder set

PROXXONcolor> 24434 Edge finder set Features: Used for fast and accurate location of starting point of work pieces with respect to the machine spindle on milling machines Size 6 x 6 x 50mm and 6 x 5 x 75mm Neatly packed in a wooden box

€23.95*

Prices incl. VAT plus shipping costs

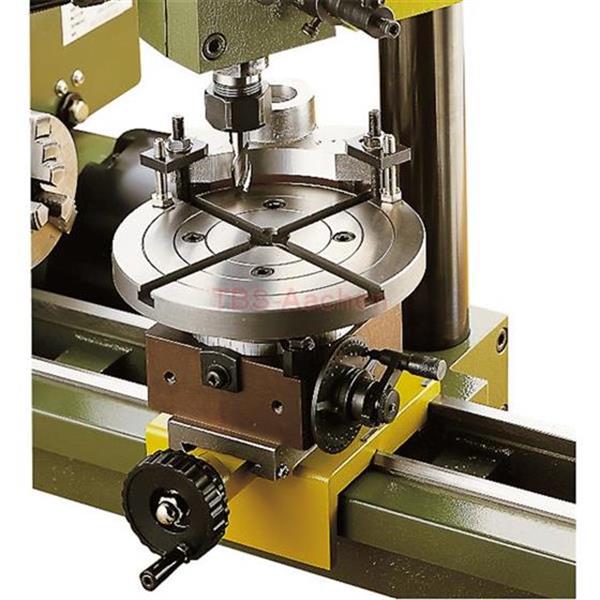

Proxxon 24421 Universal dividing table UT 400

PROXXONcolor> 24421 Universal dividing table UT 400 For accurate machining of circular work pieces Features: The table may be fixed horizontally or vertically Worm drive for division through 360° allowing for almost all possible divisions below 100 Supplied with 4 index plates: 27/42, 33/40, 34/39 and 36/38 Used to manufacture sprockets, gearboxes and drives, ratchets, cams, etc. (the faceplate is not included) The taper is identical to the main spindle of the lathe With matching nuts and screws for fixation in MICROMOT standard T-slots (12 x 6 x 5mm) Supplied in a wooden box with sliding lid

€354.95*

Prices incl. VAT plus shipping costs

Proxxon 24266 14-piece parallel supports set

PROXXONcolor> 24266 14-piece parallel supports set Features: Ground in pairs For adjusting work on drilling machines, lathes and milling machines Made of high-alloy, hardened steel (58 - 62 HRC) Parallel accuracy 0.02 mm 2 each of 8 x 10, 15, 20, 25, 30, 35 and 40mm Length 100mm Packed in a wooden box

€91.95*

Prices incl. VAT plus shipping costs

Proxxon 24350 MICRO Miller FF 500/BL

Proxxon 24350 MICRO Miller FF 500/BL Features: Quiet and vibration-free with high precision (accuracy 0.05mm) Made in Europe Variable speed pre-selection from 200 - 4,000rpm Clearly legible 4-digit speed display for optimum machining The sophisticated control via rotor position and speed sensors guarantees high torque for use of large milling cutters in the lower speed range Solid column with dovetail guides. Milling head can be rotated to the left and right by 90° (with degree graduation) The clampable spindle sleeve is prepared for mounting of the fine feed adapter NO 24 254li> Tool holder using multiple range collets type ER 20 (EIN 6499-B): One each of 6 - 8 - 10 and 12mm are included Height adjustment of milling head via hand wheel Solid plane-milled steel compound table with 3 continuous MICROMOT standard T-slots (12 x 6 x 5mm) All 3 hand wheels with graduated scale ring (1 rev. = 2mm) Note: Clamping jaws, miller and work pieces are not included in the scope of delivery Technical features: Power supply: 220 - 240 V / 50/60 Hz Spindle speeds 200 - 4,000rpm Throat: 125mm Sleeve stroke: 30mm Column: 120 x 100 x 430mm Table: 400 x 125mm Traverse range: vertical (Z-axis) 220mm, transverse (X-axis) 310mm, depth (Y-axis) 100mm Dimensions: H = 750mm, W = 550mm, D = 550mm Weight approx. 47kg

€2,090.00*

Prices incl. VAT plus shipping costs

Proxxon 24257 Milled steel step clamps

PROXXON 24257 Milled steel step clamps , 2 pieces Features: For MICROMOT standard T-slots (12 x 6 x 5mm) Two each step blocks and clamps with matching nuts and fixation screws For work pieces up to a thickness of approx. 35mm Neatly packed in wooden box with sliding lid

€31.95*

Prices incl. VAT plus shipping costs

Proxxon 24046 Universal dividing attachment UT 250

Proxxon 24046 Universal dividing attachment UT 250 For fixation on compound table KT 150 and milling machines FF 230 and FF 500/BL. Worm drive for divisions through 360°. Feed adjustment by handwheel with graduated, zero-adjustable dial (1 revolution = 10°). Unit may be fixed horizontally or vertically. For compound tables with distances between T-slots of 45 - 60mm. The flange of the dividing attachment is the same size as that of the main spindle of the PD 250/E lathe, thus 3 jaw chuck (NO 24 034) and 4 jaw chuck (NO 24 036) may be mounted. Incl. faceplate Ø100mm and step clamp set of steel: Two each step blocks and clamps. With matching slot nuts, threaded rods and nuts. Packed in a wooden box. For accurate machining of circular work pieces. Used to manufacture sprockets, gears, ratchets, cams, etc. Note: The work piece pictured here is not including in the delivery.

€179.95*

Prices incl. VAT plus shipping costs

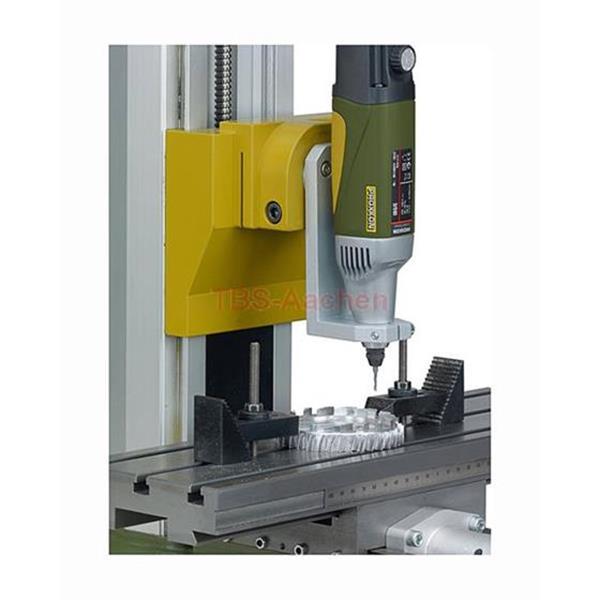

Proxxon 24346 MICROMOT adapter

PROXXONcolor=green> 24346 MICROMOT adapter, for use with the MICRO Miller FF 500/CNC Features: For the use of high-speed MICROMOT rotary tools in combination with the MICRO Miller FF 500 And especially for use with the MICRO Miller FF 500/CNC The standard milling head is exchanged for the adapter in just a few steps Our 20mm collar enables to fasten all appliances of the MICROMOT 50 series, the MICROMOT precision drill/grinder FBS 240/E and the MICROMOT professional drill/grinder IBS/E Especially for applications that require high speeds for small milling cutters (e.g. milling electronic boards), but also for micro drilling Complete with fastening screws

€33.95*

Prices incl. VAT plus shipping costs

Proxxon 24256 Step clamps made of steel

PROXXON 24256 Step clamps made of steel Features: The step clamps set is supplied with the KT 70, but can also be ordered separately Set consists of 2 stepped blocks and clamps, T-slot nuts of the MICROMOT standard (11.5 x 11 x 4mm), bolts This set also fits the mill/lathe systems PD 230/E and PD 400 Comes in wooden case

€18.95*

Prices incl. VAT plus shipping costs

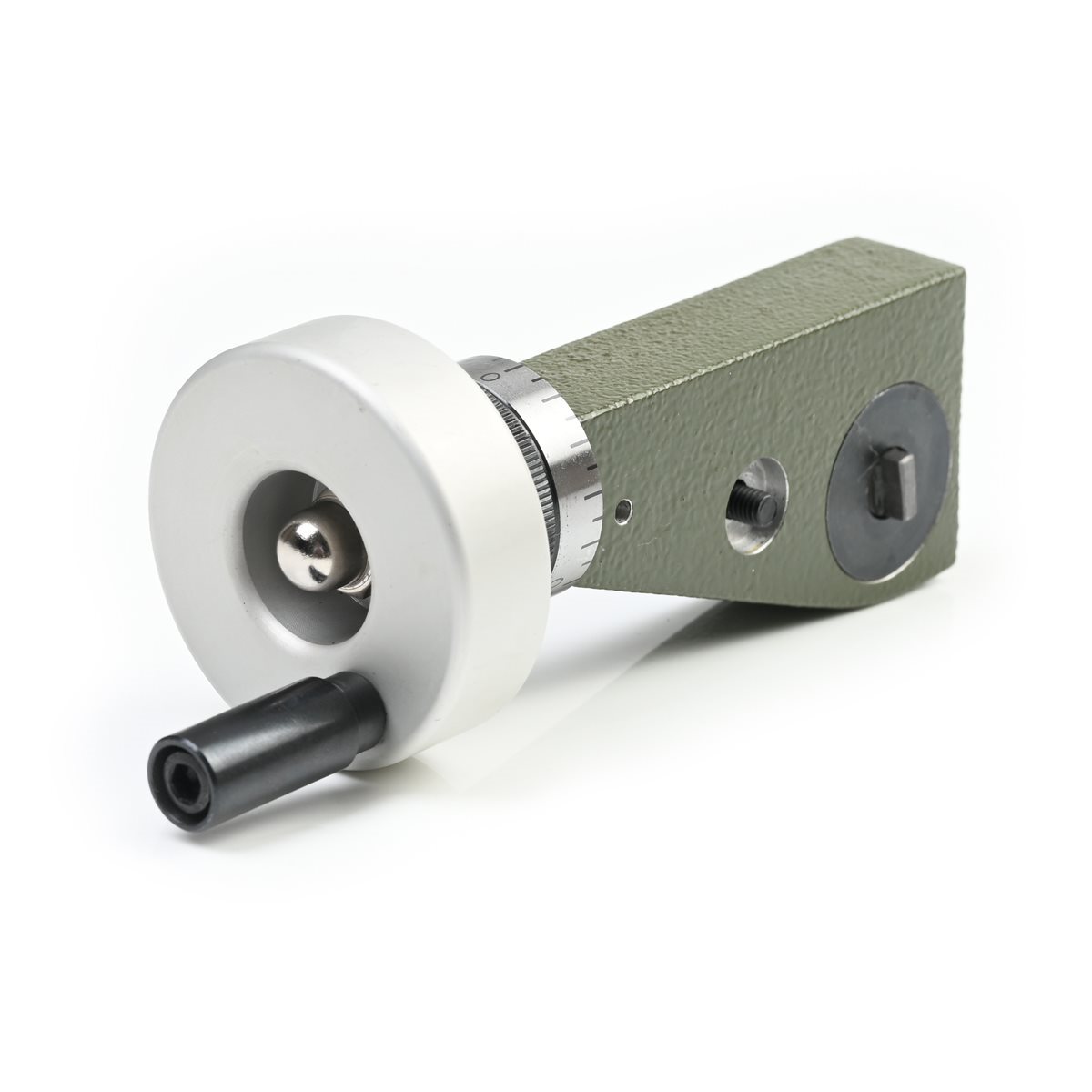

Proxxon 24254 Fine feed for accurate adjustments

PROXXONcolor> 24254 Fine feed for accurate adjustments for the PF 400 Features: Quick and easy to install The clutch system enables feed via either the drill handle or the handwheel The handwheel has 0.025 graduations and may be set to zero 1 division = 0.05mm

€127.95*

Prices incl. VAT plus shipping costs

Proxxon 24255 Precision vice PM 60 (60 mm)

PROXXONcolor> 24255 Precision vice PM 60 (60 mm) Features: May be used on its side and back Jaw width of 60mm, clamping capacity 42mm Total length 100mm Complete with securing bolts and packed in a wooden box with sliding lid

€62.95*

Prices incl. VAT plus shipping costs

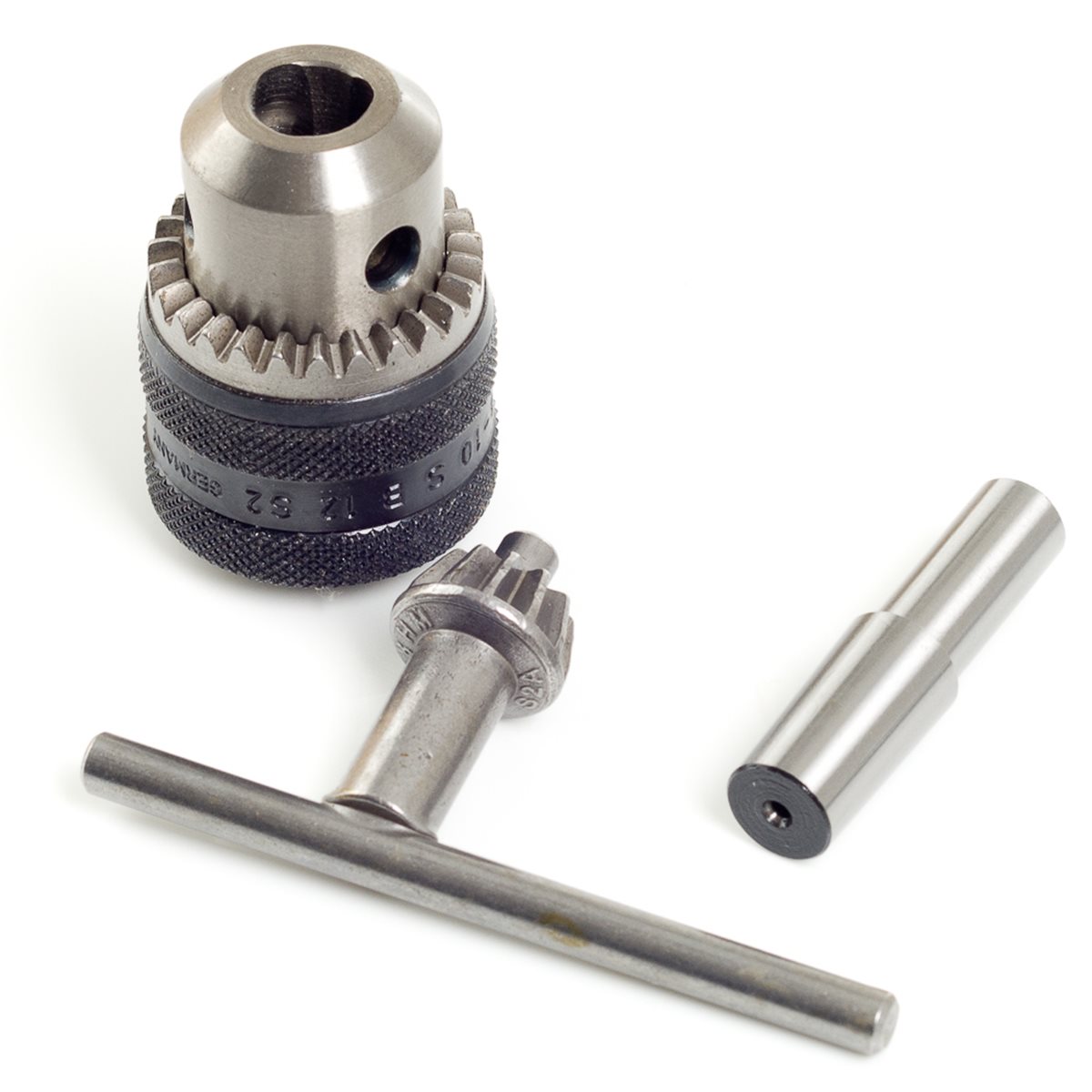

Proxxon 24110 Gear tooth chuck (10mm) with adapter

PROXXONcolor> 24110 Gear tooth chuck (10mm) with adapter Features: Industrial quality, however not as accurate as the collets With 10mm adapter which fits into the 10mm collet Includes the chuck key

€17.95*

Prices incl. VAT plus shipping costs

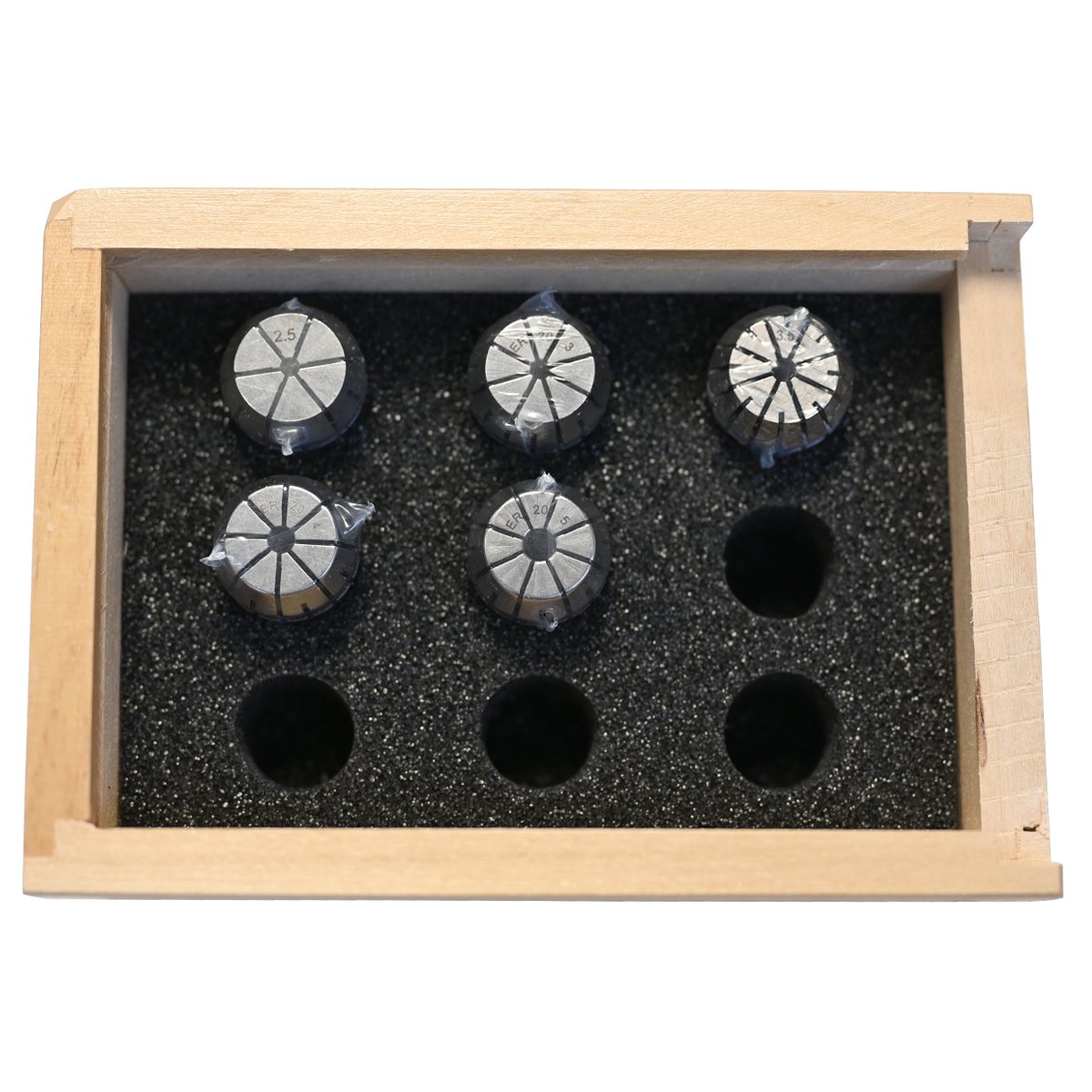

Proxxon 24253 Multiple range standard type ER 20

Proxxon 24253 Multiple range standard type ER 20 collets for PF400/FF500 5pcs. 2,5-5,0 mm Features: For the miller FF 500/BL. But also for older versions of the Mill/drill head PF 400 (from production no. 401-10910) and of the miller FF 500 (from production no. 5648). High concentricity and repeat accuracy. May be reduced to 0.5mm below their nominal diameter (intermediate sizes not required). D = 21mm, L = 31.5mm. One each of 2.5 - 3 - 3.5 - 4 and 5 mm are included. Supplied in a wooden box with sliding lid.

€54.95*

Prices incl. VAT plus shipping costs

Proxxon 24262 Precision V-blocks, 2 pieces

PROXXONcolor> 24262 Precision V-blocks, 2 pieces Features: Used to clamp various work pieces Made from hardened steel, precision ground in pairs Four different depths of prism incisions V, all at 90° Size 50 x 30 x 30mm The solid clamp and knurled knob ensure superb securing of the workpiece Supplied in a wooden box with sliding lid

€36.95*

Prices incl. VAT plus shipping costs

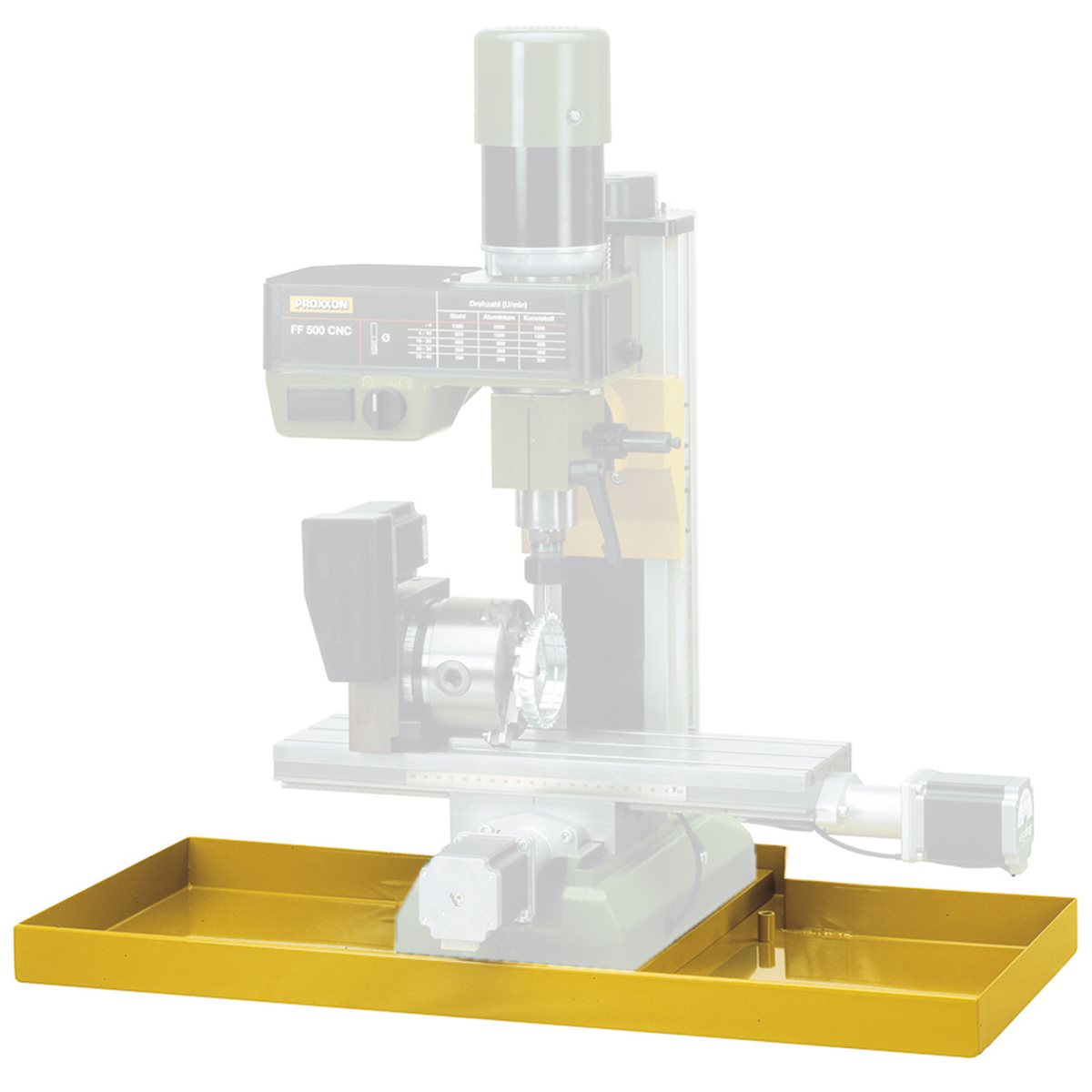

Proxxon 24322 Splash guard for PROXXON machines
