Proxxon 24500 Precision lathe PD 400/CNC

PROXXONcolor> 24550 Cutting tools of high quality cobalt HSS steel, (10 x 10 x 80 mm), five piece set Features: Ground One each roughing out, parting, finishing cut, left and right cutter Supplied in wooden box with sliding lid 10 x 10 x 80mm (for PD 400)

PROXXONcolor> 24556 Cutter set with tungsten inserts for PD 400 (10 x 10 x 90 mm) Features: Three holders (90mm long): 1: for roughing out 2: for longitudinal work 3: for 90mm boring bar, holes from 12mm Standard tungsten inserts, 55°, plated (commercially available version) Three additional inserts securing screw and key TX 8 are included

PROXXONcolor> 24415 Tool post for the PD 400 Features: Including two holders Provides quick tool changes with easy height adjustment

PROXXONcolor> 24082 Die holder for round dies, threads M 3 to M 10 Features: Sizes: M 3 - 4 - 5 - 6 - 8 - 10 The straight shaft fits the holder Ø 10mm when mounted in the tailstock of the PD 230/E or PD 400 The holder is held by hand while cutting the threads Comes in a wooden box

Proxxon 24500 Precision lathe PD 400/CNC   Z-axis and X-axis with recirculating ball spindles and two powerful step motors. Control unit for connecting to PC or laptop with activation of the main spindle and the step motors. Including user-friendly and WINDOWS compatible software CNC control of Z-axis and X-axis enables precise turning, facing and longitudinal turning of steel and non-ferrous metal. Axes drive with powerful step motors and recirculating ball spindles (no backlash). For facing and longitudinal turning, for turning balls, radii and any freely formed contours made of steel and non-ferrous metal. Work piece machining is effected automatically by software and can be reproduced as often as required. Otherwise the mechanical design is almost identical to the proven PROXXON lathe PD 400: Solid, cross-braced cast iron bed with ground and wide legged prism guide for apron and tailstock ensure vibration-free working and optimum precision. High quality precision 3-jaw lathe chuck (Ø 100mm). 6 spindle speeds (80 - 2,800/min) are provided via belt drive. Including rotating centre MK 2 and tailstock chuck. With quick-change tool post with 2 holders (with stop and height adjustability). Complete with recirculating ball spindles, powerful step motors and the required limit switches, the CNC control unit, all necessary connecting cables and WINDOWS® compatible software on CD-ROM. Power supply: 220 - 240V / 50/60Hz Drive: Condenser motor with 550W Spindle drive X-axis: - Recirculating ball spindle with 2.0mm inclination, flank diameter 8mm. - Step motor with 1.8A and 50Ncm dwell moment; - travel distance: approx. 70mm Spindle drive Z-axis: - Recirculating ball spindle with 4.0mm inclination, flank diameter 12mm. - Step motor with 1.8A und 50Ncm dwell moment; - travel distance: approx. 300mm 6 spindle revolutions: 80 - 160 - 330 - 660 - 1,400 - 2,800/min Selectable with switch (two-stage) and by placing drive belt. Control of step motors - via CNC control unit (included in scope of delivery) - Software on CD-ROM, installation under Windows 98, Windows 2000, Windows XP, Windows Vista and Windows 7 Drive connection: - via RS 232 interface (or: use of a USB adapter), connecting cables to PC included in scope of delivery Sizes      - Machine:  L 900 x W 400 x H 300mm - Control unit:  L 450 x W 270 x H 60mm Total weight: Machine: approx. 45kg / Control unit: approx. 4kg

Proxxon 24407 Three-jaw lathe chuck for PD 400 Features: centrically clamping Clamping range through reversible jaws 3-100 mm corresponds to the lathe chuck supplied with the PD 400

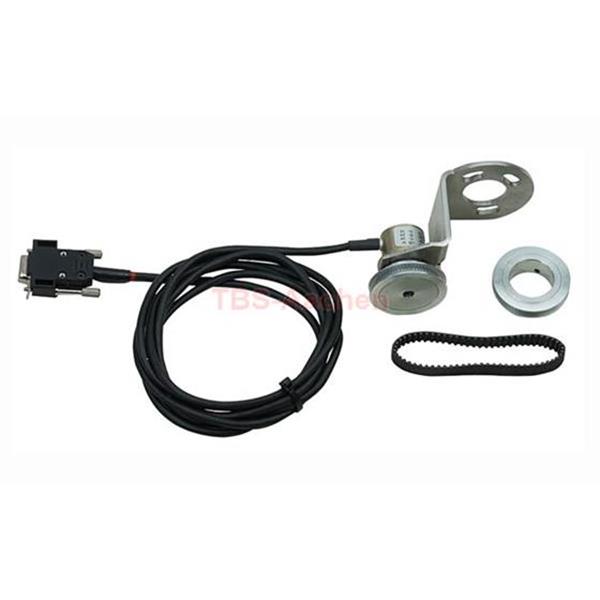

PROXXON color> 24506 Threading attachment PD 400/CNC Features: Complete mounting kit with rotary encoder for the main spindle, pulleys, timing belts and all necessary accessories The software of the PD 400/CNC is already programmed: Available now standard external thread M 1 to M 42 There can also be made special thread of any kind (eg customs thread) with different slopes and thread depths Incl. detailed installation instructions

PROXXONcolor> 24552Three piece thread cutting set, (10 x 10 x 80mm) Features: One cutter for external thread (ground to 60°, metric) one for internal thread, one general cutting Supplied in wooden box with sliding lid 10 x 10 x 80mm (for PD 400)

PROXXONcolor> 24630 Three piece centre drill set, DIN 333, HSS (2,0 - 2,5 - 3,15 m) Features: Made of HSS steel DIN 333 (type A), 60° Complete set centre drills with sizes of 2.0 - 2.5 and 3.15mm

PROXXONcolor> 24419 Collet attachment including collets for the PD 400 Features: For accurate use on round components One hardened collet each hardened collet 2.0 - 3.0 - 4.0 - 5.0 - 6.0 - 8.0 - 10 - 12 and 14mm are included Concentric accuracy better than 0.002mm, much better than a chuck One soft collet for making a custom size yourself The included collet attachment is mounted in the place of the headstock chuck Supplied in a wooden box

PROXXONcolor> 24520 HSS boring tool set, 6 pieces Features: One each cutter for 60 degree (metric) and 55 degree (Whitworth) inside threads, 1.3mm - 2.65mm and 4mm Shaft of Ø 6mm Length 95mm The cutters are held by a tool holder that mounts to the tool post of either the PD 230/E or PD 400 Comes in a wooden box
