Proxxon 27020 MICRO woodturning lathe DB 250

€139.95*

Content: 1 pcs

Prices incl. VAT plus shipping costs

Available, delivery time: 2 working days

Available₁: 3 unit(s)

Stk

Product number: 1843156

Manufacturer no.: 27020

EAN: 4006274270206

Weight in kg: 2.66

Product information "Proxxon 27020 MICRO woodturning lathe DB 250 "

PROXXONcolor> 27020 MICRO woodturning lathe DB 250

Turning in miniature is a pleasing hobby:

One can make glasses, cups, saucers, vases and columns for a doll house
In model trains, one can make lighting masts, windows, tanks
Limbs for mario nettes and hundreds of classical miniature turning tasks may be carried out with ease
The electronic speed control assists in the lower range in a ‘semi-automated’ painting process

Technical data:

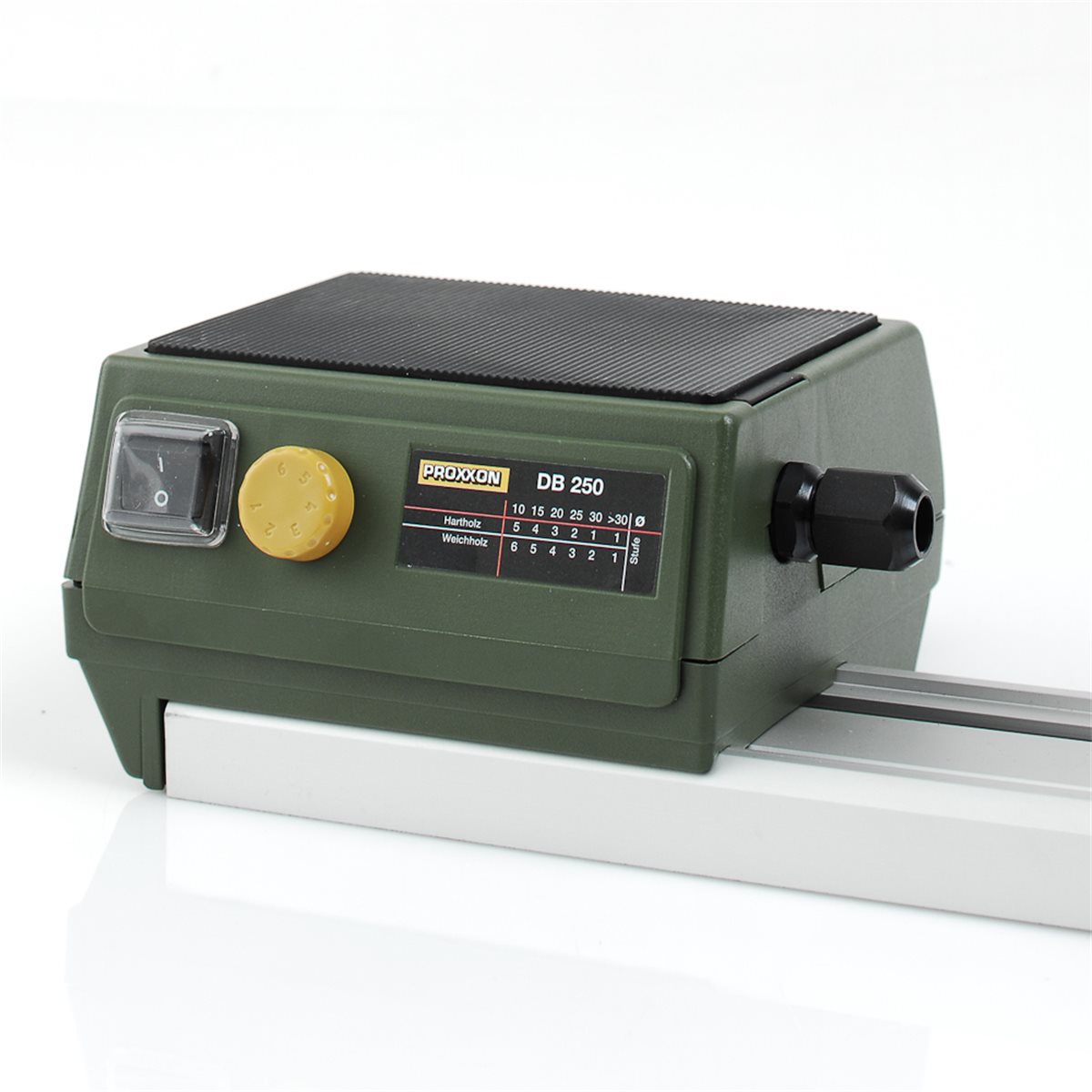

Motor 220 - 240V. 100W. 50/60Hz
Centre distance of 250mm, 40mm swing

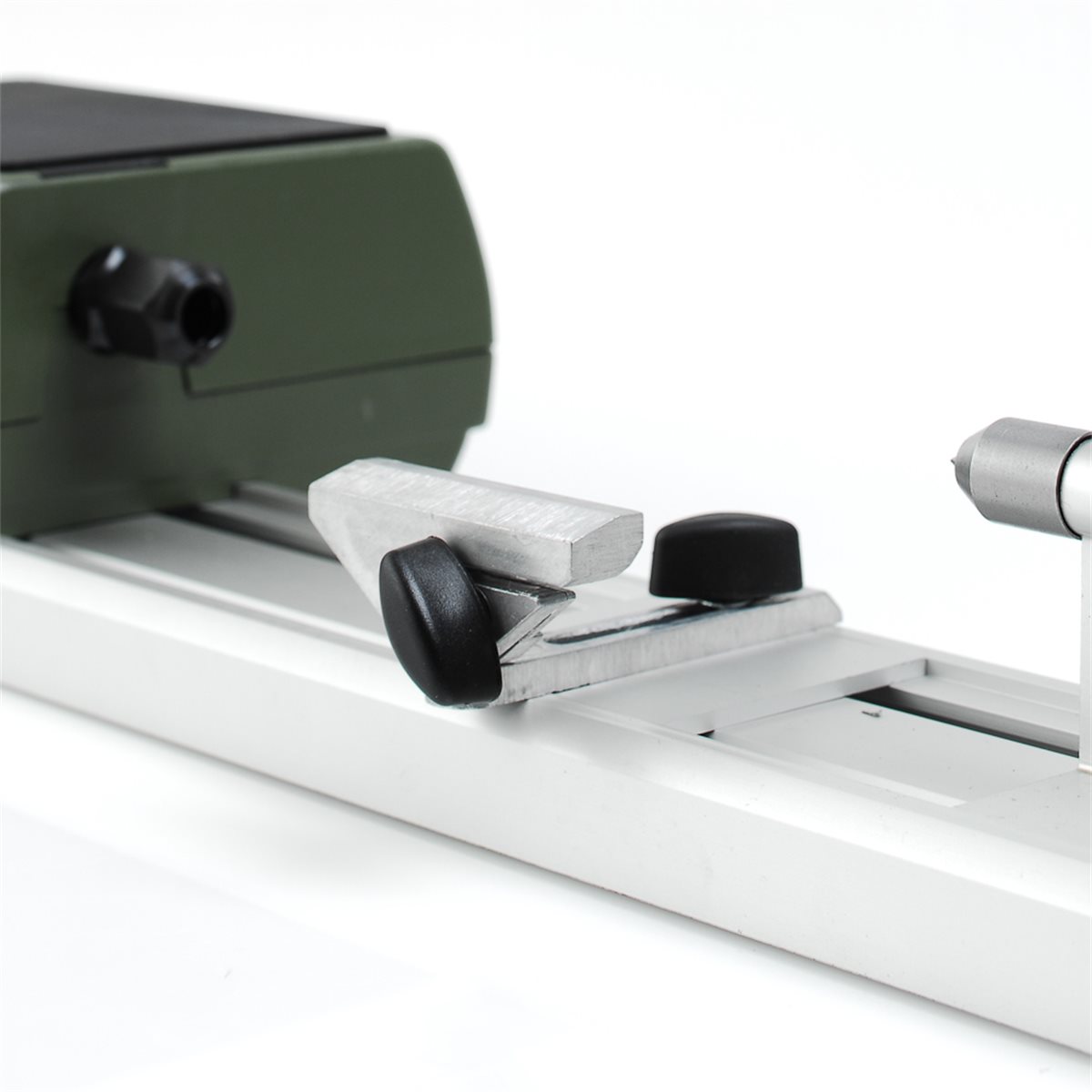

25mm swing over support
Variable speed control covering between 1,000 and 5,000rpm

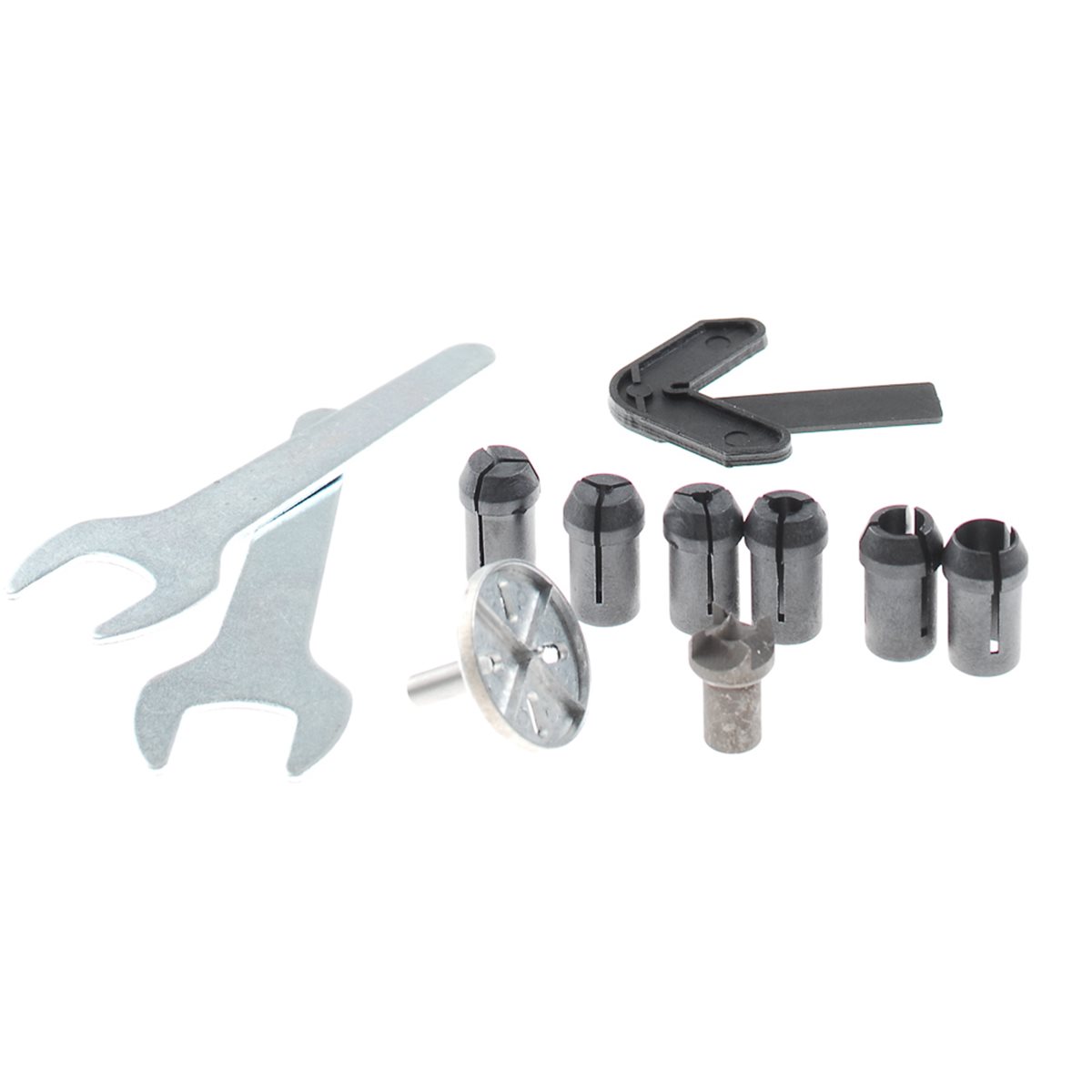

Headstock spindle bore of 10mm. Tailstock travel 20mm. Includes 6 collets (2 - 3 - 4 - 6 - 8 - 10mm)
drive centre

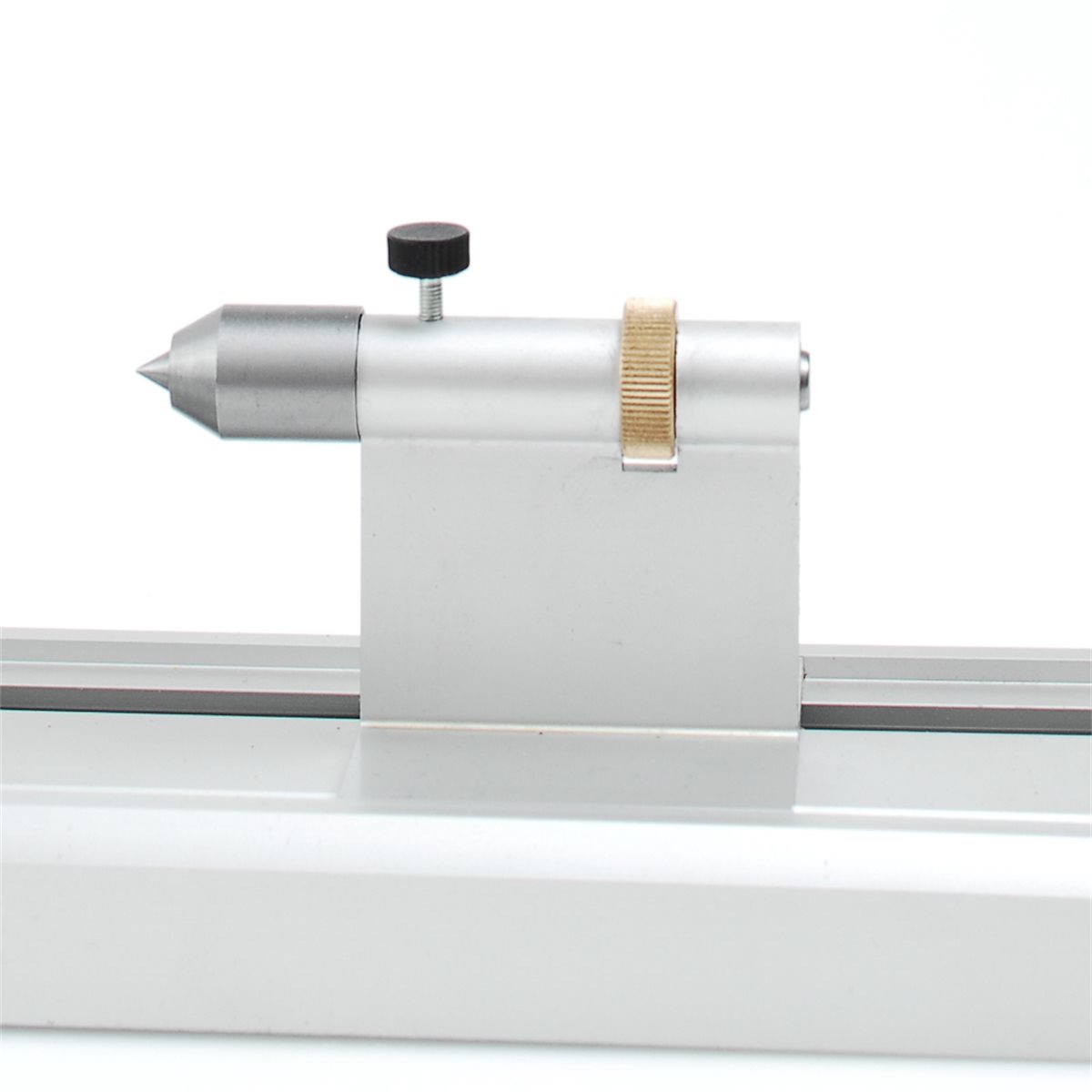

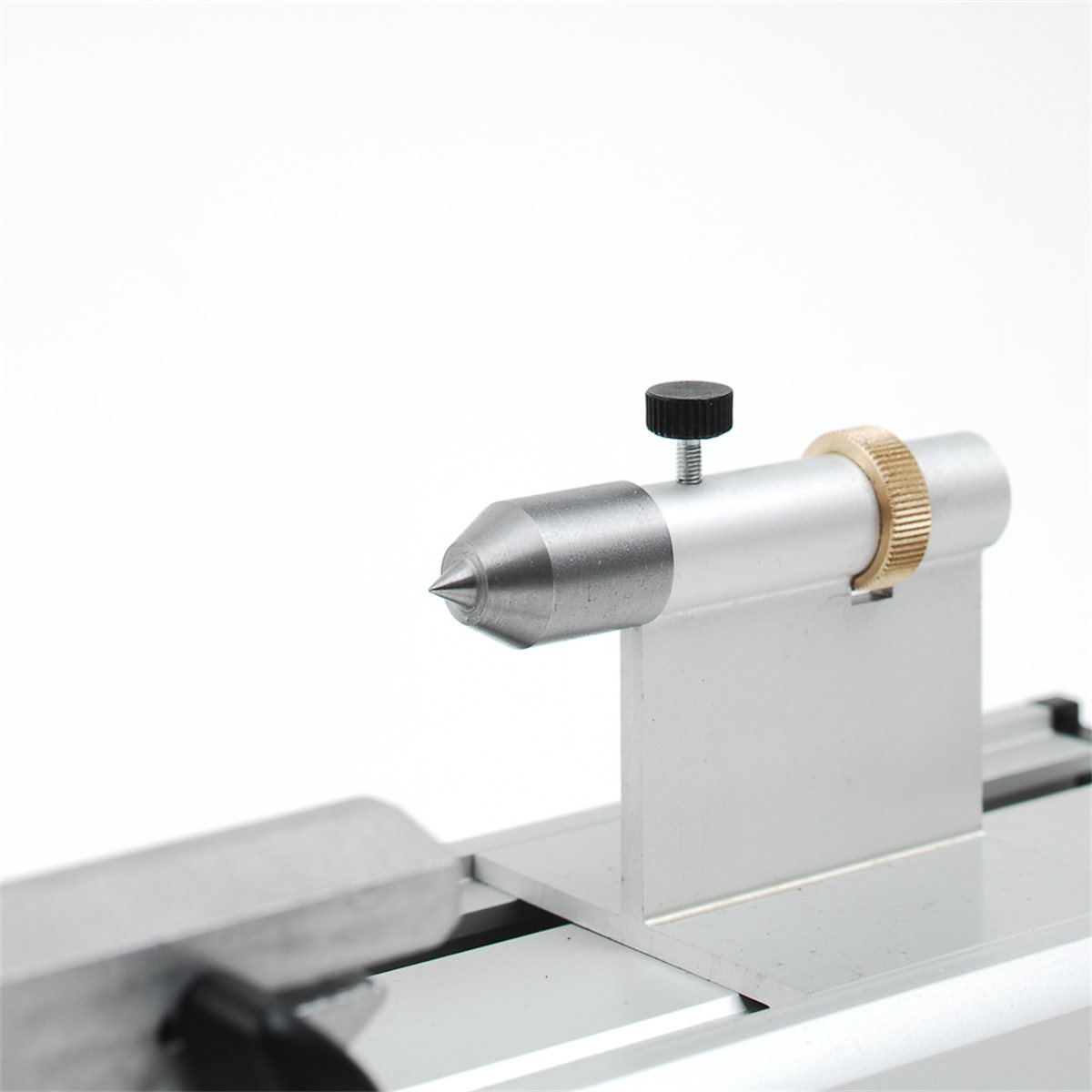

live centre and face plate.

Micromot devices:	Turner

Product Safety and Downloads

Documents and datasheets

Safety Instructions

Product safety information

Manufacturer

PROXXON S.A.
Härebierg 6-10
6868 Wecker
Luxembourg
i@proxxon.com

Zubehör

Proxxon 27023 Five piece HSS chisel set

PROXXONcolor> 27023 Five piece HSS chisel set A high quality set with the most frequently used turning tools: gouge skew parting tool beading tool scraper Neatly packed in a wooden box

€40.95*

Prices incl. VAT plus shipping costs

Proxxon 27028 Drill chuck for the DB 250

PROXXONcolor> 27028 Drill chuck with sliding sleeve for the tailstock of the DB 250 Clamps up to 5.0mm Is inserted on the spot of the rotating back centre The feed movement results from sliding the complete tailstock

€12.50*

Prices incl. VAT plus shipping costs

Proxxon 27020 MICRO woodturning lathe DB 250

PROXXONcolor> 27020 MICRO woodturning lathe DB 250 Turning in miniature is a pleasing hobby: One can make glasses, cups, saucers, vases and columns for a doll house In model trains, one can make lighting masts, windows, tanks Limbs for mario nettes and hundreds of classical miniature turning tasks may be carried out with ease The electronic speed control assists in the lower range in a ‘semi-automated’ painting process Technical data: Motor 220 - 240V. 100W. 50/60Hz Centre distance of 250mm, 40mm swing 25mm swing over support Variable speed control covering between 1,000 and 5,000rpm Headstock spindle bore of 10mm. Tailstock travel 20mm. Includes 6 collets (2 - 3 - 4 - 6 - 8 - 10mm) drive centre live centre and face plate.

€139.95*

Prices incl. VAT plus shipping costs

Proxxon 27024 Independent four jaw chuck, DB 250

PROXXONcolor> 27024 Independent four jaw chuck for the DB 250 With individually adjustable jaws Used to clamp asymmetrical pieces such as rectangles The reversible jaws clamp from 1.5 – 35mm (inside) and from 14 - 67mm (outside) The DB 250 headstock spindle of thread M16 x 1 screws directly into the chuck

€22.95*

Prices incl. VAT plus shipping costs

Proxxon 27026 Three jaw chuck for the lathe DB 250

PROXXONcolor> 27026 Three jaw chuck for the lathe DB 250 Used for concentric clamping Made from steel and offering 1.5 to 32mm and 12 to 65mm when reversing the jaws The chuck has a M16 x 1 thread for fitting directly to the DB 250 headstock spindle

€37.95*

Prices incl. VAT plus shipping costs
