Proxxon 27070 Table saw FET
Product information "Proxxon 27070 Table saw FET "
PROXXON 27070 Table saw FET
Features:
- For fine mechanics, model building, mould construction, toy manufacture, architects, model carpenters and fitters
- For cutting wood, non-ferrous metals, plastics, Plexiglas, glass fibre reinforced sheets, foam and many other materials
- Stable construction because load bearing parts and plane-milled table are made of die-cast aluminium

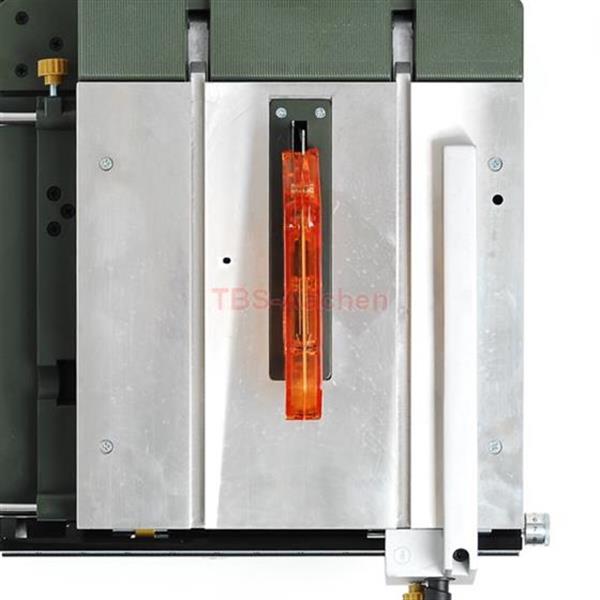

- The micro-adjustable, precise and stable longitudinal stop provides decisive advantages: Corrections even smaller than 1/10 mm can be made after coarse adjustment using an adjusting screw

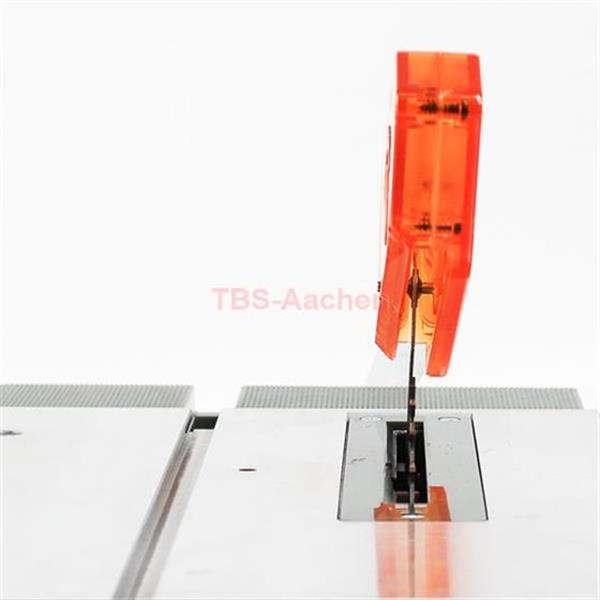

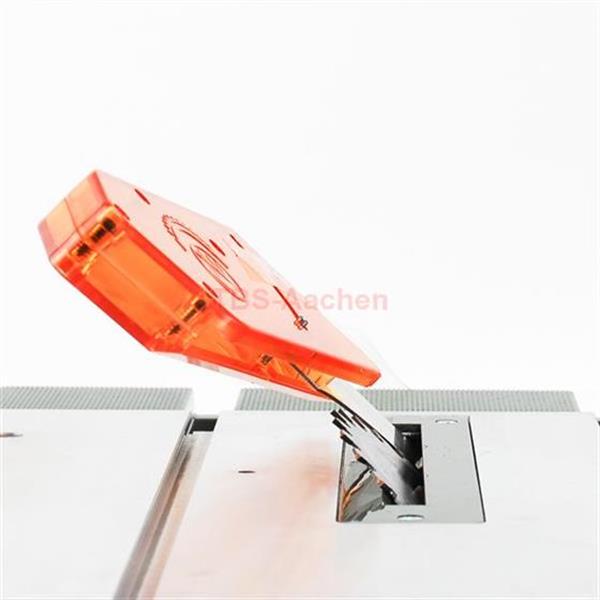

- The height adjustable and 45° tiltable saw blade makes it possible to cut double mitres when used together with the angle stop
- Low-noise drive using DC special motor with Optibelt toothed belts
- Ball-bearinged saw blade shaft
- Tungsten tipped saw blade 80 x 1.6 x 10mm (24 T)
- Additional work piece pusher and non-slotted ABS sawing gap cover for tight tolerances between saw blade and table
Technical data:
- 220 - 240V. 7,000rpm

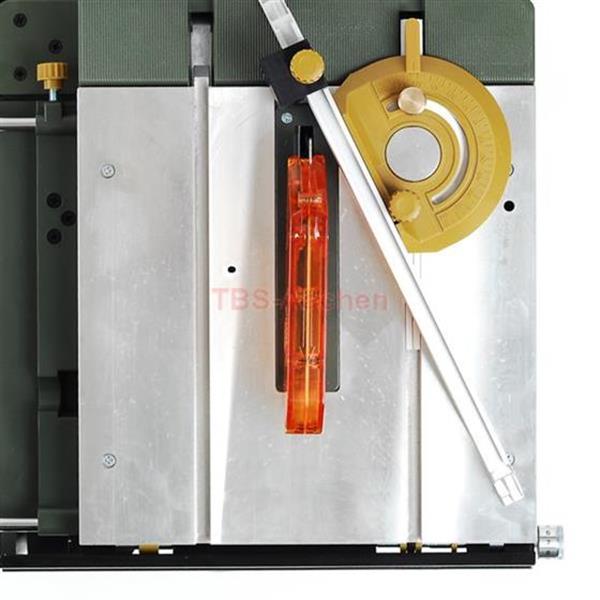

- Mitre infinitely adjustable up to 45°
- Table size 300 x 300mm
- Cutting depth 1 - 22mm
- Saw blades between 50 - 85mm can be used (with 10mm centre hole)
- Weight approx. 6kg
| Micromot devices: | Circular table saws |
|---|
