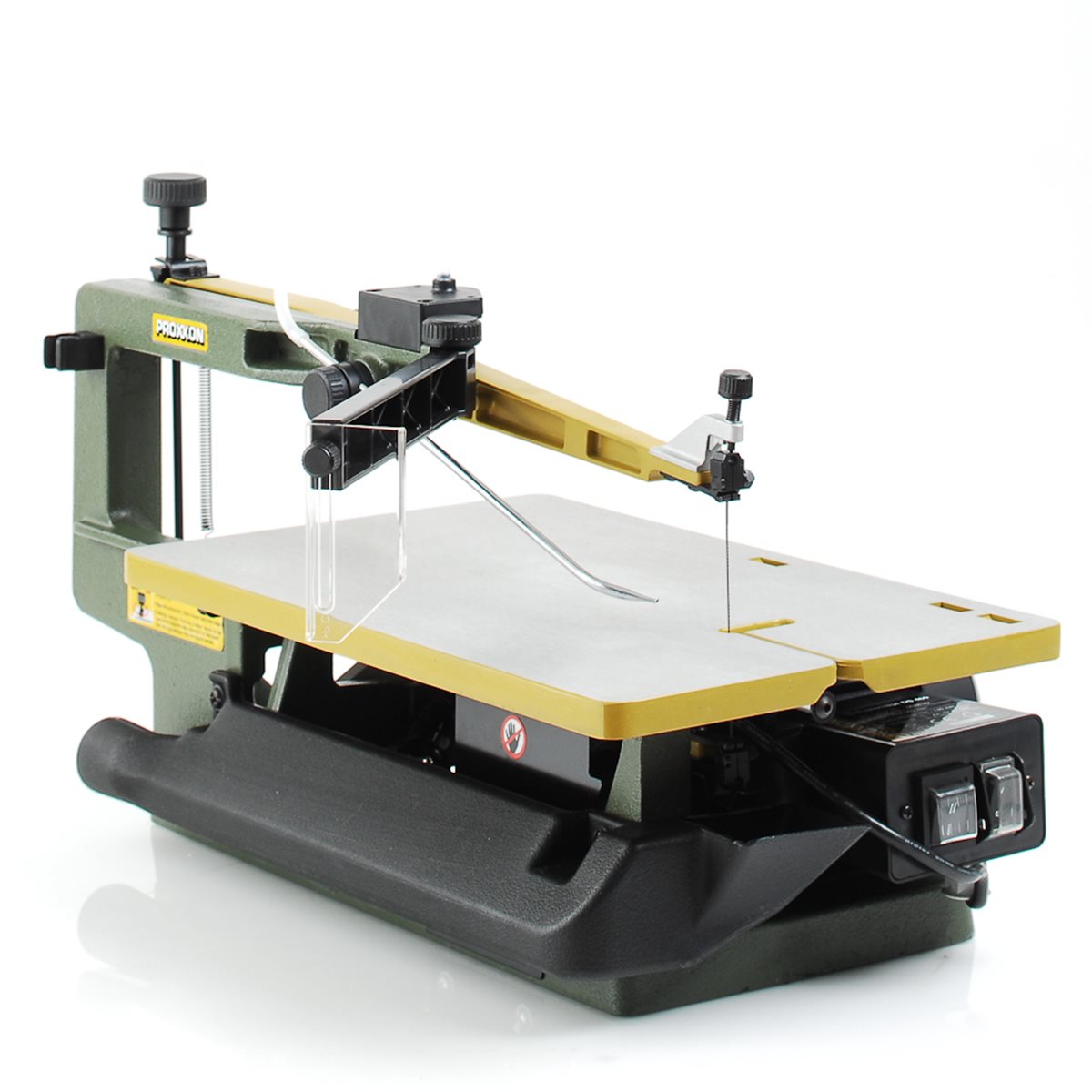

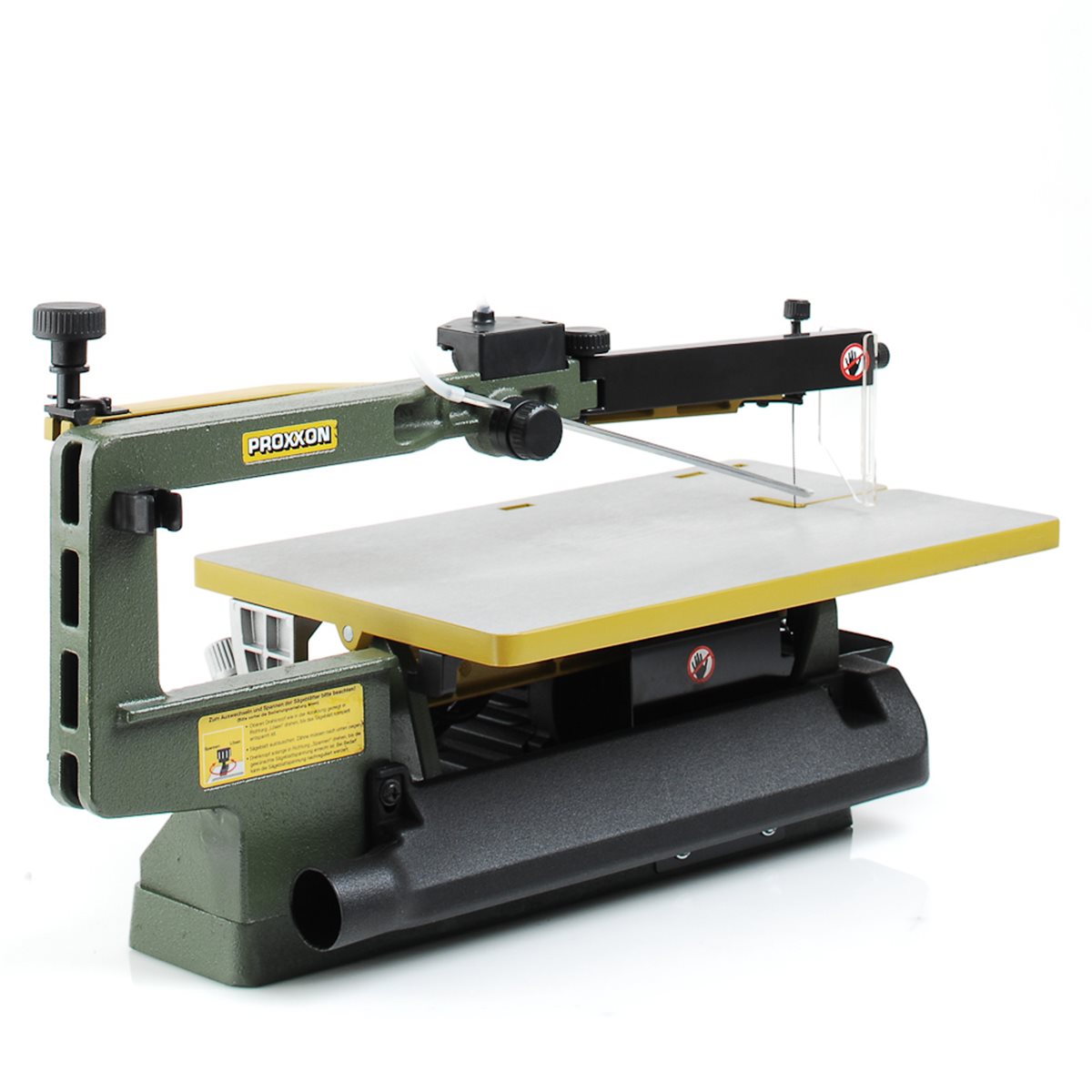

Proxxon 27094 2-speed scroll saw DS 460
Product information "Proxxon 27094 2-speed scroll saw DS 460 "
PROXXONcolor> 27094 2-speed scroll saw DS 460
Features:
- Extremely light magnesium saw arms now reduce the weight of the mass to be moved by 40% as compared to die-cast aluminium. This makes the machine run even more quietly!
- Sturdy construction:
- Vibration-reducing base housing of cast steel,neatly CNC-processed and powder-coated.
- For stability and working without vibrations
- Magnesium saw arms precisely mounted on bearings:
- Extremely light and firm with a slender-shaped cutting area for an unobstructed view of the work piece
- Chip blowing device with adjustable nozzle
- Additional suction connection to connect a vacuum cleaner
- Large saw table made of die-cast aluminium (400 x 250mm)
- For easier saw blade replacement, it can be unlocked and pushed back (see description at top right)

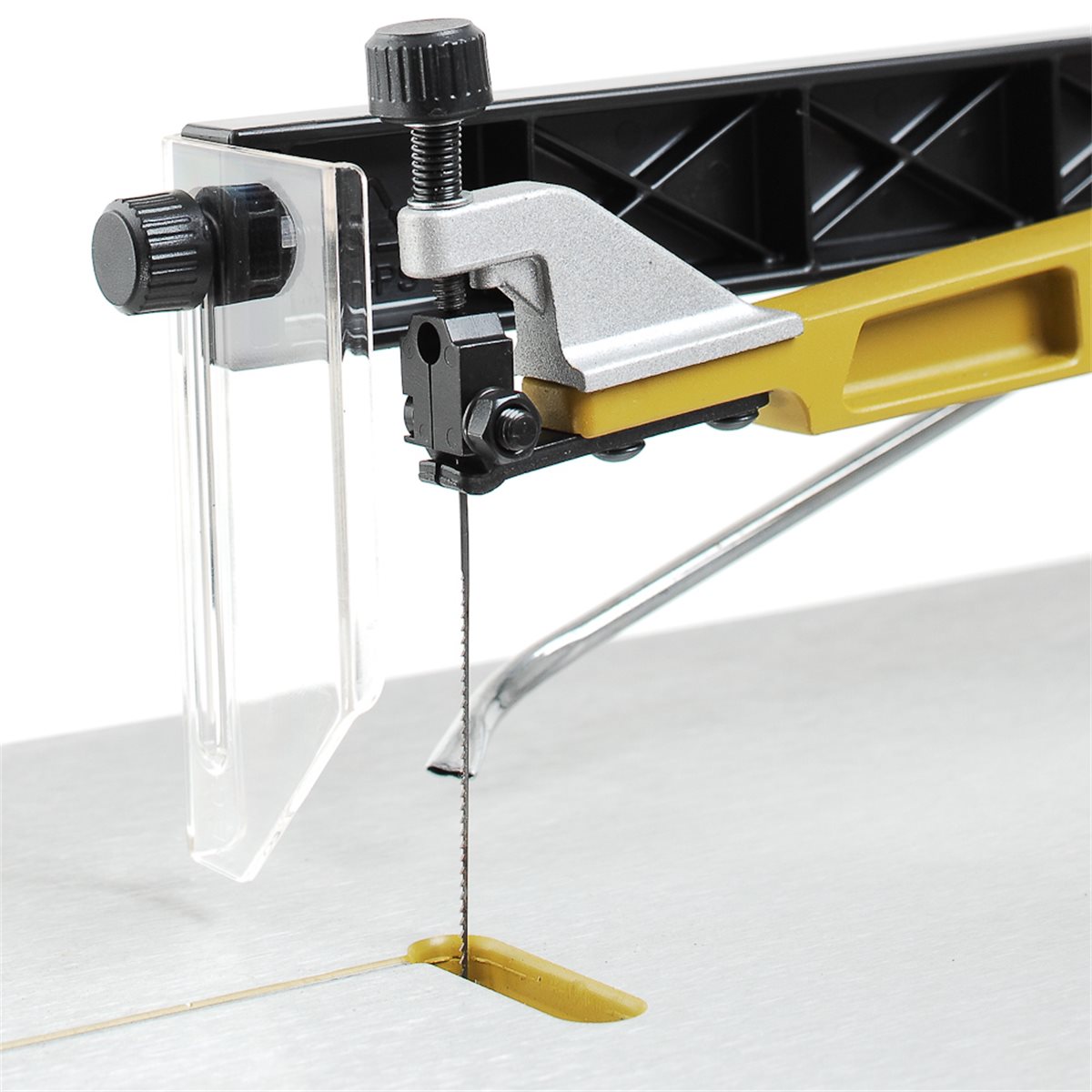

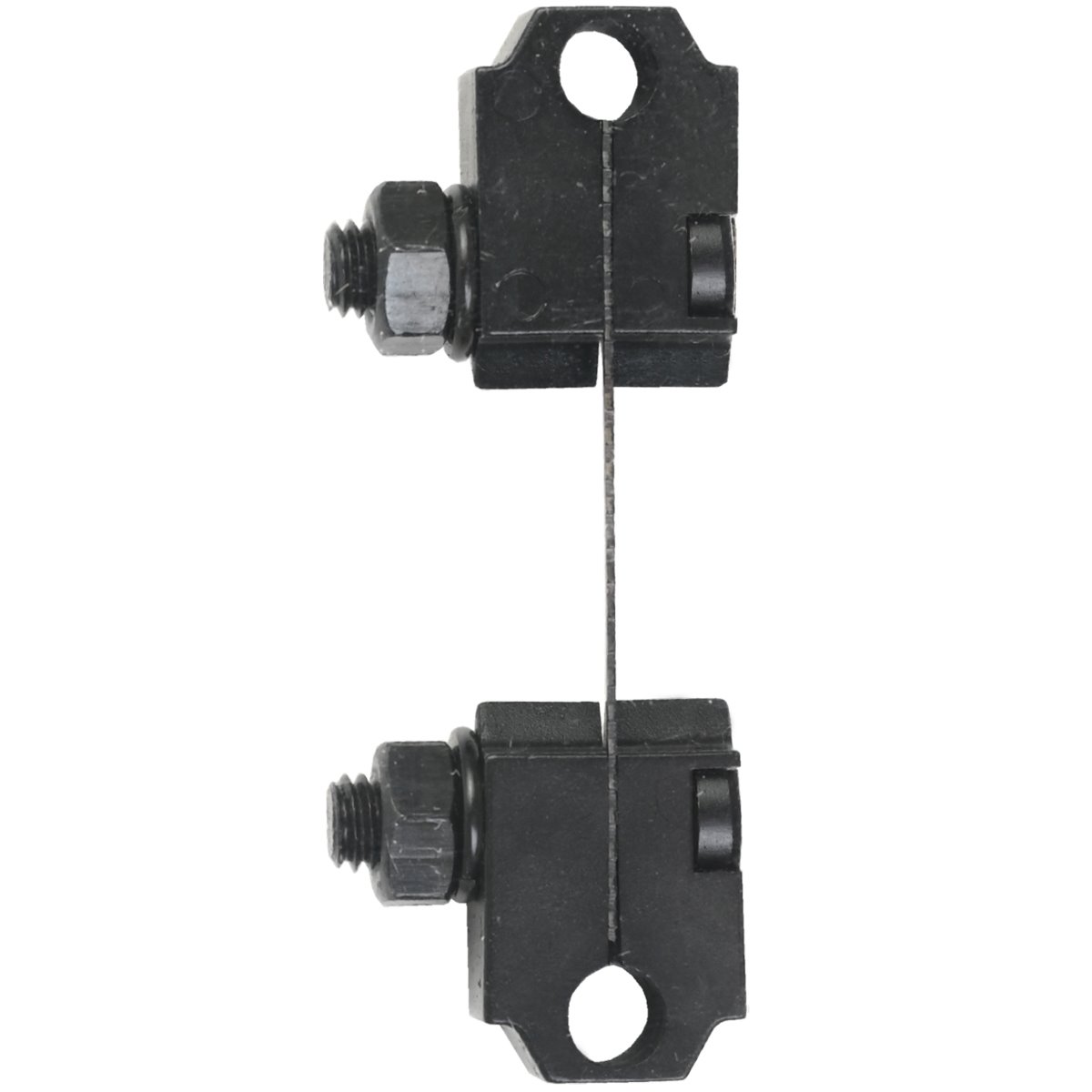

- Regular scroll saw blades are fastened by saw blade holders with high clamping force: This ensures true alignment in the saw arm!
- The machine has also been prepared for saw blades with pin ends that are used without blade holders
- Extremely important for these types of scroll saws: A handy adjusting knob enables sensitive clamping of the saw blades!

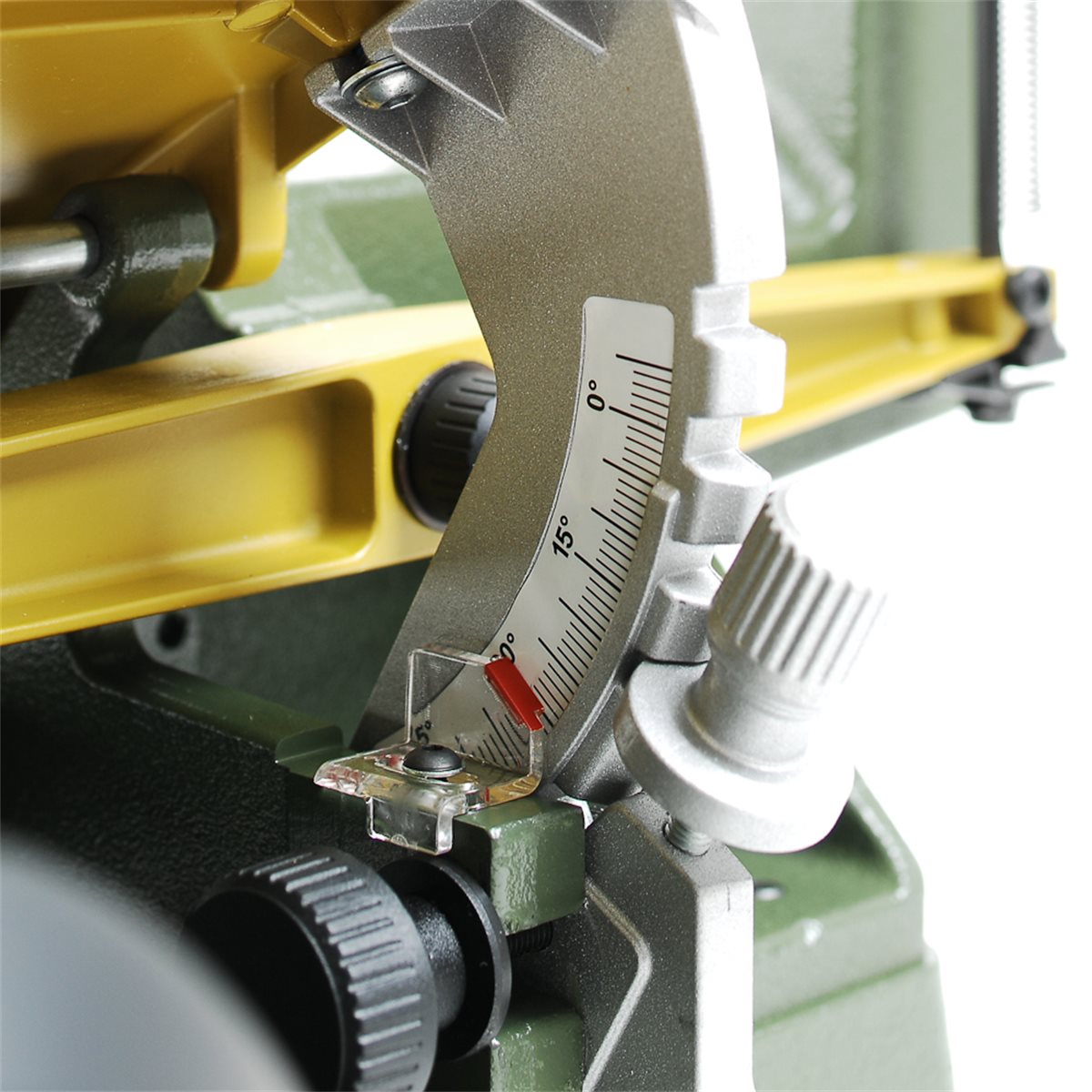

- Table angle adjustment possible from 5° to 50° (see bottom right)
- Cutting performance in wood 60mm, in non-ferrous metals (depending on type) 10 - 15mm
- Also easily cuts Plexiglas, glass fibre reinforced plastic,foam, rubber, leather or cork
- Includes 5 each coarse and fine saw blades
Technical data:
- 220 - 240V.

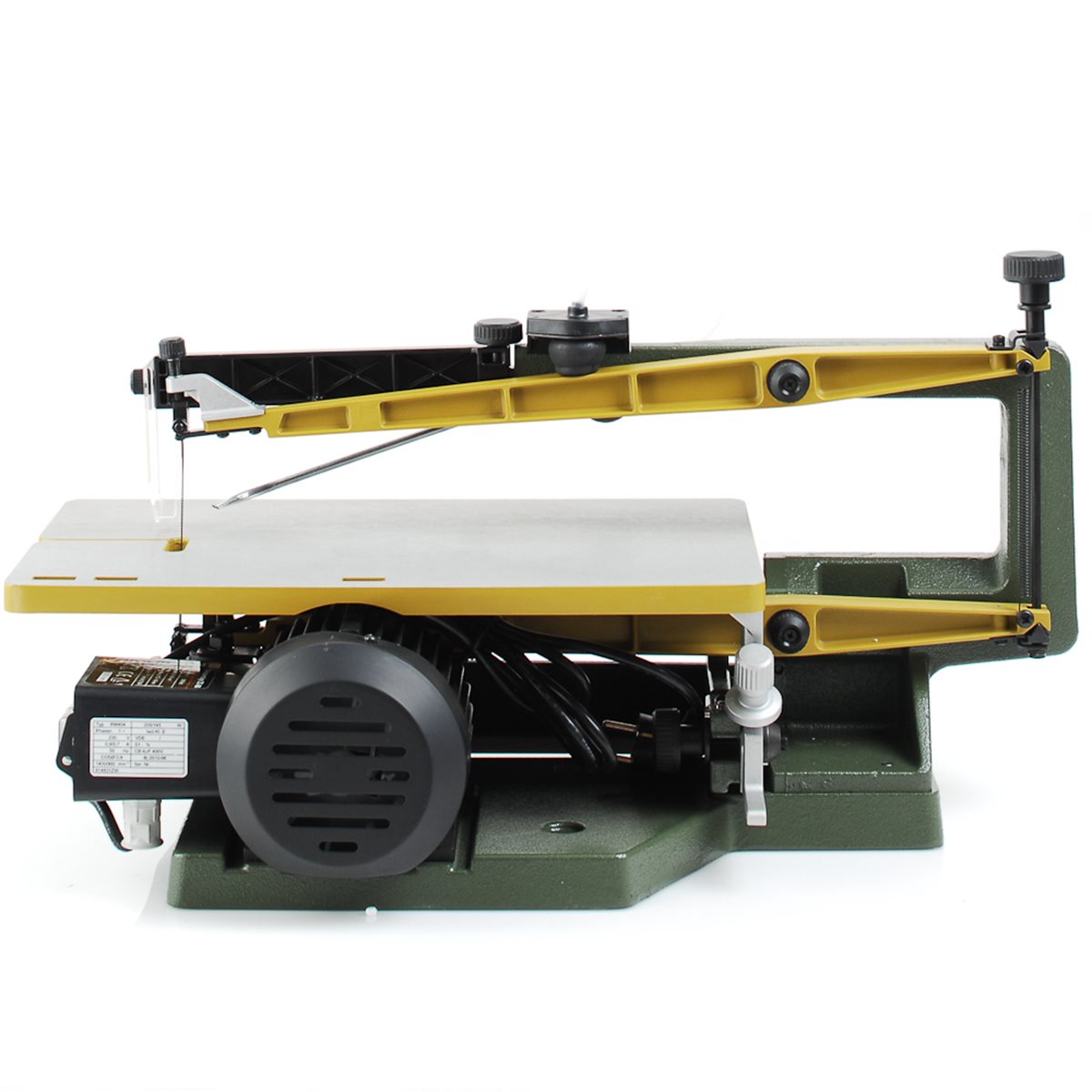

- Powerful, brushless 2-speed motor (205W)
- Throat 460mm
- Stroke alternatively 900 or 1,400rpm
- Saw stroke 18mm
- Table size 400 x 250mm
- Maximum work piece passage 65mm (at 45° mitre 32mm)
- L 580mm, W 320mm, H 300mm
- Weight 20kg
