Proxxon 28512 MICROMOT 50/EF

€29.95*

Content: 1 pcs

Prices incl. VAT plus shipping costs

Available, delivery time: 2 working days

Available₁: 4 unit(s)

Stk

Product number: 1843270

Manufacturer no.: 28512

EAN: 4006274285125

Weight (kg): 0.36

Product information "Proxxon 28512 MICROMOT 50/EF "

PROXXON 28512 MICROMOT 60/EF

Features:

Slim, easily handled and ligh

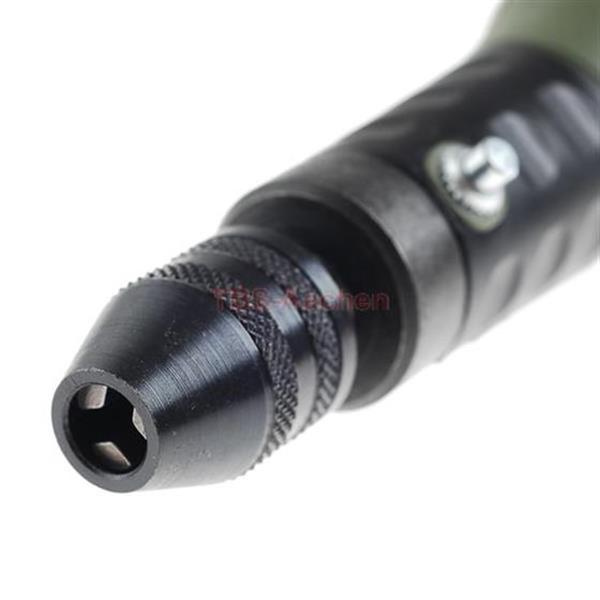

Quick-action chuck and electronic revolutions adjustment, with feedback effect (high engine power in the lower revolutions area)
Special, balanced, low noise DC motor with high life expectancy
A transformerof at least 1.0A is required for operation
We recommend MICROMOT mains adapters NG 2/S, NG 2/E or NG 5/E

Technical data:

Direct voltage 12 - 18V
Power absorption 40W
Stroke speed 5,000 - 20,000rpm
Length 220mm
Weight 230g

Note:

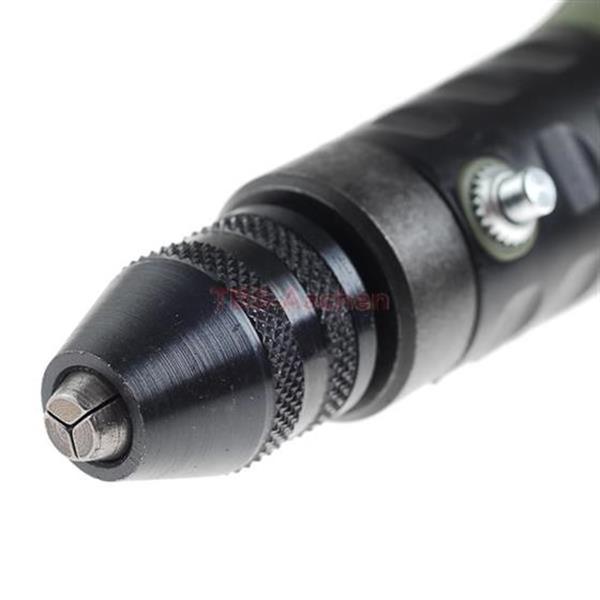

The MICROMOT 50/EF can also be fitted with MICROMOT steel collets
This is recommended when milling continuously at high lateral pressure
This makes it impossible for the shafts to become loosened after prolonged working
Using collets makes true running better than using the quick-action chuck

Micromot devices:	Drilling / milling device
