Proxxon 28534 Jig saw STS 12/E

€42.95*

Content: 1 pcs

Prices incl. VAT plus shipping costs

Delivery time 3 working days

Stk

Product number: 1843275

Manufacturer no.: 28534

EAN: 4006274285347

Weight in kg: 0.64

Product information "Proxxon 28534 Jig saw STS 12/E "

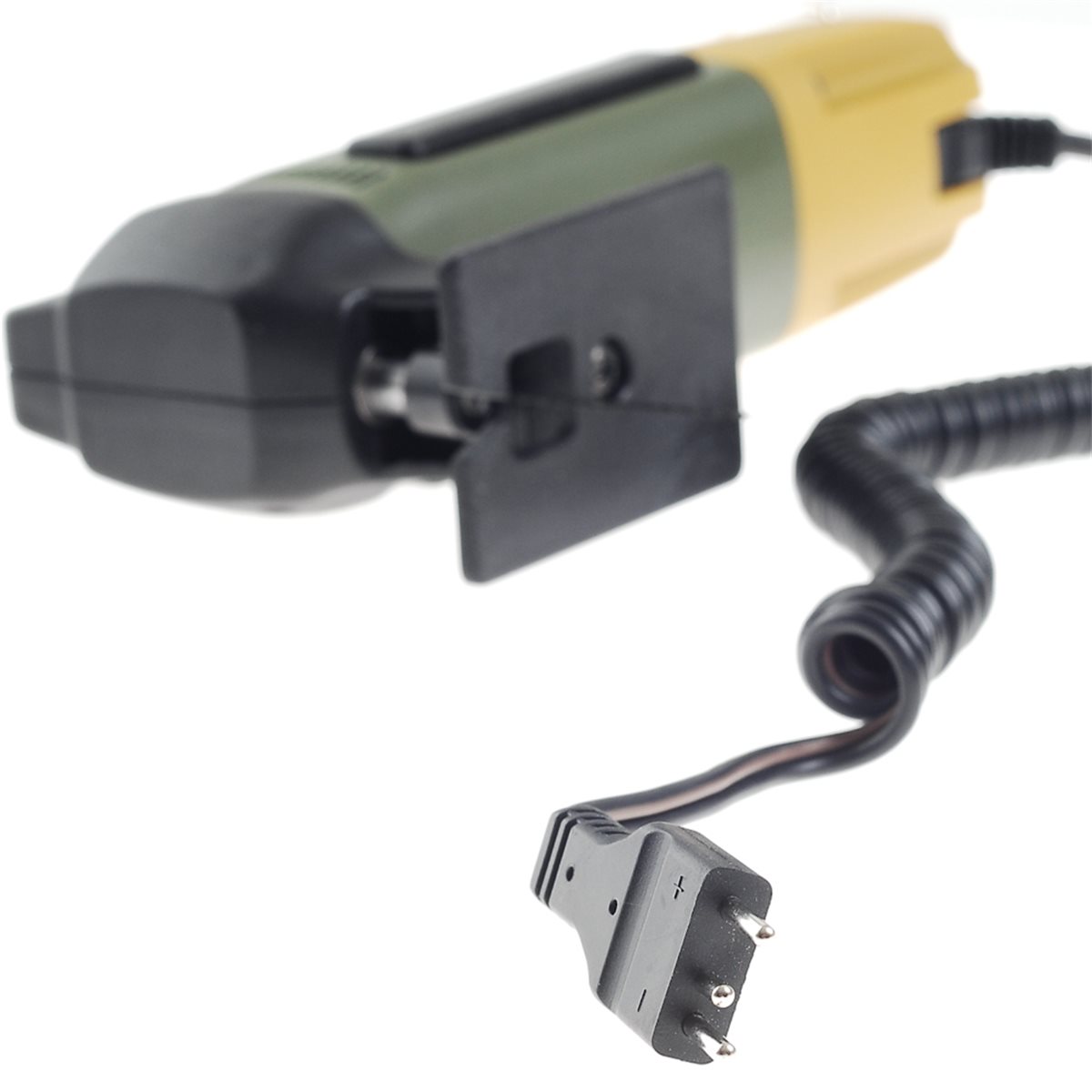

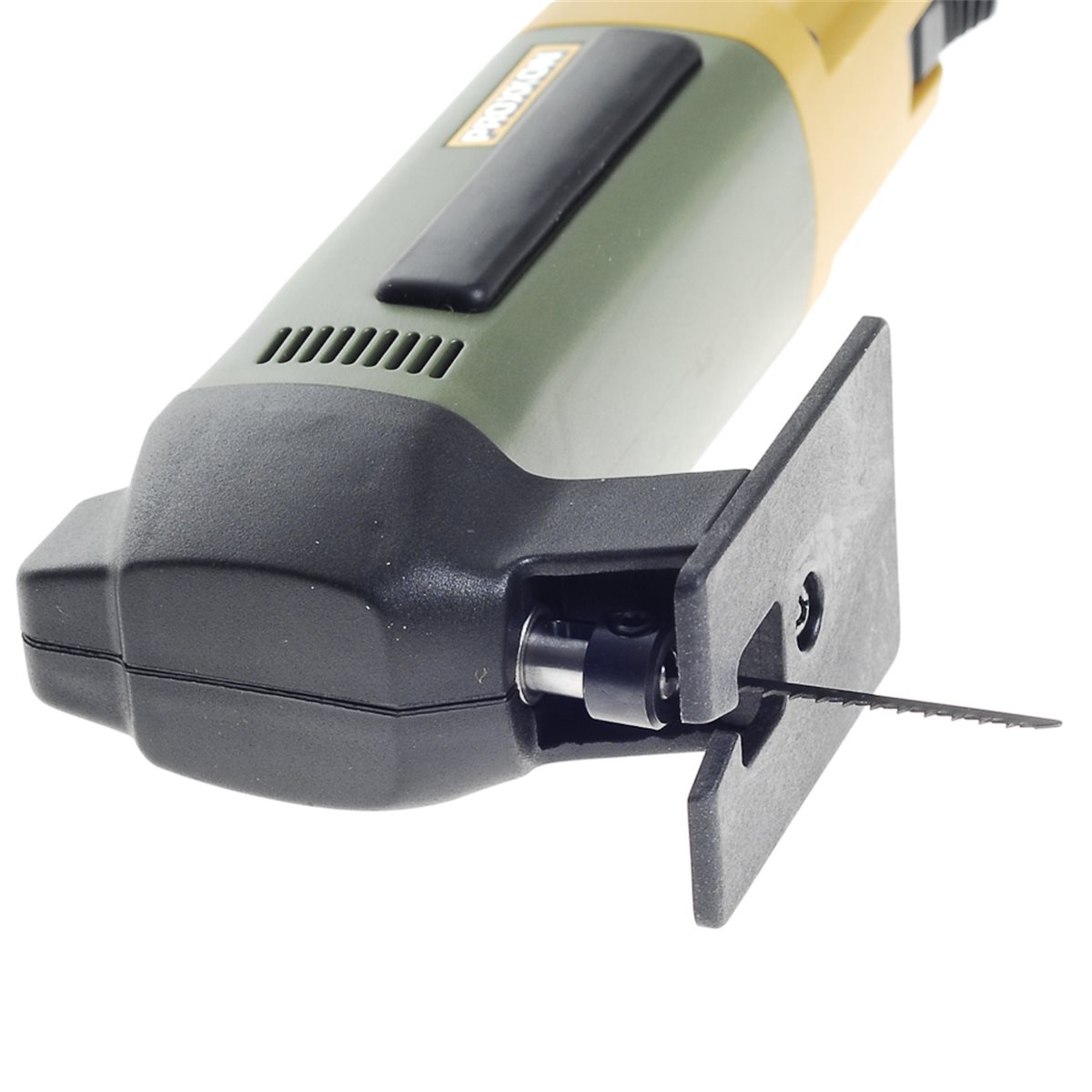

PROXXON 28534 Jig saw STS 12/E

Features:

Ideal for curved sawing of wood (up to 10mm), printed circuit boards (up to 3mm), and non-ferrous metal (up to 2.5mm)
Powerful special low noise DC motor with high life expectancy

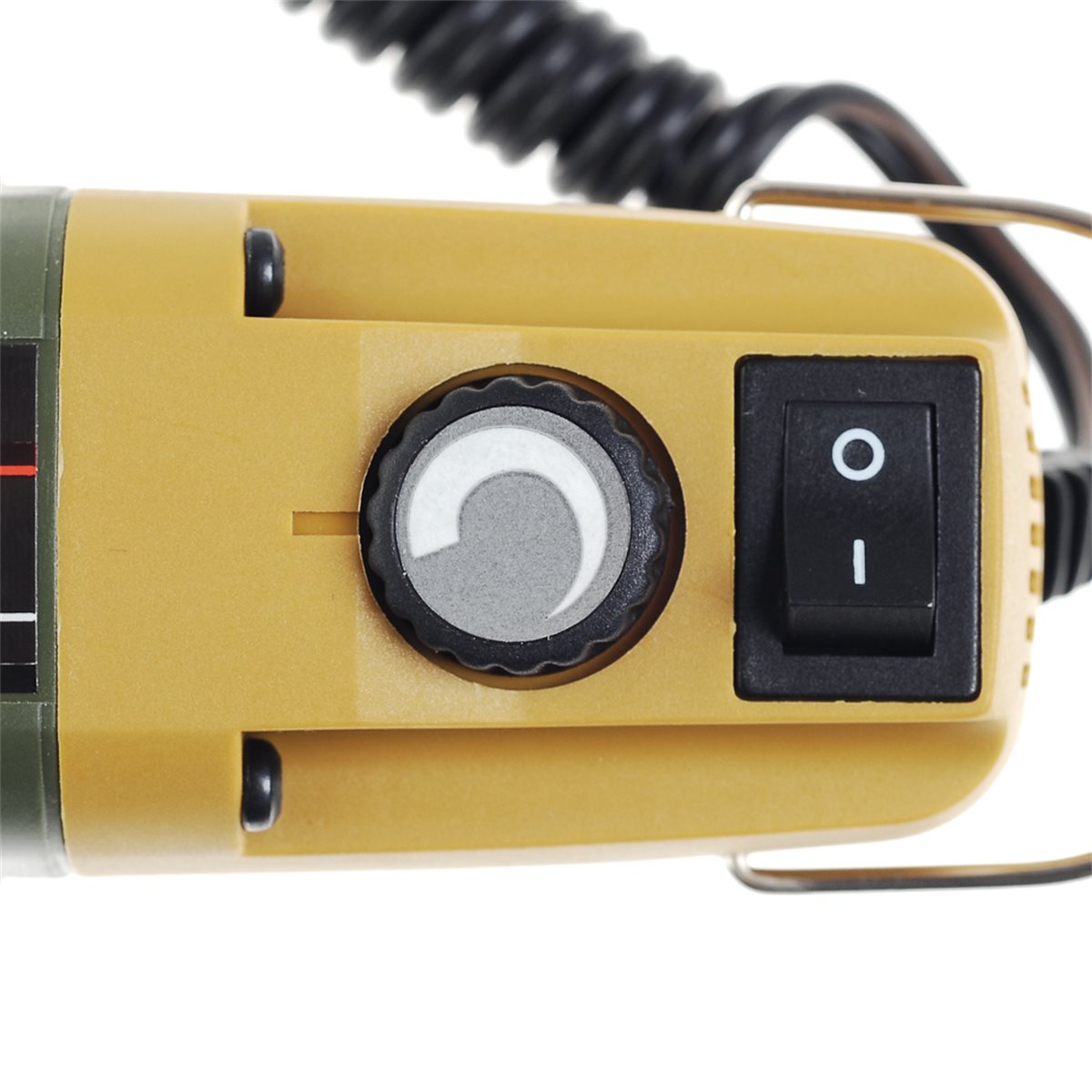

Variable speed control with feedback effect (high engine power in the lower speed range)
Housing of glass-fibre reinforced POLYAMIDE
With additional ball adapter for working on convex and concave surfaces
Is exchanged for the normal saw table by unscrewing a screw

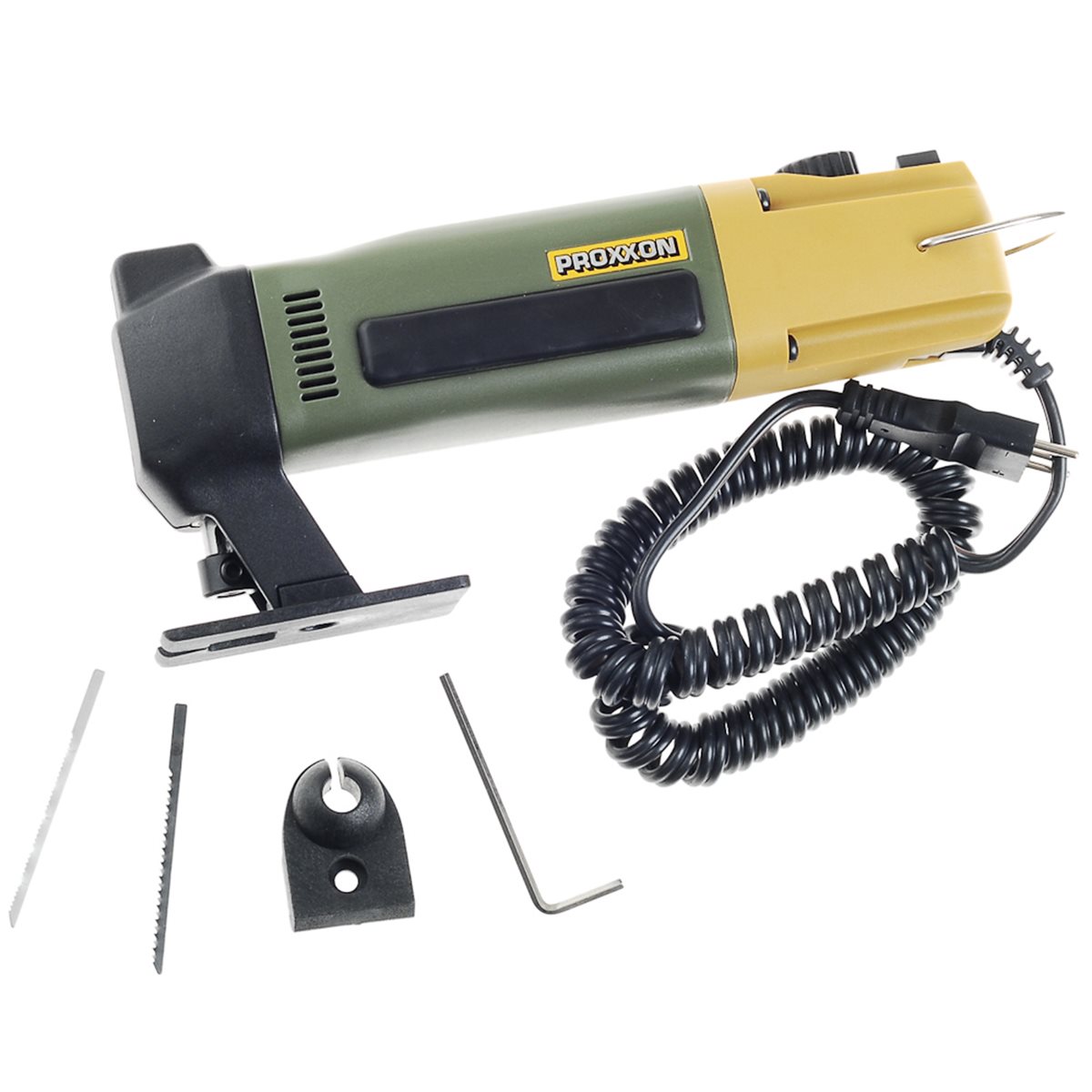

Includes 2 saw blades (coarse and fine)
We recommend MICROMOT mains adapters as of 2.0A for operation

Technical features:

Direct voltage 12 - 18V
Maximum power consumption 100W
Stroke 6mm (adjustable from 2,000 - 5,000rpm)
Length 180mm
Weight 480g
