Stahlwille 71/80 Torque Wrench Indicating
Product number:
1861531
Manufacturer no.:
50030080
EAN:
4018754104581
Weight (kg):
2.3
Product information "Stahlwille 71/80 Torque Wrench Indicating "
Stahlwille 71/80 Torque wrench MANOSKOP Model 71/80 Measuring r. 160-800N·m Tool holders 14 x 18 mm L. 1048mm
Features:
- indicating
- mount for interchangeable insert tools
- with shell adaptor no. 7370/80, all 14 x 18 mm insert tools can also be used (max. 650 N-m)
- Trailing indicator dial
- Double scale N-m/ft-lb
- Scale blade made of luminescent, yellow special foil for clear recognition of the display even in poor visibility
- Handle with integrated force compensation mechanism
- Measuring element as bending plate in the handle
- With overload protection
- Left-hand tightening by turning the torque wrench
- Calibration with the perfectControl calibration device no. 7794 or calibration system no. 7706
- Re-adjustment without disassembly
- Certificate in accordance with DIN EN ISO 6789-2:2017
- Delivered in a textile bag
- Display deviation ± 4 %
Technical features:
- Scale division N·m: 10 N·m
- Scale division ft·lb: 10 ft·lb
- Measuring range N·m: 160-800 N·m
- Measuring range ft·lb: 120-600 ft·lb

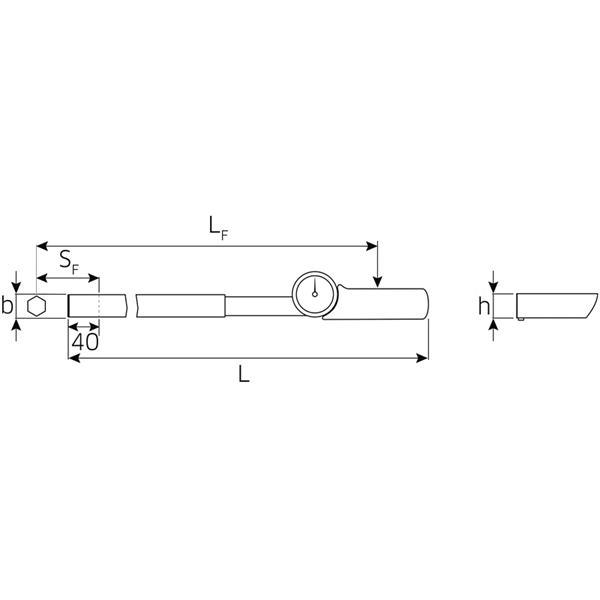

- Width mm (b): 28 mm
- DIN: DIN EN ISO 6789-2:2017
- Size square socket [inside square drive]: 14 x 18 mm
- Height mm (h): 24 mm
- Length mm (L): 1048 mm
- LF: 1050 mm
- MA N·m: 160 N·m
- Nominal value N·m: 800 N·m
- SF: 95 mm
- Weight: 2300 g
- Weigth kg: 2.3 kg
Stahlwille 71/80
Stahlwille product no: 50030080
EAN: 4018754104581
| Drive: | 24,5x28 |
|---|---|
| Torque Tools: | Mechanical torque wrench |
| Torque range: | 160-800 N·m |
