Stahlwille 713R/6 Electronic Torque Wrench In Plas tic Case
€1,587.95*
Content:
1 pcs
/ 4
Delivery time 4 working days
Variante
Product number:
1863071
Manufacturer no.:
96501606
EAN:
4018754156504
Weight in kg:
1.46
Product information "Stahlwille 713R/6 Electronic Torque Wrench In Plas tic Case"
Stahlwille 713R/6 Electronic angle torque wrench SENSOTORK Model 713R Measuring r. 3-60N·m Drive 3/8 L. 378mm
Features:
- Simple and flexible operation thanks to menu navigation on large display
- Exceptionally wide measuring range (5 % to 100 % of the nominal value)
- Supplied incl. reversible ratchet
- Additional insert tools
- QuickRelease safety lock
- For right-hand and left-hand tightening
- Measurement independent of the point of application of force
- Units of measurement: N-m, ft-lb, in-lb
- Advance warning time of the visual, warning time of the visual, tactile and audible signals adjustable
- Backlighting of the display also for evaluating the tightening process (traffic light principle)
- Individual insertion tool lengths adjustable
- Easy to maintain thanks to simple adjustment and automatic indication of the next calibration date calibration date
- recurring screwdriving operations can be summarised in a menu-guided sequence plan
- screwing operations are saved with a time stamp
- individual identification designation possible
- protected against unintentional adjustment and unauthorised access by password
- complies with DKD- R 3-7, Class 2
- with 2 certificates (torque according to DIN EN ISO 6789-2: 2017/angle of rotation)
- In a sturdy plastic case (Gr. 40 in a sturdy sheet steel box)
- Supplied with 2 AA 1.5 V batteries. AA/LR6, 1.2 V NiMH batteries can also be used
- Fully automatic calibration (torque) with the perfectControl calibration device no. 7794-2. Readjustment without disassembly
- DBGM (German Federal Utility Model)
- Torque and angle of rotation are visible simultaneously
- Convenient angle of rotation measurement in an extremely wide angle of rotation range
- Display deviation angle of rotation ±1° ±1 digit up to 100°, >100° at least 1% ± 1 digit
Technical features:
- Measuring range N·m: 3-60 N·m
- Measuring range ft·lb: 2,5-44 ft·lb
- External square drive (inch): 3/8
- Battery type: Mignon (AA) 1,5V

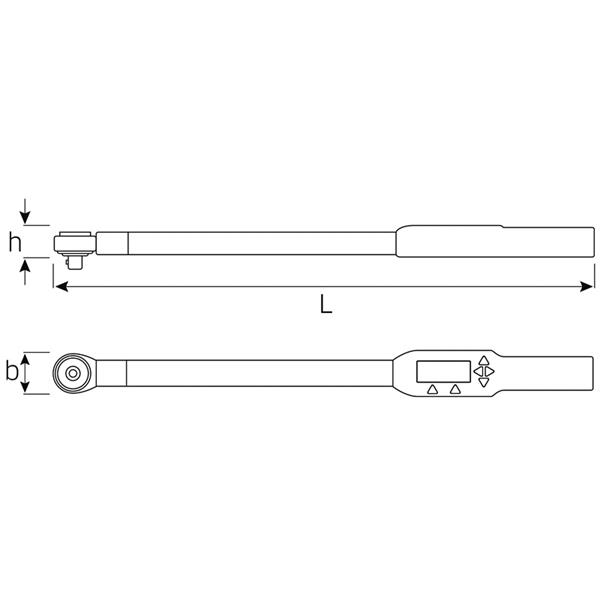

- Width mm (b): 33 mm
- DIN: DIN EN ISO 6789-2:2017
- Weight with box: 1500 g
- Size: 6
- Size square socket [inside square drive]: 9 x 12 mm
- Height mm (h): 24 mm
- Length mm (L): 378 mm
- LF: 299 mm
- SF: 17,5 mm
- Weight: 856 g
- Weigth kg: 1.460 kg
Stahlwille 713R/6
Stahlwille product no: 96501606
EAN: 4018754156504
| Design/type: | reversible |
|---|---|
| Drive: | 3/8" (10mm), 9x12 |
| Torque Tools: | Electrical Torque Wrench |
| Torque range: | 3-60 N·m |
